Rosewill RNX-N180UBE Manual de usuario

Wireless N Adapter RNX-N180UBE

Quick Installation Guide

Wireless N Adapter RNX-N180UBE Quick Installation Guide

About This Guide

This Quick Installation Guide only provides you some basic configuration

instructions. For more detailed information, please refer to the Wireless Network

Adapter User Manual.

Before you begin, you must check the following minimum system requirements

A notebook /desktop pc with an available USB port

At least a 300MHz processor and 32MB of memory

An 802.11n、802.11g or 802.11b Access Point (for infrastructure Mode) or

another 802.11n、802.11g or 802.11b wireless adapter (for Ad-Hoc;

Peer-to-Peer networking mode.)

1

Wireless N Adapter RNX-N180UBE Quick Installation Guide

Install Driver and Utility

Insert the Driver and Utility CD-ROM into the CD-ROM driver.

The Wizard should run automatically, and Error! Reference source not

found. should appear. If not, click the Start button and choose Run. In the

field that appears, enter D:\autorun.exe (if ‘’D’’is the letter of your CD-ROM

drive).

Click Install Driver & Utility for USB Wireless Adapter on the Wireless

Client Configuration Utility dialogue box, and then select the installing

language from the next screen and click Next button.

2

Wireless N Adapter RNX-N180UBE Quick Installation Guide

Click Next

Click Install to start installing

3

Wireless N Adapter RNX-N180UBE Quick Installation Guide

You may encounter this window, please click Continue Anyway to proceed.

Follow the InstallShield Wizard steps, and click Finish when done.

Now your PC or notebook will restart automatically.

4

Wireless N Adapter RNX-N180UBE Quick Installation Guide

Install Wireless Adapter

The wireless USB Adapter supports up to 300 Mbps wireless connection. This

USB adapter is fully compliant with the specifications defined in IEEE802.11n

standard. It is designed to complement USB2.0 computers and supports

Windows98SE/Me/2000/XP/Vista.

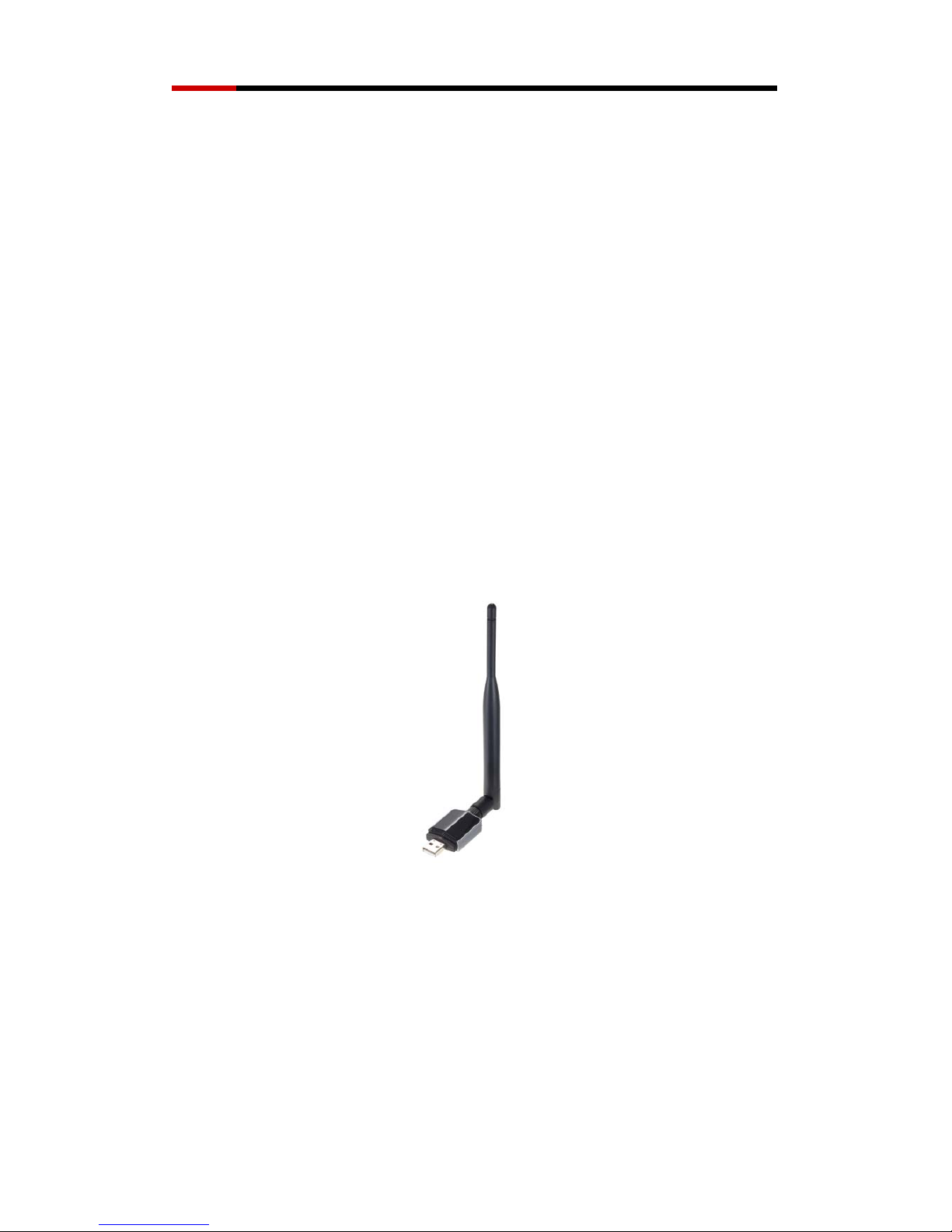

USB adapter

The status LED indicators of the USB wireless adapter are described in the

following.

Lnk/Act ON (Green): Indicates a valid connection

Lnk/Act Flashing: Indicates the adapter is transmitting or receiving data.

Install USB adapter

Power on your PC, let the operating system boot up completely, and log in

as eeded.

Hold the adapter and insert it into a USB slot.

If the Welcome to Found New Hardware Wizard displays, choose install

the software automatically (Recommended), and click Next button. The

5

Wireless N Adapter RNX-N180UBE Quick Installation Guide

Now you have completed the driver and hardware installation for the adapter.

6

Wireless N Adapter RNX-N180UBE Quick Installation Guide

Configure your wireless adapter

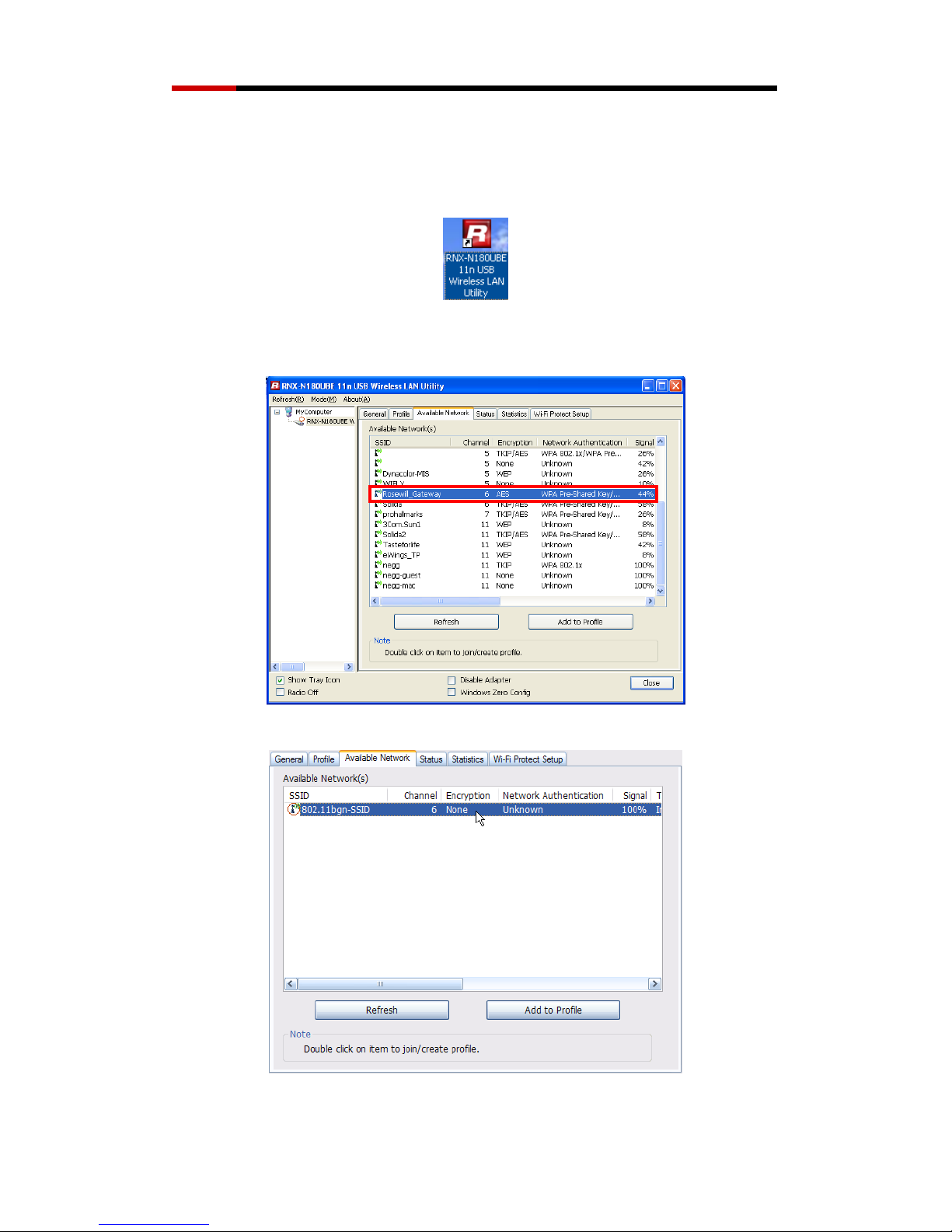

Double-click the icon on your desktop to run

Select Available Network tab and click Refresh button to refresh

current available wireless network

Double-click a wireless network which you want to connect

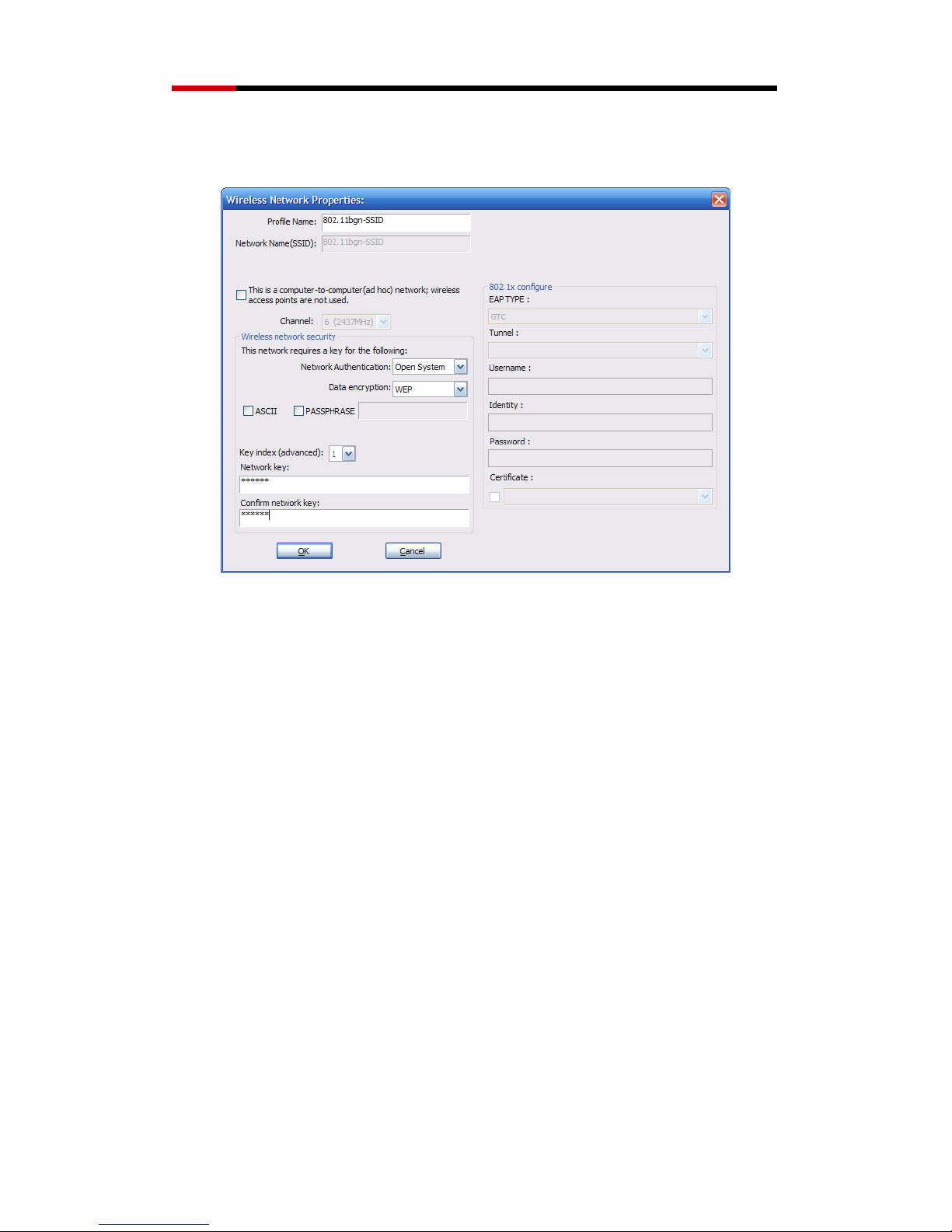

Choose the Network Authentication Mode and Data encryption from

7

Wireless N Adapter RNX-N180UBE Quick Installation Guide

8

the drop-down menu and import the network key in popup window.

Then click OK button.

Congratulations! You’ve successfully configured your wireless adapter

and connected to a wireless network!
