Rosewill N900UBE Manual de usuario

Wireless N Dual Band Adapter N900UBE

Quick Installation Guide

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

Safety Information:

In order to keep the safety of users and your properties, please follow the following safety

instructions:

1. This USB wireless network card is designed for indoor use only. DO NOT expose this

network card to direct sun light, rain, or snow.

2. DO NOT put this network card at or near hot or humid places, like kitchen or bathroom. Also,

do not left this wireless network card in the car in summer.

3. This network card is small enough to put in a child‟s mouth, and it could cause serious injury

or could be fatal. If they throw the network card, the card will be damaged. PLEASE KEEP

THIS NETWORK CARD OUT THE REACH OF CHILDREN!

4. This network card will become hot when being used for long time (This is normal and is not

a malfunction). DO NOT put the network card on a paper, cloth, or other flammable objects

after the network card has been used for a long time.

5. There‟s no user-serviceable part inside the network card. If you found that the network card is

not working properly, please contact your dealer of purchase and ask for help. DO NOT

disassemble the network card by yourself, warranty will be void.

6. If the network card falls into water, DO NOT USE ITAGAIN BEFORE YOU SEND THE

CARD TO THE DEALER OF PURCHASE FOR INSPECTION.

7. If you smell something strange or even see some smoke coming out from the network card,

switch the computer off immediately, and call dealer of purchase for help.

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

Overview

Thank you for purchasing Rosewill‟s N900UBE. This is an extremely high-speed 802.11a/b/g/n

dual band wireless network USB Adapter. This wireless network adapter is transferring data at a

transfer rate of 450Mbps at both 2.4GHz and 5GHz.

N900UBE with an easy-to-install USB 2.0 interface and external antenna, setting up this wireless

adapter will be just as easy!

1.1 Package Content

Before getting started, please verify that your package includes the following items:

1. Rosewill N900UBE Wireless Dual Band USB Adapter x 1

2. Quick Installation Guide x 1

3. Resource CD x 1, including:

Wireless Utility and Driver

User Manual

Quick installation guide x 1

Note:

Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with

your distributor.

1.2 System Requirement

You must have at least the following

A desktop PC or Notebook with An empty USB 2.0 port (May not be able work with USB 1.1

port, performance will be greatly reduced)

At least a 300MHz processor and 32MB of memory

Windows OS for WinXP, Vista, and 7 or Mac OS 10.5, 10.6, 10.7

At least 100MB of available disk space

A CD-ROM Drive

A 802.11n、802.11g or 802.11a/b Wireless (and Dual Band) Access Point/Router (for

infrastructure Mode) or another 802.11n、802.11g or 802.11b wireless (and Dual Band)

adapter (for Ad-Hoc; Peer-to-Peer networking mode).

Installation Guide

2.1 Hardware Diagram

1. USB Connector

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

2. External Wireless Antenna

3. Link/Activity LED

4. WPS Button (Press to activate WPS pairing mode)

2.2 Dual Band Wireless Adapter Driver and Utility Installation

Please follow the following instructions to install your new wireless network card:

1. Insert the USB wireless network card into an empty USB 2.0 port of your computer when

computer is switched on. Never use force to insert the card, if you feel it‟s stuck, flip the card

over and try again.

2. Insert device driver CDROM into the CD/DVD ROM drive of your computer, and execute

„Setup.exe‟program in „Driver‟folder.

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

3. On Windows Vista / Windows 7 computer, you may see UAC (User Account Control) window

popup to warn you that this program is going to make changes to your computer, click „Yes’

to continue.

4. Please select “I accept the terms of the license agreement”, and then click „Next’

5. Select „Install driver and Ralink WLAN Utility‟and click „Next‟to continue. Optionally, you

can select „Install driver only‟to install wireless network card driver only, and use Windows‟

built-in wireless manager.

If you don‟t know which one you should choose, select „Install driver and Ralink WLAN

Utility‟for maximum functionality.

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

(Windows XP Only)

6. Select the wireless configuration utility you wish to use, then click „Next‟to continue. It‟s

recommended to select „Ralink Configuration Tool‟for maximum functionality. If you used

to use Windows‟ built-in configuration tool, select „Microsoft Zero Configuration Tool‟.

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

(Windows XP Only)

7. Click „Install‟to continue.

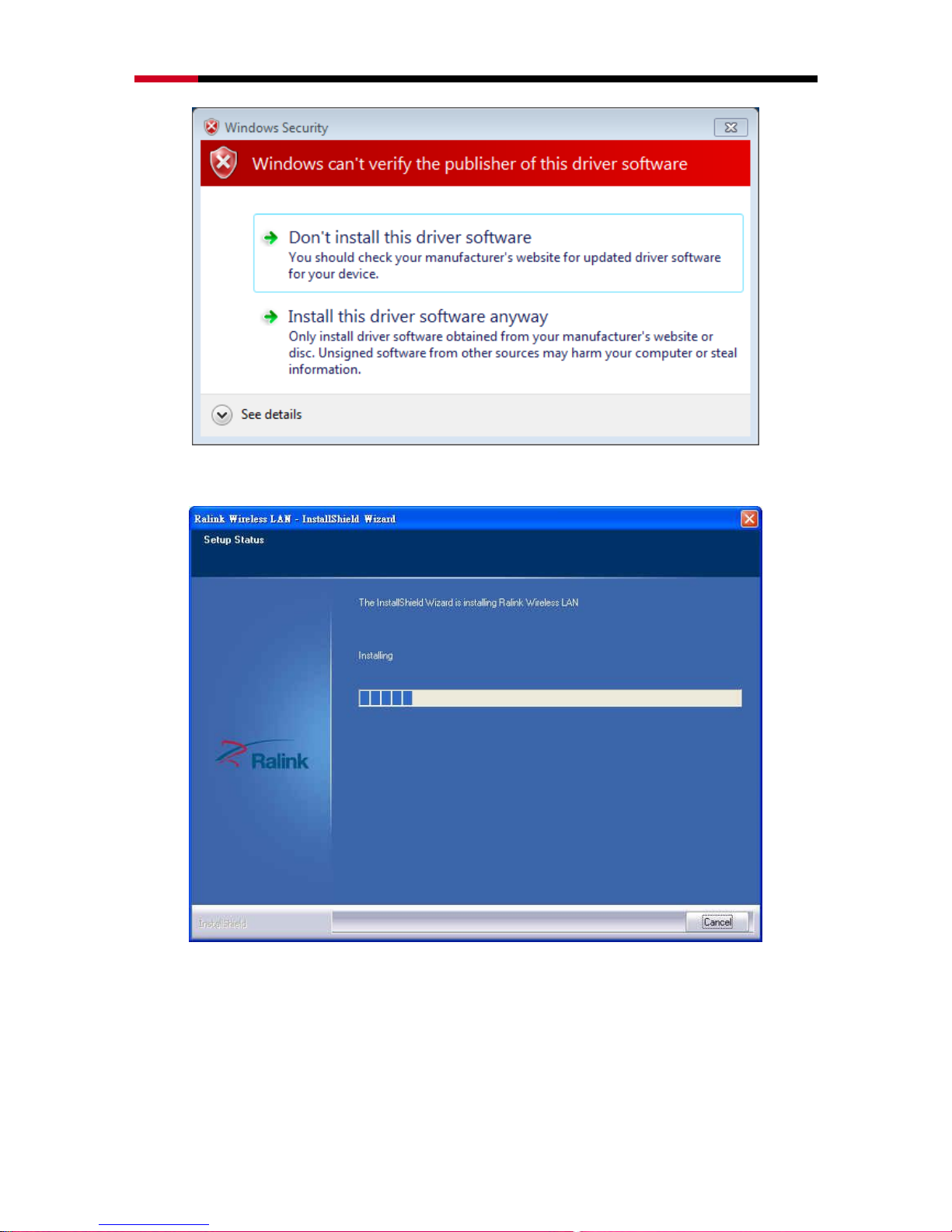

Please note: If you see this message, click ‘Install this driver software anyway’ to continue.

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

8. Please be patient while installation is in progress, this may require few minutes.

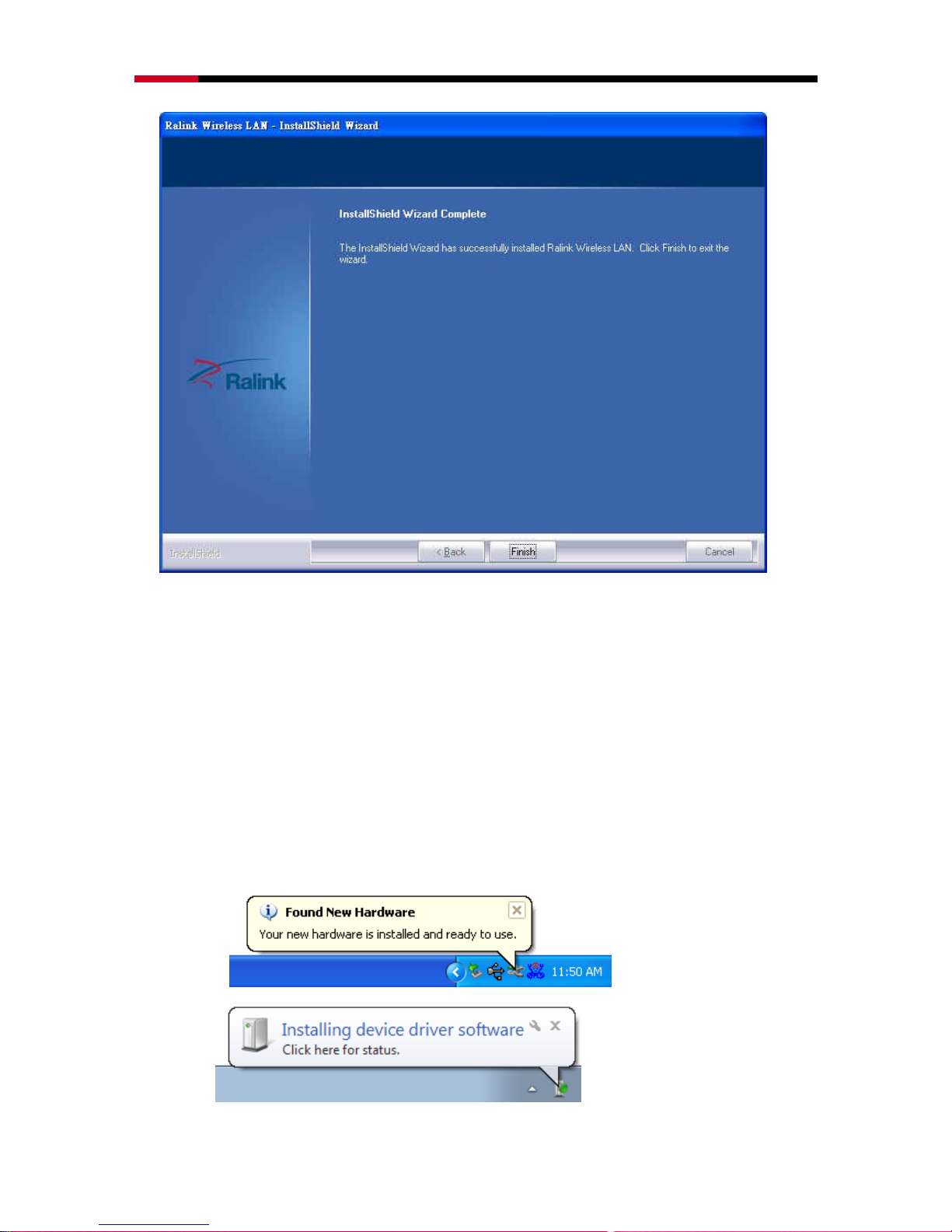

9. Click „Finish‟ to finish installation procedure.

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

10. Please insert your USB wifi network card to any empty USB port now. A popup message

indicating that your computer found „802.11n USB Wireless LAN Card‟ will appear. Please be

patient while Windows is installation driver.

This message will only appear when you insert the USB wifi network card to your computer‟s

USB port, or you insert the network card to a different USB port of your computer.

11. You should be able to see this popup message, indicating your new USB network is ready to

use; If not, please either try to re-install driver, or insert the network card to another USB port

of your computer.

(Windows XP)

(Windows Vista / 7)

Wireless N Dual Band Adapter N900UBE Quick Installation Guide

12. A new icon will appear near the clock of system tray:

Left-click the icon will launch wireless network configuration utility, and you can right-click the

icon to show the quick menu of configuration utility.

This icon uses 5 colors to represent current network status:

(Green)

The Wireless Adapter established, signal strength good

(Yellow)

The Wireless Adapter established, signal strength normal

(Red)

The Network connection established, signal strength poor

(Blue)

The Network connection is not yet established

(Black)

The WirelessAdapter is not found on your computer

Wireless Connection Guide

This chapter describes how to configure your Adapter for wireless connectivity on your Wireless

Local Area Network (WLAN) and use the data security encryption features.

After Installing the Adapter, the Adapter‟s tray icon will appear in your system tray. It appears at

the bottom of the screen, and shows the signal strength using color and the received signal

strength indication (RSSI).

In the following instruction for making a network connection, we use the provided Utility to

configure your wireless network settings.

Note: You could use either the software we provide or Microsoft Zero Configuration tool to

configure this adapter.

3.1 Connecting with Microsoft Zero Configuration tool (Win XP)

After specifying the Microsoft Zero Configuration tool to configure your wireless network,

HERE!
