Rosewill RCAD-11002 Manual de usuario

User Manual

RCAD-11002

USB to HDMI Adapter

Thank you for purchasing a quality Rosewill Product.

Please register your product at : www.rosewill.com for

complete warranty information and future support for your product.

User ManualUSB to HDMI Adapter RCAD-11002

Introduction

The USB TO HDMI adapter(Rosewill USB to HDMI Adapter) is the perfect solution

for connect your computer or notebook to your HDTV or monitor via an all in one

HDMI connection. It can convert USB2.0 interface to HDMI, and allows you to add

extra display (up to 6 displays for pc or 4 for Mac ) through your USB2.0 Port.

Extend your desktop across 2 or more (limited 6) displays allowing you to increase

your window frame like never before or Expand spread sheets across 2 or more

(limited 6 ) display, in graphics programs increase your working area by putting all

your pallets on the second display. You will be able to enjoy stunning HD video quality

1080p along with superior audio. Mirror model can make all the assistant displays show

the same window frame as main display synchronously.

Feature

• USB2.0 specification compatible

• HDMI , HDCP , and DVI compatible

• Easy to install

• Models supported :

1.Main display

2.Extend

3.Mirror

• No extra power needed

• Plug and play

• Support WIN2000 SP and above

• Resolution Supported :

640×480(VGA),800×600(SVGA), 1024×768(XGA), 1280×720(HDTV 720P),

1280×1024(SXGA),1360×768(Wide VGA), 1366×768(WXGA), 1440×900(WXGA),

1600×1200(UXGA), 1680×1050(WSXGA+), 1920×1080(Full HD).

Product Requirement

• The basic requirement of hardware

• CPU must have 1.2GHz time frequency

• At least 256MB memory, recommend 512MB

• USB2.0 Version

• 30MB useful disk capacity

• CD-ROM or DVD Drive

User ManualUSB to HDMI Adapter RCAD-11002

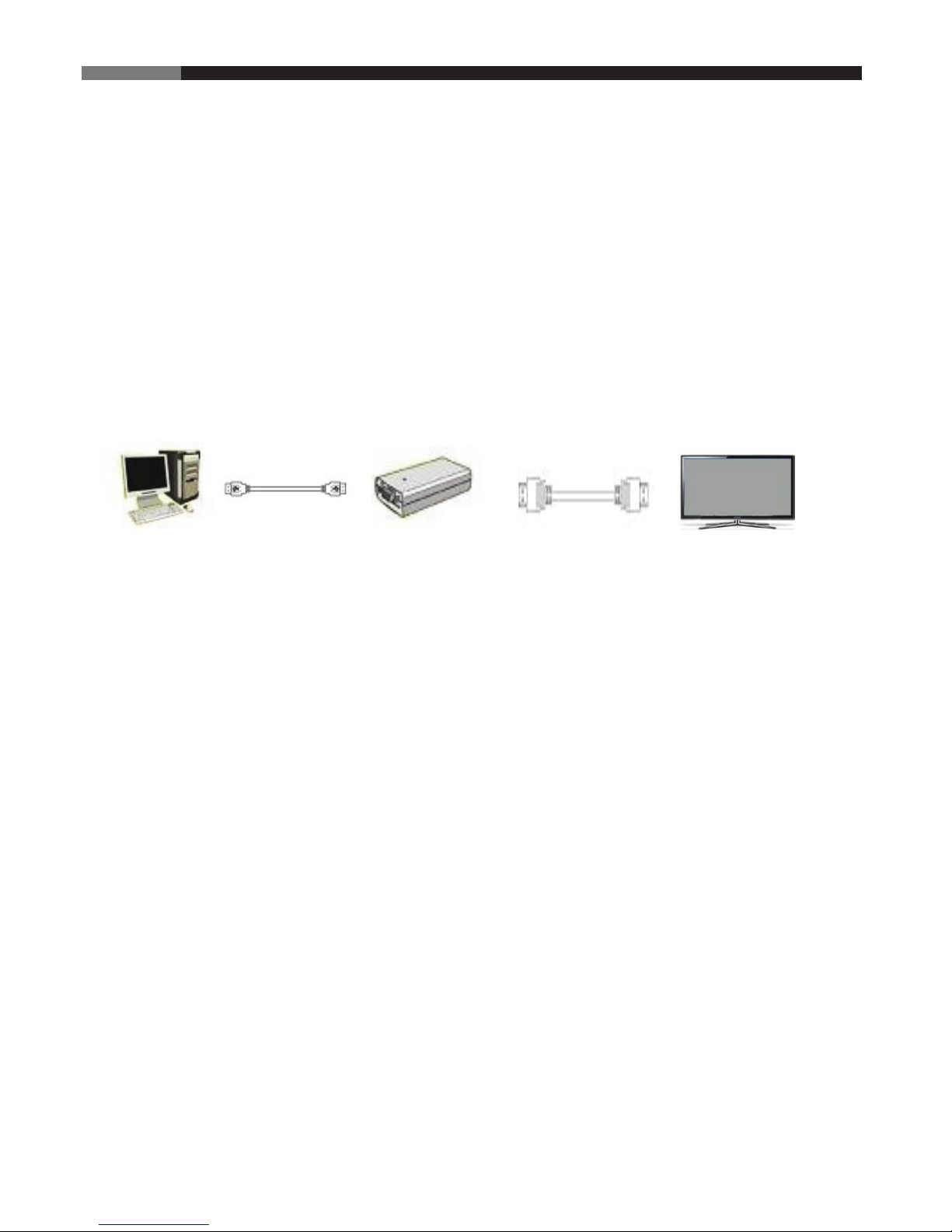

Computer USB Cable USB to HDMI HDMI Cable TV or Monitor

Adapter

Installation

a. Driver Installation

1.Please double click the driver in the CD.

2.Please select your language and then select “ I Agree ”.

3.Please wait for installation completed.

b. Hardware Installation

1.Take out HDMI cable that comes with Rosewill USB to HDMI Adapter out and

connect to your TV or monitor.

2.Connect the other side of HDMI cable to Rosewill USB to HDMI Adapter device.

3.Connect USB cable to computer.

4.Connect other side of USB cable to Rosewill USB to HDMI Adapter.

Operating Software

●Select “ Screen Resolution ” to choose resolution you need.

●In “ Screen Rotation ”, you may select screen to 90°,180°, 270° in different positions.

You can also change screen to different directions.

●By choosing “ Extend ” function, you can extend your screen and make whole

desktop much bigger.

●You may select “ Extend To ” function, so you can extend your second screen to 4

different directions, right, left, above and below.

●Set the secondary display as the main display.

●By choosing “ Mirror ” function, you can show your second monitor as the same

monitor screen as first monitor.

●By selecting “Advanced...” You will direct access “Windows Display Settings”, it is a

short cut for faster access.

●You can turn it off, so it will return to original status.

●Open a GUI to change the size of the Windows desktop so it fits on a TV screen.

Note : Fit to TV only works in extend mode.

User ManualUSB to HDMI Adapter RCAD-11002

Q&A

Q1. If your HDPiX doesn’t turn on after being plugged in try the following.

Ans : a. Turn of all Programs that are running (i.e. Internet Explorer, Microsoft Word)

and reconnect the HDPiX

b. If you have an Antivirus running, disable it and reconnect the HDPix. once

the HDPiX connects turn the antivirus program back on.

c. Leave the HDPiX plugged in and restart the computer.

Q2. HDMI cable got disconnected and reconnected no image on display.

Ans : Keep HDMI cable connected, unplug and plug in the usb cable from the unit.

Q3. No image on display after screen saver/hybernation.

Ans : Turn screen saver and hybernation off for best result.

To get image reconnect the usb cable.

Note

**Please note that this converter does not up/down convert the signal. Essentially,

the resolution (supported by this device) that passes through the converter is the

same resolution that goes out. Any aspect ratio control must be done directly from

your HDTV or source. **

**This USB to HDMI Bridge is not a scaler or scan converter. **

User ManualUSB to HDMI Adapter RCAD-11002

•Computer or Notebook

(with USB 2.0 port)

•Monitor or TV

(with HDMI port)

•USB to HDMI Adapter

•USB CABLE

•HDMI CABLE

Quick Installation Guide

Equipments

User ManualUSB to HDMI Adapter RCAD-11002

Driver Installation

Please double click the driver in the CD.

Please select your language

and then select “ I Agree ”.

Please wait for installation completed.

User ManualUSB to HDMI Adapter RCAD-11002

Step1

Prepare 1 HDMI cable and take

Rosewill USB to HDMI Adapter out .

Connect HDMI cable to your TV or monitor.

Step2

Connect the other side of HDMI cable to

Rosewill USB to HDMI Adapter device.

Hardware Installation

Step3

Connect USB cable to computer.

Step3

Connect other side of USB

cable to Rosewill USB to HDMI Adapter.

**Need to Complete Driver Installation 1-3.**

User ManualUSB to HDMI Adapter RCAD-11002

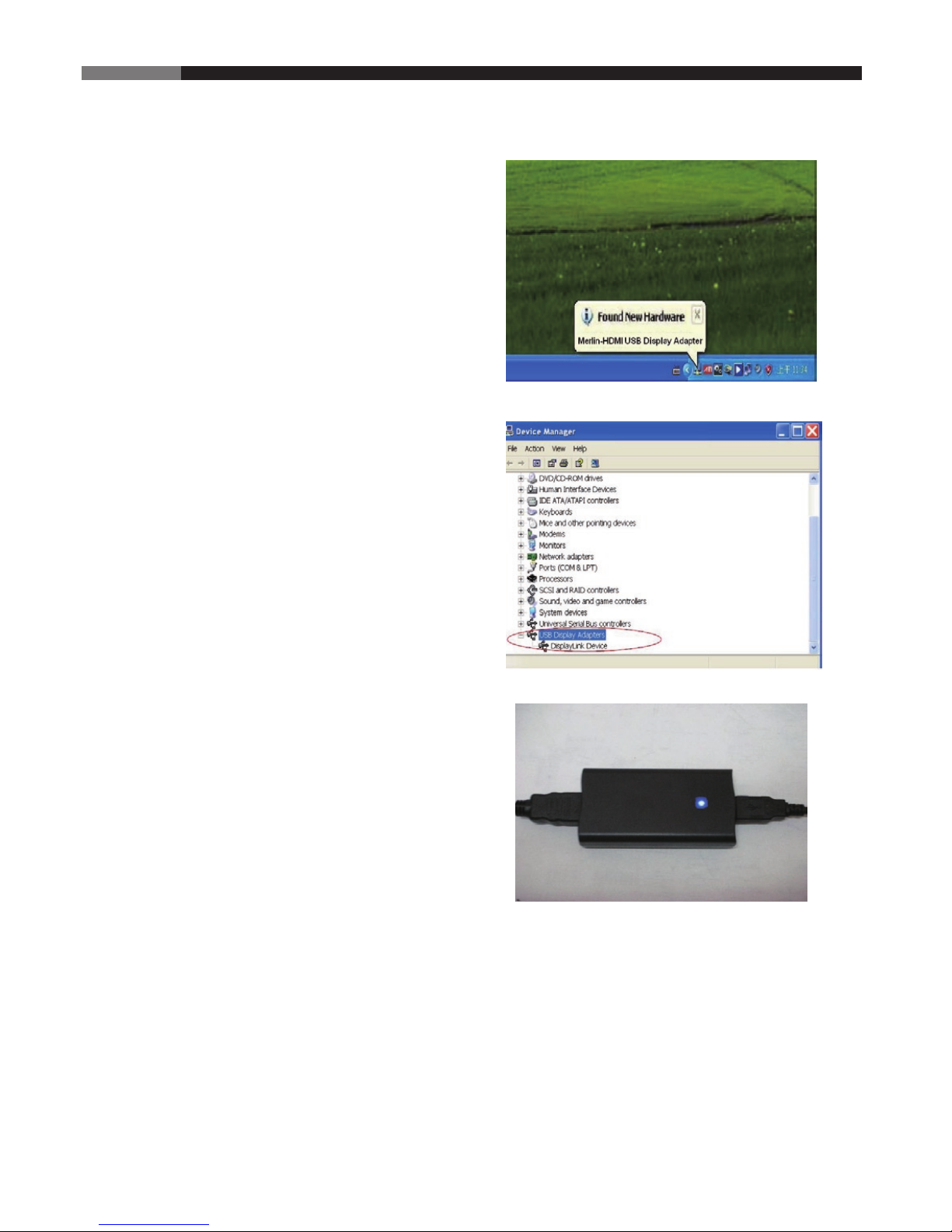

After installation, bottom right corner will

show you“ found new hardware ” in your

computer.

Please search control panel >system

>hardware >device manager you can check

if there is under “ DisplayLink Device ”

USB Display Adapter area.

There will be a blue solid LED up.

Installation

User ManualUSB to HDMI Adapter RCAD-11002

Select “ Screen Resolution ” to choose resolution

you need.

In “ Screen Rotation ”, you may select screen to

90°,180°, 270° in different positions .

You can also change screen to different directions.

- Normal

- Rotated Left

- Rotated Right

- Upside-Down

By choosing “ Extend ” function,

you can extend your screen and make

whole desktop much bigger.

You may select “ Extend To ” function,

so you can extend your second screen to

4 different directions, right, left, above and below.

Operating Software

Extend To

User ManualUSB to HDMI Adapter RCAD-11002

For example: “Extend” to “right”

Set the secondary display as

the main display.

By choosing “ Mirror ” function,

you can show your second monitor as

the same monitor screen as first monitor.

Main display Assistant display
