Rose electronics VISTA KVL Manual de usuario

Vista KVL Quick Start Guide

JPhone: 281-933-7673 JE-mail: [email protected] J

10707 Stancliff Rd. Houston, TX 7709

Rise Electronics – Europe: +49 (0) 2454 969442 Rose Electronics – Asia: +65 63242322

WWW.ROSE.COM

Using the CD

Insert the provided CD and

the autorun will start and

display the selection menu

for Rose Electronics KVM

switches. Select Vista and

the menu shown to the left

will display. Select the

Manual, Data-Sheet, or

QuickStart document for

your Vista model and that

document will display for

viewing or printing.

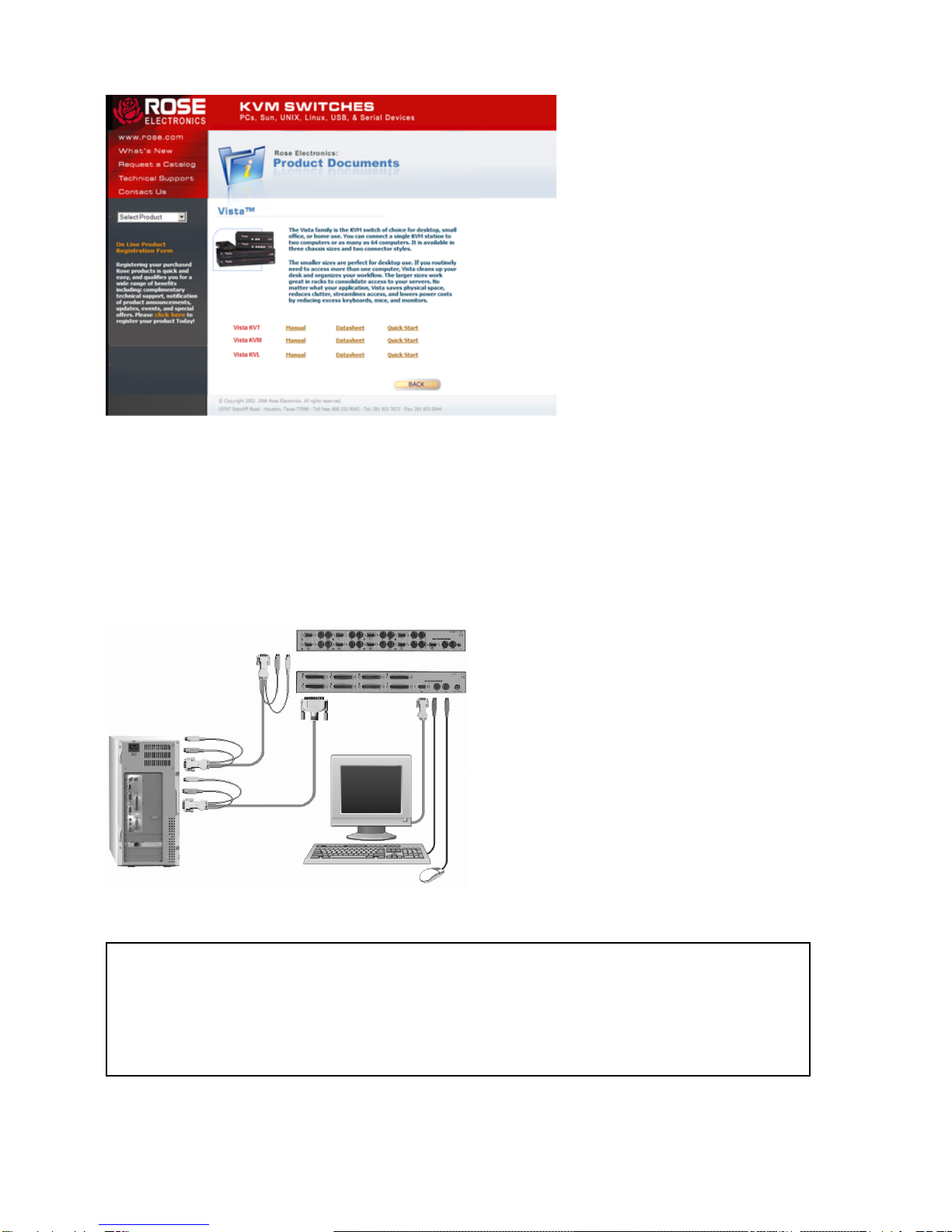

Installation

The Vista KVM switch is available with native CPU connectors (HD15F & PS/2)

or DB25F CPU connectors. Use the appropriate CPU adapter cable to connect

all computers to the Vista switches keyboard, monitor, and mouse ports.

Up to 8 CPUs KVM Station

1. Connect the KVM station’s

keyboard, monitor, and mouse

cables to the corresponding Vista

KVL switch ports.

2. Connect up to 8 computers to the

Vista KVL CPU ports using the

appropriate CPU adapter cable.

3. Turn on monitor power and boot

the computer connected to CPU

port #1. Computer #1’s video will

display. Switch to computer #2

(press front panel button #2) and

then boot computer #2. Continue

this procedure for all computers.

NOTE: The power connector on the Vista switch is for a supplemental

power adapter. Supplemental power may be needed if the cable

length from the computers to the Vista switch is long or you are

using a wireless keyboard. The power adapter is furnished for

Vista models with the OSD option.

Operating instructions

The Vista switch is very easy to operate. Computer selection and set-up

functions are entered from the keyboard. You can also select computers

manually from the front panel buttons. Vista models with the on-screen display

(OSD) option can select computers by choosing from an on-screen list of the

computers.

Keyboard command

Following is a condensed description of the Vista keyboard command functions.

See the Installation and Operations manual for a complete list.

The <Ctrl> input is a press and release of the left control key. Within

2 seconds of pressing and releasing the left <Ctrl> key, enter the next

command.

Command Key Sequence Description

Invoke the On

Screen Display <Ctrl> F12 Displays the on-screen display

for models with this option

List computers <Ctrl> Esc Provides a list of connected

computers to connect to

Reset

command <Ctrl> R Resets and enables mouse

and keyboard, enables PS/2

mouse on currently selected

port.

Keep <Ctrl> K Saves current scan state and

custom settings.

Mouse type <Ctrl> Q x <Enter>

Where:

x = 0 for PS/2

x = 1 for Serial

x = 2 for Wheel

First select the CPU port, and

then enter the type command

Computer

Select <Ctrl> x

(x = 1, 2, 3, 4,

5, 6, 7, 8)

Connects your keyboard, video

monitor, and mouse to the

selected computer.

Computer

disconnect <Ctrl> L Disconnects from computer.

On-Screen Display

Models with the On-Screen-Display option can access the main configuration

menu by pressing and releasing the left <Ctrl> key, then the F12 key. The main

menu will display on the KVM stations video monitor.

To use the main menu, press the up/down arrow keys to select (highlight) the

option needed. Once selected, press enter and that options menu will display.

See the Installation and Operations manual for detailed descriptions of all the

menu choices and the configuration options.
