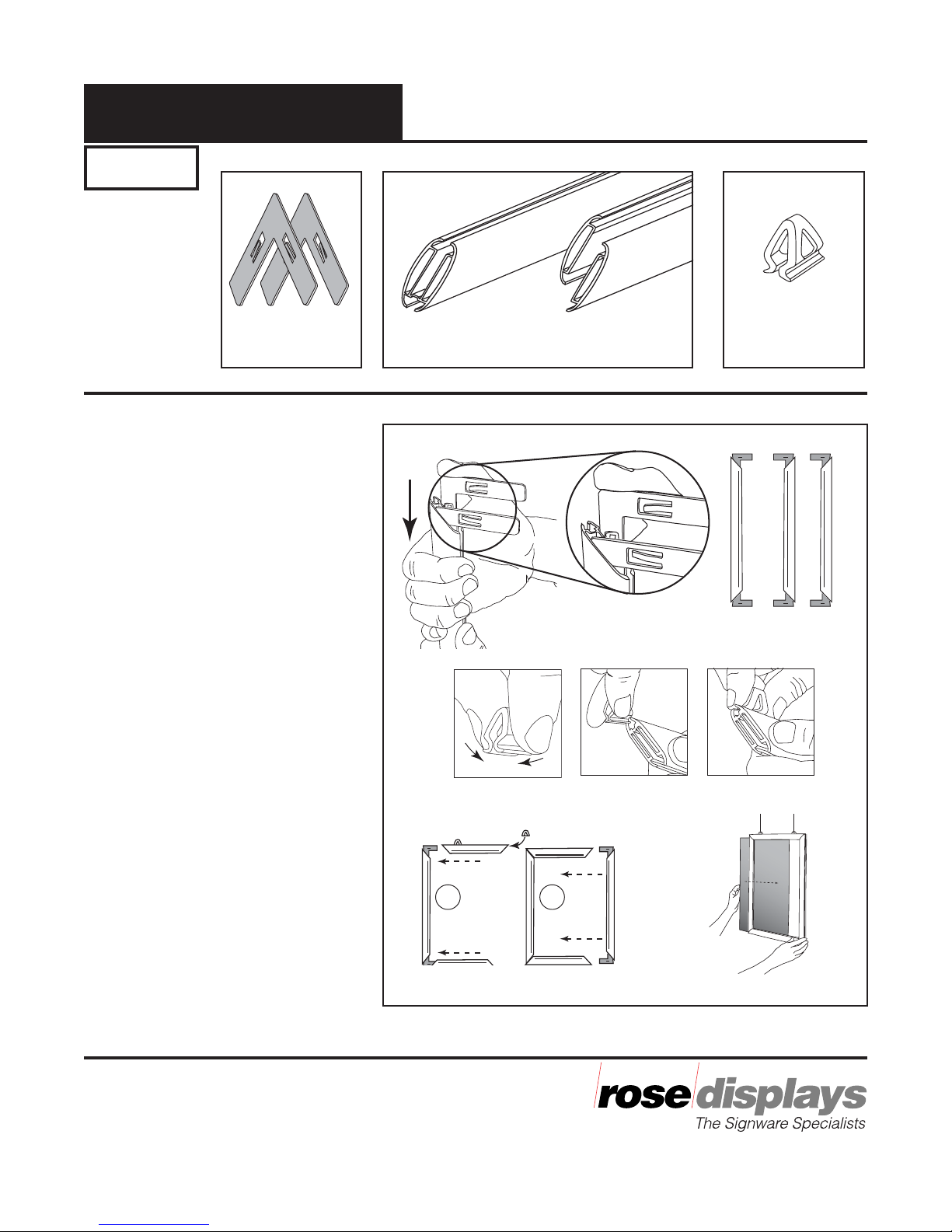

Parts

Instructions for Hanging

Instruction Sheet

Step 1

Insert corner brackets into split

rails and into rail opposite split

rail. Split rail side is made up of

two separate pieces. Fig. 1

Note: Corner bracket tension

tabs must face toward inside

of frame.

Step 2

Squeeze sides of MultiClip

together. Fig. 2.

Step 3

Find top rail of frame and align

the bottom rail of the MultiClip

with the top channel of the top

rail. Slide MultiClip into rail.

Fig. 3 Repeat steps 2 & 3 for

second MultiClip.

Step 4

Assemble frame following steps in.

Fig. 4 sliding sides together in the

order shown.

Step 5

Insert poster. Fig 5.

Instructions for Hanging

Incept-8.5.02

The EconoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSEconoFrameMC

MultiClips

1UP-0101

EconoFrame rails

12EF100

EconoFrame

split rails

Corner

brackets

EconoFrame

Figure 1

split rails

Figure 2 Figure 3

solid rail w/

solid rail

split rails

Figure 4 Figure 5

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

Instructions for Hanging

Instruction Sheet

Step 1

Insert corner brackets into split

rails and into rail opposite split

rail. Split rail side is made up of

two separate pieces. Fig. 1

Note: Corner bracket tension

tabs must face toward inside

of frame.

Step 2

Squeeze sides of MultiClip

together. Fig. 2.

Step 3

Find top rail of frame and align

the bottom rail of the MultiClip

with the top channel of the top

rail. Slide MultiClip into rail.

Fig. 3 Repeat steps 2 & 3 for

second MultiClip.

Step 4

Assemble frame following steps in.

Fig. 4 sliding sides together in the

order shown.

Step 5

Insert poster. Fig 5.

Instructions for Hanging

Incept-8.5.02

The EconoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSEconoFrameMC

MultiClips

1UP-0101

EconoFrame rails

12EF100

EconoFrame

split rails

Corner

brackets

EconoFrame

Figure 1

split rails

Figure 2 Figure 3

solid rail w/

solid rail

split rails

Figure 4 Figure 5
