INTEGRA-7 Editor for iPad Owner’s Manual
2
What Is INTEGRA-7 Editor for iPad?
“INTEGRA-7 Editor for iPad” is an iPad app that lets you edit the parameters of the Roland INTEGRA-7.
The app lets you edit parameters while beneting from the superior legibility of the iPad, made possible thanks to its high-resolution display. All you have to do is
connect your iPad to the INTEGRA-7, using either USB or a wireless LAN.
Your parameter edits are sent to the INTEGRA-7, and the changes in the parameter settings are reected on the INTEGRA-7 in real time.
The graphical editing screen allows visual control of the parameters.
“INTEGRA-7 Editor for iPad” lets you do the following:
• Edit parameters such as level, pan, and EQ for each part in the Mixer and Part View screens
• Use MOTIONAL SURROUND to control the spatial position of each part
• Edit the parameters of SuperNATURAL Synth Tones
• Load expansion sounds
• Save StudioSets and SuperNATURAL Synth Tones to the USER bank of the INTEGRA-7
IMPORTANT NOTES
Trademarks
• Roland and SuperNATURAL are either registered trademarks or trademarks of Roland Corporation in the United States and other countries.
• Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.
Additional Precautions
• Unfortunately, it may be impossible to restore the contents of data that was stored in the iPad once it has been lost. Roland Corporation assumes no liability concerning such loss of
data.
• In the interest of product improvement, the specications and/or contents of this package are subject to change without prior notice.
3
What Is INTEGRA-7 Editor for iPad? ....................................... 2
IMPORTANT NOTES ...................................................... 2
Settings in INTEGRA-7 Editor for iPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting Via a USB Cable .............................................. 5
Required Items ..........................................................5
Connecting Your Equipment .............................................5
Making Connections ....................................................5
Connecting Via Wireless LAN ............................................. 6
What Is Wireless LAN Function? ..........................................6
Settings for Your Instrument .............................................6
Making Connections ....................................................6
About the Screen ........................................................ 8
How the Screens Are Organized .........................................9
About READ and WRITE .................................................10
READ ..................................................................10
WRITE .................................................................10
Studio Set Mixer ........................................................11
Part View ...............................................................12
MOTIONAL SURROUND .................................................13
SuperNATURAL Synth Tone Edit .........................................14
Parameters ............................................................15
Editing a INTEGRA-7 Synth Tone .......................................16
Saving the Synth Tone ...........................................17
Contents
4

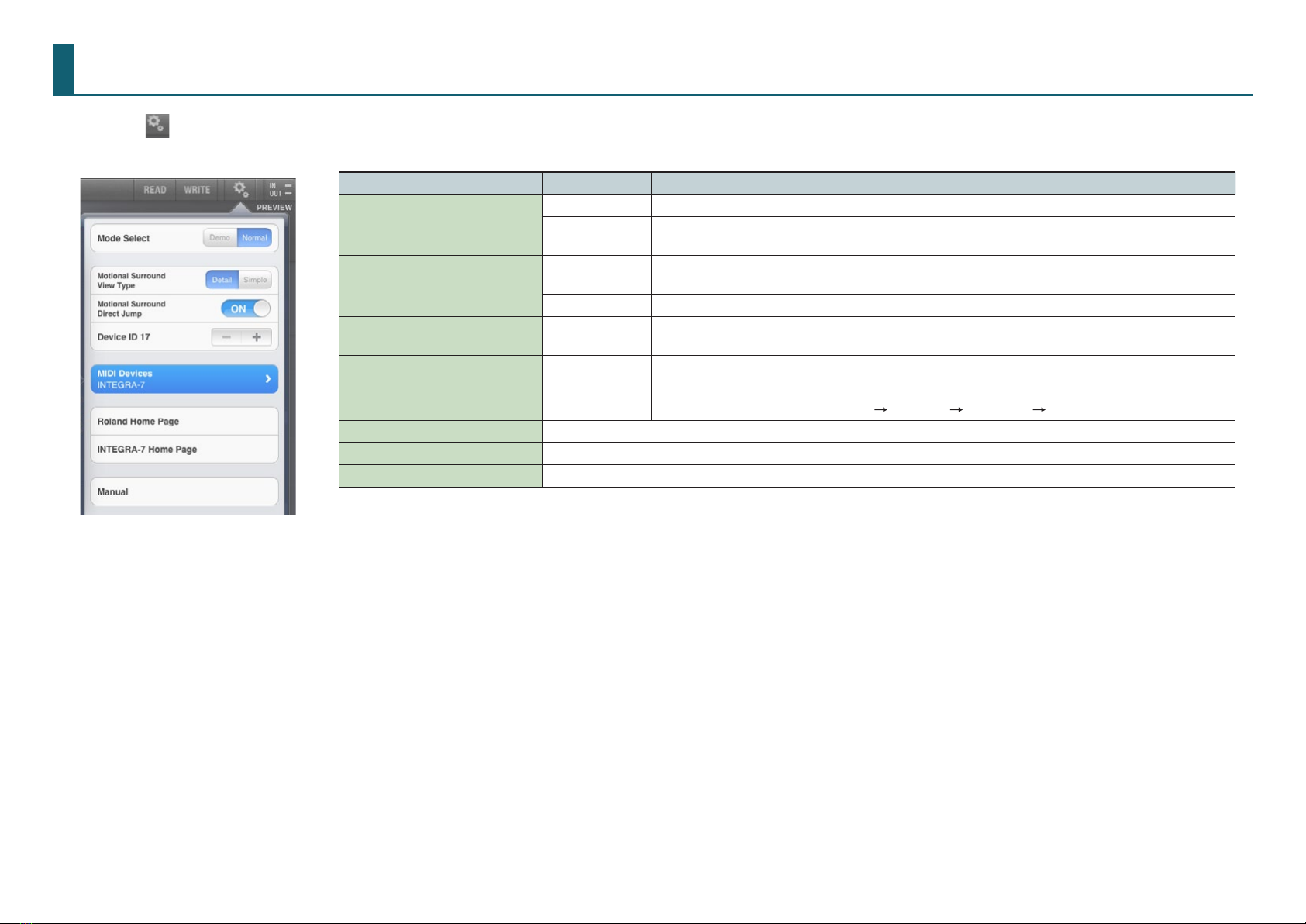

Settings in INTEGRA-7 Editor for iPad
Tap the [ ] button in the upper-right part of the screen in INTEGRA-7 Editor for iPad.
The setup screen will appear.
Parameter Value Explanation
Mode Select
Demo Choose this when you want to try out operation without connecting the INTEGRA-7.
Normal The app will work in connection with the INTEGRA-7.
In most cases, you’ll want to use the app in Normal mode.
Motional Surround View Type Detail Shows a graphic for the instrument whose part icon is selected in the MOTIONAL SURROUND
screen.
Simple Shows a simple indication of the part icons in the MOTIONAL SURROUND screen.
Motional Surround Direct Jump OFF, ON If this is on, you can specify the spatial position of the current part simply by touching the spatial
position area.
Device ID 17–32
Set this to the same value as the Device ID in “INTEGRA-7 settings”
Checking the Device ID
Note the value shown under [MENU] “System” “MIDI” tab Device ID.
MIDI Device Selects the MIDI device.
Manual Tap this to view the operating manual (this document).
Version Shows the version of INTEGRA-7 Editor for iPad that you’re using.
5
Connecting Via a USB Cable
Required Items
If you’re connecting via a USB cable, you’ll need the following items.
• INTEGRA-7
• Apple iPad Camera Connection Kit (Camera Connector, made by Apple Inc.)
• USB cable (type-A male – type-B male: commercially available)
Connecting Your Equipment
1. Connect the Apple iPad Camera Connection Kit (Camera Connector,
made by Apple Inc.) to the iPad.
2. Use a USB cable (commercially available) to connect the USB
connector of the Apple iPad Camera Connection Kit to the
INTEGRA-7’s USB COMPUTER port.
Making Connections
INTEGRA-7 settings
1. Press the [MENU] button.
2. Choose “System,” and press the [ENTER] button.
3. Choose the “SETUP” tab.
4. Set the “USB Driver” parameter to “GENERIC (MIDI only).”
5. Hold down the [SHIFT] button and press the [EDIT] button to save
the system settings.
6. Restart the INTEGRA-7.
MEMO
The saved system settings will take eect when you restart the INTEGRA-7.
Settings in INTEGRA-7 Editor for iPad
1. In the upper right of the screen, tap the [ ] button.
The setup screen (p. 4) will appear.
2. Set the device ID to the same setting as on the INTEGRA-7. (By
default, this will be 17.)
Checking the device ID of the INTEGRA-7
Note the value shown under [MENU] “System” “MIDI” tab Device ID.
3. Choose the INTEGRA-7 as the MIDI device.
4. Tap somewhere other than in the setup screen.
The setup screen will disappear.
5. Press the [READ] button (p. 10).
The current parameter settings of the INTEGRA-7 will be read in, and all
parameters of INTEGRA-7 Editor for iPad will be updated.
MEMO
When you connect the INTEGRA-7 sound module to
INTEGRA-7 Editor for iPad, tap the [READ] button rst to synchronize the
settings.
6
Connecting Via Wireless LAN
What Is Wireless LAN Function?
By inserting the wireless USB adapter (WNA1100-RL; sold separately) into the
INTEGRA-7’s USB MEMORY port, you’ll be able to use this app via wireless LAN.
INTEGRA-7
Wireless USB adapter
(sold separately: WNA1100-
RL)
Wireless LAN access point
(e.g., wireless LAN router)
Wireless LAN Wireless LAN
iPad
What you’ll need in order to use the wireless LAN function
Electronic musical instrument (Roland INTEGRA-7)
Wireless USB adapter (Roland WNA1100-RL)
A wireless LAN access point (such as a wireless LAN router) that supports
WPS
Settings for Your Instrument
For details on making settings for your instrument, refer to the Roland website
( http://www.roland.com/manuals/ ) model name (INTEGRA-7)
“About the Wireless LAN Function.”
Making Connections
1. Make wireless settings on the INTEGRA-7.
For details, refer to the Roland website ( http://www.roland.com/manuals/)
product name (INTEGRA-7) “About the Wireless LAN Function.”
2. In the WiFi section of the iPad setup screen, turn the WiFi switch ON.
3. In the “Choose a network” eld, select the name of the router you’re
using.
If you want to connect in Ad-Hoc mode, choose INTEGRA-7_(WirelessID) and
enter Ad-Hoc Key as the password.
4. Start up INTEGRA-7 Editor for iPad.
5. In the upper right of the screen, tap the [ ] button.
The setup screen (p. 4) will appear.
6. As the MIDI device, choose INTEGRA-7_(WirelessID).
If your INTEGRA-7’s Wireless ID is still in the default state, it will be shown as
INTEGRA-7.
7. Tap somewhere other than in the setup screen.
The setup screen will disappear.
8. Press the [READ] button (p. 10).
The current parameter settings of the INTEGRA-7 will be read in, and all
parameters of INTEGRA-7 Editor for iPad will be updated.
MEMO
When you connect the INTEGRA-7 sound module to
INTEGRA-7 Editor for iPad, tap the [READ] button rst to synchronize the
settings.
Connecting Via Wireless LAN
7
If INTEGRA-7_(WirelessID) Is Not Shown as a MIDI Device, Check the Following Points.
Points to check Reference
Is the instrument powered-on?
Is the wireless USB adapter (WNA1100-RL) connected to the instrument?
Are you using an instrument that
supports wireless LAN functionality?
For details on models that support wireless LAN
functionality, refer to
http://roland.jp/link/RWC/e/ .
Is the instrument connected to the
wireless LAN? For details on making settings for your instrument,
refer to the Roland website
( http://www.roland.com/manuals/ )
model name (INTEGRA-7)
“About the Wireless LAN Function.”
Are the instrument and the iPad
connected to the same network (the
same wireless LAN access point)?
Is the wireless LAN access point set to
allow communication between wireless
LAN devices?
Refer to the owner’s manual of your wireless LAN
access point for details on settings.
About the Screen
9
How the Screens Are Organized
Setup screen display area
Access buttons for each screen
Press these buttons to access the corresponding
screen.
Button Screen
Studio Set Mixer page 11
Part View page 12
MOTIONAL
SURROUND page 13
SuperNATURAL Synth
Tone Edit page 14
Loading sound data into EXPANSION virtual slots
[PART] buttons
These buttons switch the current part (the part
that’s selected).
When you tap a part number, its frame will turn
orange and it will become the current part.
STUDIO SET
Shows the studio set name.
Tap “ ” to see a list of studio sets.
TONE
Shows the tone of the current part.
TYPE
Shows the tone type.
NAME
Shows the tone name.
Tap “ ” to see a list of tones.
[Setup] button
Accesses the setup screen of
INTEGRA-7 Editor for iPad.
[PREVIEW] switch
If you move this switch downward, the switch will
be held and the preview will continue playing.
[READ] button
When you tap this button, the current settings for
the INTEGRA-7’s parameters will be read in, updating
all parameters within INTEGRA-7 Editor for iPad.
When you connect the INTEGRA-7 sound module
to INTEGRA-7 Editor for iPad, tap the [READ] button
rst to synchronize the settings.
[WRITE] button
Press this button to access a screen that lets you
save the settings of INTEGRA-7 Editor for iPad as an
INTEGRA-7 Studio Set or Tone.
Drag
[LOAD] button
EXPANSION
SOUNDS
EXPANSION
Virtual Slots
Drag a sound data graphic
from EXPANSION SOUNDS
into the EXPANSION virtual
slot, and then tap the
[LOAD] button.
MIDI indicator
This will light when MIDI messages are being
transmitted or received.
10
About READ and WRITE
READ
This updates all parameters within INTEGRA-7 Editor for iPad by reading in the
current parameter settings from the INTEGRA-7 sound module.
If you’ve edited parameters by operating the INTEGRA-7 itself (rather than
INTEGRA-7 Editor for iPad), dierences will arise in the parameter settings of
the two systems; in this case, you must tap the [READ] button to reconcile the
dierences.
After connecting the INTEGRA-7 and INTEGRA-7 Editor for iPad, tap the
[READ] button to synchronize the two systems before you proceed.
WRITE
This saves the Studio Set parameters or Tone parameters into the USER bank
of the INTEGRA-7 sound module.
The Studio Set parameters include all the editable parameters of the
MOTIONAL SURROUND, StudioSet Mixer, and Part View screens.
The Tone parameters are only those of SuperNATURAL Synth Tones.

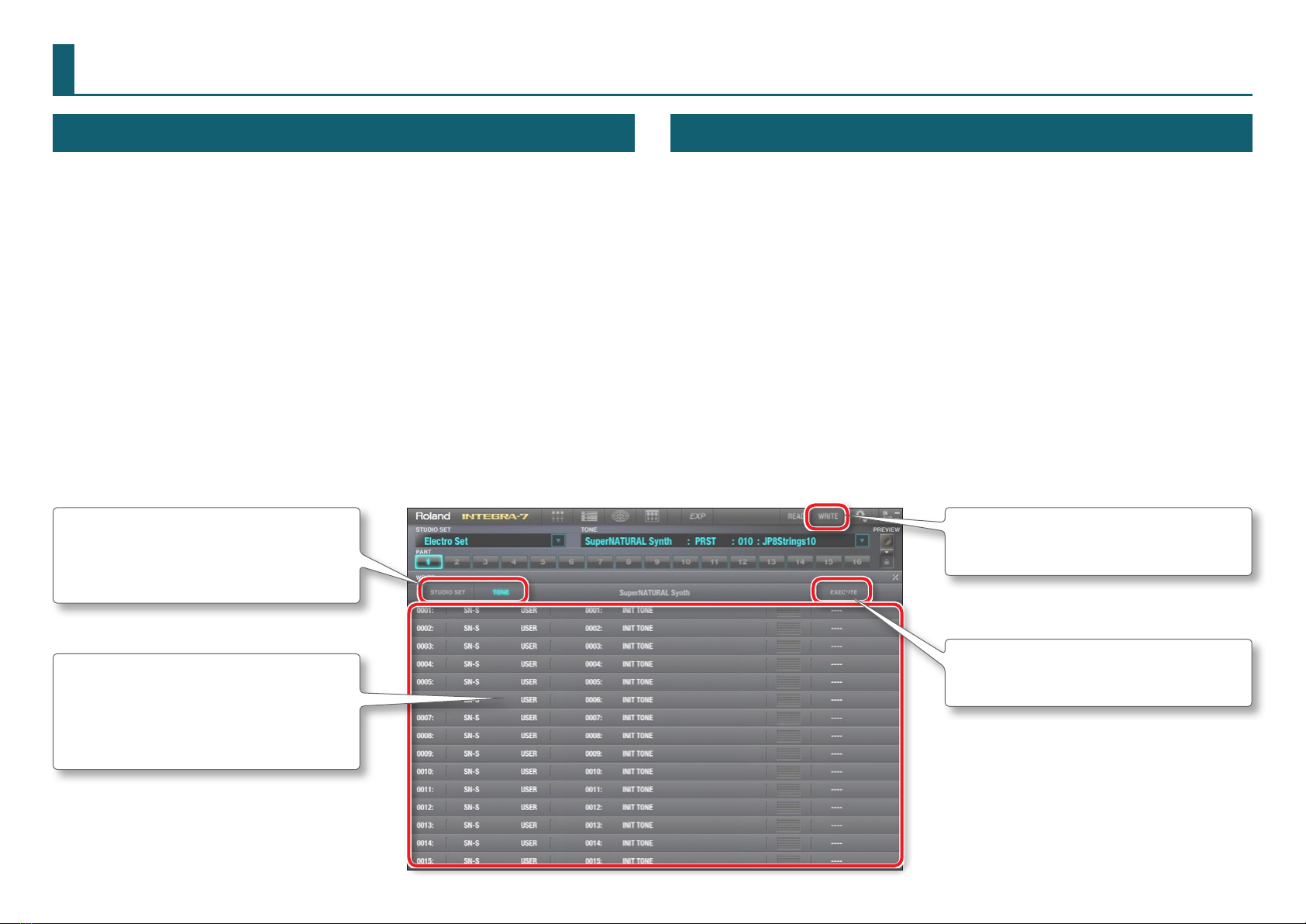

When you tap the [WRITE] button, the following screen will appear.
1. Tap the [STUDIO SET] button or the [TONE] button to specify the
data that you want to save.
2. In the save-destination list, tap the desired save destination to select
it.
3. Tap the [EXECUTE] button.
[STUDIO SET] button, [TONE] button
Select what you wish to save.
Save-destination list
Select the save destination in the list.
The list shows the tone’s type, bank, number,
name, and category.
[WRITE] button
Accesses the Write screen.
[EXECUTE] button
Saves the data.
Otros manuales para INTEGRA-7
3
Tabla de contenidos
Otros manuales de Software de Roland
Roland
Roland Director-s SYS-503 Manual de usuario
Roland
Roland BK-9 Performance Editor Manual de usuario
Roland
Roland JUNO-Di Editor Manual de usuario
Roland
Roland V-Mixer M-300 Manual de usuario
Roland
Roland VR-09 Editor Manual de usuario
Roland
Roland VariOS Manual de usuario
Roland
Roland COLORCHOICE Manual de usuario
Roland
Roland PC-600 Manual de usuario
Roland
Roland Ver. 4.5 Manual de usuario
Manuales populares de Software de otras marcas
PS Audio
PS Audio PowerPlay Manual del propietario
Brady
Brady LOCKOUT PRO 3.0 Manual de servicio
Avaya
Avaya Interaction Center Manual de usuario
Texas Instruments
Texas Instruments TI-83 Plus Silver Edition Manual
Novell
Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario
Oracle
Oracle Application 9i Manual de usuario
Acer
Acer RDM Manual de usuario
Canon
Canon Vixia HF21 Manual de usuario
Canon
Canon ZR950 Manual de usuario
Samsung
Samsung Auto Backup Manual de usuario
Polycom
Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento
Brocade Communications Systems
Brocade Communications Systems Brocade 8/12c Manual de usuario
