Roger Technology EDGE1 Manual de usuario

Quick Start EDGE1

Rev03 18/08/2020

ROGER TECHNOLOGY

Via S. Botticelli 8 • 31021 Bonisiolo di Mogliano Veneto (TV) • ITALIA

P.IVA 01612340263 • Tel. +39 041.5937023 • Fax. +39 041.5937024

info@rogertechnology.com • www.rogertechnology.com

AEDGE1 - Motors connection 3x2,5 mm2double insulated cable (max 10 m) - 3x4 mm2 (max 30 m)

1Photocell - Receiver 5x0,5 mm2double insulated cable (max 20 m)

2Photocell - Transmitter 3x0,5 mm2double insulated cable (max 20 m)

3Flashing lamp unit 2x1 mm2double insulated cable (max 10 m)

4Antenna RG58 or KX6 50 Ohm cable for external use (max 10 m)

5Selector / Keypad 3x0,5 mm2cable (max 20 m)

1. Typical installation

EDGE1 is the range of 36V DC digital controllers installed with the swing gates applications.

PRIMARY

SECONDARY

PROG TEST

F3 F2

M1 M2

COR

13 14

ANT

15 16 17 18 19 20 21 22 23 24 25 26 27 31 32 33 34 35 36 3729 30

COM

+LAM

+ES

+24V

COM

FT2

FT1

COS2

COS1

COM

ORO

PED

COM

LAM

PED

IN1

CS1

IN2

FT1

FT2

24V

AUX

0190 26

SEC2

SEC1

BATTERY CHARGER

BATTERY

TRANSFORMER

Blu/Blue

Nero/Black

Blu/Blue

MOTOR

OTOR 2

FIFTHY/24

F4ES-F4S

Series

1 2 3 2345

+- +-

TX RX

CS/STD

POWER SUPPLY

230 Vac / 115 Vac

BATTERIES

2 x 12V 4,5Ah

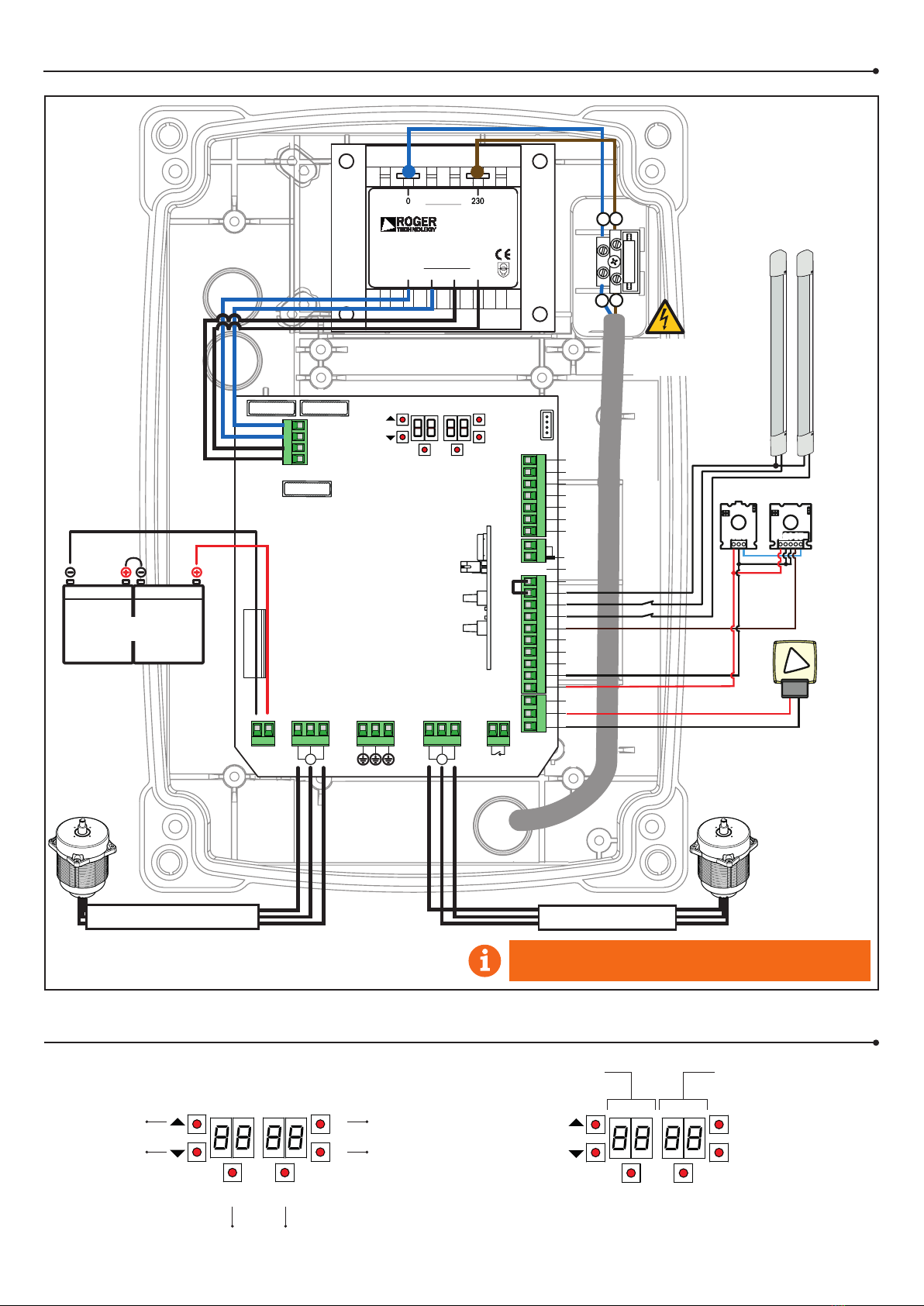

2. Electrical connections

3. Display: functions and settings

Accessories illustrated are indicative only

PROG TEST

Back

Programming Check error alarms

PARAMETER PARAMETER

VALUE

Increase value

Decrease value

PROG TEST

00 No safety device in alarm state and no limit switch activated.

27 STOP contact (N.C.) open.

Jumper the STOP contact.

25 Sensing edge contact COS1 (N.C.) is open. Check connection. If sensing edge

is not installed, disable with 73 00.

24 Sensing edge contact COS2 (N.C.) is open. Check connection. If sensing edge

is not installed, disable with 74 00.

23 Photocell contact FT1 (N.C.) is open. Check connection. If photocell is not

installed, disable with 50 00.

22 Photocell contact FT2 (N.C.) is open. Check connection. If photocell is not

installed, disable with 53 00.

dATA

Incorrect travel length values / Parameter 71 modied: enabling absolute

encoder (only SMARTY Series).

• Disconnect from mains power or remove the main fuse (F3) and wait 5 seconds.

• Reconnect to mains power or ret the fuse.

• Press and hold PROG until the message ATA and A appear on the display.

Repeat acquisition procedure.

4. Before starting ...

d) Move the gate into the completely CLOSE position.

e) Press TEST button

Possible alarms and safety device messages:

SEE ACQUISITION PROCEDURE

PROG TEST

PROG

TEST

PROG TEST

a) Select the automation system model installed with the parameter A1.

b) Select the number of motors installed with the parameter 70.

This parameter is set for two motors by default.

c) Position the mechanical stops in both the open and closed positions by tightening them very tightly.

* the parameter 71 01 must be set and SMARTY/EMA installed for all applications with the SMARTY REVERSIBLE motor.

1 MOTOR 2 MOTORS

BE20/200/HS SMARTY 5R5 *

BR20 Series SMARTY 4HS

BH23/282 BH23/252/HS

BR21 Series BR21/351/HS

SMARTY 5 BE20/400

SMARTY 7 MONOS4

SMARTY 7R * BR20/400/R

 Motor torque

 Obstacle impact force

sensitivity MOTOR 1

 Motor torque MOTOR2

 Obstacle impact force

sensitivity MOTOR 2

 Start acceleration MOTOR 1

during opening

 Start acceleration MOTOR 1

during closing

 Start acceleration MOTOR 2

during closing

 Deceleration MOTOR 1 during CLOSING

  Deceleration MOTOR 1 during OPENING

 Deceleration MOTOR 2 during CLOSING

 Deceleration MOTOR 2 during OPENING

 Alignment MOTOR1

 Stop advance of LEAF 1

when opening

 Opening approach distance setting MOTOR1

 Closing approach distance setting MOTOR1

 Opening approach distance setting MOTOR2

 Closing approach distance setting MOTOR2

 Stop advance of LEAF 2 when opening

 Position control

 Position control

 Position control

 Alignment MOTOR2

 Deceleration MOTOR 1

during CLOSING

 Deceleration MOTOR 2

during CLOSING

 Opening speed

 Closing speed

 Start acceleration

MOTOR 2 during opening

MOTOR 1

MOTOR 2

6. Setting basic parameters

5. Acquisition procedure

1. Press and hold PROG for 4 seconds.

2. APP- appears on the display.

3. Press PROG.

4. AUTO appears on the display.

5. MOTOR 1 starts opening at low speed.

6. After the delay time set with parameter 25, MOTOR 2 starts an opening manoeuvre.

7. Once the gate is open, the message AUTO ﬂashes on the display.

8. The message AUTO stops ﬂashing.

9. MOTOR 2 starts closing.

10. After a delay set with parameter 26, MOTOR 1 closes.

11. When the gate is closed, the safety device symbols are displayed.

Press

PROG

AP P- AU to

x4 s

Press

PROG

1 click OPEN

MOTOR 1

OPENING

MOTOR 2

OPENING

PARAM. 25

ùDELAY

TIME

AU to

x2 s CLOSED

Yes

MOTOR 1

CLOSING

MOTOR 2

CLOSING

PARAM. 26

DELAY

TIME

CLOSED

7. Programming a NEW transmitter

8. Copying a transmitter

L1 L2

P2 P1

L1 L2

1 click

This document is a basic quick guide for the initial installation of a BRUSHLESS swing gate motor.

For complete information concerning the control unit, the motor and the accessories mentioned in this quick guide, see the technical manuals available in the B2B area of the

website www.rogertechnology.it

x5 s x3 s x1 s

AAA

OLD

1. Press channel P1 (P2) of the receiver.

2. When LED L1 (L2) ashes 3 times (or 4 times

with rolling code function), press any button

on the transmitter.

3. If LED L1 (L2) remains steadily lit the

transmitter has been stored correctly.

1. Press buttons A and B on the NEW

transmitter simultaneously.

2. The LED ashes for 5 s.

3. Hold button (A) only on the NEW transmitter

you want to store.

4. The LED ashes 3 s.

5. Hold the previously stored transmitter as

close as possible to the NEW transmitter.

6. Press button (A) on the OLD transmitter.

7. The LED lights for 1 s to conrm that the copy

procedure was successful.

9. Photocells grounding connection

Grounding connection negative terminal (COM) photocells series F4ES/F4S or other than Roger Technology

In case of malfunction, or failure to intervene in case of dimming, or continuous detection, or abnormal behaviour of the automation (gate, overhead door,

barrier, etc.), it is advisable to connect the negative terminal (COM) of the photocells to the grounding of the system.

M1 M2

COR

13 14

ANT

15 16 17 18 19 21 22 23 24 25 26 27 31 32 33 34 35 36 3729 30

COM

+LAM

+ES

+24V

COM

FT2

FT1

INP2

COS1

COM

INP1

PED

COM

RXTX

12 3 12

RXTX

FT1

FT2

MASTER

SLAVE 1

345

123 12345

COM(-)
