Roger Technology CTRL Manual de usuario

Quick Start CTRL

Rev01 03/04/2020

ROGER TECHNOLOGY

Via S. Botticelli 8 • 31021 Bonisiolo di Mogliano Veneto (TV) • ITALIA

P.IVA 01612340263 • Tel. +39 041.5937023 • Fax. +39 041.5937024

info@rogertechnology.com • www.rogertechnology.com

APower supply

H07RN-F 3x1,5 mm2

double insulated cable

1Photocell - Receiver 5 x 0.5 mm2double insulated cable (max. 20 m)

2Photocell - Transmitter 3 x 0.5 mm2double insulated cable (max. 20 m)

3Selector / Keypad 3 x 0.5 mm2cable

1. Typical installation (purely for information)

CTRL is the range of 36V DC digital controllers installed with the barrier applications.

F4ES-F4S

Series

R85/60

1 2 3 2345

+- +-

TX RX

COM

CS/STD

TRASFORMATORE

PRIMARIO

MONOFASE

SECONDARIO

CEI 61558-2-6

0 19 0 26

PROG TEST

BATTERY (+)

RECEIVER CARD

BATTERY CHARGER

SEC2

ENC2

ENC1

LOCKS

LED LIGHT

SEC1

BATTERY (-)

123456

COM

+24V

+ES

+LAM

COM

LNA

LNB

+SC

10 11 12 13 14 15 16 17 18 19 20

+LUCI

COM

COS

COM

ANT

21 22 23 24 25

COM

PED

28 29 30 31 32

ORO

COM

3426 27

POWER SUPPLY

230Vac / 115Vac

BATTERIES

2 x 12V 4,5Ah

AGILIK BIONIK BIONIK 4HP/6KB BIONIK 8

3. Display: functions and settings

Accessories illustrated are indicative only

PROG TEST

Back

Programming Check error alarms

PARAMETER PARAMETER

VALUE

Increase value

Decrease value

PROG TEST

2. Electrical connections

00 No safety device in alarm state and no limit switch activated.

STOP contact (N.C.) open.

Jumper the STOP contact.

Release handle or lock open.

Barrier inspection hatch open.

23 Sensing edge contact COS (N.C.) is open. Check connection. If sensing edge is

not installed, disable with 73 00.

24 Photocell contact FT (N.C.) is open. Check connection. If photocell is not installed,

disable with 50 00.

rs (rS) STOP contact active for MASTER barrier (message shown on SLAVE controller

displayed).

dATA

Modify automation position selection with parameter 71

• Press and hold PROG until the message ATA disappear and A appear on

the display.

Repeat acquisition procedure.

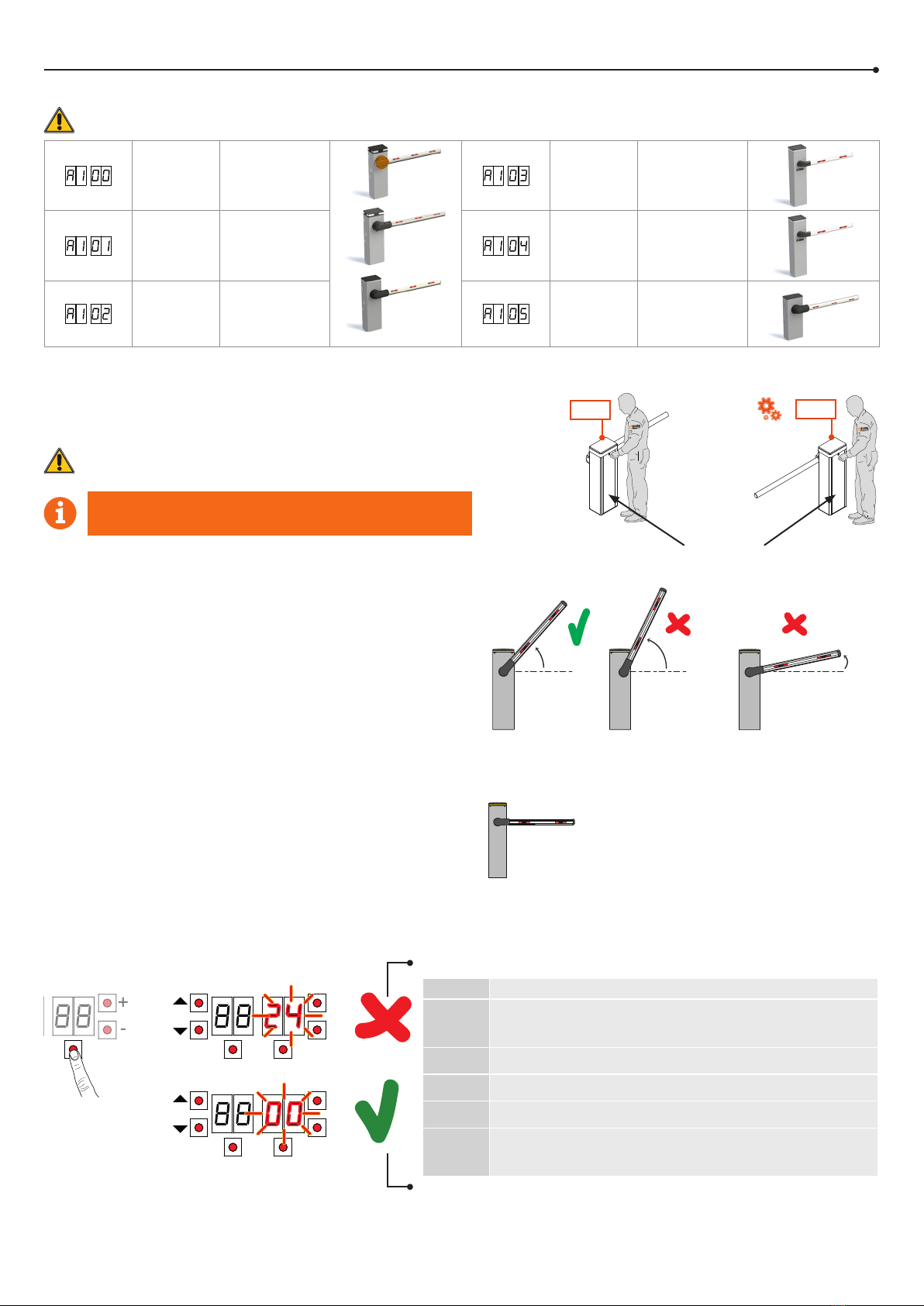

4. Before starting ...

d) Move the barrier boom into the completely CLOSED position.

c) Check the spring balance setting and the mechanical stop setting.

See the installation manual for the barrier.

e) Press TEST Possible alarms and safety device messages:

PROG TEST

PROG

TEST

PROG TEST

SEE ACQUISITION PROCEDURE

a) IMPORTANT: Select the length of the boom with the parameter A1.

It is very important that this parameter is selected correctly. An incorrect setting may cause severe damage or injury.

b) Select the position of the barrier in relation to the gate, using parameter 71.

The factory setting of the parameter is with the barrier installed on the right

(7101) and the boom opening/closure gate on the left (seen from the inspection

hatch side).

If the installation position is changed from the right to the left, the position of the spring(s)

must also be changed.

IMPORTANT! Lubricate the pivot points with lithium

based grease

AG/004

KB/004

BI/004HP up to 3 m

BI up to 3 m

AG/004

KB/004

BI/004HP from 3 m to 4,5 m BI/004 from 3 m to 4 m

AG/006

KB/006

BI/006 from 4,5 m to 6 m BI/008 up to 8 m

45° >45°

<45°

BARRIER OPENS TO

THE LEFT

BARRIER OPENS TO

THE RIGHT





IMPOSTAZIONE DI FABBRICA

FACTORY SETTING

inspection

hatch side

5. Acquisition procedure

1. Press and hold PROG for 4 s.

2. APP- appears on the display.

3. Open the release cover.

4. The barrier opens 45° degree (when properly balanced).

5. PHAS appears.

6. Wait until the message PHAS ﬂashes.

7. Close the release cover.

8. AUTO appears.

9. The barrier starts to open.

10. Once the barrier is open, the message AUTO ﬂashes on the display after a few seconds and the barrier starts to close.

11. When the barrier is closed, the safety device symbols are displayed.

6. Setting basic parameters

 Obstacle detection time setting

 Acceleration

during opening

 Opening speed

 Closing speed

 Acceleration

during closing

 Deceleration

during opening

 Deceleration

during closing

 Opening approach

distance

 Closing approach

distance

AP P- PH A5

AU to

PROG

x4 s

OPENING OPEN CLOSING CLOSED

Yes

UNLOCK

BIONIK

LOCK

2x360° 2x360°

45°

CLOSED

7. Programming a NEW transmitter

8. Copying a transmitter

x5 s x3 s x1 s

AAA

OLD

L1 L2

P2 P1

L1 L2

1 click

1. Press channel P1 (P2) of the receiver.

2. When LED L1 (L2) ashes 3 times (or 4 times

with rolling code function), press any button

on the transmitter.

3. If LED L1 (L2) remains steadily lit the

transmitter has been stored correctly.

1. Press buttons A and B on the NEW

transmitter simultaneously.

2. The LED ashes for 5 s.

3. Hold button (A) only on the NEW transmitter

you want to store.

4. The LED ashes 3 s.

5. Hold the previously stored transmitter as

close as possible to the NEW transmitter.

6. Press button (A) on the OLD transmitter.

7. The LED lights for 1 s to conrm that the copy

procedure was successful.

This document is a basic quick guide for the initial installation of a BRUSHLESS barrier.

For complete information concerning the control unit, the motor and the accessories mentioned in this quick guide, see the technical manuals available in the B2B area of the website

www.rogertechnology.it

9. Photocells grounding connection

Grounding connection negative terminal (COM) photocells series F4ES/F4S or other than Roger Technology

In case of malfunction, or failure to intervene in case of dimming, or continuous detection, or abnormal behaviour of the automation (gate, overhead door,

barrier, etc.), it is advisable to connect the negative terminal (COM) of the photocells to the grounding of the system.

PROG TEST

RECEIVER CARD

ENC2

ENC1

LOCKS

LED LIGHT

COM

+24V

+ES

+LAM

COM

LNA

LNB

+SC

10 11 12 13 14 15 16 17 18 19 20

+LUCI

COM

COS

COM

ANT

21 22 23 24 25

COM

PED

28 29 30 31 32

ORO

COM

3426 27

12 3 12345

MASTER

COM(-)
