Installation Instructions

MicroLogix™ 1000 Programmable Controllers

Catalog Numbers 1761-L10BWA, -L10BWB, -L10BXB, -L16AWA, -L16BWA,

-L16BWB, -L16BBB, -L16NWA, -L16NWB, -L20AWA-5A, -L20BWA-5A,

-L20BWB-5A, -L32AAA, -L32AWA, -L32BWA, -L32BWB, -L32BBB

http://literature.rockwellautomation.com/idc/groups/literature/documents/in/

1761-in001_-mu-p.pdf

Cette publication est disponible en français sous forme électronique (fichier PDF). Pour la

télécharger, rendez-vous sur la page Internet indiquée ci-dessus.

Questa pubblicazione è disponibile in Italiano in formato PDF. Per scaricarla collegarsi al sito

Web indicato sopra.

Diese Publikation ist als PDF auf Deutsch verfügbar. Gehen Sie auf die oben genannte

Web-Adresse, um nach der Publikation zu suchen und sie herunterzuladen.

Esta publicación está disponible en español como PDF. Diríjase a la dirección web indicada

arriba para buscar y descarga esta publicación.

Esta publicação está disponível em portugués como PDF. Vá ao endereço web que aparece

acima para encontrar e fazer download da publicação.

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Installation Instructions

MicroLogix™ 1000 Programmable Controllers

Catalog Numbers 1761-L10BWA, -L10BWB, -L10BXB, -L16AWA, -L16BWA,

-L16BWB, -L16BBB, -L16NWA, -L16NWB, -L20AWA-5A, -L20BWA-5A,

-L20BWB-5A, -L32AAA, -L32AWA, -L32BWA, -L32BWB, -L32BBB

Topic Page

Important User Information 4

Overview 5

Catalog Number Detail 5

Related Publications 6

Safety Considerations 7

Physical Dimensions 9

Mounting Your Controller Horizontally 10

Wiring Your Controller 13

Grounding Your Controller 15

Surge Suppression 16

Sinking and Sourcing 19

Wiring Your Analog Channels 20

Specifications 21

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

4MicroLogix™ 1000 Programmable Controllers

Publication 1761-IN001C-EN-P - March 2008

Important User Information

Because of the variety of uses for the products described in this publication, those

responsible for the application and use of these products must satisfy themselves

that all necessary steps have been taken to assure that each application and use

meets all performance and safety requirements, including any applicable laws,

regulations, codes and standards. In no event will Allen-Bradley be responsible or

liable for indirect or consequential damage resulting from the use or application of

these products.

Any illustrations, charts, sample programs, and layout examples shown in this

publication are intended solely for purposes of example. Since there are many

variables and requirements associated with any particular installation, Allen-Bradley

does not assume responsibility or liability (to include intellectual property liability)

for actual use based upon the examples shown in this publication.

Allen-Bradley publication SGI-1.1, Safety Guidelines for the Application, Installation

and Maintenance of Solid-State Control (available from your local Allen-Bradley

office), describes some important differences between solid-state equipment and

electromechanical devices that should be taken into consideration when applying

products such as those described in this publication.

Reproduction of the contents of this copyrighted publication, in whole or part,

without written permission of Rockwell Automation, is prohibited.

Throughout this publication, notes may be used to make you aware of safety

considerations. The following annotations and their accompanying statements help

you to identify a potential hazard, avoid a potential hazard, and recognize the

consequences of a potential hazard:

WARNING

Identifies information about practices or circumstances that

can cause an explosion in a hazardous environment, which

may lead to personal injury or death, property damage, or

economic loss.

ATTENTION

Identifies information about practices or circumstances that

can lead to personal injury or death, property damage, or

economic loss.

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

MicroLogix™ 1000 Programmable Controllers 5

Publication 1761-IN001C-EN-P - March 2008

Overview

Install your controller using these installation instructions. The only tools you

require are a Flat head or Phillips head screwdriver and drill.

Catalog Number Detail

The catalog number for the controller is composed of the following:

IMPORTANT Identifies information that is critical for successful application

and understanding of the product.

1761 - L 20 A W A - 5 A

Analog I/O

Number of Analog I/O:

4 Inputs, 1 Output

Power Supply

A = 120/240V ac

B = 24V dc

Output Type:

A = Triac

B = 24V dc FET

W = Relay

X = Relay/24V dc FET

Bulletin Number

Controller

Number of Digital I/O

Input Type:

A = 120V ac

B = 24V dc

N = 24V ac or 24V dc

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

6MicroLogix™ 1000 Programmable Controllers

Publication 1761-IN001C-EN-P - March 2008

For More Information

Related Publications

If you would like a manual, you can:

•download a free electronic version from the internet:

http://literature.rockwellautomation.com

•purchase a printed manual by contacting your local Allen-Bradley distributor

or Rockwell Automation representative

For Refer to this Document Pub. No.

A description on how to use your MicroLogix 1000

programmable controllers. This manual also contains

status file data and instruction set information.

MicroLogix 1000 Programmable

Controllers User Manual

1761-6.3

A procedural manual for technical personnel who use the

Allen-Bradley Hand-Held Programmer (HHP) to monitor

and develop control logic programs for the MicroLogix

1000 controller.

MicroLogix 1000 with Hand-Held

Programmer (HHP) User Manual

1761-6.2

More information on proper wiring and grounding

techniques.

Industrial Automation Wiring and

Grounding Guidelines

1770-4.1

The procedures necessary to install and connect the AIC+

and DNI.

Advanced Interface Converter

(AIC+) and DeviceNet Interface

(DNI) Installation Instructions

1761-5.11

A more detailed description on how to install and use your

AIC+ Advanced Interface Converter.

AIC+ Advanced Interface Converter

User Manual

1761-6.4

A more detailed description on how to install and use your

DeviceNet Interface.

DeviceNet Interface User Manual 1761-6.5

A more detailed description on how to install and use your

Ethernet Interface.

Ethernet Interface User Manual 1761-UM006

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

MicroLogix™ 1000 Programmable Controllers 7

Publication 1761-IN001C-EN-P - March 2008

Safety Considerations

This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or

non-hazardous locations only (when product or packing is marked).

Use only the following communication cables in Class I, Division 2, Hazardous

Locations.

WARNING

Explosion Hazard:

•Substitution of components may impair suitability for Class

I, Division 2.

•Do not replace components or disconnect equipment

unless power has been switched off and the area is

known to be non-hazardous.

•Do not connect or disconnect connectors while circuit is

live unless area is known to be non-hazardous.

•This product must be installed in an enclosure. All cables

connected to the product must remain in the enclosure or

be protected by conduit or other means.

Environment Classification Communication Cable

Class I, Division 2, Hazardous Environment 1761-CBL-PM02 Series C

1761-CBL-HM02 Series C

1761-CBL-AM00 Series C

1761-CBL-AP00 Series C

2707-NC8 Series B

2707-NC9 Series B

2707-NC10 Series B

2707-NC11 Series B

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

8MicroLogix™ 1000 Programmable Controllers

Publication 1761-IN001C-EN-P - March 2008

Sécurité

Cet équipement est conçu pour être utilisé dans des environnements de Classe 1,

Division 2, Groupes A, B, C, D ou non dangereux (si indiqué sur le produit ou

l'emballage).

N'utiliser que les câbles de communication suivants dans des environnements

dangereux de Classe 1, Division 2.

AVERTISSEMENT

Danger d'explosion :

•La substitution de composants peut rendre cet

équipement impropre à une utilisation en environnement

de Classe 1, Division 2.

•Ne pas remplacer de composants ou déconnecter

l'équipement sans s'être assuré que l'alimentation est

coupée et que l'environnement est classé non dangereux.

•Ne pas connecter ou déconnecter les connecteurs lorsque

le circuit est alimenté, à moins que l'environnement ne

soit classé non dangereux.

•Ce produit doit être installé dans un boîtier. Tous les

câbles qui lui sont connectés doivent rester dans le boîtier

ou être protégés.

Classification d'environnement Câble de communication

Environnement dangereux Classe 1, Division 2 1761-CBL-PM02 Série C

1761-CBL-HM02 Série C

1761-CBL-AM00 Série C

1761-CBL-AP00 Série C

2707-NC8 Série B

2707-NC9 Série B

2707-NC10 Série B

2707-NC11 Série B

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

MicroLogix™ 1000 Programmable Controllers 9

Publication 1761-IN001C-EN-P - March 2008

Physical Dimensions

Controller Spacing

The following figure shows the recommended minimum spacing for the controller.

Note: The controller is shown horizontally mounted.

Controller: 1761- Length: mm (in.) Depth: mm (in.) Height: mm (in.)

L10BWA 120 (4.72) 73 (2.87) 80 (3.15)

L16BWA

L16NWA

L16AWA 133 (5.24)

L20AWA-5A 200 (7.87)

L20BWA-5A

L32AWA

L32BWA

L32AAA

L10BWB 120 (4.72) 40 (1.57)

L10BXB

L16BBB

L16BWB

L16NWB

L20BWB-5A 200 (7.87)

L32BBB

L32BWB

A. Greater than or equal to 50.8 mm (2 in.)

B. Greater than or equal to 50.8 mm (2 in.)

Top

Bottom

SideSide Side

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

10 MicroLogix™ 1000 Programmable Controllers

Publication 1761-IN001C-EN-P - March 2008

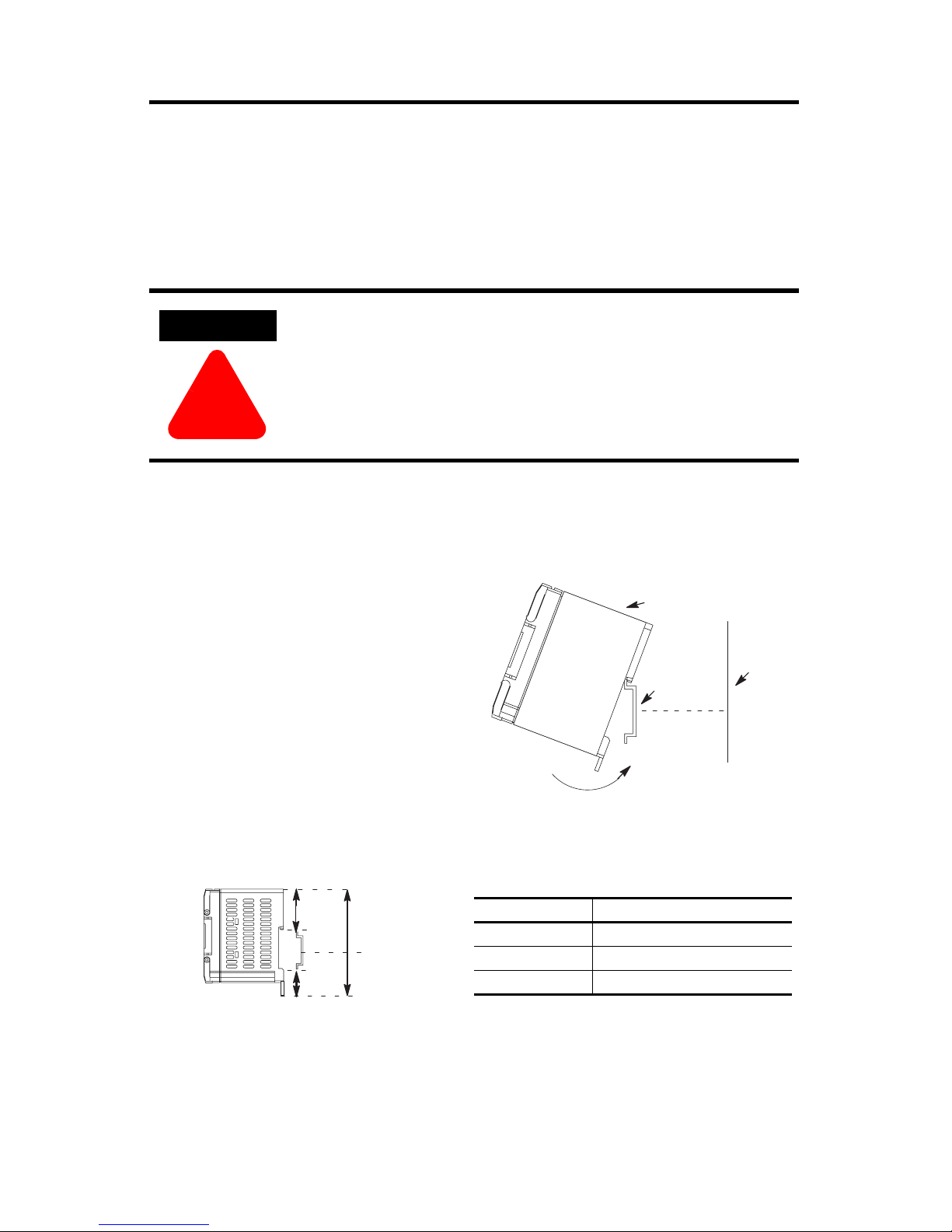

Mounting Your Controller Horizontally

The controller should be mounted horizontally within an enclosure using either the

DIN rail or mounting screw option. Use the mounting template from the front of

this document to help you space and mount the controller properly.

Using a DIN Rail

To install your controller on the DIN rail:

1. Mount your DIN rail. (Make sure that the

placement of the controller on the DIN rail

meets the recommended spacing

requirements. Refer to the mounting template

from the back of this document.)

2. Hook the top slot over the DIN rail.

3. While pressing the controller against the rail,

snap the controller into position.

4. Leave the protective wrap attached until you

are finished wiring the controller.

ATTENTION

Be careful of metal chips when drilling mounting holes for

your controller. Drilled fragments that fall into the controller

could cause damage. Do not drill holes above a mounted

controller if the protective wrap is removed.

Mounting

Template

Protective

Wrap

DIN Rail

Side View

Call-out Dimension

A 84 mm (3.3 in.)

B 33 mm (1.3 in.) maximum

C 16 mm (0.63 in.)

DIN Rail

efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Rockwell Automation

Rockwell Automation

Rockwell Automation Allen-Bradley 1512A Manual de usuario

Rockwell Automation

Rockwell Automation 1785 PLC-5 Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Rockwell Automation

Rockwell Automation ArmorStart Bulletin 280G Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley MicroLogix 1400 Series Manual de usuario

Rockwell Automation

Rockwell Automation 9VT201-007HTNNN Manual de usuario

Rockwell Automation

Rockwell Automation GV3000/SE 230 Manual de instalación y operación

Rockwell Automation

Rockwell Automation Samsung NX70 Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley 2080-LC20 Manual de usuario

Rockwell Automation

Rockwell Automation External Dynamic Brake Kit Manual de usuario

Rockwell Automation

Rockwell Automation PowerFlex 700S Manual de usuario

Rockwell Automation

Rockwell Automation 1766-L32AWA Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley DriveLogix 5730 Manual de usuario

Rockwell Automation

Rockwell Automation micrologix 1200 Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley Micro800 Manual de usuario

Rockwell Automation

Rockwell Automation ALLEN-BRADLEY SMC-3 Manual de usuario

Rockwell Automation

Rockwell Automation 1763-L16AWA Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley Logix5000 Manual del propietario

Rockwell Automation

Rockwell Automation SMC Dialog Plus Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley CompactLogix 5370 L2 Series Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley OneGear Manual de usuario

Rockwell Automation

Rockwell Automation Micro810 Series Manual de usuario

Rockwell Automation

Rockwell Automation Allen-Bradley Logix 5000 Series Manual del propietario

Rockwell Automation

Rockwell Automation Allen-Bradley MicroLogix 1400 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario

3M MicroTouch EX113 Manual de usuario
