Rocktron Gainiac 2 Manual de usuario

Your Gainiac 2 has been tested and complies with the following Standards and Directives as set

forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guidelines on how much RF

energy it can emit, and that it should be immune from other sources of interference when

properly used. Improper use of this equipment could result in increased RF emissions, which may

or may not interfere with other electronic products.

To insure against this possibility, always use good shielded cables for all audio input and output

connections. Also, bundle audio cables separately from the AC power cables. These steps will

help insure compliance with the Directive(s).

For more information about other Rocktron products, please see your local dealer or one of our

importers closest to you (listed on the enclosed warranty sheet).

Introduction

Congratulations on your purchase of the Rocktron Gainiac 2 tube preamp!

The name itself indicates a product that provides the most intense distortion

and power that the modern guitar player requires to perform to the fullest

extent.

With over 100dB of outrageous gain, this tube preamp has two channels with

the most intense distortion and power that you need to perform at full

throttle! Equipped with Rocktron's unique "Scoop" control, the Gainiac lets

you go from the classic sounds of the 60's and 70's all the way to the raging

atomic sound of modern metal.

The Gainiac 2 is our latest version of this world famous tube preamp. Now

with a more modern sound, and an extra control for the clean channel (sepa-

rate master volume). And BONUS - more headroom so you get even more

gain than ever before!!

Featuring the most effective EQ section ever devised, the Gainiac 2 allows

over 30dB cut, or "scooping" of the midrange used with the bass (Bottom

control) and treble (Top control) as needed by your cabinet. Guitar tones

just can't get any heavier. ( In the Gainiac 2, Rocktron has improved the mid

scoop on the distortion!) Back off the Scoop control and your sound rolls

up into a much fatter, rounder sound. The Gainiac 2 adds three band EQ to

the clean sound as well and the clean sound now runs through the tube for

more warmth!

Join the legion of Gainiac maniacs and increase the pallete of tones you're

stuck with in that combo amp of yours by adding the Gainiac 2 to your

setup. The Gainiac is easy to hook up and use.

OPERATINGPRECAUTIONS

NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SEC-

TION TO PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT

REQUIRES CAREFUL HANDLING.

All warnings on this equipment and in the operating instructions should

be adhered to and all operating instructions should be followed.

Do not use this equipment near water. Care should be taken so that

objects do not fall and liquids are not spilled into the unit through any

openings.

The power cord should be unplugged from the outlet when left unused

for a long period of time.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. THIS

EQUIPMENT SHOULD BE SERVICED BY QUALIFIED PERSON-

NEL ONLY. DO NOT MAKE ANY INTERNALADJUSTMENTS OR

ADDITIONS TO THIS EQUIPMENT AT ANY TIME. DO NOT

TAMPER WITH INTERNAL ELECTRONIC COMPONENTS AT

ANY TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS

MAY VOID THE WARRANTY OF THIS EQUIPMENT, AS WELL

AS CAUSING SHOCK HAZARD.

POWER REQUIREMENTS

Thisunitacceptspower fromthe 9VAC/1.5Aadaptorsuppliedwiththeunit.

This9 voltRMSACvoltage isinternally processedby avoltage doubler

whichgenerates abipolar ±15volts tomaintain theheadroom andsound

qualityofprofessional,studioquality equipment.Usinganexternalpower

sourcesuchasthisminimizesexcessivenoise andhumproblemsoften

associatedwithinternaltransformers,providingoptimalperformanceforthe

user.

OPERATINGTEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to oper-

ate between 32° F and 104° F (0° C and 40° C). This unit may not

function properly under extreme temperatures.

POWER LED:

When lit, the unit is “on”

INPUT jack:

Thisstandard 1/4”monojackprovidesan inputto theGainiac 2froma guitaror othereffect.

BOTTOM control (Distortion channel):

This control is used to determine the amount of low frequency information present in the

distortion channel, and is adjustable to +-15dB

SCOOP control:

This control is used to determine the amount of mid frequency cut in the distortion channel.

Up to 30dB of mid range cut may be applied.

TOPcontrol (Distortion channel):

This control is used to determine the amount of high frequency information present in the

distortion channel, and is adjustable +-15dB

LEVELcontrol:

This control determines the output level of the distortion channel, independent of the clean

channel output level.

TUBE GAIN control:

This control determines the amount of gain applied to the signal in the distortion channel.

DISTORTION switch/LED:

Thisswitch isused toswitch theGainiac 2inandoutofthedistortionchannel. WhentheLEDis

lit,thedistortionchannel isactive.

BOTTOM control (Clean channel)

Thiscontrolisusedto determine theamountof lowfrequencyinformationpresentintheclean

channel,and isadjustable +-15dB

MIDDLEcontrol(Clean channel):

Thiscontrolis usedtodetermine theamountof midfrequencyinformation presentinthe clean

channel.

Front Panel

FOOTSWITCH jack:

This jack accepts a 1/4” mono cable connected to a single-function, latching

footswitchforchannel switchingfunctions(TheRocktronRFS1footswitchis recom-

mendedand availablefromyourRocktrondealer).

OUTPUT jack:

This standard 1/4”mono jack provides the output of the Gainiac, which can be fed to

an amplifier or other effects.

POWER jack:

This 2.5mm pin jack accepts power from the 9VAC power adapter supplied with the

unit.

Back Panel

TOPcontrol(Cleanchannel):

Thiscontrolis usedtodeterminetheamountofhigh frequencyinformationpresentinthe

cleanchannel, andis adjustable+-15dB

LEVELcontrol(Cleanchannel):

Thiscontroldeterminestheoutputlevelofthecleanchannel,independentofthedistortion

channeloutputlevel.

Front Panel........continued:

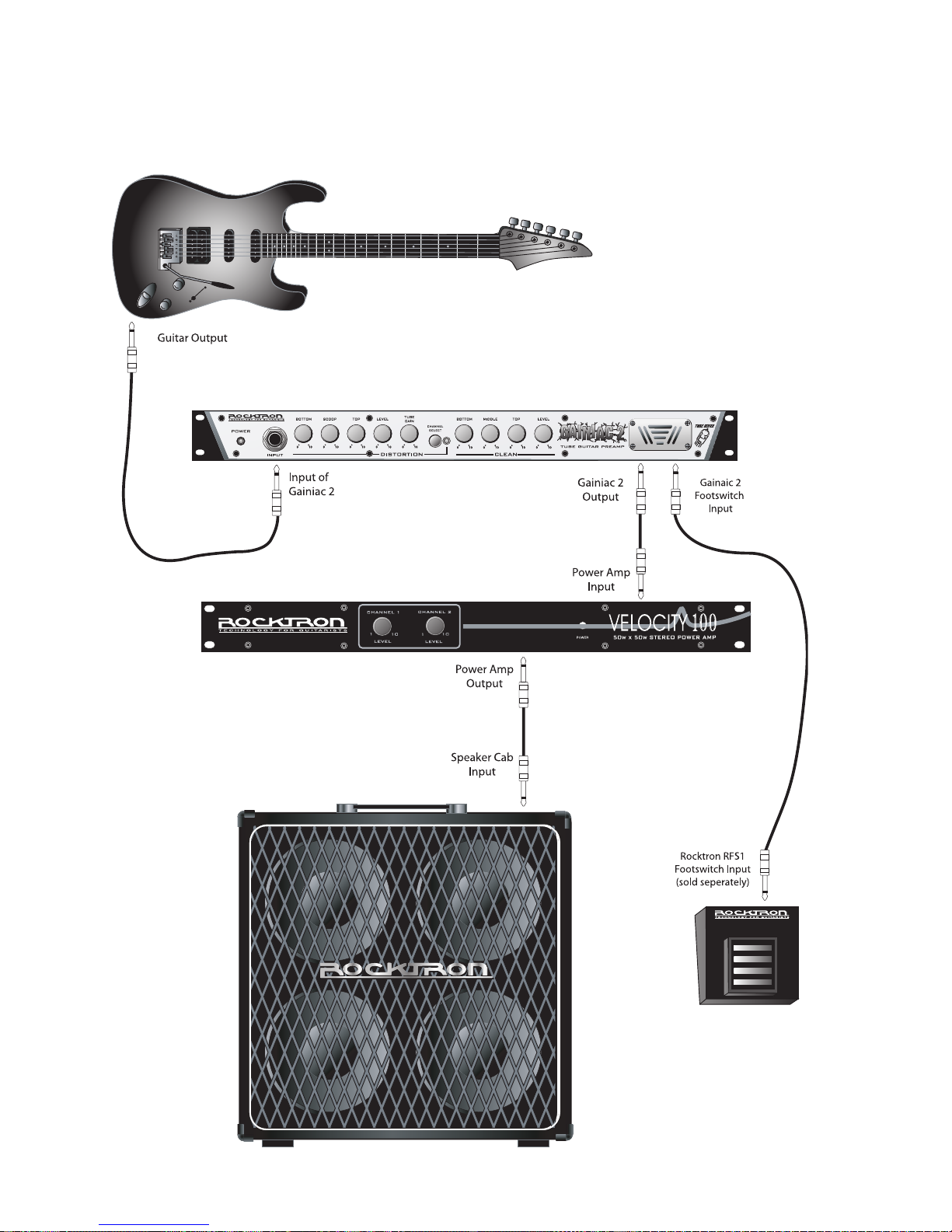

Connections

RackGear:

Xpression(multi-effects processor)

BlueThunder(basspreampw/multi-effects)

Voodu Valve(preamp w/12ax7 tube and multi-effects)

Prophesy (our top of the line preamp with multi-effects)

HUSHSuperC(guitarnoisesilencingsystem)

Velocity100 (2x50W Stereo Power Amp for Guitar)

StompBoxes:

RampageDistortion, TsunamiChorus, AustinGoldOverdrive,

VertigoVibeRotatingVibePedal, HUSHThePedal,

SonicGloryOverdrive,ShortTimerDigitalDelay,

BigCrushCompressor,DeepBlueChorus

SilverDragonTube Distortion Pedal, MetalPlanetDistortion,

PulseTremolo,HypnoticFlange,

X-TuneTunerPedal,BlackCat MoanWahPedal,

Tri-WahWahPedal, BansheeTalkBox,

NitroBooster/Enhancer

DCOnTap - DC Powersupply for Stomp Boxes

DC OnTap Cable Package - extra cables to powerother stomp boxes.

Check out some of our other products.......................
