Rocketfish AC/DC Combo Power

Adapter

RF-BPRACDC2

User Guide

RF-BPRACDC2 09-0392_ENG.fm Page 1 Tuesday, May 19, 2009 3:24 PM

Contents

Introduction ................................................................. 2

Safety information ..................................................... 3

Features ......................................................................... 4

Using the AC/DC combo power adapter........... 4

FAQ for Rocketfish adapters ................................... 8

Specifications.............................................................11

Legal notices ..............................................................11

Three-year limited warranty.................................13

Introduction

Thank you for purchasing the Rocketfish AC/DC combo

power adapter. This adapter is made using quality

components and is guaranteed to meet your device's power

specifications. By using the Rocketfish AC/DC combo power

adapter you gain the flexibility of having an adapter that is

capable of powering your mobile device from a standard

vehicle cigarette lighter, power-enabled airline seat, or AC

wall socket.

The Rocketfish AC/DC combo power adapter delivers the

optimal amount of power for mobile devices through the

use of our unique tip technology. A variety of tips are

available which allow the adapter to power numerous laptop

models. In addition, the adapter has a USB port that can be

used to charge devices such as cell phones, PDAs, digital

cameras and more, using an appropriate USB cable (not

included).

RF-BPRACDC2 09-0392_ENG.fm Page 2 Tuesday, May 19, 2009 3:24 PM

RF-BPRACDC2

Safety information

• Do not expose the power adapter to rain, moisture, or

excessive dust. It may cause shock hazards.

• Do not operate the adapter in direct sunlight.

• Operate the adapter in a well ventilated area. Maximum

ambient temperature around the power adapter must

not exceed 105° Fahrenheit (40° Celsius).

• Do not open the power adapter under any

circumstances. The power adapter is not intended to be

repaired in case of failure or component defect. There are

no internal serviceable parts.

• Discontinue use and contact our toll free help line for

assistance (800) 620-2790 if any of the following should

occur:

• The adapter shuts down when it is plugged into the

device (LED turns off).

• The adapter's LED light blinks when the adapter is

plugged into an AC power outlet.

• A cord or plug is damaged or frayed.

• Do not use with notebooks that require more than

90 watts of power.

• Make sure to use the correct tip for your laptop as listed

in the Tip Compatibility Guide included with this AC/DC

combo adapter and do not use with any laptop model

that is not listed.

• Keep away from children.

RF-BPRACDC2 09-0392_ENG.fm Page 3 Tuesday, May 19, 2009 3:24 PM

Features

The Rocketfish AC/DC combo power adapter has the

following features:

• Provides up to 90 watts of power.

• Includes protection against over-voltage,

over-temperature, and short circuits.

• Can power select electronic devices using a standard

vehicle cigarette lighter, power-enabled airline seat, or

AC wall socket.

• Can be used with multiple tips, allowing the AC/DC

combo power adapter to power and charge various

laptop models.

• The USB port can be used to charge additional devices

using USB cables.

Package contents

• 90 Watt AC/DC combo power adapter

• Adapter tips

• AC wall socket input cable (72”)

• DC input cable (24”)

•UserGuide

• Tip Compatibility Guide

Using the AC/DC combo power

adapter

When using the AC/DC combo power adapter to charge

from a vehicle cigarette lighter, your device's battery will

automatically charge regardless of whether the device is

turned on or off. When using the power adapter in an

airplane, the adapter will power your device but will not

charge its battery.

RF-BPRACDC2 09-0392_ENG.fm Page 4 Tuesday, May 19, 2009 3:24 PM

RF-BPRACDC2

CAUTION: The use of an incorrect tip may damage your

laptop. Do not use this product if you cannot locate your

laptop model on the Tip Compatibility Guide included with

this AC/DC combo adapter or by using the Tip Wizard at

www.rocketfishproducts.com. If you still have questions,

contact our toll-free help line for assistance (800) 620-2790.

This power adapter is not compatible with Mac computers.

NOTE: If the compatible tip for your device is not included in

the adapter package, one free tip can be ordered through

the Tip Wizard at www.RocketfishProducts.com. Simply use

the Tip Wizard to locate the manufacturer and model and

you can order your complementary tip. If you are unable to

locate your device on the Tip Wizard or need assistance

please contact Rocketfish customer service at

(800) 620-2790.

IMPORTANT: If the adapter's LED does not turn on, or if it

blinks, discontinue use and contact our toll free help line for

assistance (800) 620-2790.

Using the AC/DC combo power adapter with a

wall socket.

Use the AC wall socket connection anywhere a 100-120 volt

or 200-240 volt 50/60 Hz AC power source is available.

Tip

DC cable

RF-BPRACDC2 09-0392_ENG.fm Page 5 Tuesday, May 19, 2009 3:24 PM

To use the AC/DC combo power adapter with a wall socket:

1Locate the specified tip from the tip bundle provided.

Each tip is clearly numbered.

2Connect the selected tip to the end of the output cable,

making sure that the pins on the tip are aligned with the

holes in the cable. The ridge on the inside of the tip

should align with the groove in the output cable

connector. Also make sure that the tip is pushed all the

way into the output cable's connector.

3Plug the power tip into your notebook computer.

4Connect the AC wall socket input cable to the adapter.

5Plug the AC connector into the wall socket or power

strip. When the adapter has power, the status light turns

on. Your device is now powered and the battery is

charging.

Using the AC/DC combo power adapter in a

vehicle.

The AC/DC combo power adapter auto connector can be

used in any vehicle with a 12-volt DC cigarette lighter socket

such as a car, truck, RV, or boat.

CAUTION: To prevent power interruption and any negative

effects on your mobile device, disconnect the power adapter

prior to starting your vehicle's engine. The power adapter

may be re-connected once the vehicle's engine has been

started.

To use the AC/DC combo power adapter in a vehicle:

1Locate the specified tip from the tip bundle provided.

Each tip is clearly numbered.

RF-BPRACDC2 09-0392_ENG.fm Page 6 Tuesday, May 19, 2009 3:24 PM

RF-BPRACDC2

2Connect the selected tip to the end of the output cable,

making sure that the pins on the tip are aligned with the

holes in the cable. The ridge on the inside of the tip

should align with the groove in the output cable

connector. Also make sure that the tip is pushed all the

way into the output cable's connector.

3Plug the power tip into your notebook computer.

4Plug the DC power connector input cable into the power

adapter.

5Remove the vehicle’s cigarette lighter from its socket.

WARNING: The cigarette lighter could be hot and burn your

skin or flammable materials. Let the lighter cool completely

before storing it.

6Plug the DC power cable into the cigarette lighter socket.

When the adapter has power, the status light turns on.

Your device is now powered and the battery is charging.

Using the AC/DC combo power adapter in a

commercial airplane.

Use the air connector when traveling with an airline that

provides a compatible in-seat power system. Some airlines

provide a 12-volt DC cigarette socket instead of a special air

connection. On these airlines, use the vehicle cigarette

lighter connection.

NOTE: The AC/DC combo power adapter will power your

device, but may not charge your device's battery when used

in an airplane.

To use the AC/DC combo power adapter in a commercial airplane:

1Locate the specified tip from the tip bundle provided.

Each tip is clearly numbered.

RF-BPRACDC2 09-0392_ENG.fm Page 7 Tuesday, May 19, 2009 3:24 PM

2Connect the selected tip to the end of the output cable,

making sure that the pins on the tip are aligned with the

holes in the cable. The ridge on the inside of the tip

should align with the groove in the output cable

connector. Also make sure that the tip is pushed all the

way into the output cable's connector.

3Plug the power tip into your notebook computer.

4Plug the DC power connector input cable into the power

adapter.

5Remove the vehicle cigarette lighter connector to reveal

the air connector, by holding the tab at the base of the

connector to slide the cigarette lighter connector off.

6Insert the adapter's air connector into the in-seat power

socket, which is usually found on the arm of your seat or

under the seat. The adapter's status light will glow when

powered. When the adapter has power, the status light

turns on. Your device is now powered.

FAQ for Rocketfish adapters

What tip should I use for my laptop?

You can determine the correct tip for your laptop by

referencing the Tip Compatibility Guide included with the

adapter or by visiting the Tip Wizard at

www.RocketfishProducts.com. Locate your laptop

manufacturer and model and the correct tip will be listed.

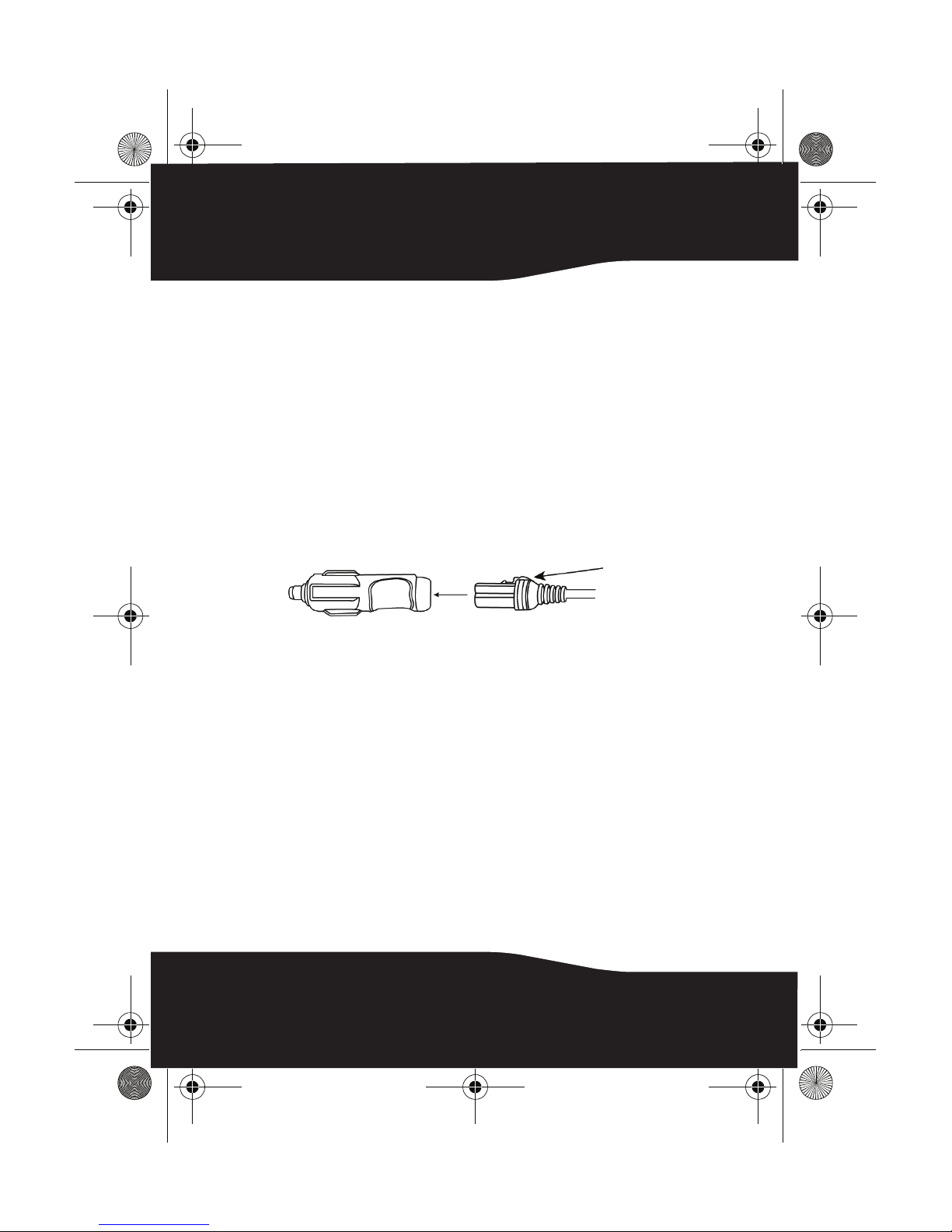

Hold this tab and

slide the auto

connector off.

Auto connector Air connector

RF-BPRACDC2 09-0392_ENG.fm Page 8 Tuesday, May 19, 2009 3:24 PM

RF-BPRACDC2

If you cannot find your specific laptop model please contact

Rocketfish customer service at (800) 620-2790 for additional

assistance.

My tip is not included, how do I order a new

one?

First review the included Tip Compatibility Guide to locate

the correct tip for your specific laptop. If the compatible tip

for your device is not included in the adapter package, one

free tip can be ordered through the Tip Wizard at

www.RocketfishProducts.com. Simply use the Tip Wizard to

locate your device manufacturer and model and you can

order your complimentary tip. If you are unable to locate

your device in the Tip Wizard please contact Rocketfish

customer service at (800) 620-2790.

How do I connect the tip to the adapter cable?

Once you have selected the correct tip for your laptop,

connect the tip to the output cable, making sure that the

ridge on the inside of the tip aligns properly with the groove

in the output cable connector. Additionally, the pins on the

inside of the tip should be in line with the holes in the output

cable. The tip should be pushed firmly onto the cable until

the tip and cable meet and there is no gap.

What other laptops can I use this adapter for?

The Rocketfish AC/DC combo power adapter is compatible

with thousands of laptop models. A complete list of

compatible laptops can be viewed through the Tip Wizard at

www.RocketfishProducts.com.

Why doesn't the tip fit into my laptop?

If the tip does not appear to fit into your laptop you may

have selected the incorrect tip for your device. The tip should

fit snugly inside the DC input jack on the side or back of your

laptop. If the tip will not fit into the jack do not force the tip.

RF-BPRACDC2 09-0392_ENG.fm Page 9 Tuesday, May 19, 2009 3:24 PM

Confirm you have selected the correct tip for your laptop by

referencing the included Tip Compatibility Guide or visiting

the Tip Wizard at www.RocketfishProducts.com. If you need

additional assistance please contact Rocketfish customer

service at (800) 620-2790.

Will using an incorrect tip damage my laptop?

The tips are designed to be used with specific laptops and so

you should only use the tip that is designated specifically for

your laptop. The correct tip can be identified by using the

online Tip Wizard at www.RocketfishProducts.com or by

locating your specific laptop in the included Tip

Compatibility Guide.

The use of an incorrect tip may cause performance issues,

including the inability to charge the internal battery or

power the laptop, or the display of an error message on the

laptop screen. It is also possible that the use of an incorrect

tip could damage your laptop. For these reasons, it is

necessary to use the tip designed specifically for your device.

I notice that the adapter is warm when I use it.

Is this a problem?

During standard operation the adapter body may feel warm,

and this is normal. The adapter should always be placed in a

ventilated area in order to prevent over-heating.

How long is the cord from the wall to the

laptop?

The AC input cord is 6 feet long.

RF-BPRACDC2 09-0392_ENG.fm Page 10 Tuesday, May 19, 2009 3:24 PM

Otros manuales para RF-BPRACDC2

Tabla de contenidos

Otros manuales de Adaptador de Rocket Fish

Rocket Fish

Rocket Fish RF-BPRACEX Manual de usuario

Rocket Fish

Rocket Fish RF-PRACDC Manual de usuario

Rocket Fish

Rocket Fish RF-BPRACDC2 Manual de usuario

Rocket Fish

Rocket Fish RF-G1179 Manual de instalación y operación

Rocket Fish

Rocket Fish RF-AC7540-C Manual de usuario

Rocket Fish

Rocket Fish RF-MRBTAD Manual de usuario

Rocket Fish

Rocket Fish RF-ACU9025 Manual de usuario

Rocket Fish

Rocket Fish RF-BPRACDC2 Manual de usuario

Rocket Fish

Rocket Fish RF-GDS010A Manual de usuario

Rocket Fish

Rocket Fish RF-BPRAC3 Manual de usuario

Rocket Fish

Rocket Fish RF-G1179 Manual de lista de piezas

Rocket Fish

Rocket Fish RF-PRAC Manual de usuario

Rocket Fish

Rocket Fish RF-BCDM4 Manual de usuario

Rocket Fish

Rocket Fish RF-ACU12002 Manual de usuario

Rocket Fish

Rocket Fish RF-BTAPDT RF-BTDGLE Guía de inicio rápido

Rocket Fish

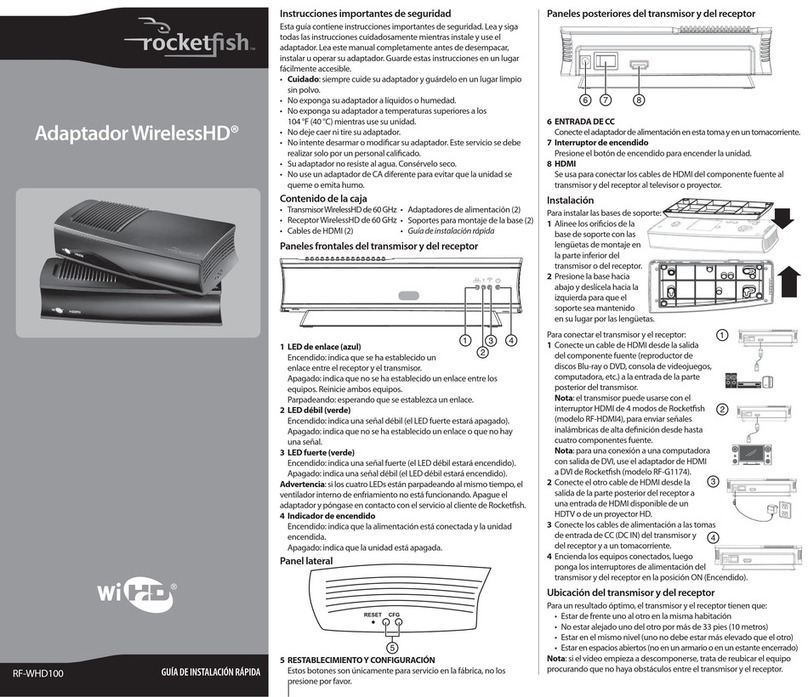

Rocket Fish RF-G1174 Manual de usuario

Rocket Fish

Rocket Fish RF-G1171 Manual de usuario

Rocket Fish

Rocket Fish RF-BPRAC2 Manual de usuario

Rocket Fish

Rocket Fish RF-BPRAC2 Manual de usuario

Rocket Fish

Rocket Fish RF-G1175 Manual de instalación y operación

Rocket Fish

Rocket Fish RF-FLBTAD Manual de usuario

Rocket Fish

Rocket Fish RF-G1171 Manual de usuario

Rocket Fish

Rocket Fish RF-RBCARD Manual de usuario

Rocket Fish

Rocket Fish RF-FLBTAD Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
