Installation Guide

IMPORTANT SAFETY INFORMATION WARNING:

•Always turn off power at the main power source by unscrewing

fuse or switching circuit breaker to the off position before installing,

removing, cleaning, or servicing thermostat.

•Read all of the information in this manual before installing or

programming this thermostat.

•This is a 24V AC low voltage thermostat. Do not install on voltages

higher than 30V AC.

•All wiring must conform to local and national building and electrical

codes and ordinances.

•Do not short (jumper) across terminals on the gas valve or at the

system control to test installation. This will damage the thermostat

and void the warranty.

110-653C

5 - 2 Day Programmable

1 Heat / 1 Cool

INTEGRATED COMFORT SOLUTIONS

™

DIGITAL

PROGRAMMABLE

THERMOSTAT

9600

User’s Manual

Quick Start

Installation and

Programming

ELECTRIC

GAS

110-653C

All manuals and user guides at all-guides.com

all-guides.com

Features

•Four setpoints for weekday programming—two setpoints for

weekend comfort.

•Two AA ENERGIZER brand batteries retain program memory even

during power outages.

•Low battery indicator.

•Fahrenheit/Celsius display option.

•Programmable from 45°F (4°C) to 90°F (32°C).

•Accuracy within ± 1 degree.

•Adjustable temperature differential: 1-3 degrees.

•Maintains summer and winter programming.

•Low temperature freeze protection. While in heat mode, thermostat

will mechanically turn on heat if temperature drops to 40°F (4°C) -

even if batteries are missing or drained.

•Automatic heating shutdown if temperature exceeds 90°F (32°C).

Replacing Existing Thermostat

1. Turn off power to heating and cooling system.

2. Remove cover of old thermostat to expose wires. Do not

disconnect wires. (See Figure 1)

3. Label wires per Table 1.

Table 1

Old Label New Label Description

M, 4, RH, R5 or R RH Heat Transformer,

hot side

V or RC RC Cooling Transformer, hot

side

Y or Y6 Y Cooling control

H, W or 4 W Heating control

F or G G Fan control relay

C* Y or None Either cooling control or

common side of trans-

former

*NOTE: ONSOME OLDER MODELS, THE C TERMINAL CAN BE EITHER THE COOLING

CONTROL OR THE COMMON SIDE OF THE TRANSFORMER. CHECK FURNACE WIRING

DIAGRAM TO VERIFY C TERMINAL. IFITISTHE COMMON SIDE OF THE

TRANSFORMER, CAP THE WIRE AND TUCK INTO THE WALL. IFITISTHECOOLING

CONTROL, CONNECT TO THE Y TERMINAL.

4. After labeling wires, remove wires from terminals.

5. Remove existing thermostat base from wall.

6. Refer to the following section for instructions on how to

install thermostat.

All manuals and user guides at all-guides.com

Figure 1

Installing Item 9600 Thermostat

NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON AN INSIDE WALL, 4-5 FEET

ABOVE THE FLOOR. DONOT INSTALL BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS,

IN DIRECT SUNLIGHT, OR NEAR ANY HEAT OR STEAM GENERATING FIXTURES. INSTALLATION

AT THESE PLACES WILL AFFECT THERMOSTAT OPERATION.

1. Turn power off to the heating and cooling systems.

2. Place COOL-OFF-HEAT in OFF position.

3. Place AUTO–ON switch

into AUTO position.

4. Remove the cover using a coin

or screwdriver.

Figure 2

5. Place thermostat against the wall at desired location. Make sure

wires will feed through opening on base of thermostat.

6. Mark placement of mounting holes (see Figure 3). Set base aside.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

AUTO - ON

All manuals and user guides at all-guides.com

Figure 3

7. Drill the marked holes using a 3/16” drill bit. Note: Enclosed plastic

anchors do not require a drilled hole for drywall.

8. Tap plastic anchors into the wall.

9. Align base with plastic anchors and feed wires through opening (see

Figure 4).

Figure 4

10. Secure base to wall with supplied screws.

11. Connect wires to terminal strip. Refer to wiring diagrams on other

side of this sheet. Make sure wire connections are secure.

12. Place fan option switch into either the ELEC or GAS position depend-

ing on the type of furnace. Refer to Figure 5.

Figure 5

PROG

MAN

CHANGE SET AUTO/MAN

Elec

Gas

MORN DAY EVE NITE

FAN AUTO ON

MOUNTING HOLES

COOL OFF HEAT

PROG

MAN

CHANGE SET AUTO/MAN

Elec

Gas

MORN DAY EVE NITE

FAN AUTO ONCOOL OFF HEAT

PROG

MAN

CHANGE SET AUTO/MAN

Elec

Gas

MORN DAY EVE NITE

FAN AUTO ON

FAN

OPTION

SWITCH

Controls

fan delay.

COOL OFF HEAT

All manuals and user guides at all-guides.com

13. Install two AA ENERGIZER brand batteries or equivalent into battery

compartment. Be sure to match positive (+) ends of batteries with

positive (+) battery terminals in the battery compartment. The display

will show as follows:

14. Replace cover on thermostat by snapping into place.

15. Turn on power to system. Test thermostat as described in the

section To Test Thermostat.

Programming Guide

Set Time of Day, Day of Week,

Temperature Differential

1. Press and hold SET. Press PROG/MAN.

Release simultaneously.

Press or to change

time of day.

2. Press Press

to change

day of week

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

SET PROG/MAN

SET P

1=MO

2=TU

3=WE

4=TH

5=FR

6=SA

7=SU

All manuals and user guides at all-guides.com

3. Press Press

to change

temperature differential*

*THE TEMPERATURE DIFFERENTIAL IS FACTORY PRESET AT 1°. THIS MEANS

THAT WHENEVER THE ROOM TEMPERATURE CHANGES BY ONE FULL DEGREE FROM

THE TEMPERATURE SETTING, THE SYSTEM WILL TURN ON. IFTHE SYSTEM TURNS

ON TOO OFTEN, INCREASE THE TEMPERATURE DIFFERENTIAL.

Changing Fahrenheit (F) to Celsius (C)

Press and hold SET. Press

Release both simultaneously.

Setting Daily Programming

1. Place COOL-OFF-HEAT switch

in COOL position.

2. Press SET.

3. Press or to change

MORN time.

SET P

SET

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

SET PR

All manuals and user guides at all-guides.com

all-guides.com

4. Press SET.

5. Press or to change

MORN temperature.

6. Repeat Steps 2-5 for DAY, EVE, and NITE.

7. Shift COOL-OFF-HEAT switch to

HEAT position.

8. Repeat steps 2-6 to program HEAT (winter) settings.

NOTE: BOTH SUMMER AND WINTER PROGRAMS USE THE SAME TIME SETTINGS.

Your thermostat is now programmed for summer and winter operation.

It will follow the four settings (MORN, DAY, EVE, NITE) for weekday opera-

tion and two settings (MORN and NITE) for weekend operation. Adjust the

program at any time by following the steps as outlined above.

Begin Programmed Operation

1. Place AUTO–ON switch

into AUTO.

2. Place COOL-OFF-HEAT switch

into COOL or HEAT

depending on the season.

3. Press PROG/MAN button

until indicator is in PROG position.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

SET PR

COOL-OFF-HEAT

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

AUTO - ON

COOL-OFF-HEAT

SUMMER

WINTER

ET PROG/MAN

PROG

MAN

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

All manuals and user guides at all-guides.com

Temporary Program Override

To temporarily increase or decrease temperature:

Press or :

The thermostat will automatically return

to the program at the next scheduled

setting change.

Manual Operation

1. Press PROG/MAN until indicator is in MAN position.

2. Press or to adjust

temperature settings.

Reset

To reset the thermostat to factory preprogrammed

conditions, press the RESET button located directly

to the right of the display.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

TPROG/MAN

PROG

MAN

PROG

MAN

CHANGE SET AUTO/MAN

Elec

Gas

MORN DAY EVE NITE

FAN AUTO ON

RESET

BUTTON

COOL OFF HEAT

All manuals and user guides at all-guides.com

To Test Thermostat

WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS

VALVE OR SYSTEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE

THE THERMOSTAT AND VOID YOUR WARRANTY.

CAUTION: DONOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW 50°F

(10°C). THIS CAN DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL

INJURY.

1. Place the COOL-OFF-HEAT

switch into the COOL position.

2. Press the button until the temperature setting is at least 3 degrees

below the room temperature. The air conditioning system should

turn on within a few seconds.

NOTE: THERE IS A BUILT IN 5-MINUTE DELAY ON BREAK FOR COMPRESSOR PROTEC-

TION. A SECOND ATTEMPT TO TURN ON THE AIR CONDITIONING WILL RESULT IN A

5-MINUTE DELAY IN COMPRESSOR ACTIVATION.

3. Put the COOL-OFF-HEAT switch into

the OFF position. The air conditioning

system should turn off. The fan may

continue to run for a short period of time.

4. Put the COOL-OFF-HEAT switch

into the HEAT position.

5. Press the button until the temperature setting is at least

3 degrees above room temperature. The heating system should turn

on. The fan may not turn on immediately, depending on the fan delay

built into the furnace.

6. Put the COOL-OFF-HEAT switch

into the OFF position. The heating

system should turn off. Once again,

the fan may have a delay.

7. Put the AUTO–ON switch

to the ON position. The blower

fan should turn on.

8. Put the AUTO–ON switch

to the AUTO position. The blower

fan should turn off.

COOL-OFF-HEAT

AUTO - ON

COOL-OFF-HEAT

All manuals and user guides at all-guides.com

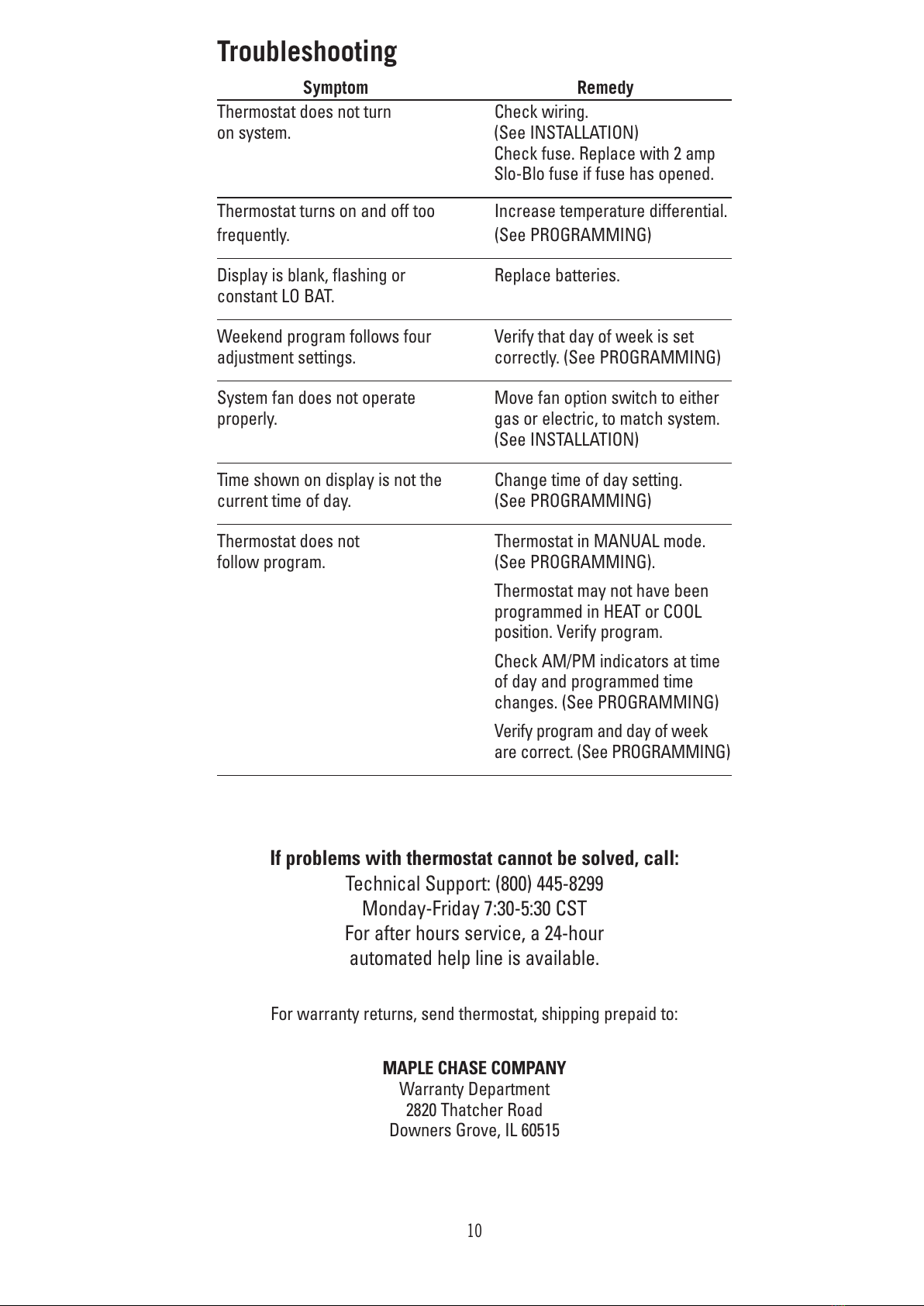

Troubleshooting

Symptom Remedy

Thermostat does not turn Check wiring.

on system. (See INSTALLATION)

Check fuse. Replace with 2 amp

Slo-Blo fuse if fuse has opened.

Thermostat turns on and off too Increase temperature differential.

frequently. (See PROGRAMMING)

Display is blank, flashing or Replace batteries.

constant LO BAT.

Weekend program follows four Verify that day of week is set

adjustment settings. correctly. (See PROGRAMMING)

System fan does not operate Move fan option switch to either

properly. gas or electric, to match system.

(See INSTALLATION)

Time shown on display is not the Change time of day setting.

current time of day. (See PROGRAMMING)

Thermostat does not Thermostat in MANUAL mode.

follow program. (See PROGRAMMING).

Thermostat may not have been

programmed in HEAT or COOL

position. Verify program.

Check AM/PM indicators at time

of day and programmed time

changes. (See PROGRAMMING)

Verify program and day of week

are correct. (See PROGRAMMING)

If problems with thermostat cannot be solved, call:

Technical Support: (800) 445-8299

Monday-Friday 7:30-5:30 CST

For after hours service, a 24-hour

automated help line is available.

For warranty returns, send thermostat, shipping prepaid to:

MAPLE CHASE COMPANY

Warranty Department

2820 Thatcher Road

Downers Grove, IL 60515

All manuals and user guides at all-guides.com

Otros manuales para 9600

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termostato de Robertshaw

Robertshaw

Robertshaw DSL-520P Manual

Robertshaw

Robertshaw 9615 Manual de usuario

Robertshaw

Robertshaw 9701i Manual de usuario

Robertshaw

Robertshaw 9725i2 Instrucciones de instalación y funcionamiento

Robertshaw

Robertshaw 300-204 Manual de usuario

Robertshaw

Robertshaw 8625 Manual de usuario

Robertshaw

Robertshaw RS311N Manual del propietario

Robertshaw

Robertshaw RS3110 Series Manual de usuario

Robertshaw

Robertshaw RS4110 Manual de usuario

Robertshaw

Robertshaw 8406 Manual de usuario

Robertshaw

Robertshaw 300-224 Especificaciones técnicas

Robertshaw

Robertshaw 300-202 Manual de usuario

Robertshaw

Robertshaw 9615 Manual de usuario

Robertshaw

Robertshaw RS8110 Manual de usuario

Robertshaw

Robertshaw 9700 Manual de usuario

Robertshaw

Robertshaw RS9110 Manual de usuario

Robertshaw

Robertshaw RS6000 Manual de usuario

Robertshaw

Robertshaw 300-224 Especificaciones técnicas

Robertshaw

Robertshaw 8401 Manual de usuario

Robertshaw

Robertshaw 7610 Manual de usuario

Robertshaw

Robertshaw 200-403 Manual de usuario

Robertshaw

Robertshaw 9420 Manual de usuario

Robertshaw

Robertshaw RS9110 Manual de usuario

Robertshaw

Robertshaw RS332NE Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Honeywell

Honeywell CM721 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

Honeywell

Honeywell RLV4305 Manual de usuario

Honeywell

Honeywell Prestige 2.0 THX9421 Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario
