Robe Wash 575XT Manual de usuario

Table of contents

1. Safety instructions......................................................................................................... 4

2. Operating determinations ............................................................................................. 5

3. Description of the device .............................................................................................. 6

4. Installation ...................................................................................................................... 7

4.1 Fitting the lamp ......................................................................................................... 7

4.2 Lamp adjustment ....................................................................................................... 7

4.3 Rigging the fixture ..................................................................................................... 8

4.4 Connection to the mains .......................................................................................... 10

4.5 DMX-512 connection/connection between fixtures ................................................. 10

5. DMX PROTOCOL .......................................................................................................... 11

6. Controller mode ........................................................................................................... 13

6.1 DMX addressing ..................................................................................................... 13

6.2 Remotely controllable functions .............................................................................. 13

7. Stand - alone mode ...................................................................................................... 14

8. Functions of the control panel.................................................................................... 15

8.1 Addressing .............................................................................................................. 15

8.2 Slave control ........................................................................................................... 16

8.3 Fixture informations ................................................................................................. 16

8.4 Personality options .................................................................................................. 18

8.5 Switching On/Off the lamp ....................................................................................... 22

8.6 Test sequences........................................................................................................ 23

8.7 Stand-alone setting ................................................................................................. 23

8.8 Reset function ......................................................................................................... 25

8.9 Special functions ..................................................................................................... 25

9. Error and information messages ................................................................................ 27

10. Technical specifications ............................................................................................ 28

11. Maintenance and cleaning ........................................................................................ 30

12. Appendix .................................................................................................................... 32

12.1 Changing the power supply settings ..................................................................... 32

WASH 575 XT

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOU INITIAL START - UP!

1. Safety instructions

Every person involved with installation and maintenance of this device have to:

- be qualilfied

- follow the instructions of this manual

CAUTION!

Be careful with your operations. With a high voltage you can suffer

a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure

a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written

in this manual.

Important:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual

or any unauthorized modification to the device.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the

mains with particular caution!

Make sure that the available voltage is not higher than stated on the rear panel.

Always plug in the power plug least. Make sure that the power-switch is set to OFF-position before you connect

the device to the mains. The power-plug has to be accessable after installing the device.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-

cord from time to time.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord

by the plug. Never pull out the plug by tugging the power-cord.

This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.

The electric connection, repairs and servicing must be carried out by a qualified employee.

Do not connect this device to a dimmer pack.

Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily

mean that the device is defective.

Do not touch the device’s housing bare hands during its operation (housing becomes hot)!

For replacement use lamps and fuses of same type and rating only.

CAUTION ! EYEDAMAGES !

Avoid looking directly into the light source

(meant especially for epileptics) !

2. Operating determinations

This device is a moving-head spot for creating decorative effects and was designed for indoor use only.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on

immediately. The arising condensation water might damage your device. Leave the device switched off until it has

reached room temperature.

Never run the device without lamp!

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the

fixture at the transport handles.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture

or dust. There should not be any cables lying around. You endanger your own and the safety of others!

The minimum distance between light-output and the illuminated surface must be more than 1,5 meter.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

Always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct holes only.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may

explose and emit a high ultraviolet radiation, which may cause burns.

The maximum ambient temperature ta= 40° C must never be exceeded. Otherwise, the lamp is switched off and

the fixture is out of operation for 5 minutes.

CAUTION!

The lens has to be replaced when it is obviously damaged,

so that its function is impaired, e. g. due to cracks or deep scratches!

Operate the device only after having familiarized with its functions. Do not permit operation by persons not

qualified for operating the device. Most damages are the result of unprofessional operation!

CAUTION!

The lamp has to be replaced when it is damaged

or deformed due to the heat!

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

If this device will be operated in any way different to the one described in this manual, the product may suffer

damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-

circuit, burns, electric shock, burns due to ultraviolet radiation, lamp explosion, crash etc.

1- Projector-head

2 - Yoke

3 - Carrying handles

4- Base

3. Description of the device

Rear panel:

5 - Power switch

6 - DMX output

7- DMX input

8 - Power cord

9 - Fuse holder

Front panel:

10 - Mode-button

11 - Enter-button

12 - Up-button

13 - Down-button

14 - Display

4. Installation

4.1 Fitting the lamp

DANGER !

Install the lamps with the device switched off only.

Unplug from mains before !

To insert the lamp PHILIPS MSR 575/2 95 V/575 W GX-9,5 open the small cover at the head’s rear panel (see the

drawing) by loosening the 3 Phillips screws X, Y and Z on the cover.

Gently pull out the lamp assembly.

If changing the lamp, remove the old lamp from the socket. Insert the lamp to the socket.

Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not designed for.

Damages caused by non-observance are not subject to warranty. Please follow the lamp manufacturer‘s notes!

Do not touch the glass-bulb bare-handed during the installation! Make sure that the lamp is installed tightly into

the lampholder system.

Reinsert the lamp assembly and tighten the 3 screws again.

Before striking the lamp, reset the "LAti" counter in the main menu of the Control Board, by pressing the "Up"

and "Down" buttons in one time and then confirming with the Enter-button.

Do not operate this fixture with opened housing-cover!

4.2 Lamp adjustment

The WASH 575 XT lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may

improve light performance.

Strike the lamp, open the shutter and the iris, set the dimmer intensity onto 100 % and focus the light on a flat

surface (wall). Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws "A, B, C”.Turn

one screw at a time to drag the hot-spot diagonally across the projected image. If you cannot detect a hot-spot,

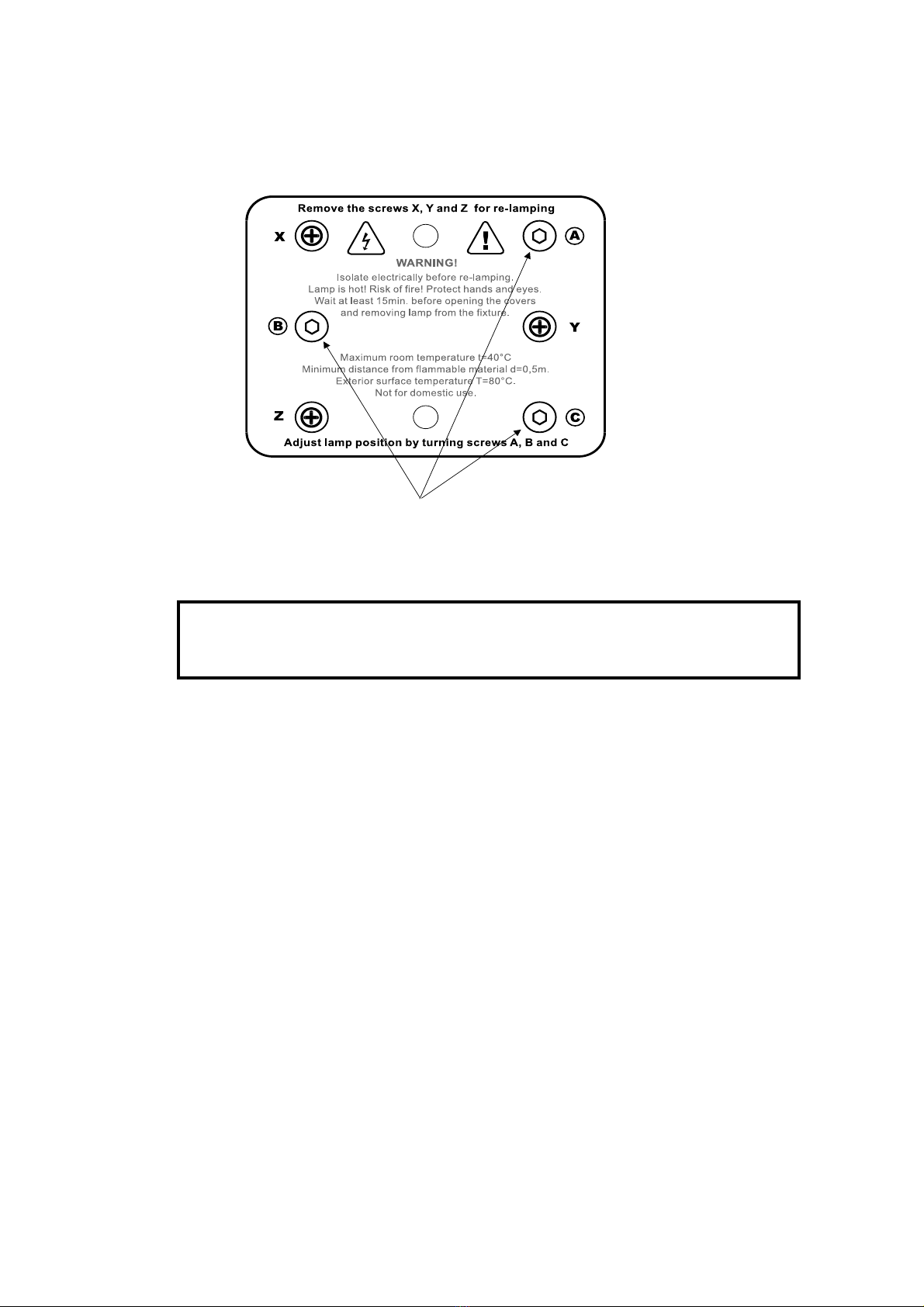

Lamp assembly:

3 phillips screws "X,Y,Z"

Lamp cover

adjust the lamp until the light is even.

To reduce a hot-spot, pull the lamp in by turning all three screws "A, B, C” clockwise ¼-turn at a time until the light

is evenly distributed.

If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is too far back in the

reflector. „Push” the lamp out by turning the screws "A, B, C” counterclockwise ¼-turn at a time the light is bright

and evenly distributed.

3 adjustment screws "A,B,C"

4.3 Rigging the fixture

DANGER TO LIFE!

Please consider the respective national norms during the installation!

The installation must only be carried out by an authorized dealer!

The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1

hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This

secondary safety attachment must be constructed in a way that no part of the installation can fall down if the

main attachment fails.

When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under

high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert

before taking into operation for the first time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert

after every four year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled

person once a year.

The projector should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)

calculating working load limits, installation material being used, and periodic safety inspection of all installation

material and the projector. If you lack these qualifications, do not attempt the installation yourself, but instead use

a professional structural rigger. Improper installation can result in bodily injury and.or damage to property.

The projector has to be installed out of the reach of people.

If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The

projector must never be fixed swinging freely in the room.

Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of

a possible installation, do not install the projector!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector’s

weight.

Danger of fire !

When installing the device, make sure there is no highly inflammable

material (decoration articles, etc.) in between a distance of min. 0,7 m.

CAUTION!

Use 2 appropriate clamps to rig the fixture on the truss.

Follow the instructions mentioned at the bottom of the base.

Make sure that the device is fixed properly! Ensure that the structure (truss)

to which you are attaching the fixtures is secure.

The projector can be placed directly on the stage floor or rigged in any orientation on a truss without altering its

operation characteristics .

For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture. You must

only use safety-ropes with screw-on carabines. Pull the safety-rope through the two apertures on the bottom of

the base and over the trussing system etc. Insert the end in the carabine and tighten the fixation screw.

Fixation via the omega holders

1.Bolt each clamp (1) to the omega holder (4) with M12 bolt and lock nut through the hole in the holder.

2.Fasten the omega holders on the bottom of the base by inserting both quick-lock fasteners (3) into the holes of

the base and tighten fully clockwise.

3.Fasten the safety-rope (2) through the two apertures on the bottom of the base and over the trussing system.

1-Clamp

2-Safety-rope

3-Quick-lock fastener

4-Omega holder

4.4 Connection to the mains

Verify the power supply settings before applying power!

If you wish to change the power supply settings,see the chapter Appendix.

Connect the fixture to the mains with the enclosed power cord and plug.

The earth has to be connected!

The occupation of the connection-cables is as follows:

Cable (EU) Cable (US) Pin International

Brown Black Live L

Light blue White Neutral N

Yellow/Green Green Earth

4.5 DMX-512 connection/connection between fixtures

Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the

fixture or one fixture with another.

Occupation of the XLR-connection:

DMX - output DMX-input

XLR mounting-socket: XLR mounting-plug:

If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the

DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs,

you need to use adapter-cables.

Building a serial DMX-chain:

Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always

connect one output with the input of the next fixture until all fixtures are connected.

Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ωresistor

between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.

1- Ground

2 - Signal (-)

3 - Signal (+)

1- Ground

2 - Signal (-)

3 - Signal (+)

Master/slave operation

Controller operation

Tabla de contenidos

Otros manuales de Equipo de iluminación de Robe

Robe

Robe Robin Esprite Manual de usuario

Robe

Robe Color Wash 575E AT Manual de usuario

Robe

Robe Tarrnatula Manual de usuario

Robe

Robe LightDome 575 Manual de usuario

Robe

Robe DMX Control 1024 Manual de usuario

Robe

Robe Euphoria CB series Manual de usuario

Robe

Robe ColorWash 250 AT Manual de usuario

Robe

Robe CitySource 96 Manual de usuario

Robe

Robe Anolis Ambiane XP56 Manual de usuario

Robe

Robe Robin 100 LEDBeam Wireless DMX CRMX Manual de usuario

Robe

Robe Robin MiniMe Manual de usuario

Robe

Robe Color mix 575 AT Manual de usuario

Robe

Robe Anolis ArcSource Outdoor 48 MC Integral RGBW Manual de usuario

Robe

Robe Divine 160 RGBW Manual de usuario

Robe

Robe Robin 600E Beam Manual de usuario

Robe

Robe ANOLIS Eminere Side 1 Manual de usuario

Robe

Robe ArcSource Outdoor 16 MC Integral RGBW US Manual de usuario

Robe

Robe Color Mix 250 AT Series Manual de usuario

Robe

Robe Anolis Calumma XS MC Manual de usuario

Robe

Robe Anolis Ambiane XP56 Manual de usuario

Robe

Robe DigitalSpot 5000 DT Manual de usuario

Robe

Robe DigitalSpot 7000 DT Manual de usuario

Robe

Robe Digital Spot 3000 DT II Manual de usuario

Robe

Robe ClubWash 600 CT Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
