RIOTEC OM7520M Manual de usuario

Programming Quick Guide

- OM7520M

Installation

Make sure that the scanner has the correct cable to plug in the PC as

below described:

Reset Configuration to Default :

If you are unsure of the scanner configuration or have scanned the

incorrect codes, please scan USB HID. This will reset the scanner to its

factory defaults.

USB HID

Technologic Data:

lMotional Tolerance: 3.0 m/sec

lScan Speed: 60 frame/sec

lLight source: 620nm Red LED

lDepth of field: 13 mil EAN13: 260mm

20 mil QR code: 230mm

lSensor: CMOS (1280 x 1024 pixels)

lBest resolution: 1D (3mil): code 39

lPrint contrast: ≥20%

lInterface: USB HID

lInput voltage: 5 V/DC ±5%

lCurrent- operation: 300 mA

Max. current consumption: ≦500mA

lDimension: 82 x 88 x 156mm (W x D x H)

lWeight: 246g ±5g

Keyboard Country (FOR USB HID Only)

Scan the appropriate country code as below to program the keyboard

layout for your country or language. As a general rule, the following

characters are supported, but need special care for countries other

than the United States: @ | $ # { } [ ] = / ‘\ < > ~

USA

(Original setting)

France

Italy

Spanish

Portuguese (Brazil) Portuguese (Portugal)

German

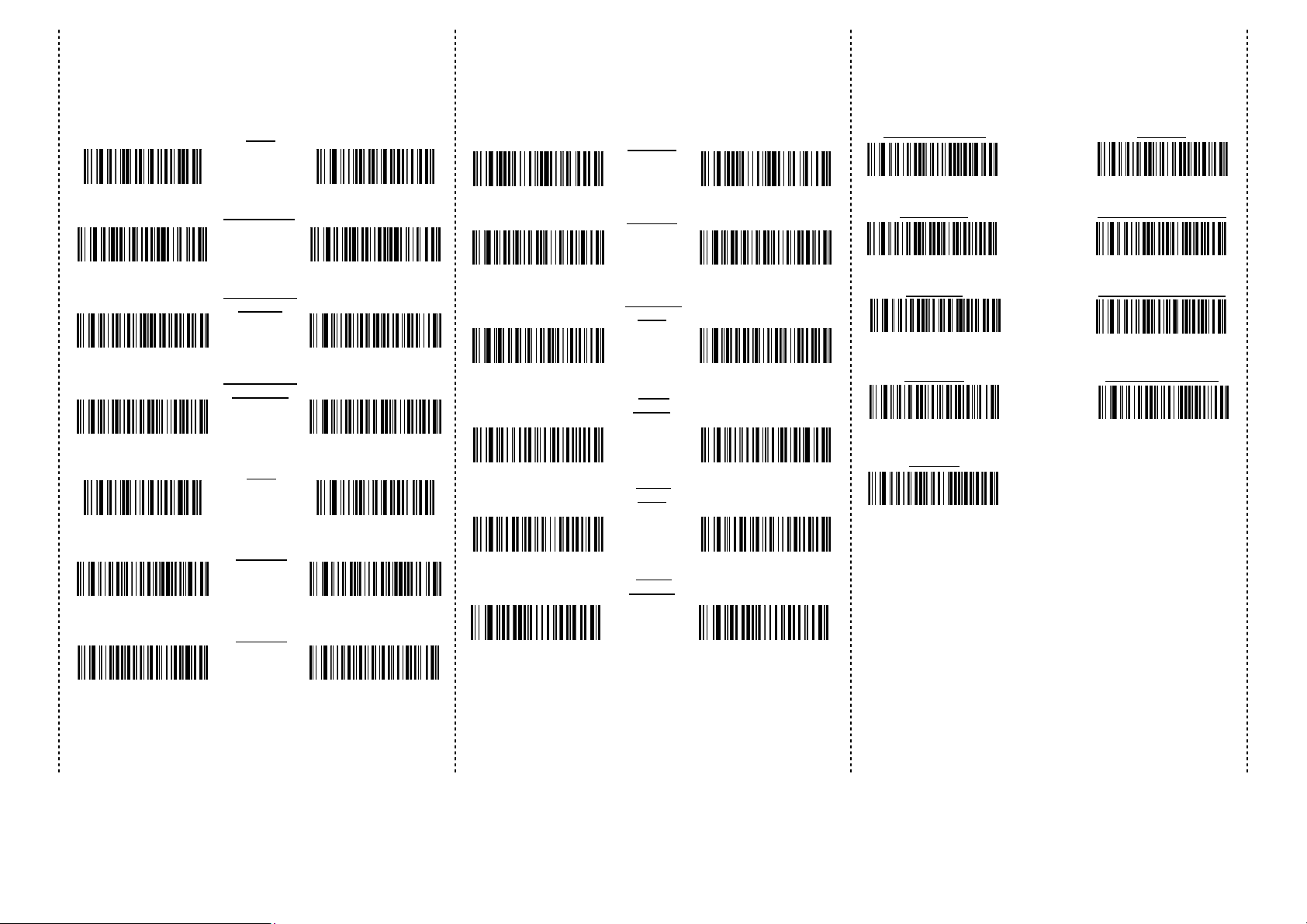

1D Symbologies –1

ENABLE

CODABAR

DISABLE

ENABLE

CODE 39

DISABLE

ENABLE

Interleaved

25 DISABLE

ENABLE

Industrial

DISABLE

1D Symbologies –2

ENABLE

Matrix 25

DISABLE

ENABLE

CODE 128

DISABLE

ENABLE

GS1-128

DISABLE

ENABLE

UPC-A DISABLE

ENABLE

UPC-E DISABLE

ENABLE

EAN 8 DISABLE

ENABLE

EAN 13

DISABLE

ENABLE

CODE32

DISABLE

KBDCTY4

1D Symbologies –3

ENABLE

ISSN DISABLE

ENABLE

GS1DataBar

DISABLE

ENABLE

GS1 Databar

Limited DISABLE

ENABLE

GS1 Databar

Expanded DISABLE

ENABLE

ISBN DISABLE

ENABLE

CODE 93

DISABLE

ENABLE

CODE 11

DISABLE

2D Symbologies

ENABLE

PDF 417 DISABLE

ENABLE

QR Code DISABLE

ENABLE

Micro QR

Code DISABLE

ENABLE

Data

Matrix

DISABLE

ENABLE

Aztec

Code

DISABLE

ENABLE

Micro

PDF417

DISABLE

Beeper setting

Beep on (default)

Beep off

Volume low

Volume high (default)

Low pitch

Middle pitch (default)

High pitch

Tone long (default)

Tone pip

USB keyboard update speed setting

Slow speed (default)

Middle speed

Fast speed

lThe barcode is used to set the update speed when scanner is in

USB keyboard pattern. If the PC performance is lower, we

suggest you choose slow update speed to make sure the scanner

updates the right data.

USB keyboard Convert Case

Normal output (default)

Case reversal

All Caps

All Lower case

lScan the appropriate setting code (as above) to convert barcode

data to your desired case.

Example: When the convert All Lower case function is enabled,

the barcode data “AbC is transmitted as “abc”.

lInformation in this document is subject to change without notice.

Q_190911_01
