Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

MANUAL OUTDOOR SUPER

RAY NG and LPG

Operation and Installation Manual

Model Numbers

ODHRAD3MN

ODHRAD3ML

Suitable for:

Domestic Use outdoor only

Commercial Use outdoor and indoors (subject to room size)

Not recommended for locations directly near the sea or areas

continually subjected to strong winds.

•

Appliance must be installed, commissioned and serviced by a licensed

tradesperson in accordance with these instructions and all applicable local rules

and regulations.

Installer, please leave this manual with the customer.

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

LIMITED WARRANTY

Please keep these instructions in a safe place for future reference.

RECORD AND ATTACH YOUR PROOF OF PURCHASE BELOW:

Your Retailer:__________________________________________________

Name:________________________________________________________

Address:______________________________________________________

_____________________________________________________________

Telephone:( _______ ) __________________________________________

Date of Purchase: ______ / ______ / _________

TERMS AND CONDITIONS

1. During the 24 month period from date of

purchase and subject to clauses 2 and

3 below, Rinnai New Zealand Limited

(“Rinnai”) will, at its own discretion, either

replace or repair any defective product at

no charge to the customer.

2. This warranty covers manufacturing defects

only. This warranty will not apply if (for

example) the product has been improperly

installed or is otherwise installed contrary

to manufacturer’s recommendations, has

been damaged during or after installation,

has not been operated in accordance

with operating instructions, or has been

subjected to damage or abuse beyond that

expected from conditions of normal use.

3. Warranty claims may be invalid if not

accompanied by details of the installing or

supervising gas tter’s registration number

and the gas tting certication number.

4. This warranty commences from the date of

purchase. Proof of purchase is required at

the time of any warranty claim.

5. Servicing of the product is to be carried out

by a Rinnai authorised service centre.

All Rinnai appliances meet or exceed the

safety standards required by New Zealand

gas and electrical regulations. The company

is constantly improving its products and as

such specications are subject to change or

variation without notice.

Rinnai brings you peace of mind

with a 2 year minimum warranty.

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

Contents

WARNING

Improper installation, adjustment, alteration, service or maintenance

can cause property damage, personal injury or loss of life.

For assistance or additional information contact Rinnai on 0800

RINNAI (0800 746 624).

Customer Information

Limited Warranty 2

Appliance Location - Important 4

Denition of an Outdoor Area 5

General Information 6

Operation 7

Installation Information

Before Installation 8

Specication Information 8

Installation 9

Installer Details 10

Customer Contacts 12

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

Appliance Location - Important

As a gas appliance there are some stringent criteria governing where it can be located. In

addition to the clearances stated below you must also ensure the following:

For commercial indoor use this appliance must not be used in a room smaller than 120 m3

and ventilation requirements must comply with NZS:5261 2.6.6

Outdoor locations comply with ‘Denition of an Outdoor Area’ on following page

Outdoor use only for domestic applications

The diagram below shows the required minimum clearances for the appliance to walls, oor

and ceiling or loose materials such as umbrellas, ags etc.

•

The heater discharges products of combustion from the top of the unit. If ceiling clearance is not maintained this

could potentially be a re hazard and surfaces may discolour.

The appliance heats via infra-red rays which discharge heat energy upon striking a surface. They do not pass

through solid materials. When installing the heater obstructions to the path of the rays must be taken into

account.

500 mm

300 mm from ceiling

1800 mm

from oor

from wall or other materials

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

Denition of an Outdoor Area

This appliance shall only be used in an above ground open air situation with natural ventilation,

without stagnant areas and where gas leakage and products of combustion are rapidly

dispersed by wind and natural convection.

Any enclosure in which the appliance is used shall comply with one of the following:

With walls on all sides, but at least one permanent opening at ground level and no

overhead cover

•

open both

ends

a) b)

With a partial enclosure that includes an overhead cover and no more than 2 walls•

Within a partial enclosure that includes an overhead cover and more than 2 walls, the

following shall apply:

a) at least 25% of the total wall area is completely open

b) at least 30% of the remaining wall area is open and unrestricted

•

In the case of balconies, at least 20% of the total wall area shall be and remain open and

unrestricted

•

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

General Information

Before operation

Read these instructions to get an overview of how to operate, maintain and service your

Rinnai Manual Super Ray.

Maintenance and servicing

Maintenance

Although all external covers are made from 304 stainless steel, it should be cleaned regularly

to keep the exterior looking good. This is especially important in coastal areas.

Stainless steel should be cleaned using warm water and a mild detergent. Never use products

containing abrasive liquid cleaners.

Servicing

Rinnai has a service and spare parts network with personnel who are fully trained and

equipped to give the best advice on your Rinnai appliance. If your appliance needs

servicing, please call Rinnai (0800 746 624) from a land line and select option 1 for a

service centre in your area.

For reliable operation Rinnai Super Rays should be serviced every 2 years. If they are in a

harsh outdoor environment or intensively used (for example, in a commercial application),

annual servicing would be benecial. Regular servicing is not covered by the Rinnai warranty.

If you have any faults or problems, please refer to your installer or contact Rinnai.

Possible damage by radiant heat

This product emits radiant heat, any materials or objects stored near this appliance could

sustain damage.

Safety

High surface temperatures

Please be aware of the high surface temperatures on the heater. Young children should

be supervised at all times. Hand or body contact with the heater must be avoided.

Flammable materials and aerosols

Do not spray aerosols while the appliance is operating. Most aerosols contain butane

gas which can be a re hazard if used near the appliance.

Do not use or store ammable materials near this appliance.

Obstructions

Do not place articles on or against this appliance.

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

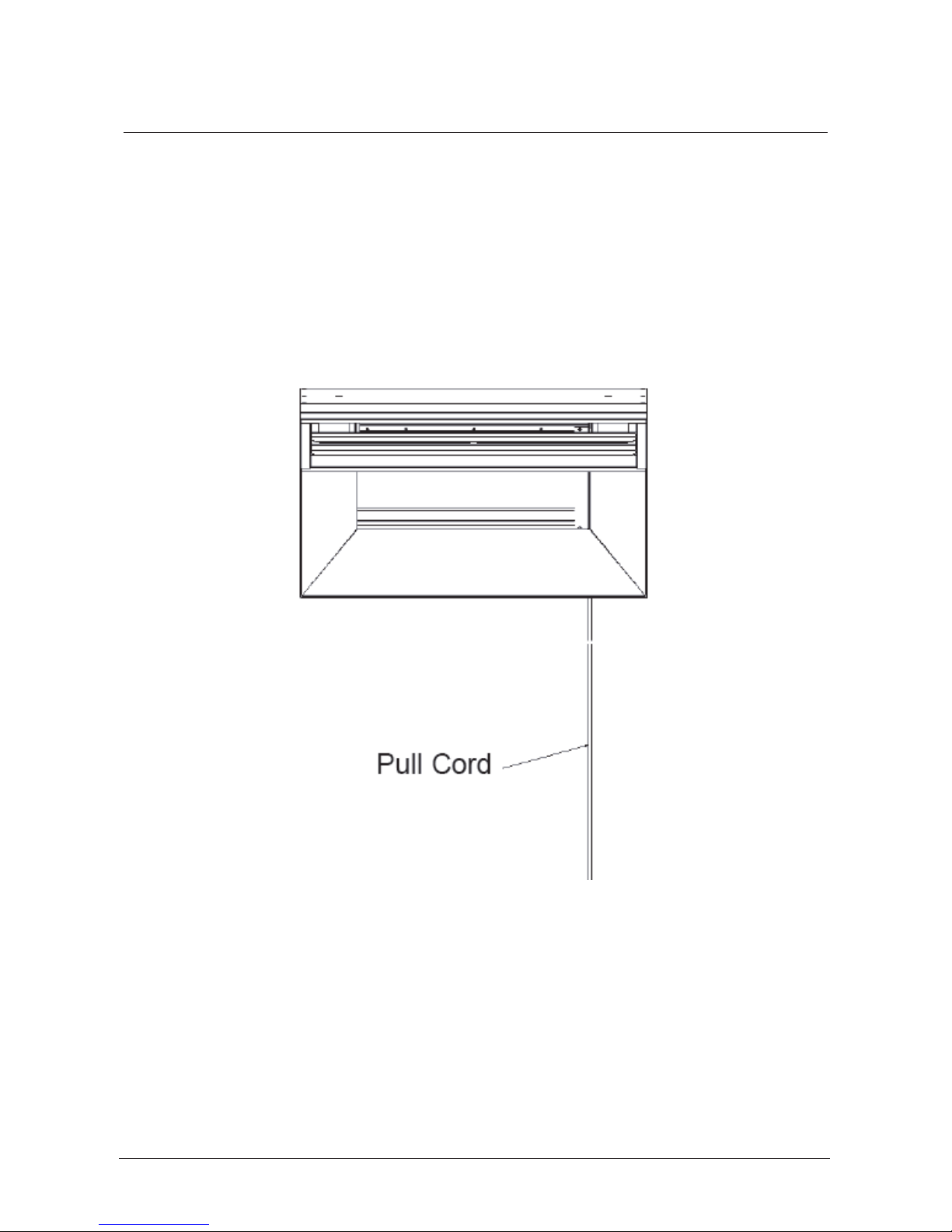

Operation

To turn on Pull the cord down slowly until a click is heard and check for ignition while

holding the cord down.

Should the heater fail to ignite, release the cord and repeat step above.

After ignition, continue to hold down the cord for a further 20 seconds for

the gas valve to fully open.

To turn off Gently pull the cord down and let it go.

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

Installation

Information

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

General

Specication

Model ODHRAD3MN and ODHRAD3ML

Description Stainless steel radiant plaque gas heater

Data Plate Right hand surround panel near gas connection

Gas Inlet NG ½ ” copper are union

LPG ⅜ ” copper are union

Gas Input 24 MJ/h

Gas Type NG and LPG/Propane

Ignition Piezo ignitor

Regulator inbuilt

Weight 10 kg

Before installation

Unpack the appliance and components and check for damage. DO NOT install any

damaged items.

Check all components have been supplied and that you have the correct gas type.

Read these instructions to get an overview of the steps required before starting the

installation. Failure to follow these instructions could cause a malfunction of the

appliance. This could result in serious injury and property damage.

Rinnai New Zealand Manual Outdoor Super Ray Operation and Installation:

10020-D 04-09

Installation

Select a suitable position.

Unscrew the wall bracket from the rear of the heater using a 4 mm Allen key. The wall on

which the heater is mounted must be capable of supporting the heater - 10 kg.

Place the wall bracket in position and mark the xing location holes on the wall. Ensure

minimum clearances as shown on page 4. The heater must be securely attached to the

building or structure using the following xtures:

- For brick and masonry 8 mm dynabolt or equivalent

- For wood/timber number 12 screws or equivalent

Hang the heater on the bracket and secure with safety screws.

Remove lower surround panel and prepare to connect the gas. A manual isolation valve

must be tted.

The inlet connection sizes are as follows:

- Natural Gas ½ “ copper are union

- Propane/LPG ⅜ “ copper are union

Tighten all connections, turn on gas supply and check for leaks with a solution of soapy

water. Under no circumstances should a naked ame be used to test of any gas leakage.

When the installation and testing is completed, explain to the customer about the use

and care of the unit and understands the instructions. Leave these instructions with the

customer.

unscrew these screws to remove wall bracket
