RL-DBS-2

Digital Baby Scale

Operation Manual

PN 161724 Rev B

An ISO 9001 registered company

Rice Lake Weighing Systems®is a registered trademark of

Rice Lake Weighing Systems.

All other brand or product names within this publication are trademarks or

registered trademarks of their respective companies.

All information contained within this publication is, to the best of our knowledge, complete

and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to

make changes to the technology, features, specifications and design of the equipment

without notice.

The most current version of this publication, software, firmware and all other product

updates can be found on our website:

www.ricelake.com

Contents

Contents i

Specifications subject to change without notice.

Rice Lake Weighing Systems is an ISO 9001 registered company.

December 15, 2016

Technical training seminars are available through Rice Lake Weighing Systems.

Course descriptions and dates can be viewed at www.ricelake.com/training

or obtained by calling 715-234-9171 and asking for the training department.

1.0 Introduction..................................................................................................................................... 1

1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.0 Assembly......................................................................................................................................... 3

3.0 Setup ............................................................................................................................................... 4

3.1 Display Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.2 Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.3 Set Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.3.1 KG Units Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.3.2 LB Units Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.3.3 Unlock Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4.0 Operation......................................................................................................................................... 6

4.1 With a Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4.2 Without a Tare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5.0 Maintenance ................................................................................................................................... 7

5.1 Basic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5.3 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5.4 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

RL-DBS-2 Limited Warranty ........................................................................................................................ 9

ii RL-DBS-2 Operation Manual

Rice Lake continually offers web-based video training on a growing selection

of product-related topics at no cost. Visit www.ricelake.com/webinars

Introduction 1

1.0 Introduction

The Rice Lake Digital Baby Scale (RL-DBS-2) provides precise weighing of babies with a highly sophisticated

microprocessor technology that produces accurate, reliable and repeatable weighments. Movement compensation

technology eliminates errors caused by spontaneous movement of the baby. The weight can be displayed in

pounds/ounces or in kilograms.

This manual can be viewed and downloaded from the Rice Lake Weighing Systems website at

www.ricelake.com/health

Figure 1-1. Rice Lake Digital Baby Scale

Standard Features

• Convenient lb/kg toggle key

• Large, easy-to-read one inch LCD (Liquid Crystal Display)

• Built-in measuring tape

• Recall key to view the last weight measurement

• Power: four AA batteries (included), 120V or 230V AC adapter (included)

• Automatic shut off ensures long battery life

2RL-DBS-2 Operation Manual

1.1 Safety

Safety Signal Definitions:

Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.

Includes hazards that are exposed when guards are removed.

Indicates a potentially hazardous situation that, if not avoided could result in serious injury or death.

Includes hazards that are exposed when guards are removed.

Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.

Indicates information about procedures that, if not observed, could result in damage to equipment or

corruption to and loss of data.

General Safety

Do not operate or work on this equipment unless this manual has been read and all instructions are

understood. Failure to follow the instructions or heed the warnings could result in injury or death.

Contact any Rice Lake Weighing Systems dealer for replacement manuals.

Failure to heed may result in serious injury or death.

Ensure every individual operating or working with this unit has read and understands the following safety information.

Do not transport the scale with an infant on the weighing tray.

Clean the scale regularly to avoid cross contamination.

Do not allow minors (children) or inexperienced persons to operate this scale.

Do not use in the presence of flammable materials.

Do not use this product if any of the components are loose or cracked.

Do not drop the scale or subject it to violent shocks.

For accurate weighing, the scale must be placed on a level, stable surface.

Weight exceeding the maximum rated scale capacity may damage the scale.

Avoid contact with excessive moisture.

Do not make alterations or modifications to the scale; any alterations void the warranty.

For accurate weighing, verify proper setup is complete prior to first use. See Section 3.2 on page 4.

Operation at voltages and frequencies other than specified could damage the scale.

Utilizing adapters not supplied by Rice Lake Weighing Systems voids all warranties.

DANGER

WARNING

CAUTION

Important

WARNING

Assembly 3

2.0 Assembly

The RL-DBS-2 comes fully assembled and includes the scale and a 120 V or 230 V AC adapter.

Use the following instructions to set up the scale.

1. Place the scale on a sturdy, level surface.

2. Connect the 120 V or 230 V AC adapter to the back of the scale.

AC Power Connection

120V Adapter 230V Adapter

Figure 2-1. AC Power Connection Site

The RL-DBS-2 can also be powered by four AA batteries if an additional power source is not available. Replace the

batteries or connect to an AC power source as soon as possible, if the low battery indicator (Lo) displays.

Figure 2-2. Low Battery Indicator

4RL-DBS-2 Operation Manual

3.0 Setup

The following section describes the RL-DBS-2 operating keys and their functions.

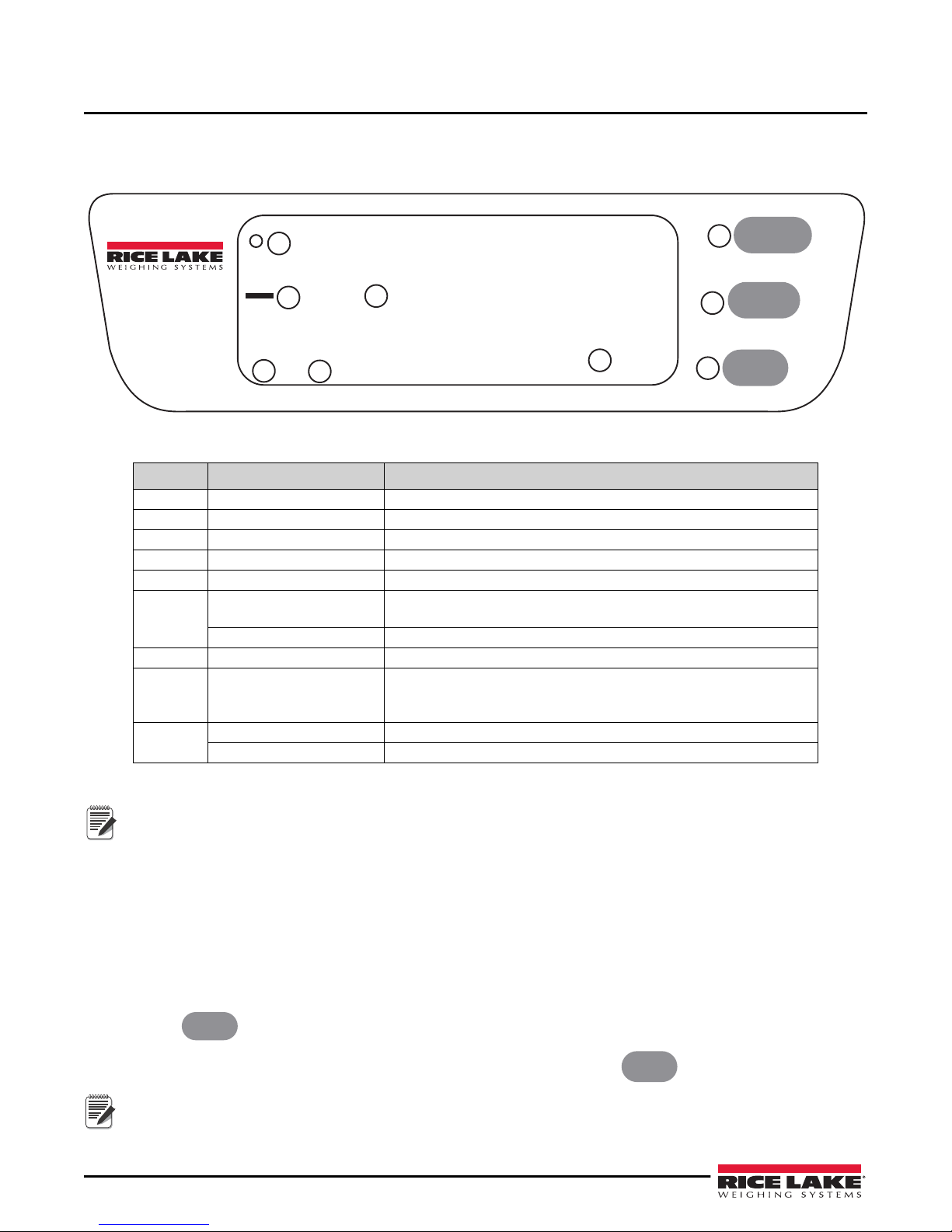

3.1 Display Descriptions

ON/TARE

LB/KG

RECALL

zero mem lb oz

5

Figure 3-1. RL-DBS-2 Display

Note

The Rice Lake Digital Baby Scale (RL-DBS-2) comes pre-calibrated from the factory.

3.2 Initial Setup

Use the following steps to set up and verify the RL-DBS-2 upon initial power up and periodically thereafter.

1. Plug the AC adapter cable into the back of the scale (Figure 2-1 on page 3) and the AC adapter plug into a

power source.

2. Turn on the scale. A self test runs and 0.00.0 lb or 0.00 kg displays when complete.

3. Place a weight, not exceeding 40 lb, on the scale. The weight measurement is complete when odisplays.

4. Press

LB/KG

to select to display the weight in lb/oz or kg.

5. Remove the weight from the scale. To display the weight again, press

RECALL

Note

If the setup procedure failed, see Section 5.3 on page 7. If the problem is not resolved, refer to a qualified

service provider.

Item Description Function

1 Motion indicator Displays when a weight reading is complete

2 Negative or Minus indicator Indicates a negative weight reading

3 Zero indicator Indicates the scale is stable and ready for use

4 Memory indicator Indicates the weighing process is complete

5 6-Digit LCD digital display Displays the weight in pounds/ounces or kilograms

6On/Off Press to turn On

Press and hold to turn Off

Tare With weight on the scale, short press to tare off the weight, 0 displays

7 LB/KG Selects pounds/ounces or kilograms

RECALL

Recalls the last weight measurement

Example: Weigh a baby on the scale and then remove the baby

Press RECALL and the baby’s weight displays again

9 LB/OZ indicator Indicates the scale is weighing in pounds/ounces

KG indicator Indicates the scale is weighing in kilograms

Table 3-1. Front Panel with Annunciators Displayed

Setup 5

3.3 Set Units

The RL-DBS-2 can be set up to display weights in lb only, kg only or to toggle between lb and kg units on the scale.

3.3.1 KG Units Only

Lock the weight units to display in kg only.

1. Power on the scale, if not already on.

2. Press

LB/KG

to change the displayed units to kg

3. Press and hold

LB/KG

for five seconds until the kg indicator flashes

4. Release

LB/KG

. The weight units are now locked in kg. Pressing

LB/KG

does not switch units to lb.

3.3.2 LB Units Only

Lock the weight units to display in lb only.

1. Power on the scale, if not already on.

2. Press

LB/KG

to change the displayed units to lb.

3. Press and hold

LB/KG

for five seconds until the lb oz indicator flashes.

4. Release

LB/KG

. The weight units are locked in lb. Pressing

LB/KG

does not switch units to kg.

3.3.3 Unlock Units

Unlock the weight units to toggle between lb and kg.

1. Power on the scale, if not already on.

2. Press and hold

LB/KG

for five seconds until the kg or lb oz indicator flashes.

3. Release

LB/KG

. Pressing

LB/KG

toggles units between lb and kg.

6RL-DBS-2 Operation Manual

4.0 Operation

The RL-DBS-2 accurately weighs babies up to 44 lb (20 kg). Use one of the following procedures to weigh a baby.

Note

The scale automatically turns off to save battery life, if it has not been used for two minutes.



Press

ON/TARE

to restart the scale.

4.1 With a Tare

The tare function removes the weight of additional items, for example a pad or blanket, on the scale at the time the

baby is weighed.

1. Turn on the scale. 0:0.0 lb oz or 0.00 kg displays.

2. Place a pad on the weighing tray; ensure the edges of the pad are not touching the stand. odisplays when

the weight reading is complete.

3. Press

ON/TARE

to remove the weight of the pad or any other accessory on the weighing tray.

4. Place a baby on the scale. odisplays when the weight reading is complete.

5. Remove the baby from the scale.

6. Press

RECALL

to display the weight again, if necessary.

4.2 Without a Tare

Use this procedure when there are no additional items on the scale at the time the baby is weighed.

1. Turn on the scale. 0:0.0 lb oz or 0.00 kg displays.

2. Place a baby on the scale. odisplays when the weight reading is complete.

3. Remove the baby from the scale.

4. Press

RECALL

to display the weight again, if necessary.
