Rice Lake DC-190 ULTRA COUNT Manual de usuario

73352

DC-190

OOpp

ppee

eerr

rraa

aatt

ttiiii oo

oonn

nn MM

MMaa

aann

nnuu

uuaa

aallll

When Accuracy Counts

CCoo

oouu

uunn

nntt

ttiiii nn

nngg

gg SS

SScc

ccaa

aallll ee

CONTENT

1. General Specification 1

2. Overall Dimension

2.1 DC 190 Indicator 2

2.2 S-X Platform 2

2.3 Pole Type 3

2.4 Bench Type 4

3. Keysheet And Display Layout 5

4. Initial Set Up

4.1 Set Up

4.1.1. DC 190 Bench Type Set Up 7

4.1.2. DC 190 Pole Type Set Up 8

4.2 Location of Span Switch and Connector 9

4.3 Default SPEC 9

4.4 Customer Specification Setting 10

4.5 Weigh & Measure Specification Setting 10

4.6 Internal Count and A / D Count 11

4.7 Calibration 11

5. Specification List

5.1 Software Version 12

5.2 Customer Specification 13

5.3 Weight & Measure Specification 15

5.4 Multi-drop Host Communication Specification 19

6. PC Connection

6.1 General Specification 20

6.2DC 190 to PC Output Data Format 20

6.2.1 With Header 20

6.2.2 Without Header 25

6.3 Data 26

6.4 Wire Configuration 30

7. Printer Connection

7.1 Connection to TVP/ELTRON Printer 31

7.2 Connection to SE250 / EPSON Printer 31

7.3 RS232 Related SPEC List 32

7.4 Wire Configuration 34

8. Set Point Connection

8.1 Pin Configuration 35

8.2 Set Point SPEC Setting 35

8.3 Set Point Set Up 36

9. Barcode Scanner Connection

9.1 General Specification 37

9.2 Default Spec for Barcode Scanner 37

9.3 Pin Configuration 37

9.4 Input Data 38

9.4.1 3 Line Barcode 38

9.4.2 Barcode Scanning Mode 38

9.5 Header Code 39

9.6 Z Command Code 39

9.7 RS232 Related SPEC List 40

9.8 Barcode Sample 40

10. Force Balance Connection

10.1 General Specification 41

10.2 Calibration of Scale 41

10.3 Force Balance SPEC Setting 42

10.4 Wire Configuration 44

11. Circuit Diagram

11.1Block Diagram 45

11.1.1 With Main Board TWB-01900 45

11.1.2 With Main Board TWB-01901 46

11.2 DC 190 Main Board TWB-01900-347

11.3 DC 190 Main Board TWB-01901-050

11.4 DC 190 A / D Board TWB-01930-154

11.5 DC 190 Filter Board TWB-01940-055

11.6 DC 190 A / D Connector Board TWB-01950-156

11.7 DC 190 Connector Board TWB-01921-157

11.8 DC 190 RS232 / 4 Line Interface Board TWB-01970-058

11.9 DC 190 Key Board TPB-1672-360

11.10 DC 190 Power Board TWB-01911-161

12 APPENDIX A 62

DC 190 GENERAL SPECIFICATION

1GENERAL SPECIFICATION

Model :DI 190 ( Indicator)

DC 190 (Pole / Bench)

Dimension :Indicator -142 (L) X 310 (W) X 88 (H)

Pole -415 (L) X 420 (W) X 455 (H)

Bench -415 (L) X 435 (W) X 120 (H)

Capacity :Single Loadcell (Pole / Bench -SX Platform)

500g, 1 Kg, 2.5 Kg, 5 Kg, 10 Kg, 25 Kg, 50 Kg

1Lb, 2.5 Lb, 5 Lb, 10 Lb, 25 Lb, 50 Lb, 100 Lb

Dual Loadcell (Pole / Bench-SX Platform)

500g & 2.5 Kg, 500g & 5 Kg, 1 Kg & 5 Kg, 1kg & 10 Kg

Number Of Loadcells :2 Internal, 1 External, 1 Force Balance (RS232C)

Loadcell Connectivity :0.4 ~ 2.46 mV/V

Type Of Display :VFD

Weight Display -6 Digits

Unit Weight Display -5 Digits

Quantity -7 Digits

Display Resolution :1 / 10,000 ; 1 / 5,000 ; 1 / 2,500

Counting Resolution :1 / 500,000 ; 1 / 1,000,000

Keyboard :Mechanical key switch

Printing Items :Time; ID code; Lot No; Net Weight; Gross Weight;

Unit Weight; Tare Weight; Parts Name; Parts No; Quantity

Memory Item :200 items

Set Point Output :6 Set Points (Open Collector type)

Option :RS232C -PC;

Barcode Scanner (TTL or RS232C type);

Printer SE 250, LP 2622 and LP2722;

Force Balance (Ohaus Explorer )

Power Source :DI 190 -AC/DC Adapter Only

DC 190 -AC/DC Adapter, Rechargeable Battery or AC power.

i) AC/ DC 12 V / 1.4A Adapter (Class II Type)

ii) Rechargeable Battery -Panasonic LC-R123R4PTI

(AC voltage to charge; must charge > 6 hrs;

usage approx. 7 hrs.)

iii) AC 115 / 220 V

DC 190 OVERALL DIMENSION

2OVERALL DIMENSION

2.1 DC 190 INDICATOR

2.2 S-X PLATFORM

DC 190 OVERALL DIMENSION

2.3 POLE TYPE

POLE TYPE WITH 1 SCALE

POLE TYPE WITH 2 SCALES

DC 190 OVERALL DIMENSION

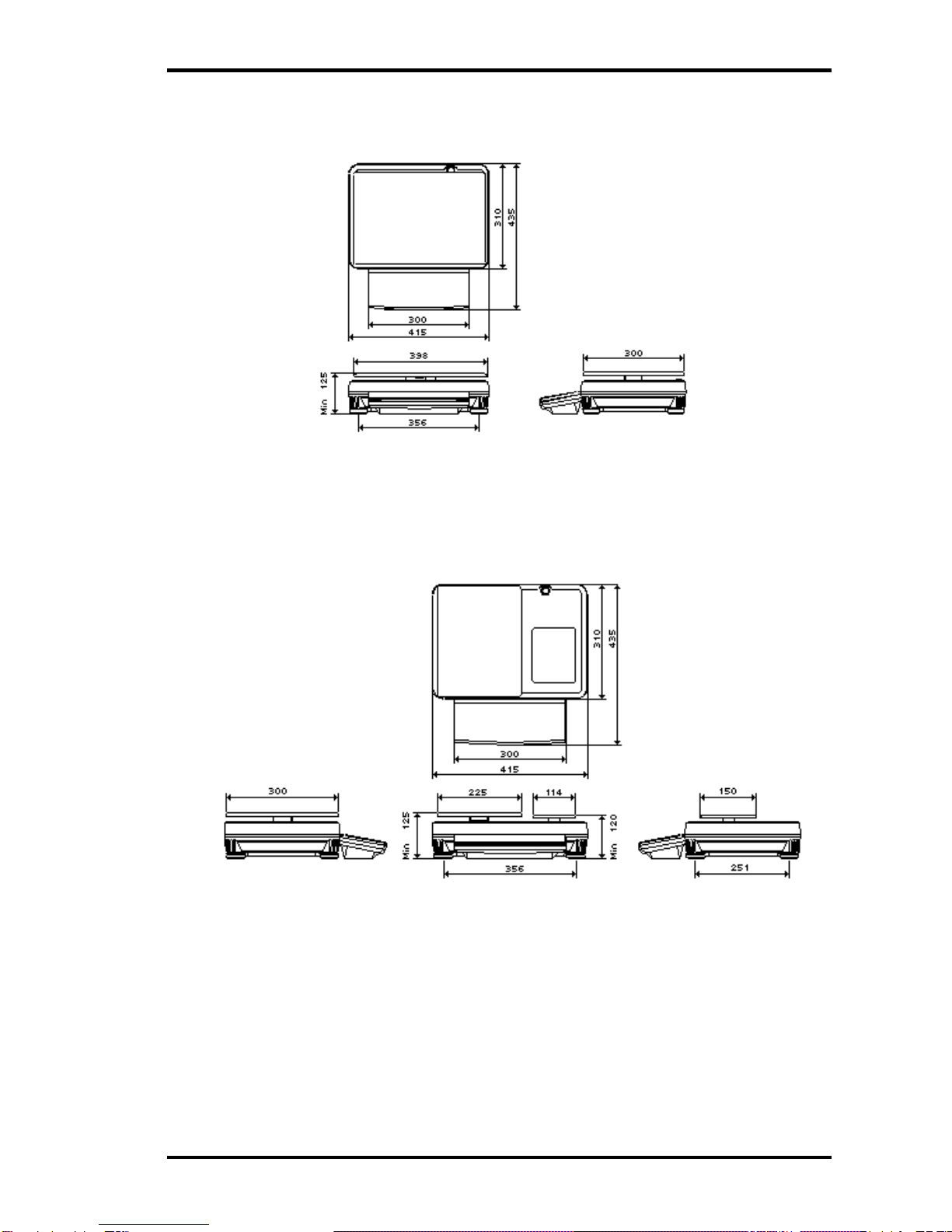

2.4 BENCH TYPE

BENCH TYPE WITH 1 SCALE

BENCH TYPE WITH 2 SCALES

DC 190 KEYSHEET AND DISPLAY LAYOUT

3KEYSHEET AND DISPLAY LAYOUT

KEY FUNCTION

Numeric No.

To change between Gross and Net; use as inventory key

To callout PLU data; to program commodity name inprogramming mode

To print data when printer is connected; store SPEC data

To subtract; to decrease SPEC no; to program parts no., date and time

To accumulate; to increase SPEC no; to program set point

To enter unit weight usingnumeric key board

To switch between different scales

To compute unit weight by sampling

To set and clear the tare weight

To clear the data of entries and unit weight.

To reset the zero point of the scale.

Change the maintenance and weighing mode

Turn on and off the machine.

Decimal Point

DC 190 KEYSHEET AND DISPLAY LAYOUT

INDICATOR LAMPS

ZERO When the gross weight is zero

NET When tare weight is set

GROSS When [Gross/Net] is pressed

INSUFF When net weight is below a specific percentage of capacity weight

RECOM When unit weight re-computing is possible

MEMORY When quantity is being accumulated or when memory overflows

MODE When in the programming mode

BATT When battery power level is low

SCALE 1 When built in platform 1 is used

SCALE 2 When built in platform 2 is used

SCALE 3 When external platform is used

SCALE 4 When force balance is used

IN Inventory in

OUT Inventory out
