RF SOLUTIONS HORNETPRO Manual de usuario

HORNETPRO Remote Control System

Extend your system

Depending on your application or user requirement there are a number of additions you

can make to extend your remote control system.

Additional transmitters:

Our range of FOBBER key fob transmitters are available in various button options, from

a single button to 8 buttons.

Customise Your Key Fob

It is easy to make the system your own by having a custom sticker on the key fob.

From as little as £2.00 extra per key fob (MOQ and design complexity dependent) you

can have a custom key fob.

HORNETPRO Remote Control

QS-HORNETPRO-1

1 x Receive with Additional

Cable Feed

HORNETPRO

Remote Control

System Quick

Start Guide

Full details of HORNETPRO’s Data

is at www.rfsolutions.co.uk

Sales: +44 (0) 1444 227910 Tech. Support: +44 (0) 1444 227909

Quick Start Guide

What’s in the box?

2 x Transmitters

(system only)

HORNETPRO Remote Control System

NOTE: Installation should be carried out by a qualified technician

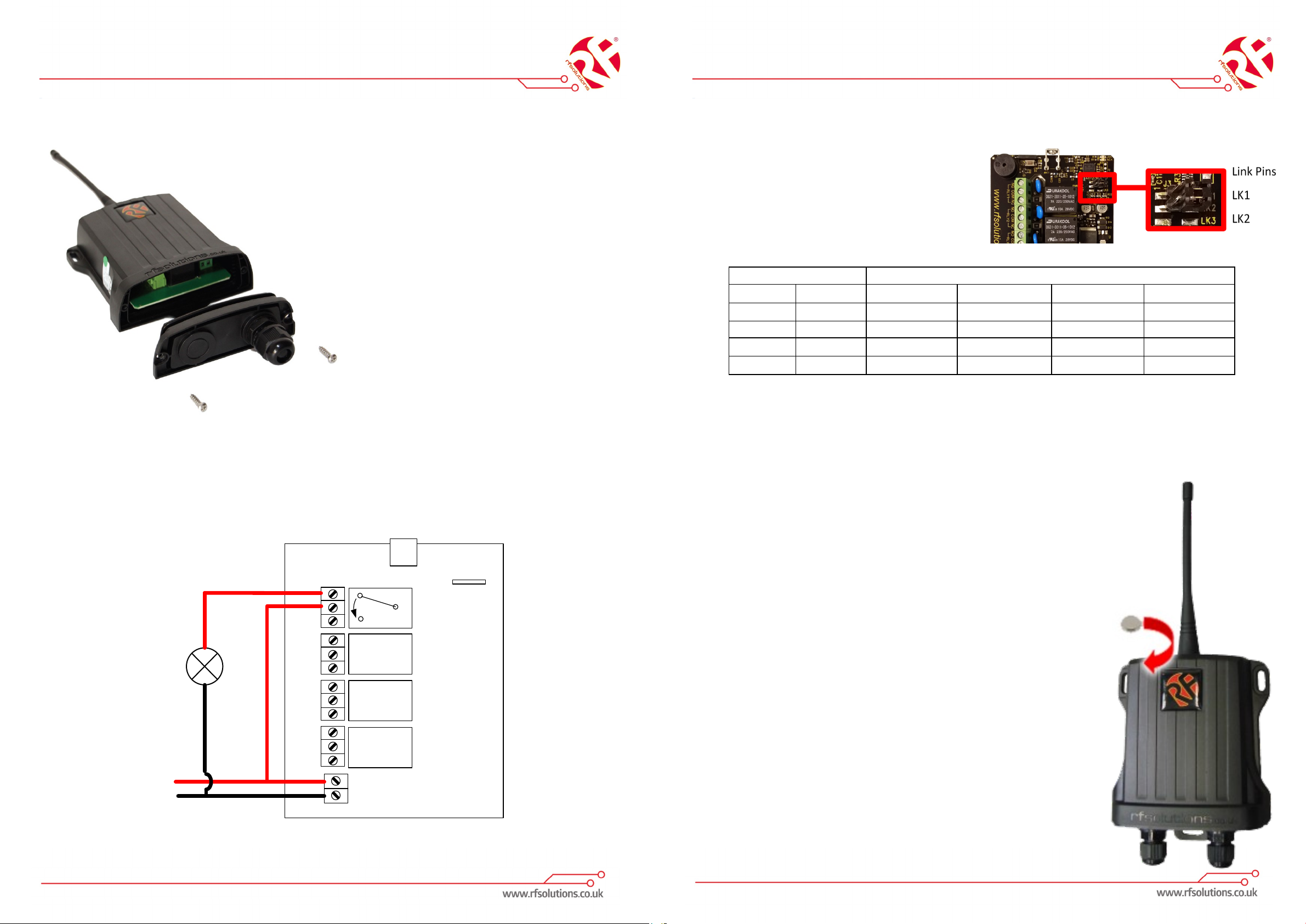

Getting Set Up:

 Unscrew the 2 screws at the base.

 Remove base panel.

 Unscrew the antenna at top of enclosure.

 Lightly pull the PCB inside to remove.

Relay

LOAD

12V

COM

Supply

Terminals

TRAP-RX

Below is a simple example showing one possible way to wire a relay in order to give

switched power to an external load:

When the relay is energised the ‘COM’ connects to ’NO’ and power is applied

to the Load.

NOTE: For full installation instructions and product specification, please see the

HORNETPRO Datasheet at www.rfsolutions.co.uk.

HORNETPRO Remote Control System

NOTE: Systems come pre-paired. Pairing instructions only need to

be followed for additional transmitters.

With this system, you can pair together any individual transmitter

switch, with a receiver relay output switch. Without opening either

enclosure...

1. Briefly (for less than 1 second) place a magnet next to the

top left of the receiver as shown, and then remove it.

2. The receiver will buzz once (One buzz means the receiver unit

is ready to allocate a transmitter to relay switch 1).

3. Press the switch on the transmitter which you wish to pair.

4. The receiver will buzz twice to confirm pairing.

5. Repeat for any additional transmitter switches.

NOTE: Each receiver has a maximum memory for up to 28 pairings,

these can be from any switches on any transmitters!

To select relay outputs 2,2,4, repeat step 3 above and count the

number of buzzes. 2 buzzes for relay 2, 3 for 3 etc.

Advanced operation - Pairing a transmitter button

Setting the Outputs Momentary or Latching Operation

1/2sec Mom = Relay will operate for 1/2sec

Mom = Relay will operate for as long as

transmitter switch operated

Latch = Relay will toggle ON/OFF on each

transmitter button press

Link Positions Switch relays

LK1 LK2 RLY 1 RLY 2 RLY 3 RLY 4

Open Open 1/2sec Mom 1/2sec Mom 1/2sec Mom 1/2sec Mom

Closed Open Mom Mom Latch Latch

Open Closed Mom Mom Mom Mom

Closed Closed Latch Latch Latch Latch

NOTE: If link setting is changed, power cycle the receiver (turn off/on) otherwise it will stay in

the same mode it was previously set in.
