Rexing M2 Max Manual de usuario
M2 Max
User Manual
The information in this manual is subject to change without notice.
www.rexingusa.com
Notice
1
The user menu is to be set up in non-video mode. If the device is in video mode,
please proceed only after stopping the video recording.
Memory Card: Using a new MicroSD card always requires formatting it to your
device. Regularly clear the memory card, as continuous video recording for an
extended period of time may produce some protected files that are not subject to
long-term protection (these files may not be overwritten during loop recording)
and some storage fragments, which must be cleared regularly in order to save
usable storage space.
Time-lapse photography should not be enabled while driving. This function
captures images more slowly than normal but plays in speed-up mode, which
may affect the integrity and continuity of your video.
On-board Charger: The standard input voltage is configured to 12V. If a voltage
greater than 12V, contact store of purchase or our customer care via
The features described in this operation manual are available for all products of
the same type. The device you buy may be a model with optional or additional
functions. Menu operations may vary. Please refer to your actual product.
Pay attention to the mounting position, which must not interfere with driving or
lead to unsafe driving operation. Make sure it is safely secured.
A standard 6-meter cable is provided for the rearview camera. It is not
recommended to install this type of dash cam if your car is larger than the
connection cable range.
2.
3.
4.
5.
6.
7.
1.
The battery (module or pack) must not be exposed to overheat
environments such as direct sunlight or flame.
Never remove, strike, or squeeze the battery or put it in fire. Stop
using the battery if it is ballooned, warped, leaking, or shows any
other visible signs of damage.
Warning
!
2
We hope you love your new products as much as we do. If you need assistance, or
have any suggestions to improve it, please contact us.
Our support team will respond to you as soon as possible.
Always a surprise with Rexing
•https://www.facebook.com/rexingusa/
•https://www.instagram.com/rexingdashcam/
•https://www.rexingusa.com/support/registration/
Overview
Thank you for choosing REXING!
Check us out here.
Facebook Instagram Site Product Support
(877) 740-8004
3
What’s in the box?
1 2 3
4 5 6
1. Rexing M2 Max Smart
Mirror Dash camera
2. Rexing rear camera
3. GPS Logger
4. In-car power cable (12ft)
5. Cable Management Tool
6. User Manual
M2 Max
User Manual
Theinformation in this manual is subject to change without notice.
www.rexingusa.com
4
5
Table of Contents
Camera Overview
Installation
Basic Operations
Product Specifications
General Troubleshooting
Warranty & Support
6
8
12
36
37
38
6
Type-C Port
Rearview Camera Port
MicroSD Card Slot
GPS Port
Display/Touch Screen
Front Camera
Reset Key Pinhole
Speaker
MIC Pinhole
Camera Overview
Power Key
In connection with an external power source, in the power-off
state, press and hold the power button on the bottom for three
seconds to start the device. In a power-on state, press and hold
the power button for three seconds to switch off the device.
In a power-on state, press this button quickly to turn the
screen backlight off. Press it again to turn the backlight on.
Designation
Power Button
Except for power - on/off operation, all other primary
functions can be accessed on the LCD touch screen.
Display /
Touch Screen
If the device crashes, unplug the power source, OR stick a pin
into the reset slot labled R on the back of the device to resume
normal operation.
Reset Key
Front camera faces the same direction as the front of the
vehicle and captures videos/images in front of the car.
Front Camera
Rear camera plug-in port labled AV port on the top of the device.Rear Camera
Port
Power PortType-C
Plug the included GPS Logger into the GPS port to utilize the
location tracking function.
GPS Port
A slot for inserting a MicroSD cardMicro SD
Card Slot
Description of Functions
7
Due to excessive mishandling, this device could be damaged during
transportation. To avoid the high cost of troubleshooting and repairs due to
repeated mounting and removal, we recommend that you assemble all
components first after delivery and test the device with the on-board charger
power supply. Make sure that the device is visibly undamaged prior to installation.
Contact our Customer Care with any questions or concerns.
I. Install the Device
Turn off the engine of the car.
Place the MicroSD card into the slot.
Secure the dashcam to the rearview mirror of the car.
Plug the GPS module into the GPS port and secure the module to a pillar on the
inside of your vehicle that is near the reveiw mirror. The antenna receiver side (the
side without 3M adhesive) faces the outside and the side with 3M adhesive faces
down. It should be properly secured.
Plug the charger into the car’s cigarette lighter and connect it to the dash cam’s
Type-C Port.
Installation
!
2.
3.
The optional rearview camera is mounted on the rear of the car. Pay attention to its
orientation during installation. Plug the rearview camera connector into the
corresponding port of the dashcam once the installation is completed. Adjust the
position of the lens to ensure that it aligns horizontal with the ground. Start the
engine to check the video functionality of the device.
4.
5.
Note:
1.
8
Some rearview cameras are connected through removable coupling connectors.
If you receive a product with a separated plug and socketed cable, then connect
the plug-in components properly according to the illustrations below. To avoid
damage to the pins and connector holes, never use extra force while making
connections. The rearview camera cable must be plugged into the Rear Camera
port on the device.
II. Install the Rearview Camera
Location of GPS Module
Power Supply Wiring Location
Optimum Instalation Location
1.
9
Tabla de contenidos
Otros manuales de Cámara de salpicadero de Rexing
Rexing
Rexing M1 Pro Manual de usuario
Rexing
Rexing W303 Manual de usuario
Rexing
Rexing V1P Gen3 Manual de usuario
Rexing

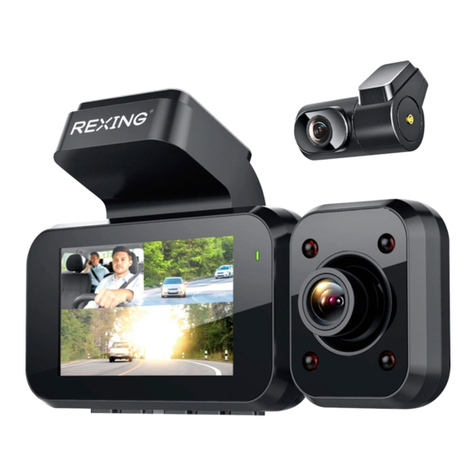

Rexing V5 Plus Manual de usuario
