Rexing S1 Pro Manual de usuario

S1 Pro

User Manual

Notice

1. Menu Setup Operation: The menu is to be set up in non-video mode.

If the device is in video mode, proceed after stopping the video

recording.

2. Memory card: A new card must be formatted to the machine before

use. Continuous image recording for long periods of time may

produce protected files that are not subject to long-term protection

(these files may not be overwritten during loop recording) and storage

fragments, which need to be cleared regularly in order to save stable

storage space.

3. Standard Voltage for On-board Charger: Standard input voltage is

configured at 12V. If a charge voltage greater than 12V is found,

contact your dealer or our service center to replace it with an

applicable charger. An OEM charger must be used.

4. Movement Detection (Motion Detection) and Parking Monitor: Do

not enable this function during driving. When it is enabled, repeated

start/stop recording may affect the integrity of your video.

5. Do not install the device within the range that could be impacted by

airbag or in a location that interferes with the driver’s view or other

safe operation of the vehicle. Make sure it is securely mounted.

6. The features described in the operation manual are available for all

products of the same type. Your model may have come with optional

or additional functions. Menu operations may vary. Please refer to the

instructions that apply to your actual product.

Warning

The battery (module or pack) must not be expose to an overheat environment

such as direct sunlight or flame.

Never remove, strike, or squeeze the battery or put it in fire. Stop using the

battery if it is ballooned, warped, leaking, or shows any other visible signs

of damage.

Overview

Thank you for choosing REXING! We hope you love your new

products as much as we do.

If you need assistance, or have any suggestions to improve it,

please contact us. You can reach us via [email protected] or call

us at (203) 800 - 4466. Our support team will respond you as soon

as possible.

Always a surprise in Rexing. Check us out here.

https://www.facebook.com/rexingusa/

https://www.instagram.com/rexingdashcam/

https://www.rexingusa.com/support/registration/

Facebook

Instagram

Site

Product Support

Table of Contents

Camera Overview..........................................................................6

Installation and Operation……………………………………………….............9

Basic Operations…………………………………………………………..……………12

Mobile Connection…………………………………………………………………….16

GPS Player………………………………………………………………………………….22

Product Specifications……………………………...……………………………….24

General Troubleshooting…………………………...………………………………25

Camera Overview

I. Visual Features

(For reference only)

1. Menu/Mode Button

2. Record/Up Button

3. Power Button

4. Down/Toggle Button

5. OK Button

6. Power Cord Connection Port

7. Rearview Camera Connection Port

8. Reset Pinhole

Note: GPS is an optional feature need to connect to the GPS Logger

Buttons and Description:

USB 5V Socket

Smart

Hardwire Kit

Socket

Rearview

Camera Socket

GPS Socket

Front Camera

IR light

Cabin Camera

Buttons

Description

M Button

(Menu/Mode

Switch)

1. In standby mode, press this button to start/stop the related

menu options such as recording mode, photography mode,

playback mode.

2. In recording mode, press and hold the button for 3 second to

enter picture-taking and playback interface. Depress it again to

exit.

Record/Up/M

IC Button

1. In standby mode, press this button to start/pause video

recording.

2. Video Mode: Depress this button to start/stop audio

recording.

3. The button is defined for page up in menu setup and playback

mode.

4. During playback, press the button shortly to play fast rewind.

Power Button

1. Press this button to start the device. Depress it for 3 seconds

to power off the device.

2. In power-on state, press the button shortly to turn off/on

screen backlight.

Down/Toggle

Button

1. This button is defined for page down in menu setup and

playback mode.

2. Press this button to switch between front/rear camera view

and PIP display.

3. During playback, press the button shortly to play fast

forward.

4. In video mode, depress the button to switch the IR light to

OFF/ON/AUTO.

OK Button

1. This button functions as a confirmation in each of the setups.

2. In video recording, press this button to start emergency

recording.

3. Depress this button to switch Wi-Fi on/off.

4. In photography mode or playback mode, press the button to

take a picture or play back a file.

USB Port

Power charging port/USB data cable port

Power Port

Power cable connection port

Rearview

Camera

Connection

Port

Rearview Camera Connection Port

Reset Pinhole

If the system crashes, use a pin to reset the system.

Installation and Operation

1. Turn off the car’s engine.

2. Place the MicroSD card into the slot.

3. Secure the dashcam to a place close to the original rearview mirror.

4. Plug the GPS module into the GPS port and secure the module to a position

close to A-pillar of the car. The antenna receiver side (the side without 3M

adhesive) faces the outside and the side with 3M adhesive faces down. It

should be properly secured.

5. Plug the charger into the car’s cigarette lighter. Connect the device to the

cigarette lighter through the car charger.

Note: The charger extension cable can be wired along the edge of the

windshield during installation. The optional rearview camera should be

mounted on the rear windshield of the car. Pay attention to its orientation

during installation. It can be wired against or above the interior’s headliner.

Plug the rearview camera connector into its rear camera port of the device once

the camera is securely mounted. Adjust the position of the lens to make sure

that it remains horizontal with the ground. Start the engine to check the video

operation of your device.

(This picture is for reference only. Listed articles should referred to your actual

device.)

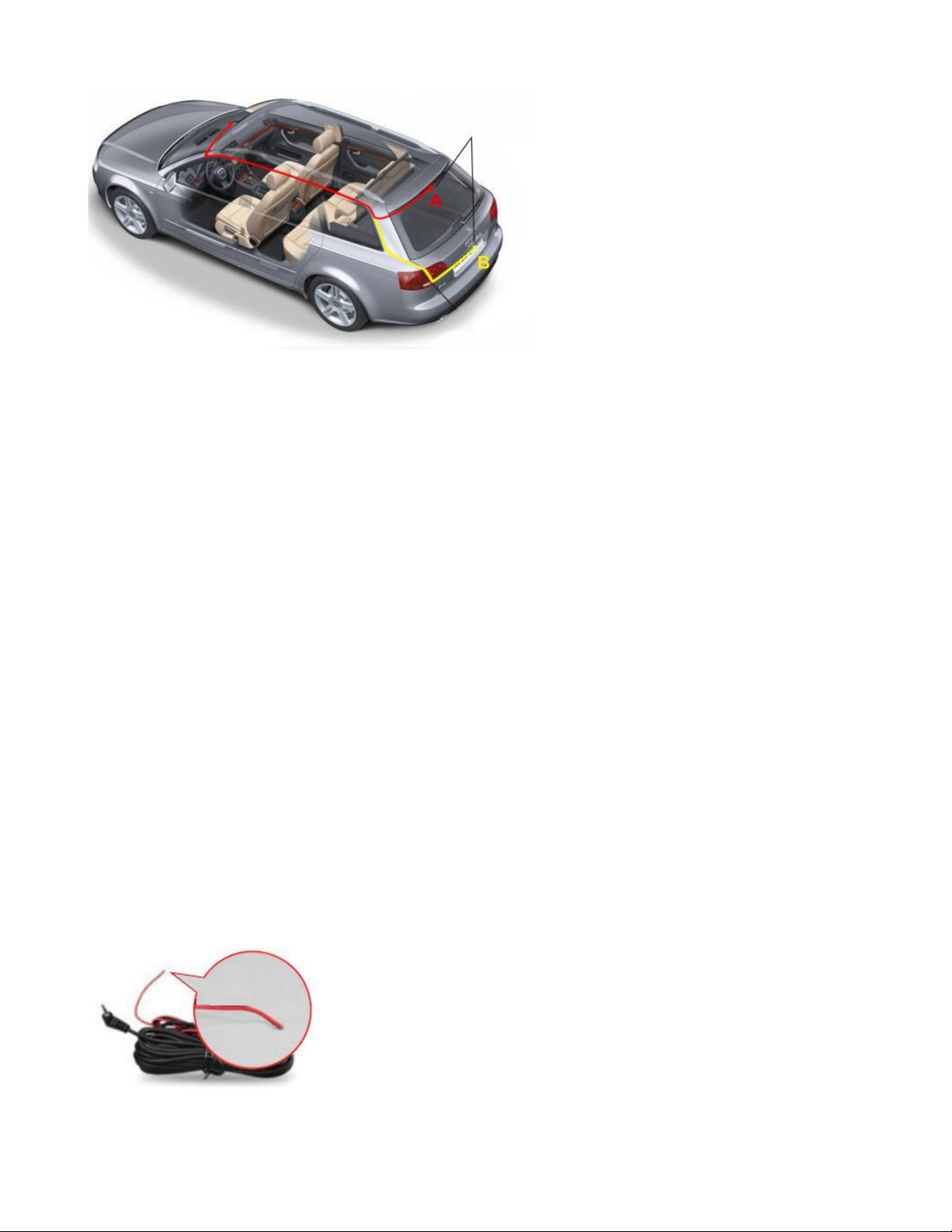

6. Rearview Camera Wire Routing Illustration (as shown below)

Installation Instructions

Optimum Installation

Location

Power Cable

Wiring Location

For the rearview camera, there are two wiring options as shown in the above

figure. The first part of both options is characterized with concealed wire

routing against the edges of the door(s).

A: The rearview camera can be mounted directly above the rear window inside

the car.

B: The rearview camera can be mounted directly above the car’s license plate.

We recommend that you install all components beforehand according to the

above drawing and test the system by using the on-board charger power supply.

Make sure the device is good condition prior to installation. Please, contact our

service center in case of any questions.

Note: The device is configured with a streaming media rearview camera that

provides clear traffic view behind the car. To obtain clearer and more intuitive

images, it is recommended to mount the camera above the license plate (as

shown by option B).

7. Instructions for Reverse Trigger Wiring

The red wire of the car’s reverse gear wiring is connected to the positive end

of one of the car’s reverse light. Make sure that the car charger is energized

during use.

Connection to rearview camera
