2English
1 English
Contents What’s in the Box
EN
What’s in the Box
Camera Introduction
Connection Diagram
Set up the Camera
Mount the Camera
Troubleshooting
Specifications
Notification of Compliance
2
3
6
7
8
12
13
14
Camera 1m
Ethernet Cable
Waterproof Lid
Quick Start Guide Surveillance Sign Mounting
Hole Template
Pack of Screws
NOTE: Camera and accessories vary with dierent camera models that
you purchase.
4English
3 English
Camera Introduction

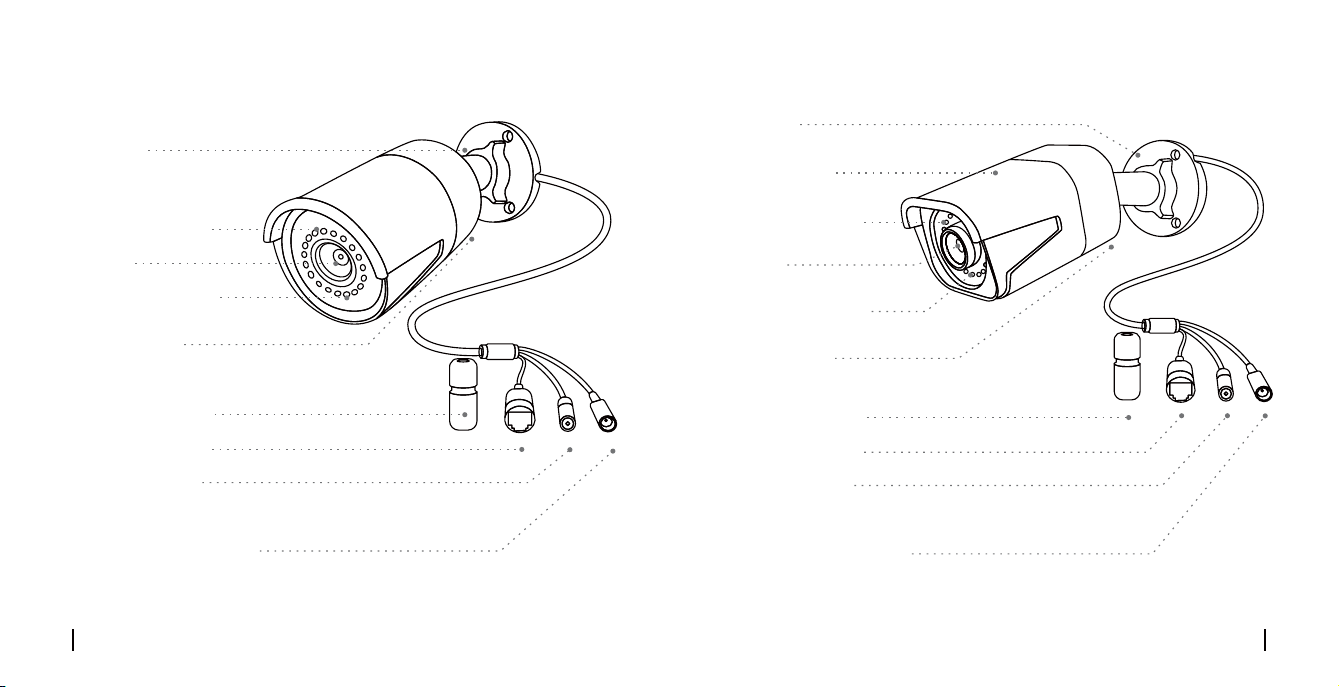

Infrared Lights
Lens
Daylight Sensor
Built-in Mic
Waterproof Lid
Network Cable
Reset Button
* Press for about 10 seconds to restore the
device to factory settings.
Power Port(Optional)
Waterproof Lid
Network Cable
Reset Button
* Press for about 10 seconds to restore the
device to factory settings.
Power Port(Optional)
Lens
Metal Case
Daylight Sensor
Infrared Lights
Mount
Mount
Built-in Mic
6English
5 English
Connection Diagram
Before using the camera, please connect your camera as instructed
below to finish initial setup.
1. Connect the camera to a Reolink NVR (not included) with an Ethernet
cable.
2. Connect the NVR to your router, and then power on the NVR.
PoE IP Camera
Power Adapter
Reolink NVR *
Ethernet Cable
Ethernet Cable
Router
NOTE: The camera should be powered with a 12V DC adapter or a PoE
powering device such as PoE injector, PoE switch or Reolink NVR
(not included in the package).
* You may also connect the camera to a PoE switch or PoE injector.
NOTE:
• Dierent types of cameras are introduced in this section. Please check
out the camera included in the package and check out the details from
the correpsonding introduction above.
• The actual appearance and components may vary with dierent
model of product.
NOTE:
• Dierent types of cameras are introduced in this section. Please check
out the camera included in the package and check out the details from
the correpsonding introduction above.
• The actual appearance and components may vary with dierent
model of product.
VGAHDMIUSB
AUDIO
OUT
DC 48V
ON
2 4 6 8
1 3 5 7
OFF
LAN
eSATA
Mount
Metal Aluminum Case
Infrared Lights
Daylight Sensor
High Definition Lens
Spotlight
Speaker
Built-in Mic
Download and launch the Reolink App or Client software, and follow the
onscreen instructions to finish initial setup.
Set up the Camera
Installation Tips
• Do not face the camera towards any light sources.
• Do not point the camera towards a glass window. Or, it may result in
poor image quality because of the window glare by infrared LEDs,
ambient lights or status lights.
• Do not place the camera in a shaded area and point it towards a well-lit
area. Or, it may result in poor image quality. To ensure best image
quality, the lighting condition for both the camera and the capture object
shall be the same.
• To ensure better image quality, it’s recommended to clean the lens with
a soft cloth from time to time.
• Make sure the power ports are not directly exposed to water or
moisture and not blocked by dirt or other elements.
• With IP waterproof ratings, the camera can work properly under
conditions like rain and snow. However, it doesn't mean the camera can
work underwater.
• Do not install the camera at places where rain and snow can hit the
lens directly.
• The camera may work in extreme cold conditions as low as -25°C.
Because when it is powered on, the camera will produce heat. You may
power on the camera indoors for a few minutes before installing it
outdoors.
Mount the Camera
• On Smartphone
• On PC
Scan to download the Reolink App.
Download path of the Reolink Client: Go to https://reolink.com > Support
> App & Client.
NOTE: If you are connecting the camera to a Reolink PoE NVR, please
set up the camera via the NVR interface.
8English
7 English
Stien the adjustment knob to
lock the camera.

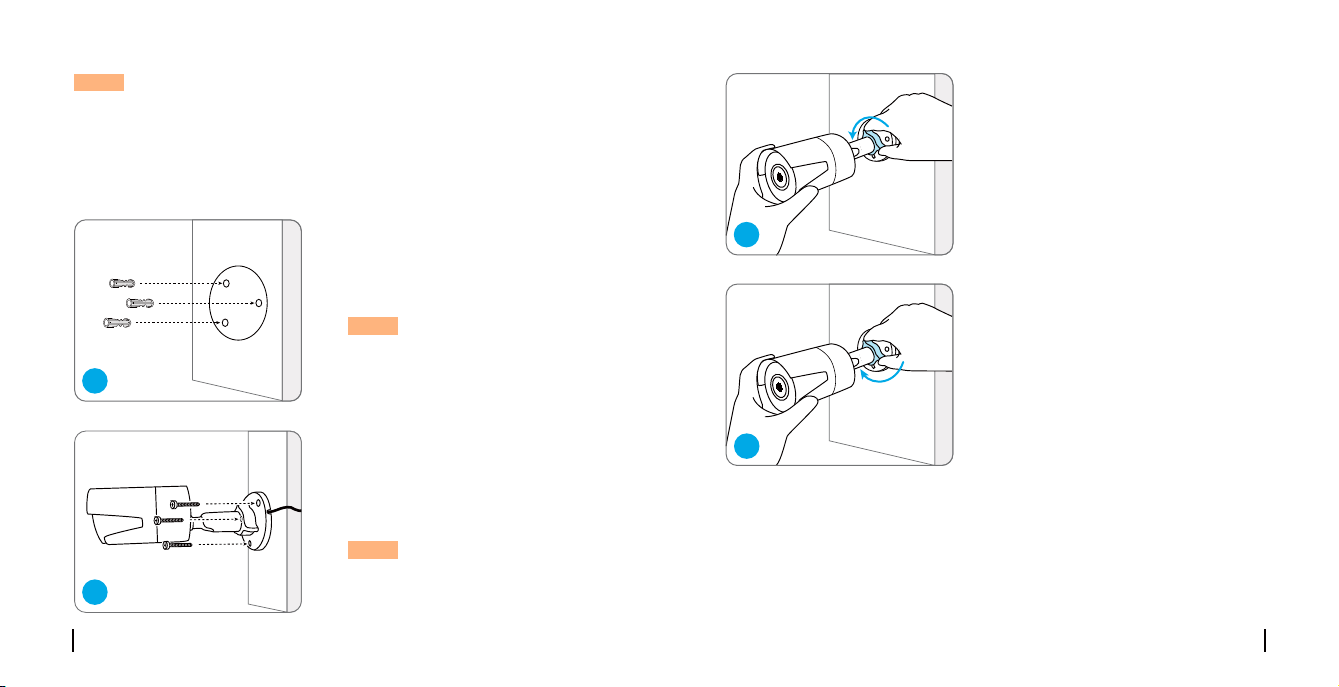

Drill holes in accordance with the
mounting hole template.
NOTE: There are two dierent types of mounts for bullet cameras.
Please check out the mount included in the package and follow the
corresponding instruction to install the camera properly.
NOTE: Use the drywall anchors
included in the package if needed.
NOTE: Run the cable through the
cable notch on the mount base.
Install the mount base with the
mounting screws included in
the package.
To get the best field of view,
loosen the adjustment knob
on security mount and turn
the camera.
Install the Camera
10English9 English
1
2
3
4
Camera is not Powering On
If your camera is not powering on, please try the following solutions:
• Make sure your camera is powered properly. The PoE camera should
be powered by a PoE switch/injector, the Reolink NVR or a 12V
power adapter.
• If the camera is connected to a PoE device as listed above, connect
the camera to another PoE port and see if the camera will power on.
• Try again with another Ethernet cable.
If these won’t work, contact Reolink Support https://support.reolink.com/.
Troubleshooting
Infrared LEDs Stop Working
If the Infrared LEDs of your camera stop working, please try the
following solutions:
• Enable infrared lights on Device Settings page via Reolink App/Client.
• Check if the Day/Night mode is enabled and set up auto infrared lights
at night on Live View page via Reolink App/Client.
• Upgrade the firmware of your camera to the latest version.
• Restore the camera to factory settings and check out the infrared light
settings again.
NOTE: If your camera has another mount without the adjusting knob,
please loosen the adjusting screw with the provided hex key and turn the
camera as shown below to adjust the angle.
12English
11 English
590°
360°
Notification of Compliance
FCC Compliance Statement
This device complies with Part 15 of FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. For more
information, visit: https://reolink.com/fcc-compliance-notice/.
Reolink declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 2014/30/EU.
This marking indicates that this product should not be disposed with
other household wastes.throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
Simplified EU Declaration of Conformity
Correct Disposal of This Product
Specifications
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Operating Humidity: 10%-90%
Ingress Protection: IP66
For more specifications, visit https://reolink.com/.
Night Vision: 30 Meters (100ft)
Day/Night Mode: Auto Switchover
Hardware Features
General
If these won't work, contact Reolink Support https://support.reolink.com/.
Failed to Upgrade the Firmware
If you fail to upgrade the firmware for the camera,
try the following solutions:
• Check out the current camera firmware and see if it is the latest one.
• Make sure that you download the correct firmware from Download
Center.
• Make sure that your PC is working on a stable network.
If these won't work, contact Reolink Support https://support.reolink.com/.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
14English
13 English
Überblick
DE
Lieferumfang
Allgemeine Einführung
Diagramm für Kameraanschluss
Kamera-Einrichtung
Installation der Kamera
Fehlerbehebung
Spezifikationen
Konformitätserklärung
17
18
21
22
23
27
28
29
This product comes with a 2-year limited warranty that is valid only if
purchased from Reolink Ocial Store or a Reolink authorized reseller.
Learn more: https://reolink.com/warranty-and-return/.
Limited Warranty
Use of the product is subject to your agreement to the Terms of Service
and Privacy Policy at reolink.com. Keep out of reach of children.
Terms and Privacy
By using the Product Software that is embedded on the Reolink product,
you agree to the terms of this End User License Agreement (“EULA”)
between you and Reolink. Learn more: https://reolink.com/eula/.
End User License Agreement
16Deutsch15 English
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmentally safe
recycling.
NOTE: We hope that you enjoy the new purchase. But if you are not
satisfied with the product and plan to return, we strongly suggest that
you reset the camera to factory default settings before returning.
18Deutsch17 Deutsch
Lieferumfang Allgemeine Einführung
HINWEIS: Kamera und Zubehör variieren je nach dem Kameramodell
Ihrer Bestellung.
Infrarot-LEDs
Objektiv
Tageslichtsensor
Internes Mikrofon
Wasserdichter Deckel
Netzwerkkabel
Reset-Taste
* Zum Zurücksetzen auf die Werkseinstellungen ca.
10 Sekunden lang drücken.
Strom (Optional)
Montagesockel
Kamera Netzwerkkabel
1 Meter
Wasserdichter
Deckel
Kurzanleitung Schild
Videoüberwachung
Montage-
Lochschablone
Päckchen
mit Schrauben
Otros manuales para RLC-810A
1
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Idiomas:
Otros manuales de Cámara de seguridad de Reolink
Reolink
Reolink RLC-833A Guía de inicio rápido
Reolink
Reolink RLC-423 Guía de inicio rápido
Reolink
Reolink Argus Eco Manual de usuario
Reolink
Reolink Reolink Go Plus Manual de usuario
Reolink
Reolink RLC-510WA Manual de usuario
Reolink
Reolink Go Guía de inicio rápido
Reolink
Reolink Argus 2 Manual de usuario
Reolink
Reolink E1 Series Manual de usuario
Reolink
Reolink E1 Zoom Manual de usuario
Reolink
Reolink E1 Series Guía de inicio rápido
Reolink
Reolink RLC-1212A Guía de inicio rápido
Reolink
Reolink Go PT Guía de inicio rápido
Reolink
Reolink Argus 2 Manual de usuario
Reolink
Reolink Argus 2 Manual de usuario
Reolink
Reolink RLC-523WA Guía de inicio rápido
Reolink
Reolink TrackMix WiFi Guía de inicio rápido
Reolink
Reolink NVS8-5KB4-A Guía de inicio rápido
Reolink
Reolink RLC-820A Manual de usuario
Reolink
Reolink Go PT Ultra Manual de usuario
Reolink
Reolink Go PT Manual de usuario
