REED R5000 Manual de usuario

reedinstruments

www com

Model R5000

Watt Meter

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Instruction Manual

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Table of Contents

Safety ............................................................................................ 3

Features......................................................................................... 3

Specications.............................................................................3-4

Instrument Description.................................................................. 5

Operating Instructions................................................................5-7

Voltage Measurements ............................................................... 5

Current Measurements ............................................................... 6

Watt Measurements.................................................................... 6

Data Hold ................................................................................... 6

Data Record (Max/Min Reading) ................................................. 7

Backlight..................................................................................... 7

Auto Power Off ........................................................................... 7

RS232 PC Serial Interface............................................................. 8

Battery Replacement..................................................................... 9

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Safety

• Do not apply overload voltage or current to the input terminal

• Remove test leads before opening the battery cover

• Only use a dry cloth to clean the plastic case

• Installation Categories III-600V

• Pollution Degree 2

Features

• True RMS Current and Voltage measurements

• Measures Watt (AC), AC A, AC V, and pF

• Large dual display LCD with Backlight

• Full function Auto Range

• Max & Min. Record

• Data Hold

• RS232 Computer Interface

• Low-Battery Indicator

Specifications

Zero: Automatic adjustment

Sampling Time: Approx. 1 second

Operating Temperature: 0 to 50°C (32 to 122°F)

Operating Humidity: Less than 80% RH

Power Supply: 1 x 9V Battery

Weight: 398g (0.88lbs)

Dimensions: 190 x 88 x 40mm (7.5 x 3.5 x 1.6”)

Includes: TL-88-1 test leads and 6AM6X 9V battery

Optional Accessories: FC-300 Fused Test Lead Set and CA-05A Soft

Carrying Case

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Electrical Specifications

Max Input Value: AC Voltage: 600V; AC Current: 10A

Frequency Response: AC V/A is from 40 to 400 Hz

Accuracy is tested under an input signal of a 50/60 Hz Sine Wave.

Watt (True Power) - Auto Range

Range: 6000W

Resolution: 1W

Accuracy: ±(1% + 5W) at 23°C ±5°C

Measuring Signal comes from the front LOAD plug terminals.

AC Voltage and Current (True RMS) - Auto Range

Range: 600V / 10A

Resolution: 0.1V / 0.01A

Accuracy: ±(0.3% + 0.3V) / ±(0.3% + 0.03A) at 23°C ±5°C

PF (Power Factor)

Range: 1.00

Resolution: 0.01

Accuracy: ±(1% + 2d) at 23°C ±5°C

PF (Power Factor) speciﬁcation tests were taken in an environment with an

RF Field Strength of less than 3 V/M and a Frequency of less than 30 MHz.

For service on this or any other REED product or information on other

REED products, contact REED Instruments at [email protected]

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

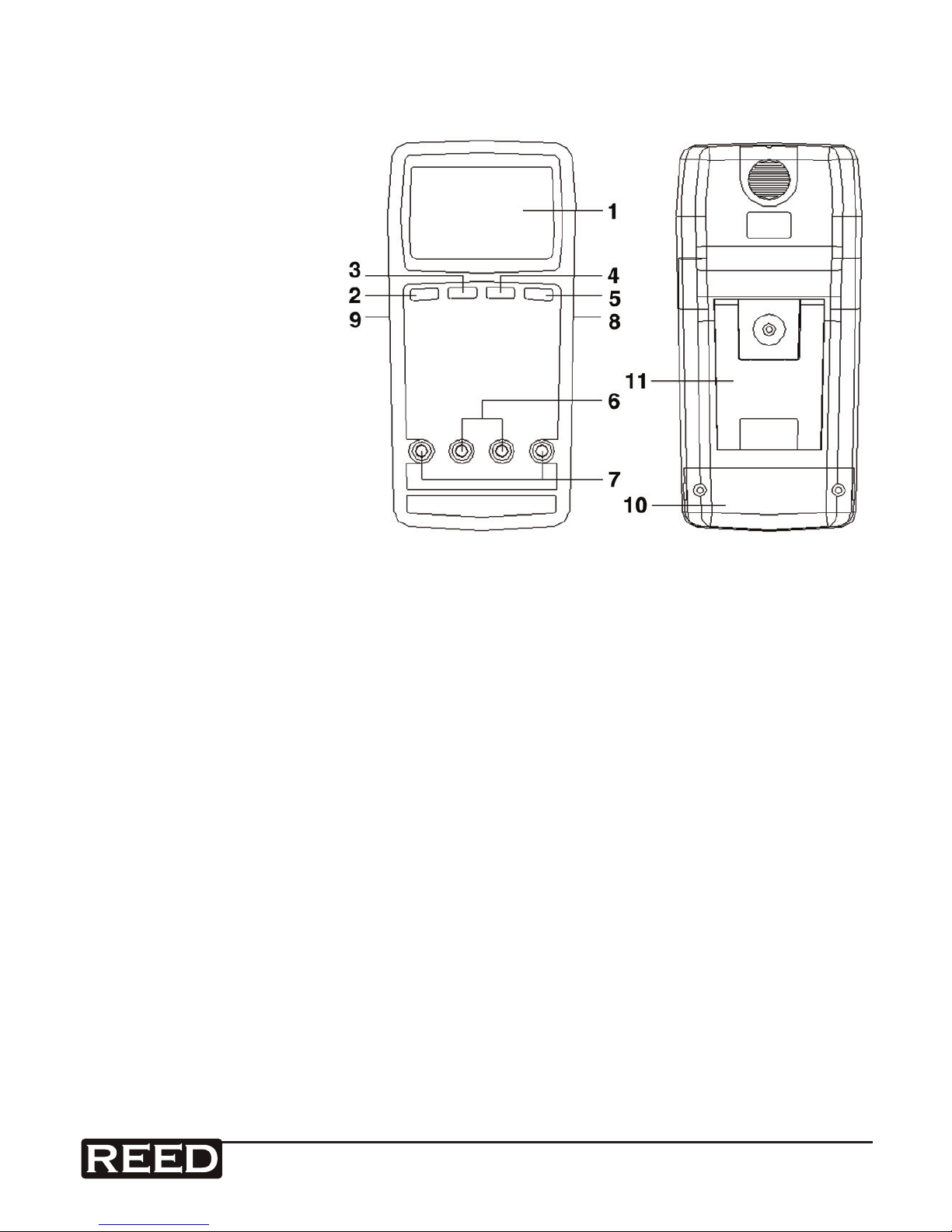

Instrument Description

1. Display

2. Power/

Backlight Button

3. Function Button

4. Hold Button

5. Record Button

6. Load Terminal

7. Power Source

8. RS232 Output

Terminal

9. AC Adapter

Terminal

10. Battery Cover

11. Stand

Operating Instructions

Press and hold the Power button for to turn the meter on and off.

Voltage Measurements

1. Turn the meter on.

2. Press the Function button to select ACV.

3. Connect the Red Test Lead to the V Input Terminal and Black Test

Lead to the COM Input Terminal.

4. Touch the test leads to the Voltage source.

5. Read the AC Voltage measurement on the display. The value

indicated corresponds to the position selected. If the Display

shows “ ---- ” it indicates an out-of-range measurement.

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Current Measurements

1. Turn the meter on.

2. Press the Function button to select ACA

3. Connect the Red Test Lead to the 10A Input Terminal and the

Black Test Lead to the COM Input Terminal.

4. Touch the test leads to the Current source.

5. Read the AC Current measurement on the display. The value

indicated corresponds to the position selected. If the Display

shows “ ---- ” it indicates an out-of-range measurement.

Watt Measurements

1. Turn the meter on.

2. Verify your voltage of the equipment, either 110V or 220V.

3. Turn off the Power Source.

4. Plug in the Load (equipment) to the V Terminal and COM Terminal.

5. Plug in the power source to the WATT Terminal and 10A Terminal.

6. Push the Function button to change the function for measuring

ACV/ACA.

7. Turn on the Power Source and read out the Work Voltage on the

top part of the LCD.

8. Turn on the equipment power switch. Let it work, and read out the

Power Consumption from the bottom part of the LCD.

9. Push the Function Button to change to WATT/PF measurements.

10. Read the Active Power and Power Factor value on the LCD.

Data Hold

While taking a measurement, press the Hold button. The measured value

will freeze and a HOLD symbol will appear on the LCD. Press the Hold

button again to continue taking measurements.

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Data Record (Max/Min Reading)

1. Press the Record button once to start the Data Record function.

A REC symbol will appear on the LCD.

2. Press the Record button again to display the Max value.

A REC MAX symbol will appear on the LCD.

3. To delete the maximum value, press the Hold button.

The MAX symbol will disappear from the LCD.

4. Press the Record button again to display the Min value.

A REC MIN symbol will appear on the LCD.

5. To delete the minimum value, press the Hold button.

The MIN symbol will disappear from the LCD.

6. To exit the Data Record function, press and hold the Record

button for 2 seconds. The meter will revert back to normal

measurements.

Backlight

While the meter is taking a measurement, press the Backlight button to

turn the LCD backlight on and off.

Auto Power Off

This meter will turn off after 10 min of inactivity. To disable this feature,

press the Record button.

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

RS232 PC Serial Interface

The data output is a 16 digit stream that can be utilized for a user’s

specic application. An RS232 cord is required to link this instruments

to a PC.

The 16 digit data stream will be displayed in the following format:

D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

Each digit indicates the following:

D0: End Word

D1 to D8: Display reading, D1 = LSD, D8 = MSD.

If the display reading is 1234, then D8 to D1 is: 00001234

D9: Decimal Point (DP), position from right to the left

0 = No DP, 1= 1 DP, 2 = 2 DP, 3 = 3 DP

D10: Polarity

0 = Positive 1 = Negative

D11 & D12: Annunciator for Display

ACV = 50, W = 47, A = 52, PF = 54

D13: Upper display data = 1

Lower display data = 2

D14: 4

D15: Start Word

RS232 Format: 9600, N, 8, 1

Baud rate: 9600

Parity: No parity

Data bit no.: 8 Data bits

Stop bit: 1 Stop bit

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Battery Replacement

When the low battery symbol appears on the top left corner of the LCD

you will need to replace the batteries. When the meter has low batteries

the measurements will become less accurate. Make sure there are no

test leads attached to the meter, and that the meter is turned off before

opening the battery compartment.

1. Remove the battery cover with a screwdriver.

2. Replace the 9V battery and close the battery compartment.

Notes _________________________________________

________________________________________________

1.888.475.5235info@REED-Direct.com REED-Direct.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Notes _________________________________________

________________________________________________

1.888.475.5235info@REED-Direct.com REED-Direct.com

Tabla de contenidos

Otros manuales de Instrumento de medición de REED

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
