GETTI NG STA RTE D

This manual isdesigned to get you started quickly.

The first four sections of the manual show you how

to get your TV Setup and Connected, run the

Interactive Setup, Program the Remote, and use all of

the Features and Menus of your TV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessoryordering information and your

warranty.

Well... if your TV's out of the box, let's get started.

SETUP AND CONNECTIONS

Iheckout the notesthat have been added

throughout the manual in theseTip J

Boxes.There are someimportant

tips that will help you get the mostfrom

your TV.

STEP 1: UNPACK THE TV

Make sure to locate the remote control and your GUIDE Plus+ Booklet.

STEP 2: CONNECTING YOUR TV

There are three types of connections outlined in this section:

11/Only: If you're only going to connect the

TV to your home antenna or cable

system.

The Basic Connection: If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to

one or two VCRs, DVD player, and a

satellite receiver.

Cable information and illustrations are given for each type of connection.

Once you have completed your desired connection you may skip forward

to Step 3.

Before You Connect

* Connect all components before

ON LY (PI P NOT AVAI LABLE)

This isa basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack asshown.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signal to the TV from an antenna, cable, or

cablebox.

CABLE,CABL_ANTENNA

@ @

Once you have completed this connection you may skip to Step 3.

This Connection Will Not Allow

You to Use Your PIP

Your TV is equipped with a single tuner

which means you must connect with a

second video source using Audio/Video

Cables. This TV Only connection will not

enable you to use your PIP,but will get

your TV up and running quickly.

Refer to Advanced Connections for

connecting Audio/Video cables to your

VCR or other video component.

THE BASIC CONNECTION {PIP NOT AVAILABLE}

The basic connection below (TV and VCR) is the most common

connection and istherefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following cable to make your connection:

Coaxial Cables: These cables carry both the audio

and video signal to the TV from an antenna, cable,

or cablebox. In this connection, a second Coaxial

Cable carries the signal through the VCR to the TV.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

OUT

@ @

VIDEO AUDIO

IN FROM ANT CH3

This Connection Will Not Allow

You to Use PIP

How to View the VCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3 or

4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3,

"Connecting the IR Controller."

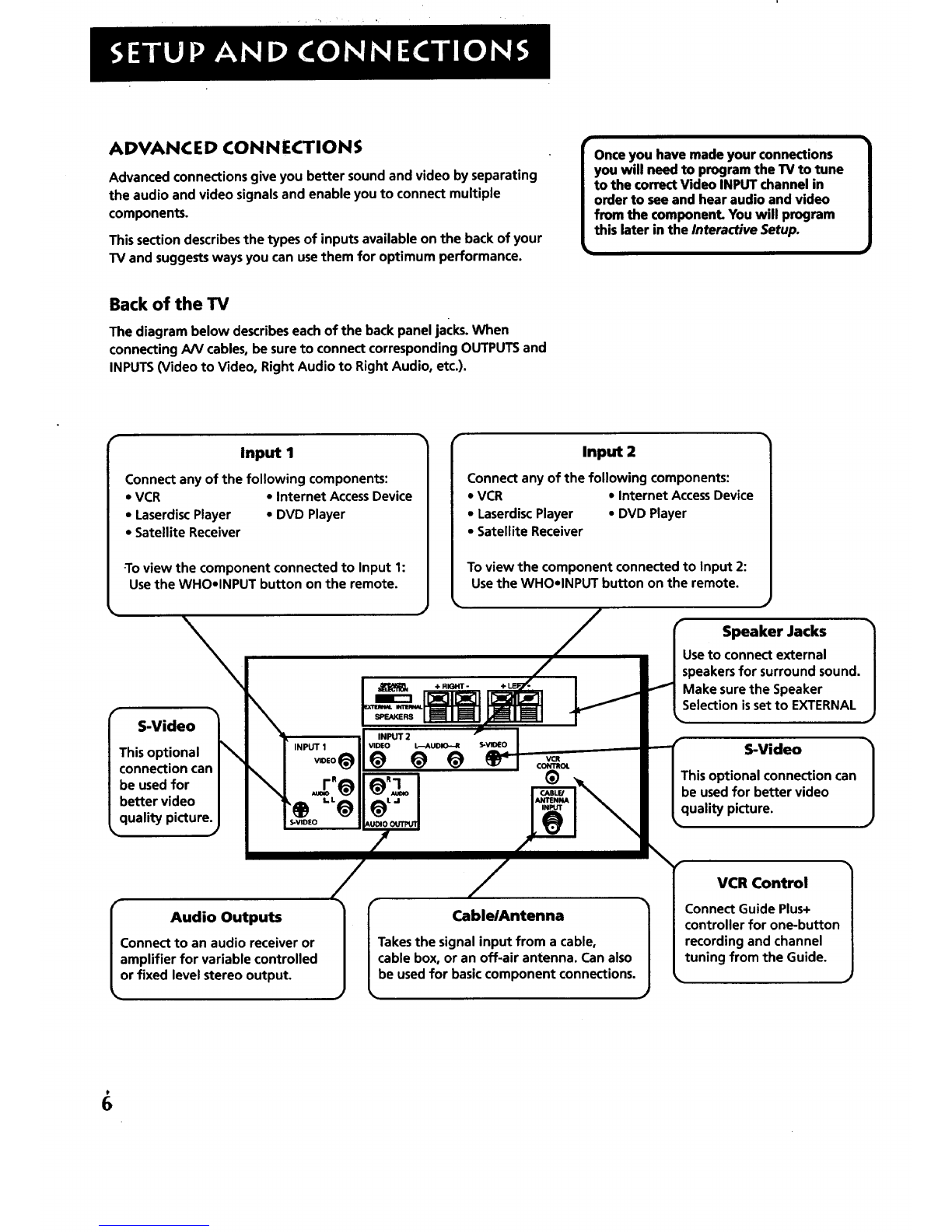

ADVANCE D CON N ECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enable you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to see and hear audio and video

from the component. You will program

this later in the Interactive Setup.

Back of the TV

The diagram below describes each of the back panel jacks. When

connecting A/V cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

Input I

Connect any of the following components:

•VCR •Internet Access Device

•Laserdisc Player •DVD Player

• Satellite Receiver

-Toview the component connected to Input 1:

Use the WHO-INPUT button on the remote.

S-Video

This optional

connection can

be used for

better video

quality picture.

Input 2

Connect any of the following components:

* VCR • Internet AccessDevice

- Laserdisc Player • DVD Player

-Satellite Receiver

To view the component connected to Input 2:

Use the WHO-INPUT button on the remote.

fSpeaker Jacks

Use to connect external

speakers for surround sound.

Make sure the Speaker

Selection isset to EXTERNAL

S-Video

This optional connection can

be used for better video

quality picture.

Audio Outputs

Connect to an audio receiver or

amplifier for variable controlled

or fixed level stereo output. ICablelAntenna 1

Takes the signal input from a cable,

cable box, or an off-air antenna. Can also

be used for basic component connections.

VCR Control

Connect Guide Plus+

controller for one-button

recording and channel

tuning from the Guide.

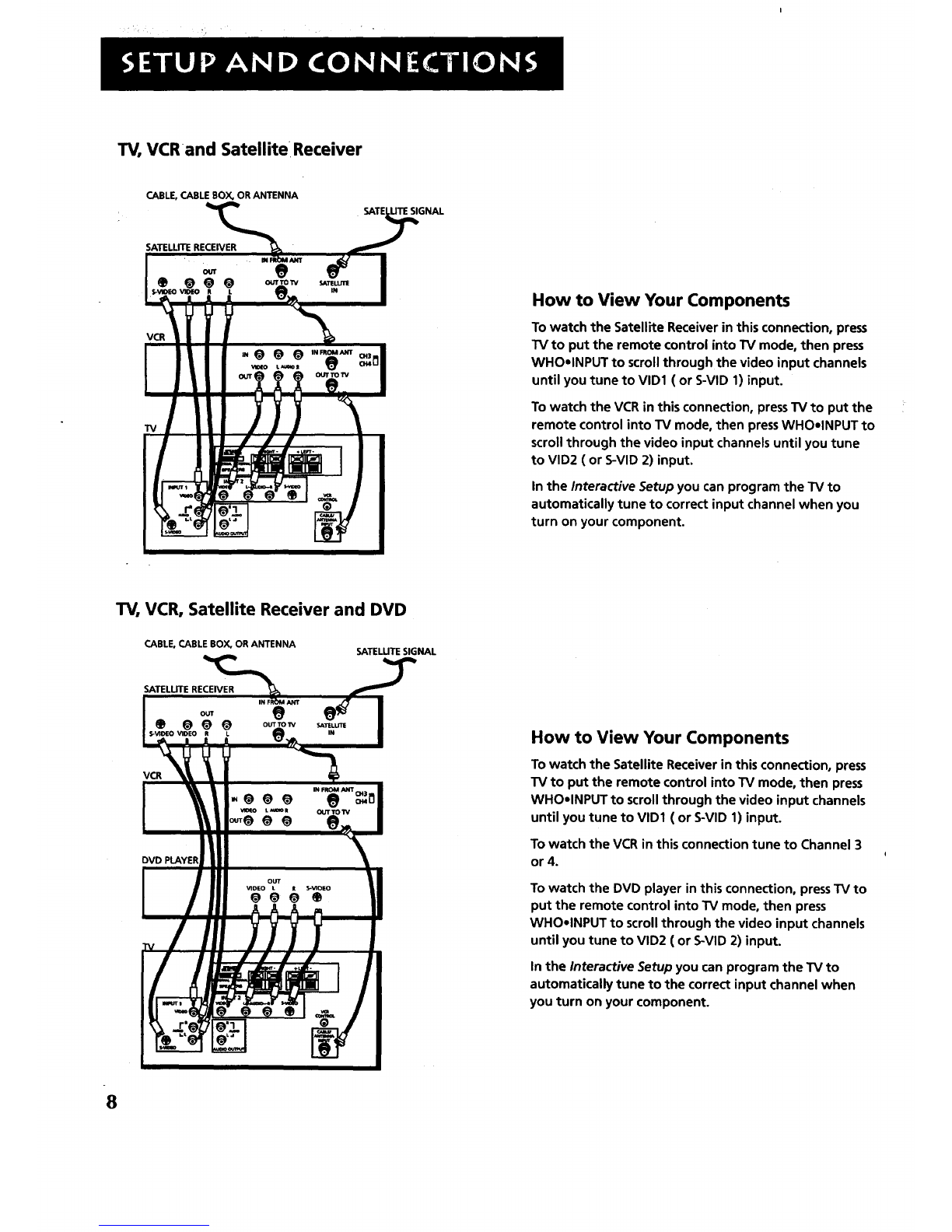

Sample Connections

The following are sample connection scenarios which you may encounter

when connecting components to your TV. Note: those components which

offer an S-Video connection, such as DVD, VCR or Satellite Receivers,

must match their S-Video connection with their audio INPUT connection.

Cables

You will usethe following cable to make your connection:

[_. Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cablebox, as needed by your cable

system.

Audio/Video Cables: Carries sound and video

from the component to the TV.

S-Video cable: Carries video from an S-Video

capable component which provides best

picture quality.

TV and Stereo VCR

CABLE,CABLE BOX, OR ANTENNA

Cautions:

Position cables to Avoid Audio Hum

or Interference

• Insert all cables firmly into jacks.

•Place the audiolvideo cables to the

sides of the TV's bark panel instead of

straight down the middle.

•Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect your components from

Overheating

•Do not block ventilation holes in any of

the components. Arrange the

components so that air can circulate

freely.

•Do not stack components.

•Allow adequate ventilation when

placing your components in a stand.

•Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

VCR

Compared to the BasicConnection, using audio, video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

How to View Your VCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press WHO•INPUT to

scroll through the video input channels until you tune to

VID1 input.

In the Interactive Setup section you can program the TV to

automatically tune to the VID1 input channel when you

turn on the VCR.

Most Audio/Video cables are combined

into one cable with three

heads on each end.

We show individual

cables in these __)

sample connections.

Either may be used, _e)

but you must be sure to

connect Video to Video,

Right to Right and Left to Left.

TV, VCR and Satellite Receiver

CABLE,CABLE BOX, OR ANTENNA

SATELLITERECEIVER

VCR

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input channels

until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then pressWHO.INPUT to

scroll through the video input channels until you tune

to VID2 ( or S-VID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to correct input channel when you

turn on your component.

TV, VCR, Satellite Receiver and DVD

CABLE, CABLE BOX, OR ANTENNA SATELUTESIGNAL

SATELLITE RECEIVER

VCR

DVD PLAYER

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input channels

until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection tune to Channel 3

or 4.

To watch the DVD player in this connection, pressTV to

put the remote control into TV mode, then press

WHO.INPUT to scroll through the video input channels

until you tune to VID2 ( or S*VID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel when

you turn on your component.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
