RCA 1616362A Manual de usuario

Television

User's Guide

Changing Entertainment. Again.

TOCOM 1616362A

Retourner le cahier pour la version

française

As an ENERGY STAR® Partner, Thomson Inc. has

determined that this product meets the ENERGY

STAR guidelines for energy efficiency.

ENERGY STAR is a U.S. registered mark.

This symbol indicates "dangerous voltage" inside the

product that presents a risk of electric shock or

personal injury.

WARNING

To reduce the risk of fire or electric shock,

do not expose this product to rain or

moisture.

The apparatus shall not be exposed to

dripping or splashing and that no objects

filled with liquids, such as vases, shall be

placed on the apparatus.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable

parts inside. Refer servicing to qualified service personnel.

This symbol indicates important

instructions accompanying the

product.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Refer to the identification/rating label located on the

back panel of your product for its proper operating

voltage.

FCC Regulations state that unauthorized changes or

modifications to this equipment may void the user’s

authority to operate it.

Caution: Using video games or any external accessory

with fixed images for extended periods of time can

cause them to be permanently imprinted on the

picture tube (or projection TV picture tubes). ALSO,

some network/program logos, phone numbers, etc.

may cause similar damage. This damage is not covered

by your warranty.

Cable TV Installer: This reminder is provided to call your

attention to Article 820-40 of the National Electrical

Code (Section 54 of the Canadian Electrical Code, Part

1) which provides guidelines for proper grounding and,

in particular, specifies that the cable ground shall be

connected to the grounding system of the building as

close to the point of cable entry as practical.

Important Information

Product Registration

Please fill out the product registration card (packed separately) and return it immediately. For U.S.

customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/

productregistration. Registering this product allows us to contact you if needed.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here

and record the serial and model numbers. These numbers are located on the product.

Model No. ____________________ Serial No. __________________ Purchase Date: ______________

Dealer/Address/Phone: _________________________________________________________________

This symbol indicates that this product incorporates double

insulation between hazardous mains voltage and user

accessible parts. When servicing use only identical

replacement parts.

Table of Contents

Chapter 1: Connections & Setup

Things to Consider Before You Connect ....................................................................... 3

Protect Against Power Surges .................................................................................................................... 3

Protect Components from Overheating .................................................................................................. 3

Position Cables Properly to Avoid Audio Interference ........................................................................ 3

Important Stand and Base Safety Information .....................................................................................3

Use Indirect Light .......................................................................................................................................... 3

Cables Needed to Connect Components to Your TV ............................................................................ 3

TV + DVD + VCR .............................................................................................................. 4

Explanation of Jacks ....................................................................................................... 5

The Front of Your TV ...................................................................................................... 6

Front Input Jacks ........................................................................................................................................... 6

Front Panel Buttons ...................................................................................................................................... 6

Plug in the TV ..................................................................................................................6

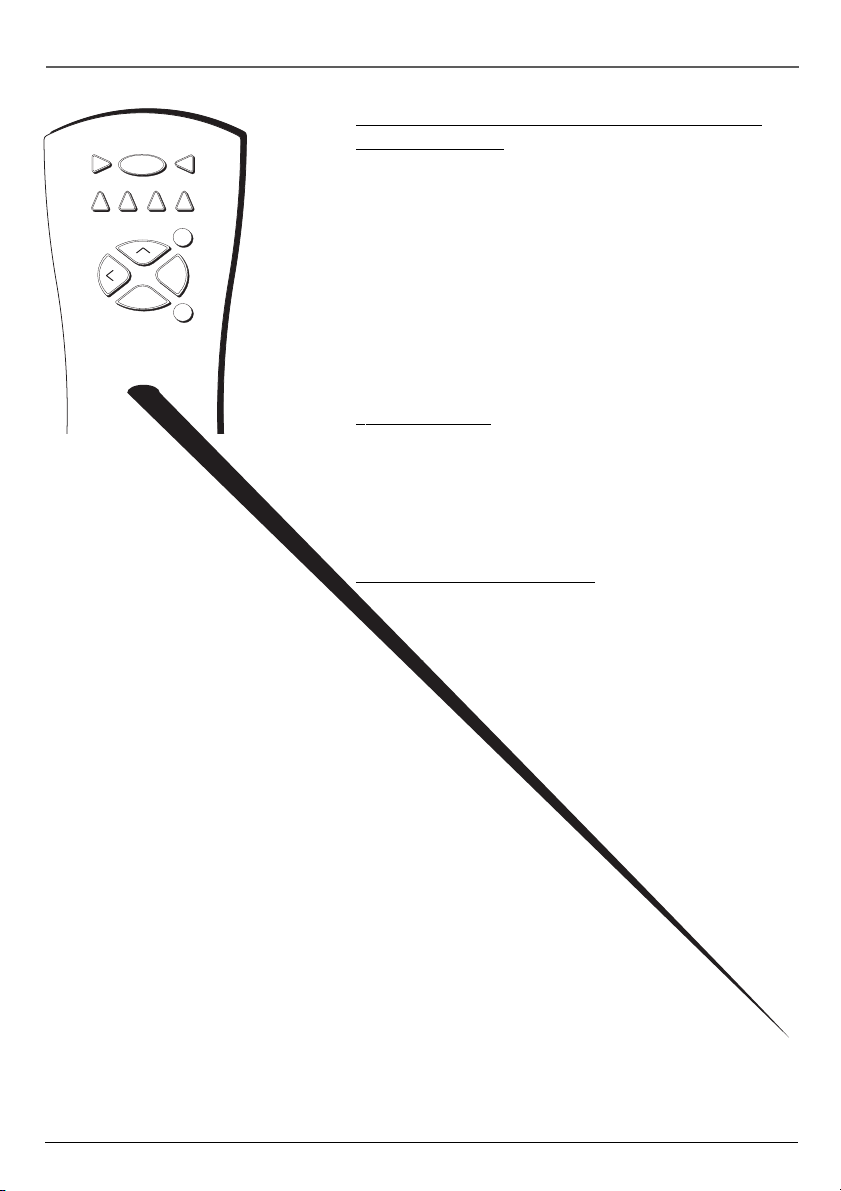

Put batteries in the remote ........................................................................................... 6

How to Use the Remote Control to Complete the Initial Setup ................................ 7

Turn on the TV................................................................................................................. 7

Complete the Initial Setup ............................................................................................. 7

Complete Auto Channel Search................................................................................................................. 7

Chapter 2: Using the Remote Control

Button Descriptions for TV Mode .................................................................................. 8

Button Descriptions for Other Modes ........................................................................... 8

Using the WHO•INPUT Button .................................................................................................................. 9

Programming the Remote to Operate Other Components.......................................... 9

Find Out If You Need to Program the Remote ......................................................................................9

Programming the Remote ........................................................................................................................... 9

How to Use the Remote After You’ve Programmed It ...................................................................... 11

Remote Control Codes ...................................................................................................11

Chapter 3: Using the TV’s Features

Channel Banner ............................................................................................................. 14

Why You Should Use the Auto Tuning Feature ......................................................... 14

How to Set Up the Auto Tuning Feature...............................................................................................14

Parental Controls and V-Chip ...................................................................................... 15

How V-Chip Works ......................................................................................................................................16

Table of Contents

USA V-Chip Rating System .......................................................................................................................16

Canadian English V-Chip Rating System ..............................................................................................16

Canadian French V-Chip Rating System ...............................................................................................17

USA V-Chip TV Rating Limit .....................................................................................................................18

Blocking Specific Content Themes .........................................................................................................19

Viewing Specific Content Themes...........................................................................................................19

Blocking Canadian V-Chip Ratings .........................................................................................................20

V-Chip Movie Rating Limit .......................................................................................................................20

V-Chip Exempt Program Block.................................................................................................................20

KidPass ............................................................................................................................................................ 21

V-Chip Active ................................................................................................................................................ 21

Front Panel Lock ........................................................................................................................................... 21

Change Password ......................................................................................................................................... 21

Chapter 4: Using the TV’s Menu System

Sound Menu................................................................................................................... 22

Picture Menu ................................................................................................................. 22

Setup Menu ................................................................................................................... 23

Parental Control Menu ................................................................................................. 24

Time Menu ..................................................................................................................... 24

Chapter 5: Other Information

Troubleshooting ............................................................................................................. 25

Care and Cleaning ......................................................................................................... 27

Limited Warranty .......................................................................................................... 27

Accessory Information .................................................................................................. 29

Chapter 1 3

Graphics contained within this publication are for representation only.

Chapter 1: Connections & Setup

Things to Consider Before You Connect

Protect Against Power Surges

•Connect all components before you plug any of their power cords into the wall

outlet.

•Turn off the TV and/or component before you connect or disconnect any

cables.

•Make sure all antennas and cables are properly grounded. Refer to the

Important Safety Instructions packed separately.

Protect Components from Overheating

•Don’t block ventilation holes on any of the components. Arrange the

components so that air can circulate freely.

•Don’t stack components.

• If you place components in a stand, make sure you allow adequate ventilation.

•If you connect an audio receiver or amplifier, place it on the top shelf so the

heated air from it won’t flow around other components.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

•If you place components above the TV, route all cables down the side of the

back of the TV instead of straight down the middle of the TV.

•If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also,

keep the twin lead cables away from audio/video cables.

Important Stand and Base Safety Information

Choose the location for your TV carefully. Place the TV on a stand or base that is of

adequate size and strength to prevent the TV from being accidentally tipped over,

pushed off, or pulled off. This could cause personal injury and/or damage the TV.

Refer to the Important Safety Instructions packed separately.

Use Indirect Light

Don’t place the TV where sunlight or room lighting will be directed toward the

screen. Use soft or indirect lighting.

Cables Needed to Connect Components to Your TV

The pictures below show the cables needed for the connections represented in this

book.

Audio/Video cables Component Video (Y, Pb, Pr) cablesS-Video cable

4Chapter 1

Graphics contained within this publication are for representation only.

Connections & Setup

TV + DVD + VCR

1. Connect your DVD Player to your TV.

A. Connect the audio (white and red) cables to the VIDEO 2 R and L/MONO AUDIO jacks on the back

of the TV and to the Audio Output jacks on the DVD player.

B. If your DVD player has Component Output Jacks (Y, Pb, Pr), connect three video grade cables to

the Y, Pb, Pr jacks on the DVD player and to the VIDEO 2 Y, Pb, Pr jacks on the back of the TV. If

your DVD player doesn’t have Y, Pb, Pr jacks, go to C.

-OR-

C. If your DVD player has an S-Video jack, connect an S-Video cable to the S-Video jack on the DVD

player and the S-VIDEO IN jack on the back of the TV. If your DVD player doesn’t have an

S-Video jack, go to D.

Note: If you connect an S-Video cable, you must connect the audio cables to the VIDEO 1 AUDIO jacks on the back of the

TV, not the VIDEO 2 AUDIO jacks.

-OR-

D. Connect a video cable (yellow) to the Video Output Jack on the DVD player and to the VIDEO 2

VIDEO jack on the back of the TV.

2. Connect your TV to your VCR

Connect a coaxial cable to the TV ANT jack on your TV and to the Output Jack on your VCR

(sometimes labeled OUT TO TV).

Note: If your VCR has A/V output jacks, you can connect your TV to your VCR using audio/video cables for better quality.

3. Make sure cable or antenna is connected to your VCR.

Connect the coaxial cable from your cable outlet or antenna to the antenna input on the VCR.

Go to page 6

TV (back panel)

RL/MONO

AUDIO VIDEO

TV ANT

DVD

S-VIDEO

RVIDEO

OUT

IN FROM ANT

OUT TO TV CH3

CH4

VCR

VIDEO

OUT

AUDIO

From Cable

or Antenna

Pr Y

S-VIDEO IN

RAUDIO VIDEO

VIDEO 1

OUT

L/MONO

VIDEO 2

VIDEO 3

VIDEO

1C*

* If you connect an S-Video cable, you must connect

the audio cables to the VIDEO 1 AUDIO jacks on the

back of the TV, not the VIDEO 2 AUDIO jacks.

Chapter 1 5

Graphics contained within this publication are for representation only.

Connections & Setup

RL/MONO

AUDIO VIDEO S-VIDEO IN

VIDEO 1

Pr Pb Y

RAUDIO VIDEO

L/MONO

VIDEO 2

VIDEO 3

Explanation of Jacks

This section describes the jacks you can use to make connections. There are several

ways to connect components to your TV.

TV ANT Lets you connect a coaxial cable to receive the signal from the antenna,

cable, cable box, or if using the example on page 4, a VCR.

VIDEO 1

VIDEO, AUDIO R and L/MONO INPUTS Lets you connect a

component such as a VCR, DVD player, or laserdisc player.

•R (RIGHT) AUDIO Provides right audio connection. The

right audio connector is usually red.

•L/MONO AUDIO Provides left audio connection. The

left audio connector is usually white.

•VIDEO Provides composite video connection. The video

connector is usually yellow.

•S-VIDEO Provides better picture quality than the video

jacks because the color part of the signal is separated

from the black and white part of the picture. When using

S-VIDEO IN, make sure to connect left and right audio

cables to the L/MONO and R AUDIO Input jacks.

VIDEO 2

VIDEO, AUDIO R and L/MONO and Y, Pb, Pr INPUTS Lets

you connect a component video source, such as a DVD player.

•Y, Pb, Pr Provides optimum picture quality because the

video is separated into three signals. Use three video-

grade cables for the connection. When using VIDEO 2

Y, Pb, Pr, make sure to connect left and right audio cables

to the VIDEO 2 AUDIO Input jacks.

•R and L/MONO AUDIO and VIDEO Their description is

the same as VIDEO 1.

VIDEO 3

R and L AUDIO and Y, Pb, Pr INPUTS Lets you connect a

second component video source, such as a DVD player. Their

description is the same as VIDEO 2 above. When using

VIDEO 3 Y, Pb, Pr, make sure you connect the left and right

audio cables to the VIDEO 3 Audio jacks.

AUDIO/VIDEO OUTPUTS Lets you connect an amplifier or

audio receiver for improved sound quality or an external

video monitor, for models with Video Out.

OUT

VIDEO

6Chapter 1

Graphics contained within this publication are for representation only.

Connections & Setup

The Front of Your TV

Front Input Jacks

The TV has front input jacks for your convenience: one set of

audio/video inputs, an S-Video and a headphone jack. These

jacks are towards the front of the TV on the side. To access

the component you connected to the front of the TV, press

the INPUT button on your remote until FRNT appears on the

screen. The jacks are ideal for connecting a video game

console or a camcorder.

Note: When connecting a component that only has one audio jack,

such as some camcorders, use the TV’s AUDIO L/MONO jack to hear

the audio.

H-PHONE Allows you to connect headphones to listen to

the sound coming from the TV.

L/MONO and R AUDIO Receives audio from another

component such as a VCR, camcorder, or video game console.

VIDEO Receives video from another component such as a

VCR, camcorder, or video game console.

MENU/OK

VOL

CH VOL

POWER

READY ADVISORY WATCH WARNING

VIEW

MESSAGE

STOP

ALARM

HEAR

VOICE

L/MONO

AUDIO VIDEO

H-PHONE

Front Panel Buttons

If you cannot locate your remote, you can use the front panel buttons of your TV

to operate many of the TV’s features.

MENU/OK Brings up the Main menu. In the menu system, it selects highlighted

items.

CH v Scans down through the current channel list. In the menu system, acts like

the down arrow button on the remote control and adjusts menu controls.

CH Scans up through the channel list. In the menu system, acts like the up

arrow button on the remote control and adjusts menu controls.

VOL < Decreases the volume. In the menu system, acts like the left arrow button

on the remote control and adjusts menu controls.

VOL > Increases the volume. In the menu system, acts like the right arrow button

on the remote control and adjusts menu controls.

POWER Turns the TV on and off.

Plug in the TV

Plug the end of the power cord into a grounded wall outlet. Insert the plug

completely into the outlet.

Put batteries in the remote

•Remove the battery compartment cover from the back of

the remote by pushing down on and sliding off the cover.

•Insert 2 fresh “AA” batteries. Make sure the polarities (+

and -) are aligned correctly.

•Replace the cover.

Chapter 1 7

Graphics contained within this publication are for representation only.

Connections & Setup

How to Use the Remote Control to Complete

the Initial Setup

The technical term is “Navigation”– how you move through

the on-screen menus. The method is the same throughout

the menu screens: highlight your choice and select it.

To highlight a menu item, press the arrow buttons on the

remote to highlight one of the items listed on the screen. Use

the up or down arrow button to move up or down. Use the

right or left arrow button to move right or left.

To select the item that you’ve highlighted, press OK.

Note: Highlighted means that the menu item stands out from other

menu items on the list (appears darker, brighter, or a different color).

Turn on the TV

Press TV on the remote, or press POWER on the TV’s front

panel.

Note: Pressing the TV button not only turns on the TV, but puts the

remote into TV mode. “TV mode” means that the buttons on the

remote control operate the TV’s functions.

Complete the Initial Setup

The menu system in your TV allows the TV’s features to work

properly. The first time you turn on your TV, the SETUP screen

appears with Language highlighted. The default language is

English. To choose another language, press the right arrow.

ON OFF

AUX

DVD SAT•CABLE

SOUND GO BACK

SKIPMUTE

8Chapter 2

Graphics contained within this publication are for representation only.

Chapter 2: Using the Remote Control

Button Descriptions for TV Mode

Arrows Used to point to different items in the TV menu and to adjust the menu

controls.

Indicator Indicates the programming mode when programming the remote to

control components. Lights when you press a valid button on the remote. Flickers

when a button is pressed and the batteries are low.

(0-9) Number Buttons Enter channel numbers and time settings directly

through the remote control.

To enter a one-digit channel, enter a zero first. To enter a two-digit channel, press

the two digits and expect a few seconds delay. This is in case you want to enter a

third digit.

CH + or CH - Scans up or down through the current channel list. Press once to

change the channel up or down; press and hold to continue changing channels.

CLEAR Removes any menu or display from the screen and returns you to normal

viewing.

GO BACK Returns you to the previous channel.

INFO Brings up channel banner; press again to clear the screen.

MENU Brings up the Main menu.

MUTE Reduces the TV’s volume to its minimum level. Press again to restore the

volume.

OK When in the menu system, selects highlighted items.

ON•OFF When in TV mode, turns the TV on and off. If in another mode (VCR,

DVD, SAT•CABLE, etc.), will turn the component on and off.

SKIP Press once before changing channels and the TV will go back to the original

channel after 30 seconds. Press repeatedly to add more time.

SOUND Displays the SOUND menu.

TV Turns on the TV and puts the remote in TV mode. Also displays current status.

VOL – or VOL + Decreases or increases the TV’s volume.

WHO•INPUT In TV mode, press to toggle through the available input sources

(VID1/SVID1, VID2/CVID2, FRNT, CVID3 and current channel). In SAT mode, press to

select available channel lists.

Button Descriptions for Other Modes

AUX Puts the remote in AUX mode. Can also be programmed to operate most

brands of an additional remote-controllable component.

ANTENNA In VCR mode, functions as a TV/VCR button. In SAT•CABLE mode,

functions as a TV/receiver button.

DVD Puts the remote in DVD mode and, if auto tuning is enabled, will turn on the

TV and tune to the correct video input channel.

GUIDE If you’re operating another component that has an on-screen program

guide, this button accesses the on-screen guide.

STOP PAUSE

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

RCA

RCA 27V550 Manual de usuario

RCA

RCA Victor CTC9A Instrucciones de instalación

RCA

RCA RLDED3955A Manual de usuario

RCA

RCA LRK28G30RQD Manual de usuario

RCA

RCA 24F512T Manual de usuario

RCA

RCA RLDED4691A Manual de usuario

RCA

RCA 32V430TYX1GYN Manual de usuario

RCA

RCA MR13401, M14300, M19401, M2030 Manual de usuario

RCA

RCA F27679BCFE1AC Manual de usuario

RCA

RCA F36669 Manual de usuario

RCA

RCA C29400 Manual de usuario

RCA

RCA 24V510T Manual de usuario

RCA

RCA F20251 Manual de usuario

RCA

RCA F32705YX1CL2 Manual de usuario

RCA

RCA F27700 Manual de usuario

RCA

RCA RLC4283A Manual de usuario

RCA

RCA Scenium HDLP50W151YX1 Manual de usuario

RCA

RCA R52WH73 Manual de usuario

RCA

RCA F27683GYJX1AK2 Manual de usuario

RCA

RCA 1535006A Manual de usuario

RCA

RCA G36705 Manual de usuario

RCA

RCA E13318 Manual de usuario

RCA

RCA 20F514TD Manual de usuario

RCA

RCA 5inch BLACK & WHITE TVwith CD Player and AM/FM... Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
