USER'S

cSUIDE

IWARNING kvAv_7l_ll_[_

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

RISK OF ELECTRIC

SHOCK DO NOT OPEN

To redu,:e the risk of _el_._ctricshock, do not remove

cover (or back). No use_ serviceable parts inside.

Refer servicing to qualiFied service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

_ Fhis symbol indicates

rnportant instructions

_ccompanying the product.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, tully insert.

Attention: Pour _viter les (hoes _Jectriques, Jntroduire la

lame la plus large de la fi,:he dans la borne

correspondante de la prise _t pousser jusq6 au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long _periods, they

may be permanently imprinted on the screen. Such images include

network Iogos, phone numbers, and video games. This damage is not

covered by your warranty. Extended viewin!_l of channels, displaying these

images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Cod___ (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particuJar, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

VCR Plus+, PlusCode and GUIDE Plus+ are trademarks of Gemstar

Development Corporation. TV GUIDE i:_a trademark of TV Guide

Financial, Inc. The VCR PhJs+ and TV GUIDE Plus+ systems are

manufactured under license from Gemst_r Development Corporation

and VCR Index Systems B V., respectively_

FIRSTTHINGS FIRST ....................................... 3

Connecting your TV ....................................................... 4

TV Only ..................................................................... 4

TV with other Components. .................................... 4

TV GUIDE Plus+ Controller ...................................... 5

USING THE MENU SYSTEM ........................... 7

The Menu Rule: Point and Select ................................. 8

What is Point and Select? ........................................ 8

Menus and Control Panels .......................................... 10

Menus ..................................................................... 10

Control Panels ............................................ ,.. ........ 11

Sliders .............................................. ;....................... 11

Choice Lists ............................................................. i 2

Numeric Entry .............................. ;.......................... 13

TV GUIDE Plus+ Menus .......................................... 14

INTERACTIVE SETUP ..................................... 15

Entering Setup ............................................................. 16

Select a Language ....................................................... 16

Auto Channel Search ................................................... 16

TV GUIDE Plus+ System ............................................... 17

Set the Time ................................................................. 23

Set the VCR1 Channel ................................................. 24

Set the DVDNCR2 Channel ......................................... 25

Set the SAT/CABLE Channel ........ i............................... 26

Label the Channels ...................................................... 27

PROGRAMMING THE REMOTE .................. 29

Programming the Remote .......................................... 30

To Control a VCR .................................................... 30

To Control a DVD Player or Laserdisc Player ........ 32

To Control an RCA Audio Device: ......................... 32

To Control a Satellite Receiver or Cable Box ........ 33

Using the Remote to Control a Device ....................... 33

TOUR OF THETV ........................................... 35

Remote Buttons ........................................................... 36

Back Panel .................................................................... 38

Front Panel ................................................................... 40

Channel Marker ........................................................... 41

;i ¸

QUICK REFERENCE ........................................ 43

Audio Menu ................................................................. 44

Picture Quality Menu .................................................. 45

Screen Menu ...... ]......................................................... 46

Channel Menu ............................................................. 47

Time Menu .................... :.............................................. 49

Parental Controls Menu .............................................. 50

TV GUIDE Plus+ Menu ................................................. 51

Setup Menu .................... ..... ........................................ 52

ADVANCED FEATURES ................................. 53

TV GUIDE Plus+ Operation .......................................... 54

Surf Menu ............................................................... 54

Next Menu ............................................................ .. 55

Scan Menu .............................................................. 55

Sort Menu .......... ..................................................... 56

One-Button Recording ........................................... 57

PIP (Picture-in-Picture) Operation .............................. 58

Two Tips for Using PIP Buttons .............. ................ 59

Choosing an Audio Processor ..................................... 60

Choosing an audio processor from the remote ... 60

Closed Captioning ....................................................... 61

To display Closed Captioning ................................ 61

Closed Captioning Modes ...................................... 62

On-screen Program Details ......................................... 63

APPENDIX A: TV CONNECTIONS ............... 65

.APPENDIX B: OTHER COMPONENTS ........ 76

APPENDIX C: TROUBLESHOOTING ............ 78

APPENDIX C: TROUBLESHOOTING ............ 79

APPENDIX D: LIMITED WARRANTY ........ 8 O

APPENDIX E: CARE AND CLEANING .......... 81

ACCESSORI ES ................................................. 82

INDEX .................................... 85

HI, I'M ROGER.

I wrote this manual to help you get the most

from your TV. I know you expect a lot from your

TV, so I designed this user manual to give you

the information you need.., when you need it.

I1 FIRST THINGS FIRST

READ THE FIRST FOUR CHAPTERS

The manual is designed to get you started

quickly.., and let you catch up on the details

when you get a chanc_. The first four sections of

the manual will get your TV up and running.

You'll learn how to use the menu system, run the

interactive setup routine and program the

remote.

The rest of the manual gives you the specifics: a

tour of the TV, a quick reference guide, details

on the TV GUIDE Plus+ system, advanced

features, and appendices.

Well... if your TV's out of the box, let's get

started. First things first.

ICheck out the rLotes I've added 1

throughout the manual. I've got some

great tips that will help you get the most

from your TV.

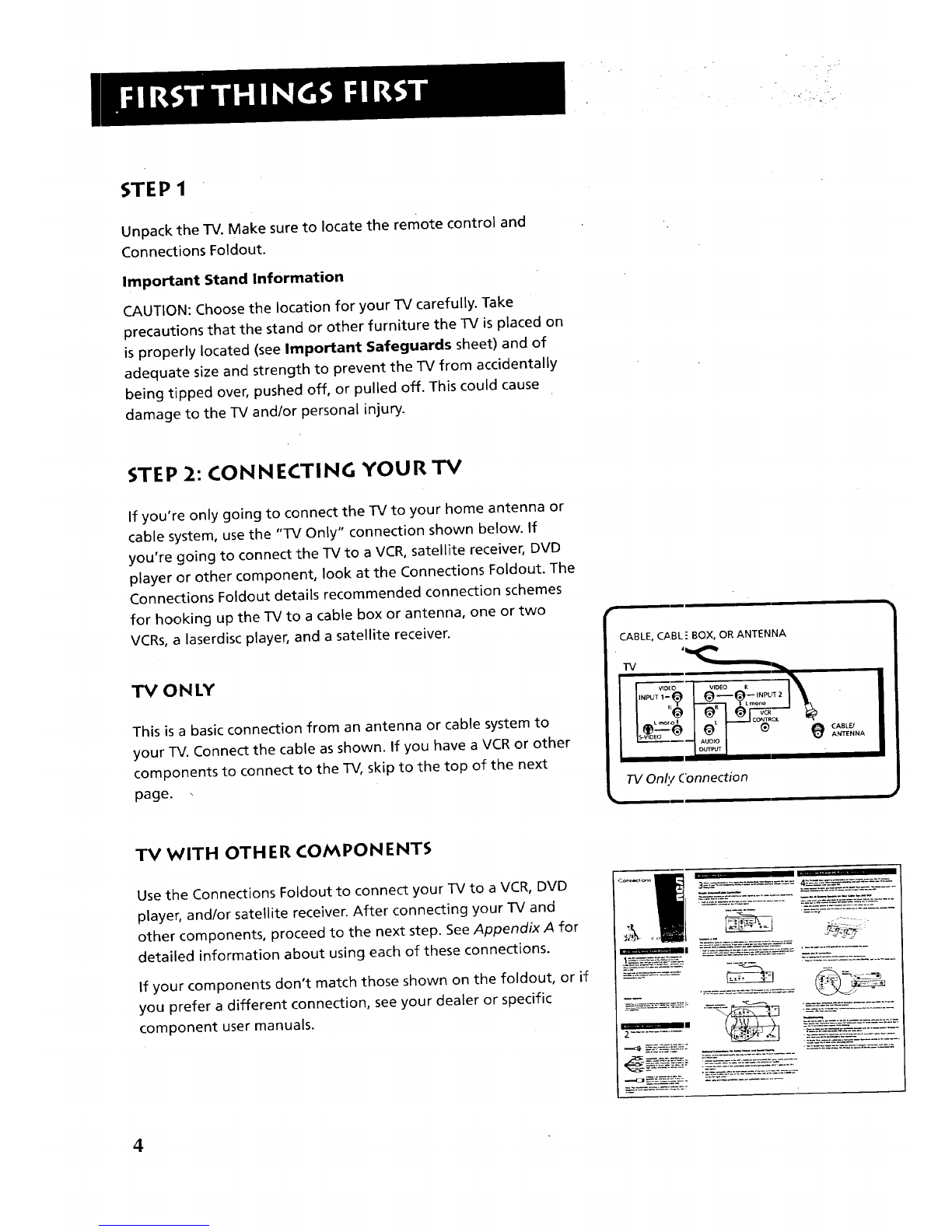

STEP 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

Important Stand Information

CAUTION: Choose the location for your TV carefully. Take

precautions that the stand or other furniture the TV is placed on

is properly located (see Important Safeguards sheet) and of

adequate size and strength to prevent the TV from accidentally

being tipped over, pushed off, or pulled off. This could cause

damage to the TV and/or personal injury.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or

cable system, use the "TV Only" connection shown below. If

you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The

Connections Foldout details recommended connection schemes

for hooking up the TV to a cable box or antenna, one or two

VCRs, a laserdisc player, and a satellite receiver.

"IV ONLY

This is a basic connection from an antenna or cable system to

your TV. Connect the cable as shown. If you have a VCR or other

components to connect to the TV, skip to the top of the next

page. ,

CABLE, C_,BL_ BOX, OR ANTENNA

_i___,.p_T:,_o_,oEo"--,N,,T_

I =i,

TV Only Connection

• m

TV WITH OTH ER COMPONENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player, and/or satellite receiver. After connecting your TV and

other components, proceed to the next step. See Appendix A for

detailed information about using each of these connections.

If your components don't match those shown on the foldout, or if

you prefer a different connection, see your dealer or specific

component user manuals.

TV GUIDE PLUS+ CONTROLLER

The TV GUIDE Plus+* controller allows direct control of a cable

box and VCR using a pair of IR (infrared) controllers.

• Plug the TV GUIDE Plus+ controller into the VCR CONTROL

jack on the back of the TV.

• Affix the IRcontrollers directly over the IR remote sensors on

your cable box and VCR.

Back of TV

Remote Cable Box

VCR

Connect IR controllers to the infrared remote

sensors on your cable box and VCR

STE P 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of

the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

I I I _\

* GUIDE Plus+ is a trademark of Gemstar Development Corporation.

TV GUIDE is a trademark of TV Guide Financial, Inc.

Locating the IR (infrared)

Remote Control Sensor on

Your Cable Box or VCR

The IR controlilers must be affixed

directly over _IheIR remotE.=sensors on

your cable box or VCR.

Some cable boxes and VCRs label the

IR sensors; others do not. If the

sensors are labeled, affix the IR

controllers directly over them.

IRRemote _ensor

For those that do not label the IR

sensor, you need to use the cable box

or VCR's remote to locate the sensor

before affixil_g the IR controllers.

1. Hold the remote control so that it

is touching the front of the cable

box or VCR.

2. Slowly move the remote over the

front of the cable box or VCR

while pressing the rernote's

POWEFIbutton on and off

3. When _he cable box or VCR turns

off or on, you've located the

sensor.

You should test the IR controllers

after setting up the TV GUIDE Plus+

system. Temporarily attach the IR

controllers with clear tape to the

spots where you think the sensors

are located. After determining that

the controllers are working correctly,

affix them permanently.

STE P 4

Put batteries in the remote.

Remove the battery compartment cover from the back of the

remote.

Insert batteries as shown, matching the + and - ends of each

battery in the compartment.

Replace the cover.

STEP 5

Turn on the TV.

Press TV on the remote, or press POWER on the TV itself.

STEP 6

Read the next section, Using the Menu System, which is a brief

overview of the basic rules for getting around in the menus.

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure

the TV. The first steps ask you to select your preferred language

for the menu system and to begin the auto channel search, which

puts available cable TV or antenna signals into the TV's memory.

You can skip any of the steps and return to them later.

RIEV_RSE PLAY FORWARD

REC'VCR. STOP PAUS[

r-_ Fi-i E._

INFO _H* SKIP

MUTI_ CH÷ GO BACK

_AVo_tCPUT

o oO _'_Nd"

CLEAR RESET

SOUND

GUJD_

"iV

ONE RULE TO REMEMBER

You control and customize the TV by making

changes to various control panels in the menu

system. The great thing is, you only need to know

one rule: point and select. 2USING THE MENU SYSTEM

-.. -..

••,. : .

THE MENU RULE: POINTAND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINTAND SELECT?.

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the

remote.

To point up or down, press the up or down arrows. To point

left or right, press the left or right arrows.

2. Select a menu item by pressing MENUoSELECT.

Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select theChannel menu from the Main menu:

1. Press MENU to bring up the Main menu.

2. Point to Channel by pressing the down arrow until the word

Channel is highlighted,

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de RCA

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
