Razer RZ01-0271 Manual de usuario
DTD:13/7/2018
User manual for RZ01-0271
Consist of Gaming Mouse: Model: RC30-027101
and
USB Dongle: DGRFG6
F OR G A M ER S . B Y G A M E R S.
™
1
PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
Gaming mouse ( Model:RC30-027101)
USB Dongle ( Model: DGRFG6)
USB wireless receiver adapter
USB to Micro-USB cable
Important Product Information Guide
SYSTEM REQUIREMENTS
PRODUCT REQUIREMENTS
PC with a free USB port
RAZER SYNAPSE 3 REQUIREMENTS
Windows® 7 64-bit (or higher)
Internet connection
500 MB of free hard disk space
F OR G A M ER S . B Y G A M E R S.
™
2
REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Register your product online at razerid.razer.com/warranty to get real-time information on
your product’s warranty status.
If you haven’t registered for a Razer ID yet, register now at razerid.razer.com to get a wide
range of Razer benefits.
TECHNICAL SUPPORT
What you’ll get:
2 years limited manufacturer’s warranty.
Free online technical support at support.razer.com.
Your product’s serial
number can be found
here.
F OR G A M ER S . B Y G A M E R S.
™
3

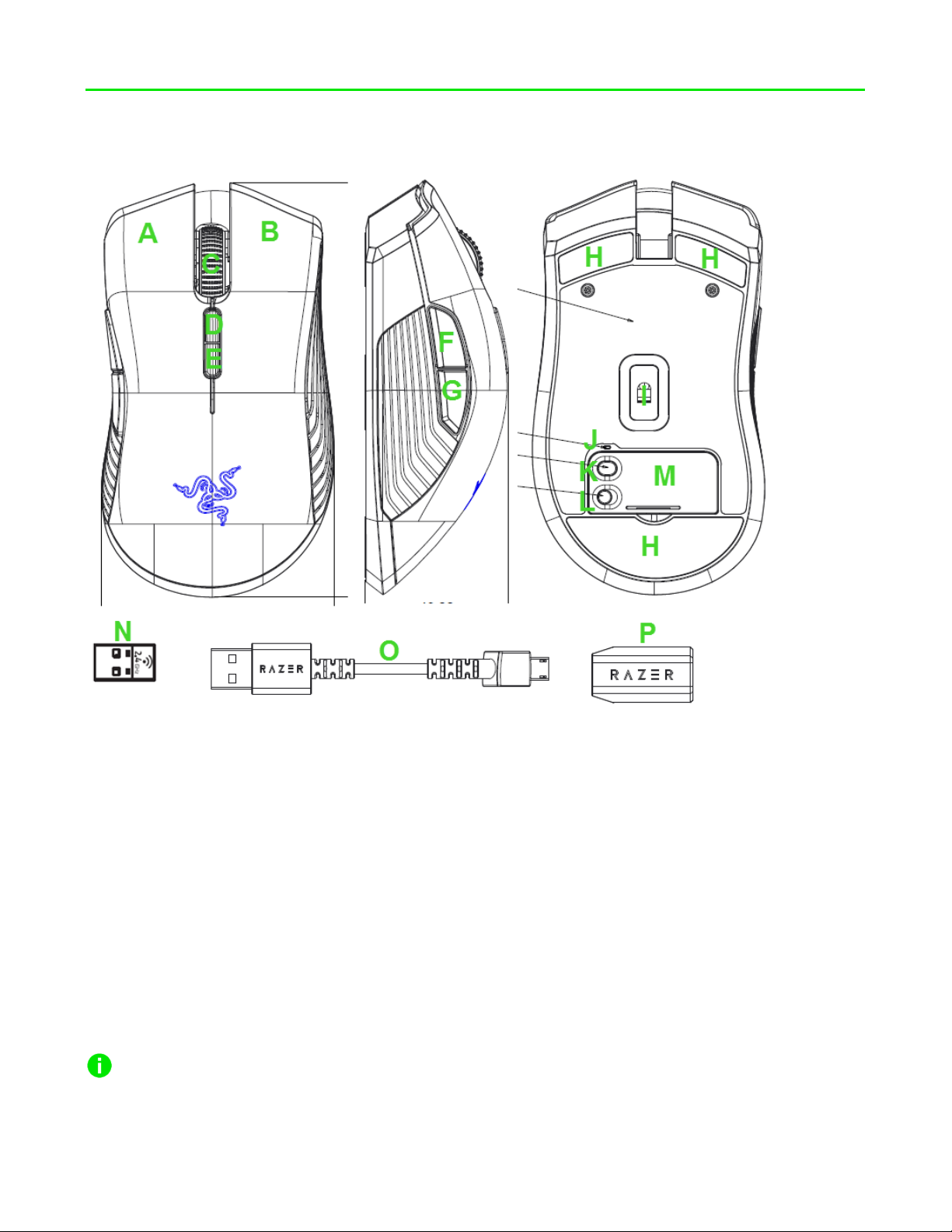

DEVICE LAYOUT
A. Left mouse button
B. Right mouse button
C. Scroll wheel
D. DPI stage up
E. DPI stage down
F. Mouse button 5
G. Mouse button 4
H. Ultraslick mouse feet
I. True 16,000 DPI 5G optical sensor
J. Profile indicator
K. Profile button
L. Power on/off button
M. Bottom cover
N. USB wireless receiver
O. USB to Micro-USB cable
P. USB wireless receiver adapter
Default DPI stages are as follows: 800, 1800, 4500, 9000, and 16000. The DPI stages
can be customized using Razer Synapse 3.
F OR G A M ER S . B Y G A M E R S.
™
4
SETTING UP YOUR RAZER MAMBA WIRELESS
CHARGING YOUR RAZER MAMBA WIRELESS
Using the included USB to Micro-USB cable, plug your Razer Mamba Wireless to the
computer.
This connection also acts as the wired mode for your Razer device.
For best results, please fully charge your Razer Mamba Wireless before using it for the first
time. A depleted battery will be fully charged in approximately 4 hours. If the Razer Mamba
Wireless has not been used for an extended period, you may need to recharge it before use.
The Razer Mamba Wireless requires a USB connection that is able to supply sufficient power
to charge the battery. The battery charging process of the Razer Mamba Wireless may be
affected if connected to a non-powered USB hub or non-powered USB ports found on certain
keyboards and other peripherals. When in doubt, it is preferable to connect the Razer Mamba
Wireless directly to the USB port of your computer.
LOW POWER INDICATOR
The Razer Mamba Wireless’s scroll wheel will blink red twice in repeated intervals to indicate
that the battery’s power is less than 5%. This lighting sequence will repeat until the battery is
drained or the mouse is connected to the PC via the USB to Micro-USB cable.
F OR G A M ER S . B Y G A M E R S.
™
5
USING THE USB WIRELESS RECEIVER COMPARTMENT
1. Remove the bottom cover of your Razer Mamba Wireless.
2. Remove the USB wireless receiver from the compartment and place it into PC’s USB
port.
3. Reattach the bottom cover onto the Razer Mamba Wireless and make sure it is
securely fastened.
F OR G A M ER S . B Y G A M E R S.
™
6
4. Switch on the Razer Mamba Wireless.
Your Razer Mamba Wireless is now ready for use in wireless mode.
USING THE USB WIRELESS RECEIVER ADAPTER
Use the USB wireless receiver adapter to easily access and extend the reach of your USB
wireless receiver.
F OR G A M ER S . B Y G A M E R S.
™
7
INSTALLING RAZER SYNAPSE 3 FOR YOUR RAZER MAMBA
WIRELESS
Step 1: Make sure the USB wireless receiver is connected to the USB port of your computer.
Step 2: Install Razer Synapse 3 when prompted* or download the installer from
razer.com/synapse.
Step 3: Create your Razer ID or log into Razer Synapse with an existing account.
*Applicable for Windows 8 or later.
F OR G A M ER S . B Y G A M E R S.
™
8
CONFIGURING YOUR RAZER MAMBA WIRELESS VIA RAZER
SYNAPSE 3
STORED PROFILES
Your Razer Mamba is capable of storing up to 5 profiles from Razer Synapse Pro, which you
can use on systems that do not have Razer Synapse installed. Your Razer Mamba can also
store your current profile temporarily until it is replaced with a new active profile. Pressing the
Profile button will cycle from the current profile to profiles 1 to 4. The profile indicator will
change its color to show which profile is presently selected.
Designated color
Active profile
White
Profile 1 Red
Profile 2 Green
Profile 3 Blue
Profile 4 Cyan
F OR G A M ER S . B Y G A M E R S.
™
9
LIGHTING EFFECTS
The Lighting tab enables you to customize the look of your Razer device by allowing you to
choose from various lighting effects or fully customizing your own. These lighting effects can
also be synchronized with other Powered by Razer Chroma devices that support the selected
effect.
Name Description How to set up
Breathing The lighting fades in and out of
the selected color(s)
Select up to 2 colors or
randomize
Reactive The LEDs will light up when you
click any of the mouse buttons
Select the color and the length
of time for the LED to remain
lit
Spectrum
cycling
The LEDs will cycle between
16.8 million colors indefinitely
No further customization
required
Static The LEDs will remain lit in the
selected color Select a color
Wave
The lighting will scroll in the
direction selected with a default
spectrum of colors
Select either front-to-back or
back-to-front wave direction
Please refer to the Online Master Guide at support.razer.com for in-depth instructions on how
to configure and use your Razer Mamba Wireless.
