Raypak CR-206A Manual de usuario

Catalog No.: 6000.38B Effective: 7-1-08 Replaces: 5-1-08

Job:

Engineer:

Contractor:

Prepared By: Date:

Model: Indoor/Outdoor

82% Efficiency

ASME Code Glass-Lined Cast Iron Headers

ASME Code Copper-Fin Tube

125 lb. Pressure Relief Valve

Small Footprint

Unitherm Governor Anti-Condensation Control

Internal Bypass for High Flow Rates (up to 125 gpm)

Indoor/Outdoor

Heat Exchanger

ASME Inspected and Stamped

160 PSIG

National Board Approved

Glass-lined Cast Iron Headers

Finned Tubing

Copper – Standard

Cupro Nickel – Optional, Digital

units only

ASME Steel Tube Sheet

Silicone O-Rings

125 PSIG Pressure Relief Valve

Water Connections

Right Hand – Standard

Left Hand – Field Change

Flow Configuration – Two-pass

Controls

Millivolt Option

Standing Pilot Ignition

Thermopile Generator

Single Mechanical Temperature

Control

Flame Rollout Switch

High Limit Control

On/Off Switch

Water Pressure Switch

Digital Option

115/230V, 60Hz, 1 Ph Power

Supply

115/230/24V Transformer

100% Pilot Shut-off; Lockout –

Propane units only

Electronic, Intermittent Ignition

Pilot (IID)

High Limit Control

On/Off Switch

Flame Rollout Switch

Water Pressure Switch

Dual Electronic Temp Sensor

Digital Display With Diagnostics

Gas Control Train

Fuel

Natural Gas

Propane

Combination Control Valve

On/Off Firing

ANSI Z21.56 Design Certified

Construction

Front Controls

Stainless Steel Burners

Polytuf Powder Coat Finish

Indoor/Outdoor

Vent Selection

Outdoor Stackless Top –

Standard

Indoor Draft Diverter, Loose –

Optional

D-2 Power Vent, Loose –

Optional

Can be installed on combustible

surface

ASME Digital/

Millivolt

Atmospheric

Gas Pool Heaters

Models CR-206A - CR406A

Digital model with outdoor top shown

Catalog No.: 6000.38B Effective: 7-1-08 Replaces: 5-1-08

ASME Digital/Millivolt Atmospheric

Gas Pool Heaters Model

Notes:

1. Model number suffix indicates pilot type (E = digital, M = millivolt) and fuel type (P = propane, N = natural gas). Example: Model number

CR-406A-EN indicates a unit with digital (IID) ignition using natural gas.

2. Ratings are for natural gas and elevations up to 2,000 feet above sea level. Reduce input 4% for each 1,000 feet above sea level when

installed at over 2,000 feet elevation.

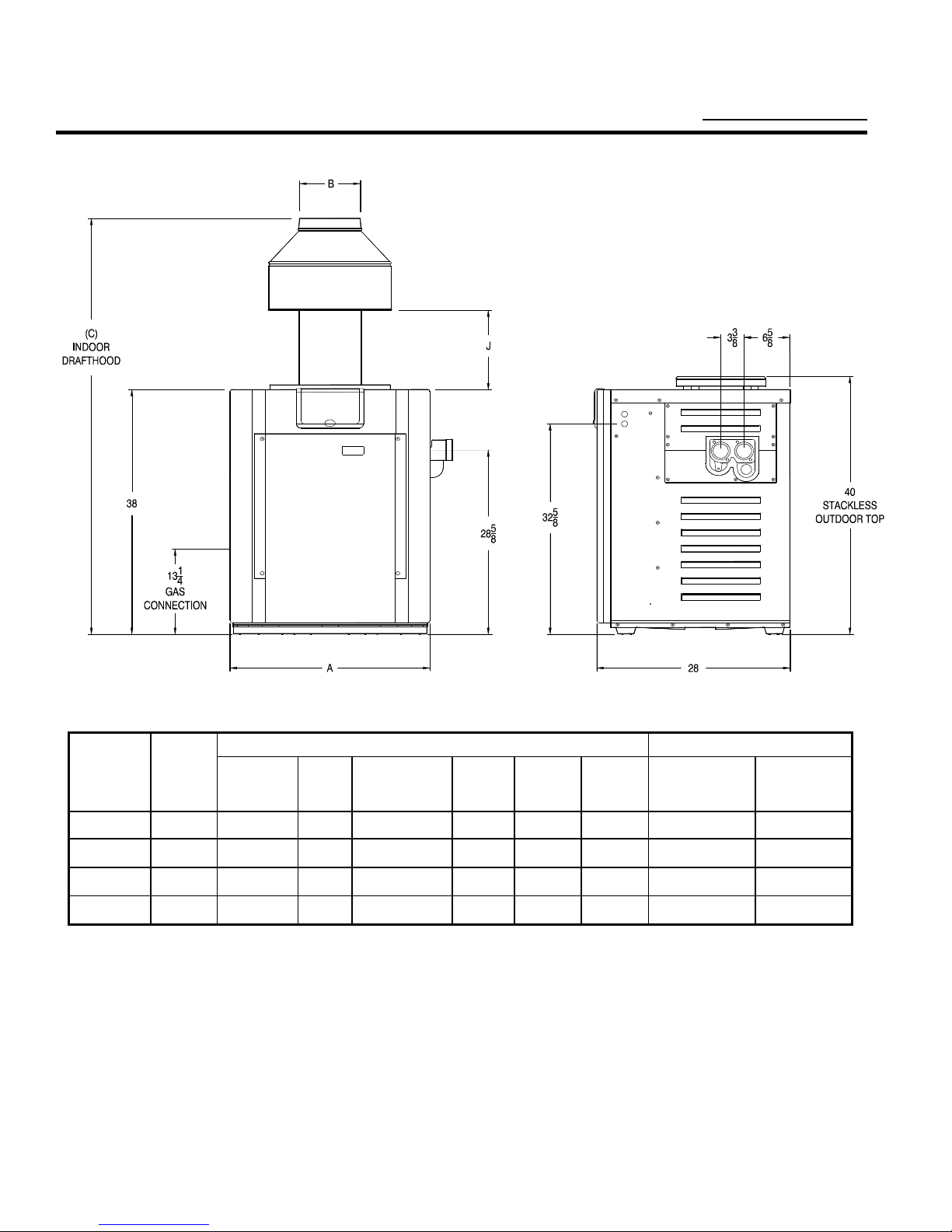

Dimensions (in.) Shipping Weights (lbs)

Heater

Model

BTUH

Input

(000)

Cabinet

Width

(A)

Flue

Dia.

(B)

Indoor

Drafthood

Gas

Conn.

Water

Conn.

Heater with

Stackless

Top

Indoor

Drafthood

CR-206A 199.5 20 6 61-5/8 11-3/4 3/4 2 197 12

CR-266A 266.0 23 7 62 11 3/4 2 216 15

CR-336A 332.5 26 8 63 10-5/8 3/4 2 233 17

CR-406A 399.0 29 9 64-1/2 12-1/8 3/4 2 247 20

Raypak, Inc. 2151 Eastman Avenue, Oxnard, CA 93030 (805) 278-5300 Fax (800) 872-9725 www.raypak.com
