Rancilio Silvia E Manual del propietario

No part of this manual shall be copied, reproduced, or transmitted in any way without the prior,written consentof Auber Instruments.Auber Instruments retains theexclusive rights to all information included in this

document.

SupplementalInstallationGuideforSilviaE

KIT‐RSRTDNb

(April2016)



ThisisasupplementalguideforRancilioSilviaE,releasedonthewinterof2015forEuropeanmarket.

SincethechangesofSilviaEareverylimitedfromSilviaV4,thisguideonlycovertheinstallationsteps

thatneedtobeadjustedduetothesechanges.

Theonlydifferenceisthatthetappingofpowerisdifferent.ThemainpowerswitchoftheSilviaEhas

changedfromtheoriginalmechanicalON/OFFswitchtoapushbuttonresetswitch.Therefore,wehave

totapthepowerfromthebrewswitch.

Usershouldstilluse“KIT‐RSRTDNInstallationguideV2.2”asthemaininstallationguide.



1. TappingthePowertotheController

ReplacetheoriginalbrewthermostatwiththeRTDStat(pointedbythebluearrowinFigure1).Thenwe

willtaptwocablesonthebrewswitch(pointedbygreenarrowsinFigure1)tosupplypowertothe

controller.Thegreenarrowspointtoaredandablackcableconnectedtothelowertwobladesonthe

brewswitch.



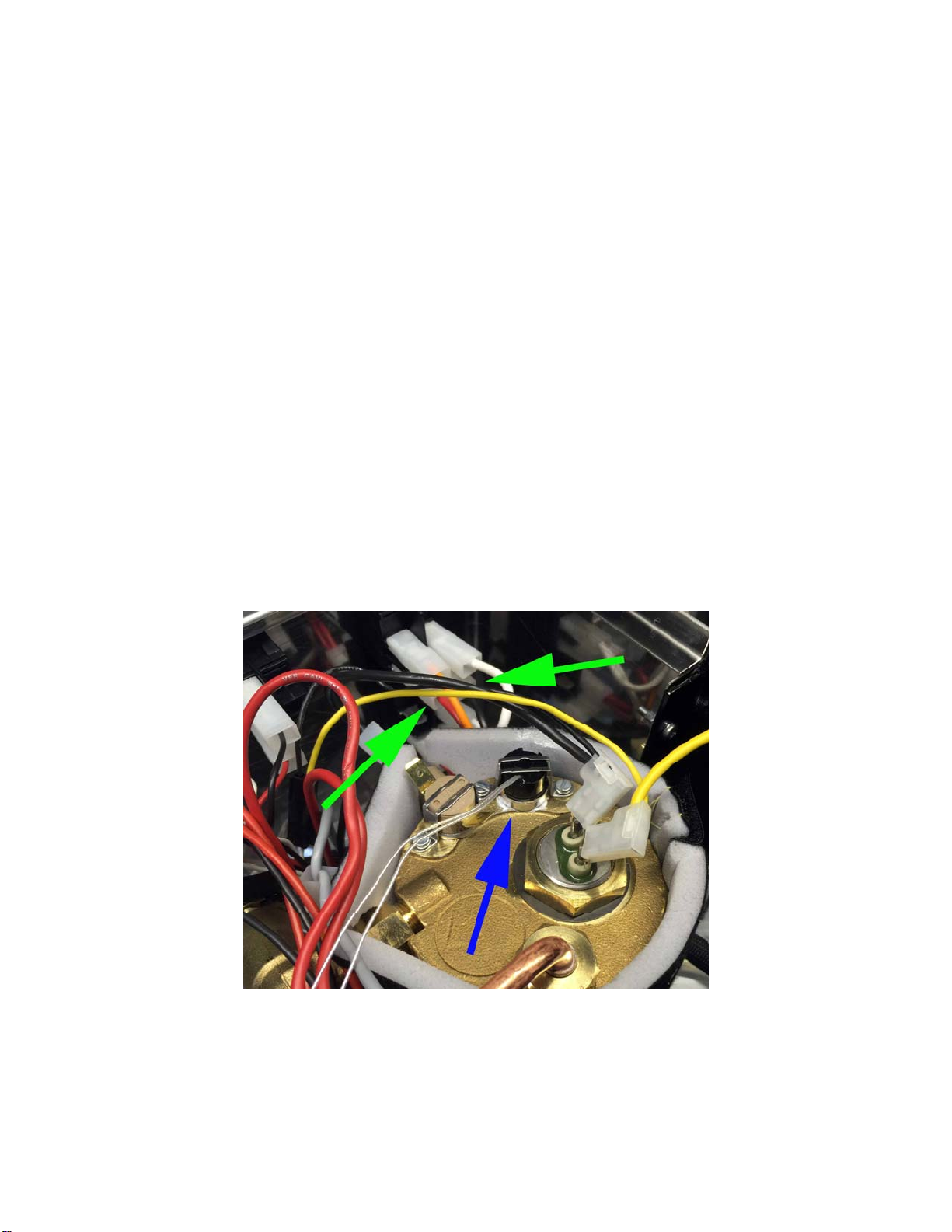

Figure1.Cablesneedtobetappedarepointedbygreenarrows.



First,removeallfourcablesonthebrewswitch.Connectthetwoblackcableswithpiggyback

connectorstotheredandblackcableremovedfromthebrewswitch.

Next,putthepiggybackconnectorontheredcabletothelowerleftbladesofthebrewswitch.Putthe

otherpiggybackconnectorontheblackcabletothelowerrightbladeofthebrewswitch.

Thenputtheorangecablebacktoitsoriginalposition,whichisthetopleftbladeonthebrewswitch.

Alsoputthewhitecablebacktoitsoriginalposition,whichisthetoprightbladeonthebrewswitch.

PleaseseeFigure4andFigure1forreference.



Figure2.Connectpiggybackconnectorsonblackcablestotheredandtheblackcablesfromthebrew

switch.



Figure3.Puttheredandtheblackcablebacktothebrewswitch.



Figure4.Puttheorangecablebacktoitsoriginalpositiononthebrewswitch.



(End)



No part of this manual shall be copied, reproduced, or transmitted in any way without the prior, written consent ofAuber Instruments.Auber

Instruments retains the exclusive rights to all information included in this document.
