IR2025 User Manual
V1.0
iR2025 User Manual
1
1. Package Contents and Product Views
Introduction
Thank you for purchasing RAIDON products. This User Manual will introduce you the InTANK IR2025
storage product. Before using your IR2025, please read it thoroughly. Although all information
contented in this User Manual had already been carefully veried before publishing, however, the
actual product and its specication will be based upon the time of delivery from RAIDON. Any update
to the product or its relevant information may be listed on www.raidon.com.tw . Product is subjected
to change without prior notications.
If you have any question regarding to the product you purchased, or you would like to know the
latest product information, User Manual’s update, please contact to your local supplier or visit to
www.raidon.com.tw for further information.
Copyright © Raidon Technology, Inc. – All right is reserved.
Open the package and you should nd the following parts:
IR2025
IR2025 x1 ( with removable drive tray enclosed x2)
SATA Cable x1
Screws & Keys
Quick Installation Guide
• Please check the product and accessories for any defect or missing parts. If you have any questions,
please contact your product supplier.
• Please visit the official website (www.raidon.com.tw) to download drivers and other related resources.
iR2025 User Manual
2

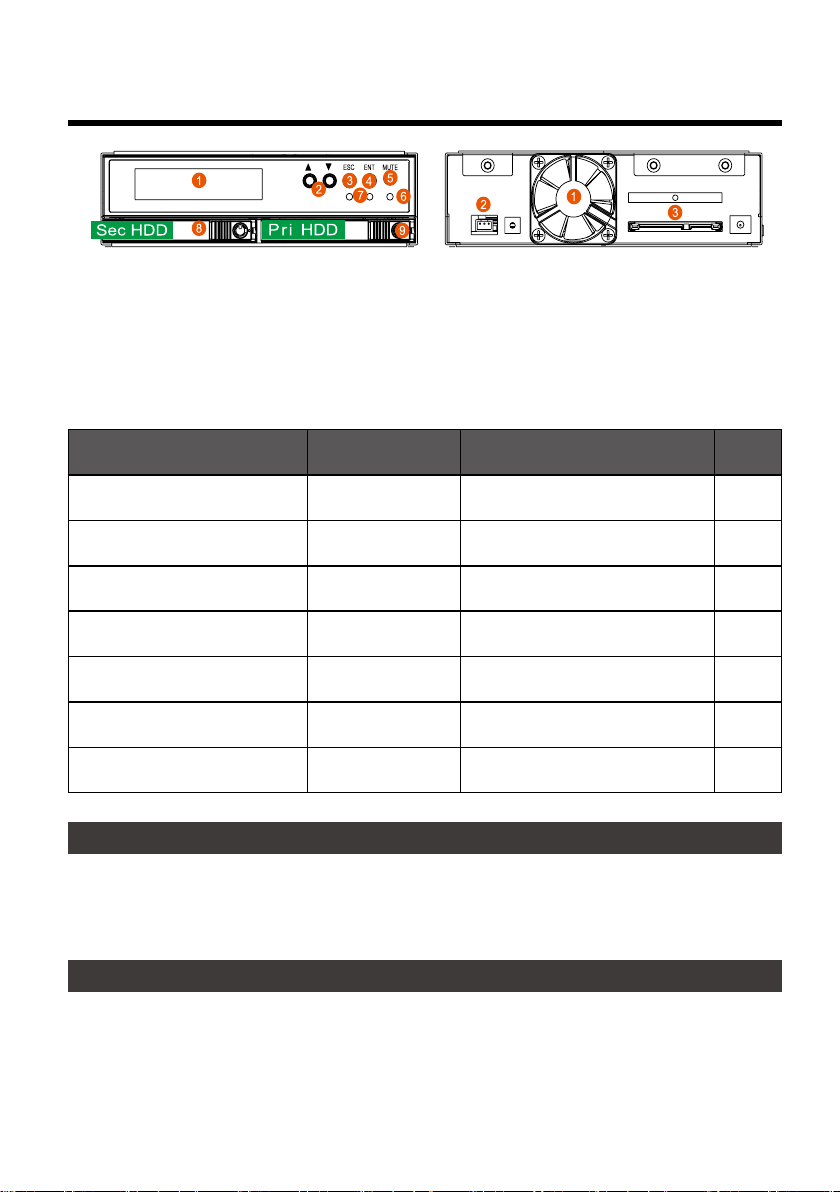

Product View, Front and Back
LED Indicators：
1. LCD Display
2. UP/DOWN Buttons
3. ESC Button
4. Enter Button
5. Mute Button
1. Cooling Fan
2. 3-pin Fan Connector
3. SATA Connector
Status System Indication HDD/SSD Indication Buzzer
Fan Failure Solid Purple ──ON
Overheat (≥50℃) Solid Purple ──ON
HDD Failure Solid Purple Solid Red ON
Standing-by Solid Blue Solid Blue ──
Formating / Accessing Data Solid Blue Flashing Blue-Purple ──
Rebuilding (Source) Solid Blue Solid Blue ──
Rebuilding (Target) Solid Blue Flashing Red ──
6. Power/False Indicator
7. HDD Access Indicator
8. HDD Tray Handle
9. HDD Tray Key Lock
2. Operation Information
Operating Temperature : 5～35 ℃(41 ～95 ℉)
Storage Temperature : -10 ~ 70 oC (14 ~ 158 oF)
Line Voltage : 5V DC
3. Hardware Requirements and Precautions
1. Computers or servers must be with SATA I, SATA II, or SATA III.
2. Hard drive must be with SATA I, SATA II, or SATA III.
3. You are strongly advised to set the storage mode before using your IR2025.
Note:
The default (Factory) setting is the RAID 1 mode.
HDD2 HDD1
ALARM
iR2025 User Manual
3
Note:
Once the drive mode conguration has been completed, re-conguration using the same
hard drives to set the drive mode will result in complete data loss. If you must change
the drive mode, make sure to backup all data prior to the mode change.
4. Hardware Installation Procedure
Please follow the instructions below to complete the hardware installation.
Open the package, take out the product, and make sure that all the enclosed contents are
not damaged or missing. Should you nd damages or missing contents, please contact to
your supplier immediately.
Put the system on a stable surface, ensure that it is well ventilated without blockage of the
air flow, and keep it away from the wet and any area which may easily get damaged.
Use the key included in the Accessory Kit, insert it into the Key Access Opening to eject the
removable drive tray latch, and extract the Removable Drive Tray.
Install the 2.5-inch hard disk and secure it with the small screws included in the 4 parts
package.
When the hard drive installation has been completed, insert the hard drive tray into the
system horizontally and secure the latch into place.
Step 1
Step 2
Step 3
Step 4
Step 5
4. IR2025 product allows user to simultaneously use the two dierent hard drives from two dierent
manufactures.
However, if the user expects a better efficiency, we strongly recommend the user to use the two
hard drives from the same manufacturer.
5. Please make sure that the two hard drives are free from bad blocks or defects prior to installation
in order to avoid system crashes or data loss.
6. The actual storage capacity of iR2025 recognized by the system may dier from the total capacity
stated on the hard drives combined once the drives have been formatted.
7. It is highly recommended for user to back up important data contained within the IR2025 unit on
a regular basis or whenever the user feels necessary to a remote or a separate storage device.
RAIDON will not be responsible for any lost of data caused during the use of the unit or the
recovery of the data lost.
Lock Unlock
iR2025 User Manual
4
5. RAID Mode Setting
After placing your two hard disks, turn on power and press UP Button, you are with the RAID Setting
mode. (Since the default setting is RAID 1 mode by factory, you do not have to reset RAID if you
want to use your IR2025 with RAID 1 mode.)
1. RAID 1 mode
1). Place two new hard drives into IR2025.
We would strongly suggest you to use two identical hard drives to get the maximum memory
capacity. And if the capacities of your two hard drives are dierence, IR2025 only recognizes
the memory capacity at the small capacity hard drive.
2). Under RAID 1 mode, two hard drives will have the identical information as one from its mirroring
feature, therefore, even though one and only one of the two hard drives failed, IR2025 will
still work ne and properly. Once you replace the failed hard disk with a new one, IR2025 will
automatically do rebuilding the data from the good one to the new hard disk.
Install device into one of the CD-ROM bays with screws from the accessory kit. Then
properly connect SATA cable and SATA power cable from your system to the device.
Power on your system after hardware installation is completed, and your operating system
will automatically detect the hard drives from booting. Then follow the steps from your
operating system to partition and format the drives when necessary, device will be ready
to use once the format is completed.Power on your system after hardware installation is
completed, and your operating system will automatically detect the hard drives from booting.
Then follow the steps from your operating system to partition and format the drives when
necessary, device will be ready to use once the format is completed.
Step 6
Step 7
SATA
SATA
1
2
iR2025
SATA Cable
SATA Power Cable
Power Supply
Mother board
SATA Port
iR2025
Internal Case
iR2025 User Manual
5
6. Computer Setup
When the hardware setup for IR2025 is complete, you are now ready to turn the machine on.
After the hardware installation is complete, the IR2025 will be treated as one single hard drive. When
the computer is turned on, the system will retrieve the following information.
1. Device Manager Utility of Window OS will automatically detect the hard drive(s).
2. You can choose to format the hard drive by using the Disk Management tool of the operating
system before using the IR2025.
At this point, the installation process is completely nished. The user can freely retrieve and save
data to iR2025 just like retrieving and saving data to a regular hard drive. If the user has any problem
during the operation, please refer to the Question & Answer (Q&A) section in Appendix.
2. RAID 0 mode
1). Place two new hard drives into IR2025.
We would strongly suggest you to use two identical hard drives to get the maximum memory
capacity. And if the capacities of your two hard drives are dierence, IR2025 only recognizes
the memory capacity at the small capacity hard drive.
2). Under RAID 0 mode, the total memory capacity of IR2025 would be double from the small capacity
hard drive. And also, RAID 0 mode will perform an excellent efficiency from its high data
transfer rate for user to read & write data.
iR2025 User Manual
6
7. Hard Disk Status on LCD Screen
2. Over Heat (≥50°C)
Pri HDD : OK
Sec HDD : OK T
3. Fan Failure
Pri HDD : OK F
Sec HDD : OK
4. RAID 1 Degraded：Primary hard drive is failure, but secondary hard drive is normal.
RAID-1 degraded
Pri : X Sec : O
5. RAID 1 Failure：Primary and secondary hard drives are failure.
RAID-1 failure
Pri : X Sec : X
6. RAID 1 Failure：Double Source
RAID-1 failure
Double Source
7. RAID 0 Failure：Primary hard drive is missing, but secondary hard drive is normal.
RAID-0 failure
Pri : M Sec :O
8. Rebuilding
Rebuilding
Sec →Pri 32%
1. Booting and Normal status.
RAIDON RAIDbox2
vxxxxxx.x
Pri HDD : OK
Sec HDD : OK
iR2025 User Manual
7
The Hot Swappable hard drive and Auto Rebuilding features are available.
O-line Back up：When the data is stored in IR2025, user can remove one of the hard drives as
back up drive for data such as system operation le, secured les, seldom modied les or image
and music les. The user can periodically insert the hard drive back into IR2025 to execute automatic
backup to protect the system from being hit by computer virus or to avoid the risk of having both hard
drives failing at the same time.
When one of the two hard drives fails in IR2025, it will issue an alert of a hard drive failure message
in both LCD display and the monitoring software. User can remove the failed hard drive from the
system while the system is still in operation without shutting down the machine. If the failed hard
drive is replaced shortly, the system will automatically execute the Auto Rebuilding function without
aecting the system operation and also any operation command from the user.
When the IR2025 detects one hard drive missing or failure, the Buzzer starts BEEPING and the LCD
displays the following messages：
After replacing a new hard disk with the failed one, LCD displays the following messages:
After few seconds from your inserting a new hard drive, LCD displays the data rebuilding progress：
When IR2025 completes its rebuilding, LCD again displays the following messages：
8. Data Rebuilding Operation
Pri HDD : OK
Sec HDD : OK
RAID-1 degraded
Pri : X Sec : O
Pri HDD : OK
Sec HDD : Insert
Rebuilding
Sec →Pri 32%
Pri HDD :Insert
Sec HDD : OK
Rebuilding
Pri →Sec 32%
iR2025 User Manual
8
You can install GUI software to monitor the status of IR2025. And this can be done by installing
software from CD.
1. System Status:
This GUI automatically detects your IR2025 and reveals relative information accordingly.
2. Firmware Upfrade:
You may update the Firmware via this GUI, to just simply click on the “Load” button to locate the
rmware le to proceed. After completing the update, you may restart the power to work with the
new rmware.
※ Caution: Any random rmware update may cause the malfunction at your IR2025, We strongly recommend you not to change/upgrade
IR2025 rmware if still works properly.
9. GUI Monitoring Software and Firmware Update
Otros manuales para InTANK IR2025
1
Tabla de contenidos
Otros manuales de Almacenamiento de Raidon
Raidon
Raidon intank ir2622 Manual de usuario
Raidon
Raidon InTANK iR2775-S3 Manual de usuario
Raidon
Raidon InTANK HyBrid RunneR iH1010-2S-S2 Manual de usuario
Raidon
Raidon iR8023 Manual de usuario
Raidon
Raidon SL3610-2S-LB2 Manual de usuario
Raidon
Raidon SafeTANK SL5640-LB2 Manual de usuario
Raidon
Raidon SafeTANK GR5640-SB31+ Manual de usuario
Raidon
Raidon InTANK iR2775-S3 Manual de usuario
Raidon
Raidon GT8670-TB3 Manual de usuario
Raidon
Raidon iR2620-2S-S2 Manual de usuario
Raidon
Raidon SafeTANK GR5640-SB3 Manual de usuario
Raidon
Raidon SR6600 Series Manual de usuario
Raidon
Raidon iR2774-S3 Manual de usuario
Raidon
Raidon InTANK IR8624-S3 Manual de usuario
Raidon
Raidon SafeTANK GT4670-TB3 Manual de usuario
Raidon
Raidon InTANK SR2611-2S-S2R+ Manual de usuario
Raidon
Raidon InTANK iR4300-S2 Manual de usuario
Raidon
Raidon SafeTANK GR3680 Series Manual de usuario
Raidon
Raidon iT4300 Series Manual de usuario
Raidon
Raidon InTANK iR2023 Manual de usuario
Manuales populares de Almacenamiento de otras marcas
Spectra Logic
Spectra Logic T-Series Spectra T50e Manual de usuario
Panasonic
Panasonic LKM-F931-1 Manual de usuario
Tabernus
Tabernus Enterprise Erase E2400 Manual de usuario
Rocstor
Rocstor COMMANDER 3F series Manual de usuario
HP
HP P9000 Manual de usuario
Western Digital
Western Digital Ultrastar Data60 Manual de usuario
