RADWAG HRP Manual de usuario
Quick Start
• HRP High Resolution Platforms
• 1-Load-Cell Platforms
• 4-Load-Cell Platforms
Weighing Platforms
IMMB-14-01-01-22-EN
To view the full user manual, go to the website or scan the QR code:
radwag.com/en/manuals/9584
HRP
1. CONTENT
Platform
×1
Platform
×1
Platform x1
Ramp ×1
Ramp Platforms
HRP High Resolution Platforms
4-Load-Cell Platforms
Platform
×1
F1 | C2-C3 | H1-H6 1-Load-Cell Platforms
D2 1-Load-Cell Platforms
Scale
×1
Weighing pan
×1
Grounding foot×1 Foot
×3
3. NOTES AND WARNINGS
2. UNPACKING
Operate the device in a room free from dust, where the temperature ranges:
-10–40 °C (14–104 °F). Potential temperature change shall occur gradually and
slowly.
Place the scale on a stable surface. For the most stable and repeatable results,
it is recommended to use an anti-vibration table.
-10 oC
+14oF
+104oF
+40 oC
Place the scale away from heat
sources. Avoid exposing the scale
to the sunlight.
Avoid exposing the scale to the influ-
ence of a magnetic field. Do not weigh
magnetic substances.
Not intended for use within EX zones.
Not intended for weighing explosive
or flammable substances.
21 3
HRP Platforms,
F1 | C2-C3 | H1-H6 1-Load-Cell Platforms
D2 1-Load-Cell Platforms
1 2 3
4. PRE-OPERATION ACTIVITIES
F1 | C2-C3 | H1-H6 1-Load-Cell Platforms
21 3
HRP High Resolution Platforms
21 3
4-Load-Cell Platforms
4.2. Grounding Check
Check if the grounding spring is
correctly positioned.
Make sure that the grounding
spring protrudes slightly from
the hole.
Models: HRP
4.1. Transport Lock Removal
5.1. Platform Assembly
5. PLATFORM COMPONENTS ASSEMBLY
1
Connect the platform to the terminal via a suitable cable. Insert weighing pan receivers into lever
seats. Install the receiver with the grounding
spring in the seat of your choice.
2
Models: HRP Platforms
Check if the grounding plate is
correctly positioned.
Make sure that the grounding
plate extends above the
platform.
Models: F1 | C2-C3 | H1-H6 1-Load-Cell Platforms
Check if the grounding spring is
correctly positioned.
Make sure that the grounding
spring protrudes slightly from
the hole.
Grounding
foot
Models: D2 1-Load-Cell Platforms
Check if the grounding plate is
screwed on securely.
Attach the grounded copper
wire to the plate.
Install the weighing pan.
3

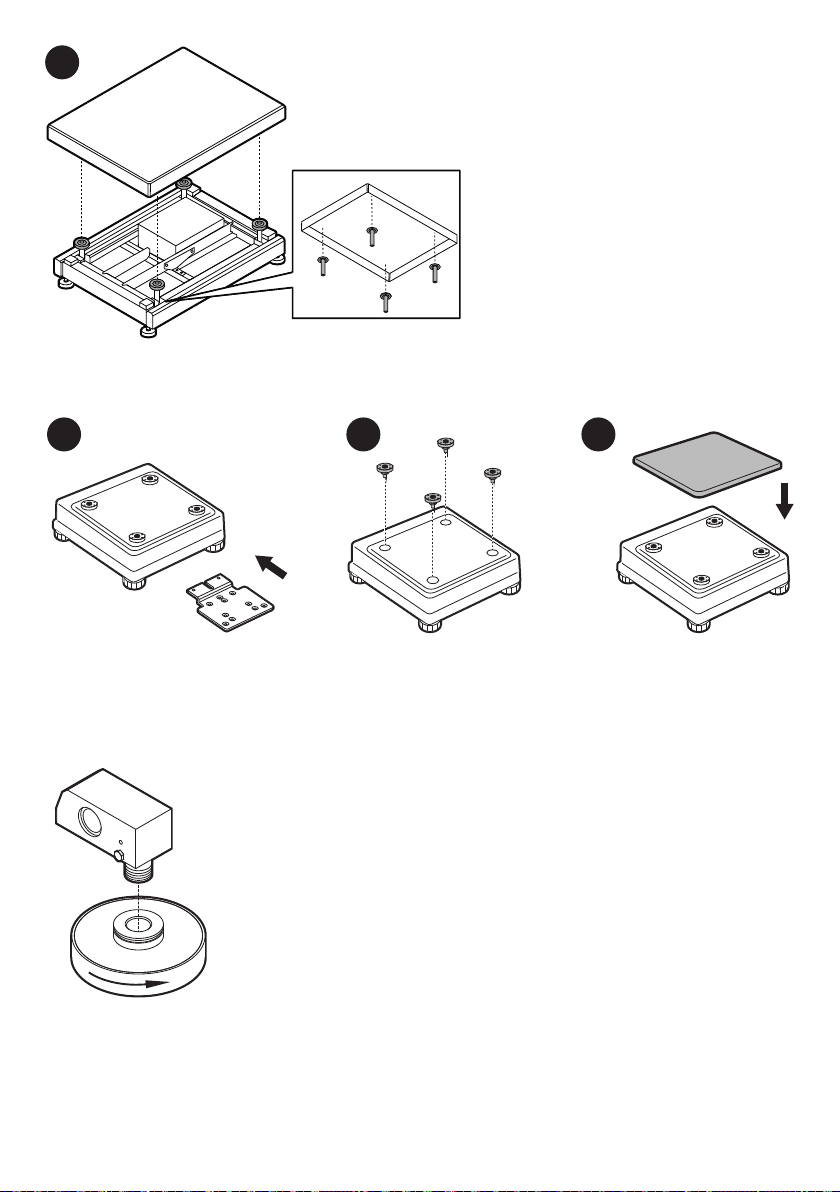

5.2. Feet Assembly (If Not Assembled)
Screw the base of the foot
onto the foot pin.
Models: D2 1-Load-Cell Platforms
Install the grounding foot
in the seat of your choice.
Install the bracket for the weighing
terminal.
Install the weighing pan.
21 3
Models: H1-H6 1-Load-Cell Platforms
Washer
Nut
5.3. Ramp Scales - Floor Fixing
Attach the steel clamping rings to the scale feet
and secure the whole thing with a steel locking ring.
Attach the feet to the scale.
Fix the steel clamping rings to the floor and install
the ramp.
5.4. Post Assembly (Scale Base)
Models: F1 | C2-C3 1-Load-Cell Platforms
2
1
Screw the support under the post.Screw the post to the scale base.
for C2 and C3
platforms
for F1 platforms
Screw the post to the scale base.
6. PLATFORM PREPARATION FOR WORK
6.1. Platform Temperature Stabilization
Prior to switching the platform on, let
it reach room temperature (estimated
stabilization time: 8 hours).
Connect the platform to the terminal
via a suitable cable or communication
interface.
1 2
6.2. LEVELLING
To level the scale, turn its feet; keep turning the feet
until an air bubble takes the central position.
HRP High Resolution Platforms
Place the device on the workstation and
leave it until it reaches ambient temperature.
To level the scale, turn its feet; keep turning the feet until an
air bubble takes the central position.
F1 | C2-C3 | H1-H6 1-Load-Cell Platforms
Your platform is ready for operation!
4-Load-Cell Platforms
Models: D2 1-Load-Cell Platforms
Have a spirit level ready to level the scale.
To level the scale, turn its feet;
keep turning the feet until an air
bubble takes the central position.
PIN
PIN
FOOT
BASE
Adjustment span of the scale level is
narrow, therefore the correct level is
obtained using steel washers which are
to be put under the feet.
Place the spirit level on the weighing
pan. To level the scale, turn its feet;
keep turning the feet until an air bub-
ble takes the central position.
