Queclink GV300TP 4G WW Manual de usuario

GV300TP User manual

TRACGV3SUM001 - 1 -

GV300TP 4G WW User Manual

EGPRS/LTE Cat-M1/LTE Cat-NB2/GNSS Tracker

QSZTGV300TPMGUM0100

Revision: 1.00

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 2 -

Document Title

GV300TP 4G WW User Manual

Version

1.00

Date

2021-12-24

Status

Released

Document Control ID

QSZTGV300TPMGUM0100

General Notes

Queclink offers this information as a service to its customers, to support application and

engineering efforts that use the products designed by Queclink. The information provided is

based upon requirements specifically provided to Queclink by the customers. Queclink has not

undertaken any independent search for additional relevant information, including any

information that may be in the customer’s possession. Furthermore, system validation of this

product designed by Queclink within a larger electronic system remains the responsibility of the

customer or the customer’s system integrator. All specifications supplied herein are subject to

change.

This document contains proprietary technical information which is the property of Queclink.

Copying of this document, distribution to others or using or communication of the contents

thereof is forbidden without express authority. Offenders are liable to the payment of damages.

All specifications supplied herein are subject to change without notice at any time.

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 3 -

Contents

0. Revision History.............................................................................................................................4

1. Introduction ..................................................................................................................................5

1.1 Reference..............................................................................................................................5

1.2 Terms and Abbreviations......................................................................................................5

2. Product Overview..........................................................................................................................8

2.1. Check Parts List....................................................................................................................8

2.2. Parts List ..............................................................................................................................9

2.3. Interface Definition .............................................................................................................9

3. Getting Started............................................................................................................................12

3.1. Open the Case ...................................................................................................................12

3.2. Installing a SIM Card..........................................................................................................12

3.3. Device Status LED ..............................................................................................................12

4. CE Declaration .............................................................................................................................13

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 4 -

0. Revision History

Revision

Date

Author

Description of change

1.00

2021-12-24

Eddy Qi

Initial

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 5 -

1. Introduction

The GV300TP 4G WW is a powerful GPS locator designed for vehicle or asset tracking. It has

superior receiver sensitivity, fast TTFF (Time to First Fix) and supports EGPRS/LTE Cat-M1/LTE

Cat-NB2/GPS tracker. Its location can be monitored in real time or periodically tracked by a

backend server or other specified terminals. It has Bluetooth. The GV300TP 4G WW has multiple

input/output interfaces that can be used for monitoring or controlling external devices. Based on

the integrated @Track protocol, the GV300TP 4G WW can communicate with a backend server

through the network to transfer reports of emergency, geo-fence boundary crossings, low

backup battery and scheduled GPS position as well as many other useful functions. Users can

also use GV300 TP 4G WW to monitor the status of a vehicle and control the vehicle by its

external relay output. System integrators can easily set up their tracking systems based on the

full-featured @Track protocol.

1.1 Reference

Table 1.GV300TP 4G WW Protocol Reference

Document name

Remark

[1]

GV300TPMG @Track Air Interface Protocol

The air protocol interface between

GV300TP 4G WW and backend

server.

1.2 Terms and Abbreviations

Table 2.Terms and Abbreviations

Abbreviation

Description

AIN

Analog Input

DIN

Digital Input

GND

Ground

RXD

Receive Data

TXD

Transmit Data

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 8 -

2. Product Overview

2.1. Check Parts List

Before starting, check whether the product is intact. If anything is missing, please contact your

supplier.

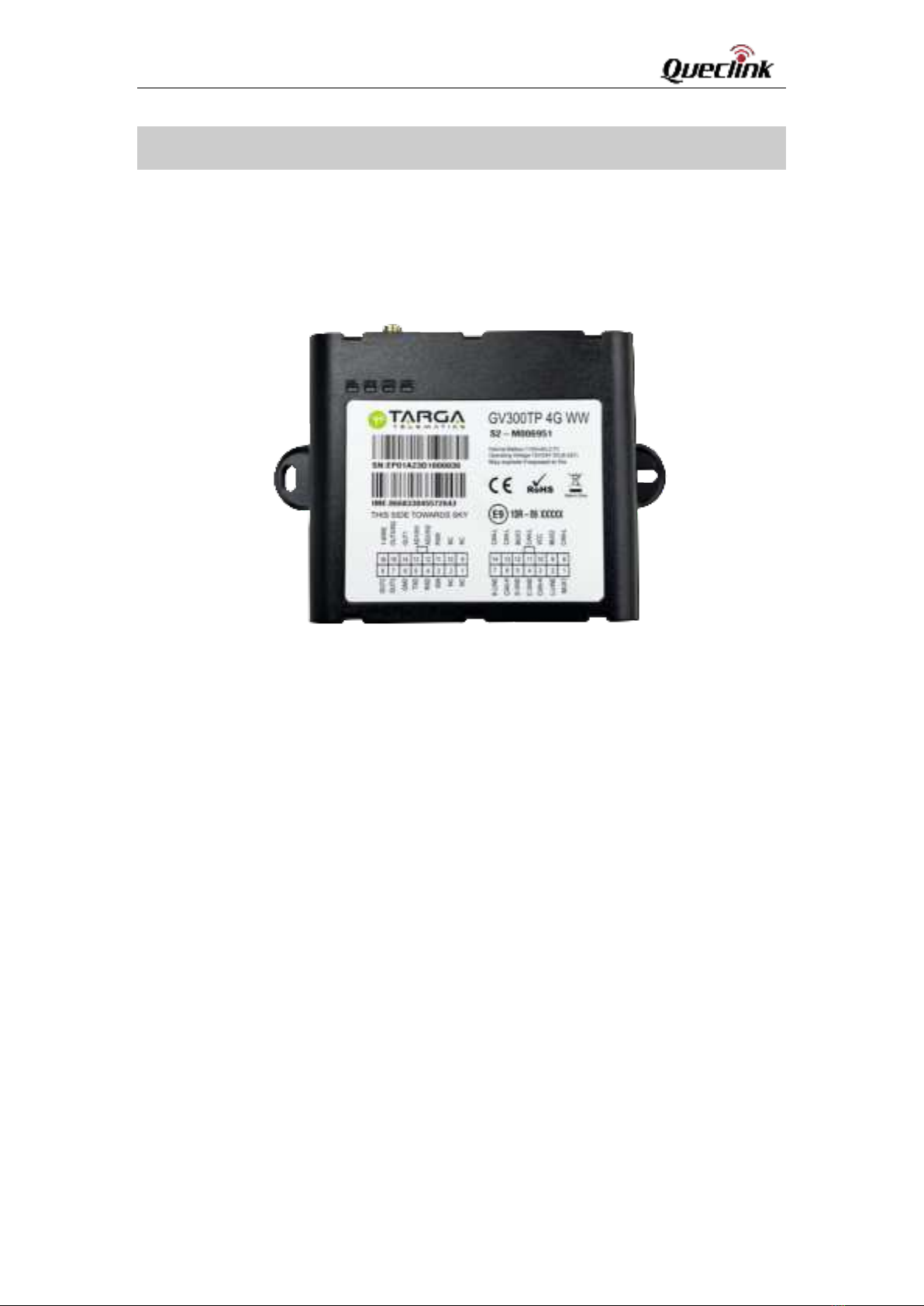

Figure 1. Appearance of GV300TP 4G WW

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 9 -

2.2. Parts List

Table 3.Parts List

Name


GV300TP 4G WW Locator

122*85.2*24.2 mm

Tracker Cable

OBD Cable

GPS Antenna (Optional)

Debug Cable (Optional)

2.3. Interface Definition

16-pin interface

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 10 -

14-pin interface

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 11 -

GV300TP 4G WW User Manual

QSZTGV300TPMGUM0100 - 12 -

3. Getting Started

3.1. Open the Case

Figure 2.Open the Case

Loosen the screws at the back of the device.

3.2. Installing a SIM Card

Open the case and ensure the unit is not powered (unplug the cable and unplug the internal

battery). Slide the holder to open the SIM card holder. Insert the SIM card into the slot. Take care

to align the cut mark. Close the SIM card holder. Close the case.

3.3. Device Status LED
