Quantum PX500 Series

Firmware Upgrade Instructions

for Stacked Libraries

Introduction 3

Uploading Library Firmware 3

Changing the Library Stack Role ................................................................3

Uploading Library Firmware ......................................................................4

Returning the Library Stack Role................................................................7

Quantum PX500 Series Firmware Upgrade Instructions for Stacked Libraries

Document 81-81802-01 A01

April 2007

Made in the USA.

Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not

limited to the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication

from time to time without notice.

Your right to copy this document is limited by copyright law. Making copies or adaptations without prior written authorization of

Quantum Corporation is prohibited by law and constitutes a punishable violation of the law.

TRADEMARK STATEMENT

Capacity on Demand (CoD), Crosslink Mechanism, DLT, DLTSage, DLTtape, Super DLTtape, Performance on Demand, (PoD), PRISM,

PRISM Storage Architecture logo, SiteCare, StackLink, StorageCare, SuperLoader, and ValueLoader are all trademarks of Quantum

Corporation. Quantum, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation.

Other trademarks may be mentioned herein which belong to other companies.

Quantum PX500 Series Firmware Upgrade Instructions for Stacked Libraries

Document 81-81802-01A01

April 2007

Introduction 3

Introduction 0

If PX500 Series (PX502, PX506, and PX510) libraries are in a multiple library

stack, the library firmware must be uploaded individually to each cabinet. If

you attempt to upload library firmware to only the Master library in the

stack, the slave libraries may not receive the firmware update properly.

Uploading Library Firmware 0

Uploading library firmware to a multiple library stack consists of the

following steps:

•Changing the Library Stack Role

•Uploading Library Firmware

•Returning the Library Stack Role

Changing the Library

Stack Role 0

The library must be in Stand alone mode prior to receiving the library

firmware update.

To change the library stack role:

1From the Operator Control Panel (OCP), press Setup from the Home

screen.

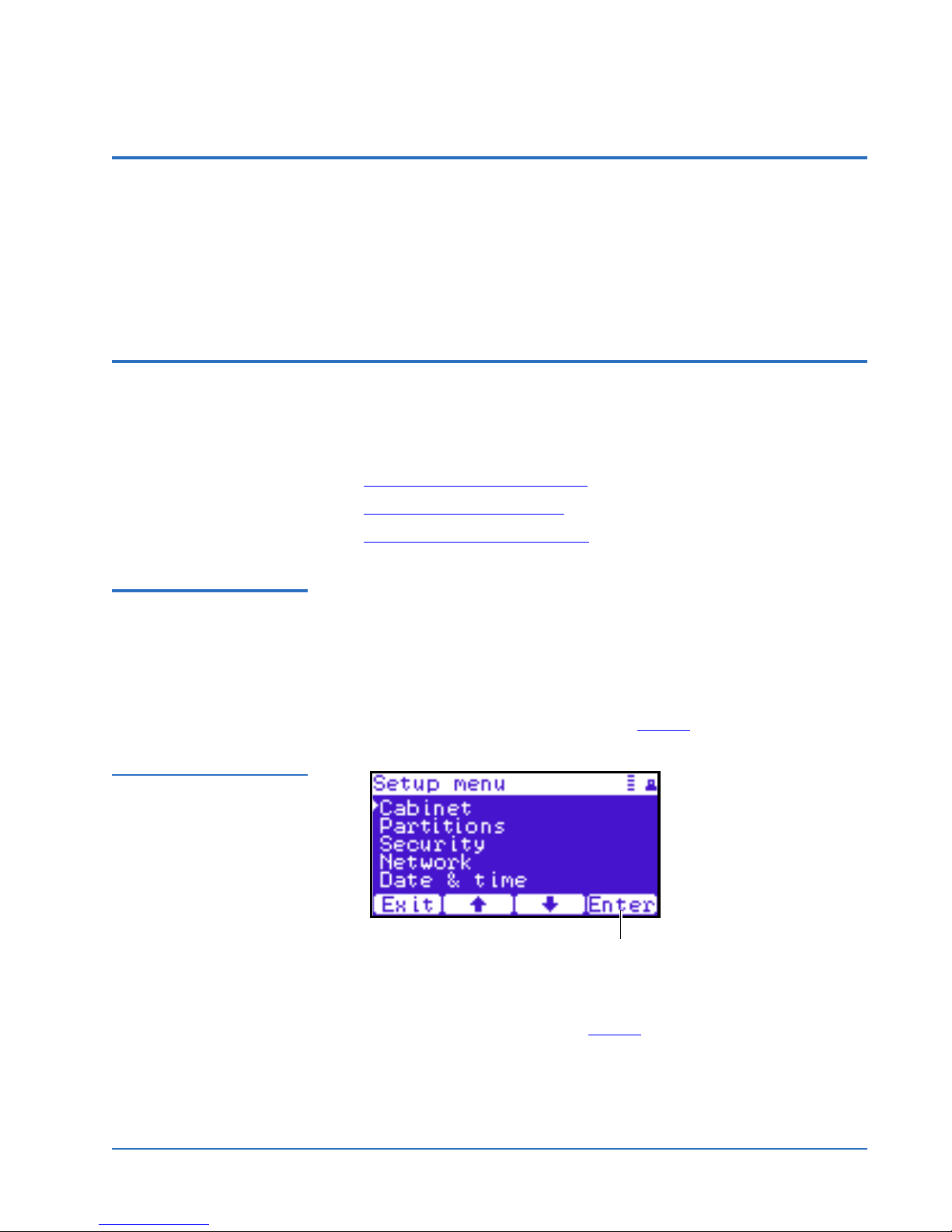

The OCP displays the Setup screen (see figure 1):

Figure 1 Setup Screen

2From the Setup screen, use the up and down arrows to select Cabinet and

press Enter.

The Cabinet screen displays (see figure 2):

Enter

Quantum PX500 Series Firmware Upgrade Instructions for Stacked Libraries

Document 81-81802-01A01

April 2007

4 Uploading Library Firmware

Figure 2 Cabinet Screen

3Use the up and down arrows to select Stack role and press Enter.

The Stack role screen displays.

4Use the up and down arrows to select Stand alone and press Enter.

The system prompts you with a confirmation screen asking Change to

Standalone and reboot this system?

5Press Yes.

The library shuts down. Continue with Uploading Library Firmware.

Uploading Library

Firmware 0

After the library stack role is set to Stand alone, you can upload library

firmware to the cabinet.

To upload library firmware:

1Connect an Ethernet cable to the left-hand Ethernet port on the library

SCB and to a network host on the same subnet as the library (see figure 3).

Figure 3 Connecting to the

Library SCB

Note: Make note of the original stack role. You must return the

library to its original stack role after the library firmware has

been updated.

Note: If this was the Master library, there will already be an Ethernet

cable connected to the library SCB.

Ethernet port

Quantum PX500 Series Firmware Upgrade Instructions for Stacked Libraries

Document 81-81802-01A01

April 2007

Uploading Library Firmware 5

2Use the OCP to determine the IP address for the library. The Network

information is available from the Info menu.

3On the host computer, open the internet browser software.

4In the Address field, type http://IPaddress/ where IP address is the IP

address for the library.

5Enter the username and password and click OK.

The Overview page displays (see figure 4).

Figure 4 Overview Page

6Click the Utilities tab at the top of the page.

The Utilities page displays (see figure 5):

Note: The default username and password is admin.

Quantum PX500 Series Firmware Upgrade Instructions for Stacked Libraries

Document 81-81802-01A01

April 2007

6 Uploading Library Firmware

Figure 5 Utilities Page

7Click the Maintenance tab at the top of the page.

The Maintenance page displays (see figure 6).

Figure 6 Maintenance Page

Quantum PX500 Series Firmware Upgrade Instructions for Stacked Libraries

Document 81-81802-01A01

April 2007

Uploading Library Firmware 7

8To upload the library firmware, enter a path and filename where the file

exists, or click Browse.

9Click Apply to upload the file.

The firmware image uploads to the library.

10 Reboot the library from the Utilities page (see figure 5).

The library reboots. Repeat the firmware upgrade procedure for every

library in the stack. When all libraries have been updated, continue with

Returning the Library Stack Role.

Returning the Library

Stack Role 0

After the library firmware has been updated on all of the libraries and the

libraries have rebooted, you must return each library to its original library

stack role.

To return the library stack role:

1From the OCP, press Setup from the Home screen.

The OCP displays the Setup screen (see figure 1):

Figure 7 Setup Screen

2From the Setup screen, use the up and down arrows to select Cabinet and

press Enter.

The Cabinet screen displays (see figure 2):

Figure 8 Cabinet Screen

Note: Be sure to use the same library firmware for all libraries in the

stack.

Enter

Quantum PX500 Series Firmware Upgrade Instructions for Stacked Libraries

Document 81-81802-01A01

April 2007

8 Uploading Library Firmware

3Use the up and down arrows to select Stack role and press Enter.

The Stack role screen displays.

4Use the up and down arrows to select the appropriate stack role (Master/

Slave) for this library and press Enter.

The system prompts you with one of the following confirmation screens

asking:

•Change to Master and reboot this system?

•Change to Slave and reboot this system?

5Press Yes.

The library shuts down.

When all the libraries in the stack have been returned to their original stack

role, power on all of the libraries and return to normal operation.

Note: If stack role is changed to Master, there will be an additional

Attention screen that suggests the users to remove the old

master if the current stand alone cabinet is added to an

existing stack. Press Ok after confirmation.

Note: If the stack role is changed to Slave, the Ethernet cable can be

disconnected from cabinet's system controller board.
