Quantum Scalar i40 Instrucciones de funcionamiento y seguridad

6-66553-03 Rev B, February 2014 *6-66553-03*

Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates

in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum

specifications are subject to change.

Scalar i40 and Scalar i80:

Bezel Replacement

The bezel replacement procedure is similar for the Scalar®i40 and the Scalar i80

library. Pictures of the Scalar i40 also apply to the Scalar i80.

Read these instructions completely before beginning.

To replace the bezel, refer to the following sections:

•Bezel Replacement Kit Contents on page 1

•Creating a Backup Map of Cartridge Locations on page 2

•Removing the Bezel on page 2

•Replacing the Bezel on page 6

Bezel Replacement Kit Contents

The bezel replacement kit contains the following items:

•1Bezel

•4screws

Required Tools:

• Phillips #1 screwdriver

Quantum Scalar i40 and Scalar i80: Bezel Replacement

6-66553-03 Rev B

February 2014

2Creating a Backup Map of Cartridge Locations

Creating a Backup Map of Cartridge Locations

Because you need to completely remove the magazines from the library, you

should create a backup “map” so you have the slot position of each cartridge.

The Library Configuration report, which shows the barcodes for each slot,

provides a convenient backup “map” if the cartridges get mixed-up or dropped.

1From the Web client, select Reports > Library Configuration.

2Click the Show Barcodes button.

The screen displays a map of the library showing the location of each

cartridge, by barcode.

3Click the “print” icon in the upper right corner to print the report.

Alternatively, take a screen capture of the report and save or print it, or copy

the map by hand.

Removing the Bezel

These instructions explain how to remove the bezel from the Scalar i40 and

Scalar i80 libraries:

1Stop all library operations.

aPrepare host applications by following the vendor instructions for

stopping all commands to the library.

bBe sure all library operations have stopped.

2Remove all magazines completely from the library; complete the following

steps for each magazine:

Note: When removing magazines from a library, label them so that you

can reinstall them in the same locations.

aOn the Operator panel, select Actions > Magazine.

bSelect a magazine and press Release.

cWhen prompted, remove the magazine completely.

Note: There is less chance of scratching or damaging the new bezel when

you install it if you completely remove the magazines. On the Scalar

i80, it is easier to perform this procedure with at least the bottom

two magazines completely removed. You need room to maneuver

your fingers on the sides of the bezel.

Quantum Scalar i40 and Scalar i80: Bezel Replacement

6-66553-03 Rev B

February 2014

Removing the Bezel 3

3Shut down the library.

aFrom the Operator panel, select Actions > Shutdown

bSelect Shutdown Library, and Yes to confirm.

cWhen prompted on the screen, press the power button on the front

panel to OFF. Wait for the Operator screen to turn off and the System

Control Board (SCB) LED to go off.

4Prepare to gain access to the four (4) bezel screws (see Figure 1 on page 4

and Figure 2 on page 5 for locations).

The method depends upon how your library is installed. Follow the

instructions in the table below that correspond to your library installation.

Caution: Only slide the library out far enough to access the two screws

on the bottom of the library. The library is not secured in the

rack or on the desk. Pulling it out too far could cause the library

to slide out of the rack or off the desk.

Caution: Ensure that there is enough slack in the power cords and cables

connected in the rear of the library so that you do not dislodge

them when you slide the library forward.

If your library is... Follow these steps...

Installed in a rack high

enough to access to the

bottom bezel screws

Unscrew all the thumbscrews that secure the

library to the rack (the Scalar i40 has two

thumbscrews; the Scalar i80 has four). See

Figure 2 on page 5.

Installed in a desktop kit Release the desktop cover by removing two

screws at the rear of the desktop cover, then

slide the desktop cover toward the back of the

library two or three inches.

Installed very low in a rack

so that you cannot access

the bottom bezel screws

unless you remove the

library from the rack

Remove the library from the rack as follows:

Warning: Two people are required to safely

remove the library from the rack.

1Unplug the power cords, Ethernet cable, and

tape drive cables from the back of the library.

If there are multiple tape drives, label all the

cables so you can reconnect them properly

later.

2Remove the magazines and tape drives. Label

them before removing, so you know where to

reinstall them later.

3Unscrew the captive thumbscrews in the rack

ears that secure the library to the rack.

4Using two people, slide the library all the way

out of the rack and place it on a level table or

desk about waist high.

Quantum Scalar i40 and Scalar i80: Bezel Replacement

6-66553-03 Rev B

February 2014

4Removing the Bezel

5Slide the library one to two inches forward out of the rack, or over the edge

of the table or desk, to access the two bottom bezel screws.

Caution: Do not tip the library or tilt it on its side.

6Remove and set aside the two screws securing the bezel to the bottom of

the chassis (see Figure 1).

7Remove and set aside the two screws securing the bezel to the top of the

chassis (see Figure 2 on page 5).

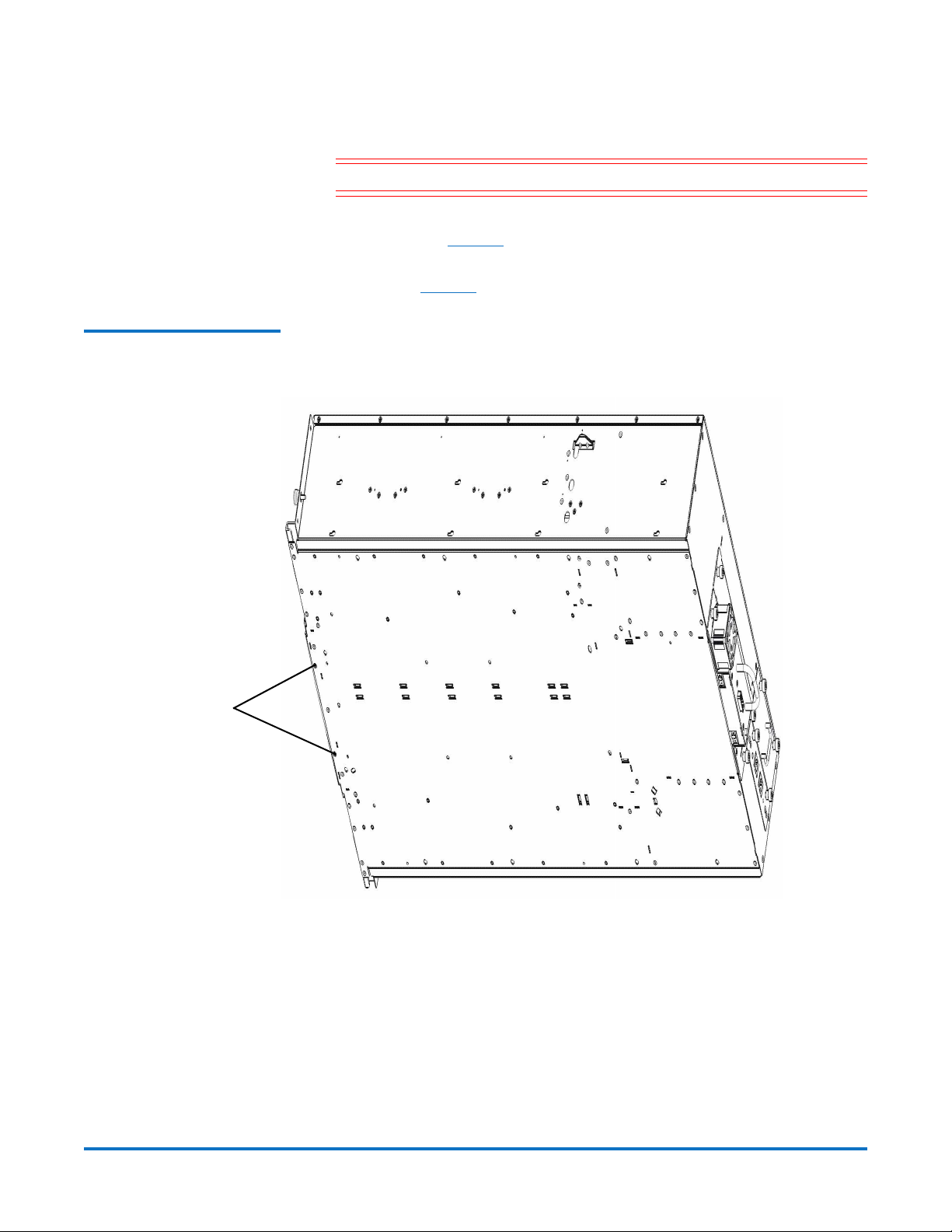

Figure 1 Bezel Screw Locations

on Bottom of Library

Bottom

bezel

screws

Quantum Scalar i40 and Scalar i80: Bezel Replacement

6-66553-03 Rev B

February 2014

Removing the Bezel 5

Figure 2 Bezel Screws and

Thumbscrew Location

8Remove the bezel as follows:

•Scalar i40: Grasp the bezel gently at the top and bottom and pull the

bezel straight out and off of the library. Do not tip or twist the bezel as

you pull it off.

•Scalar i80: Use your fingers to grasp the bezel near the center on both

sides, and pull outward to disengage the bezel (see Figure 3 on page 6

for location). There are plastic tabs on the inside of the bezel that help

secure the bezel to the library; pulling outward from this location helps

disengage them. You may need to move the bezel slightly back and

forth to remove it.

Thumbscrew

securing library

to rack

Screws

Quantum Scalar i40 and Scalar i80: Bezel Replacement

6-66553-03 Rev B

February 2014

6Replacing the Bezel

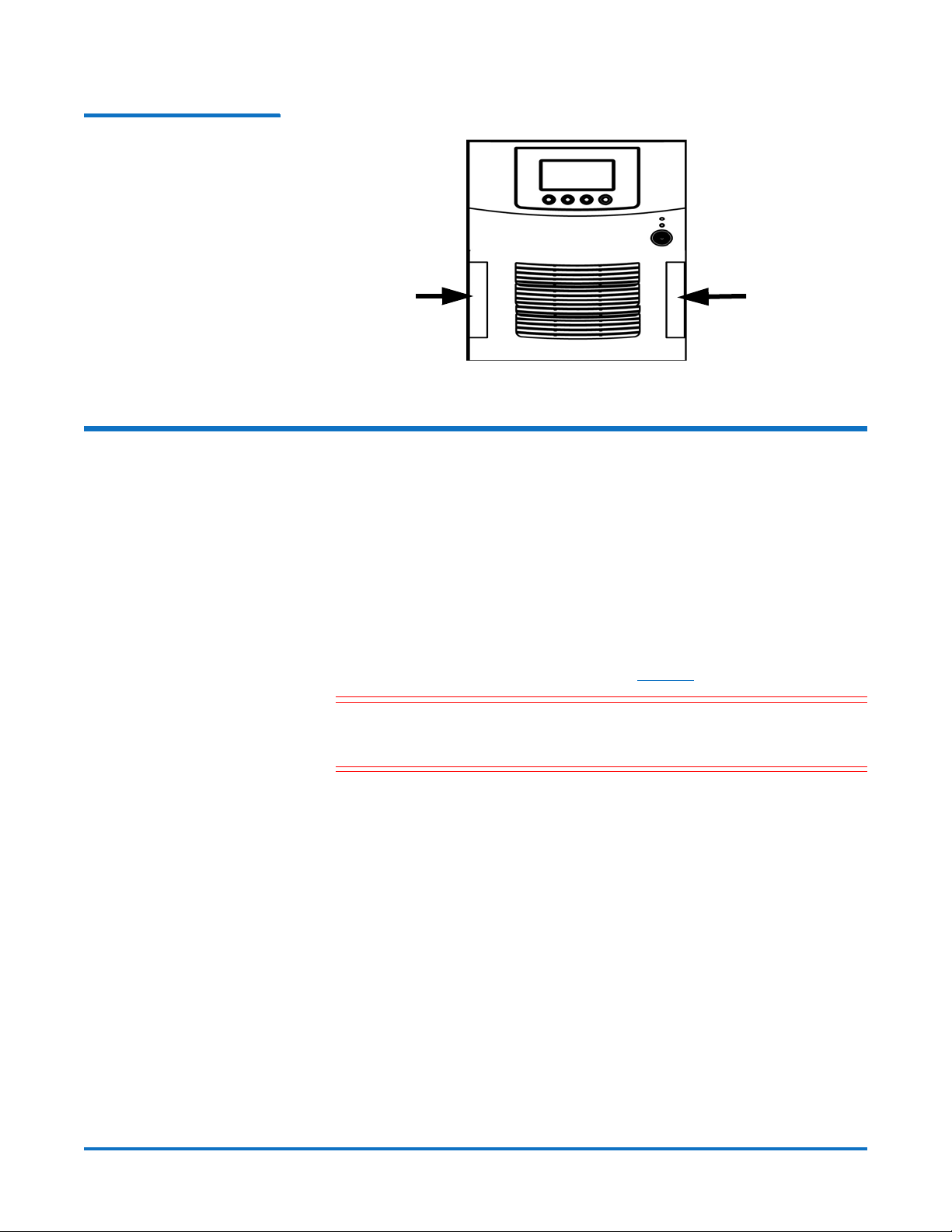

Figure 3 Scalar i80 Pull/Push

Locations

Replacing the Bezel

These instructions explain how to replace the bezel on the library:

1Install the new bezel straight onto the library:

Do not tip or twist the bezel. Be careful not to scratch or damage the bezel

as you install it.

aSlide the top and bottom edges of the bezel to the inside of the top and

bottom layers of the chassis sheet metal.

bOn the Scalar i80, press in near the center on both sides of the bezel

until you hear it “snap” into place (see Figure 3 for locations).

Caution: Make sure the power button and all four Operator panel

control buttons appear through the holes in the bezel and are

not trapped beneath the bezel.

2Install the two top screws, then the two bottom screws.

3Reinstall the library in the rack or desktop kit.

4Reinstall all drives that were removed from the library.

5Insert all magazines back into their original positions in the library.

6Turn the library ON by pressing the power button on the front panel and

wait until the library initializes before resuming library operations.

7If you removed the library from the rack to perform this procedure, run the

Installation and Verification Test (IVT) to ensure that the robot (Y-tray), tape

drives, and magazines are all functioning properly:

aFrom the Operator panel, select Tools > IVT.

bFollow the instructions on the screen.

The IVT takes about 30 minutes to complete.

Pull in this area

when removing

bezel. Push in

this area when

installing bezel.

Pull in this area

when removing

bezel. Push in

this area when

installing bezel.
