USER MANUAL

QSDL503AD

Intelligent Auto-Dial Alarm System

Rev 10.28.2009

QSDL503AD USER MANUAL

TABLE OF CONTENTS

Section 1:USAGE................................................................................................................................1

Section 2:FEATURES .........................................................................................................................1

Section 3:PACKAGE CONTENTS......................................................................................................1

Section 4:SYSTEM INSTALLATION...................................................................................................2

4.1: Main Control Panel ...........................................................................................................2

4.2: Wireless Indoor Lighted Siren.........................................................................................2

4.3: Magnetic Window/Door Sensor Alarms..........................................................................3

4.4: Infrared Sensor (with Mounting Bracket)........................................................................3

4.5: Magnetic Code Controller................................................................................................4

Section 5:SETTING UP THE MAIN CONTROL PANEL .....................................................................5

Section 6:SETTING UP THE MAGNETIC CODE CONTROLLER......................................................6

Section 7:TURNING YOUR SYSTEM ON...........................................................................................7

Section 8:SETTING UP THE ADDITIONAL ACCESSORIES.............................................................8

Section 9:TECHNICAL DATA.............................................................................................................9

Section 10: LOCATION SUGGESTIONS.......................................................................................10

Section 11: DIAGRAM....................................................................................................................11

Q-SEE PRODUCT WARRANTY........................................................................................................12

CUSTOMER INFORMATION CARD..................................................................................................13

QSDL503AD USER MANUAL

1 | Page

Section 1: USAGE

Ideal for use in a home, business or warehouse environment and virtually anywhere an

increased amount of anti-theft assurance is needed. This Auto-Dialing Wireless Alarm System

deters unwanted intruders from entering by emitting a high pitched alarm signal if the

parameters of the secured area have been breached. Once the alarm is triggered, the system

then automatically dials the telephone numbers you store in its memory with a pre-recorded

message notifying you of the intrusion.

Section 2: FEATURES

•Wireless 433MHz Auto-Dial Alarm System

•Program up to Six Telephone Numbers to Automatically Dial Out with Pre-Recorded Voice

Message in Case of Emergency

•Panic Mode

•Code Enabled Arm and Disarm

•Remote Access Arm and Disarm

•Voice Recording Function

•Battery Operated Setting Storage and Dial Out Capability During Power Loss

•Ability to Add up to 38 Accessories

•Easy Do-It-Yourself Installation

•Easy to Program and Use

Section 3: PACKAGE CONTENTS

•One Main Control Panel

•One Wireless Indoor Lighted Siren

•Four Magnetic Window/Door Sensor Alarms (Batteries Included)

•Two Infrared Sensors (With Brackets)

•One Magnetic Code Controller

•One Standard Telephone Wire

•One Adapter (9V 300mA)

•Two Lithium Batteries (3.7V, 850mA)

QSDL503AD USER MANUAL

2 | Page

(Picture 2)

Section 4: SYSTEM INSTALLATION

4.1: Main Control Panel

1. Connect one end of the enclosed standard telephone wire to the wire inlet on the Main

Control Panel (See Picture 1) and the other end to the telephone.

2. Plug the jack of enclosed adapter into the DC plug of the Main Control Panel (See

Picture 1) and connect the AC plug into a wall plug or surge protector.

3. Load 4 “AAA” batteries into the back of the Main Control Panel to use as a backup

energy source in the event of a power failure.

4. It is recommended to install the Main Control Panel in a discreet location and out of

clear view of a potential intruder.

5. As depicted in Picture 1, the ON/OFF switch on the left side of the Main Control Panel

allows you to turn the power to your system on or off. When you turn the system on, the

indicator light on the front of the Main Control Panel will emit a red light and you will hear

a single beep indicating that the power is on.

4.2: Wireless Indoor Lighted Siren

1. Remove the battery compartment cover on the back of the Wireless Indoor

Lighted Siren and insert the enclosed L+ Battery. Replace the battery

compartment cover and mount the Wireless Indoor Lighted Siren in a location

that is elevated and in plain sight.

2. The LED light on the front of the Wireless Indoor Lighted Siren (See Picture 2)

will notify you that the device is powered on by flashing in 5 second intervals.

(Side View 1)

(Picture 1)

(Front View) (Side View 2)

DC Plug

Phone

Input

ON/OFF

Antenna

Input

QSDL503AD USER MANUAL

3 | P a g e

(Picture 4)

(Picture 3)

4.3: Magnetic Window/Door Sensor Alarms

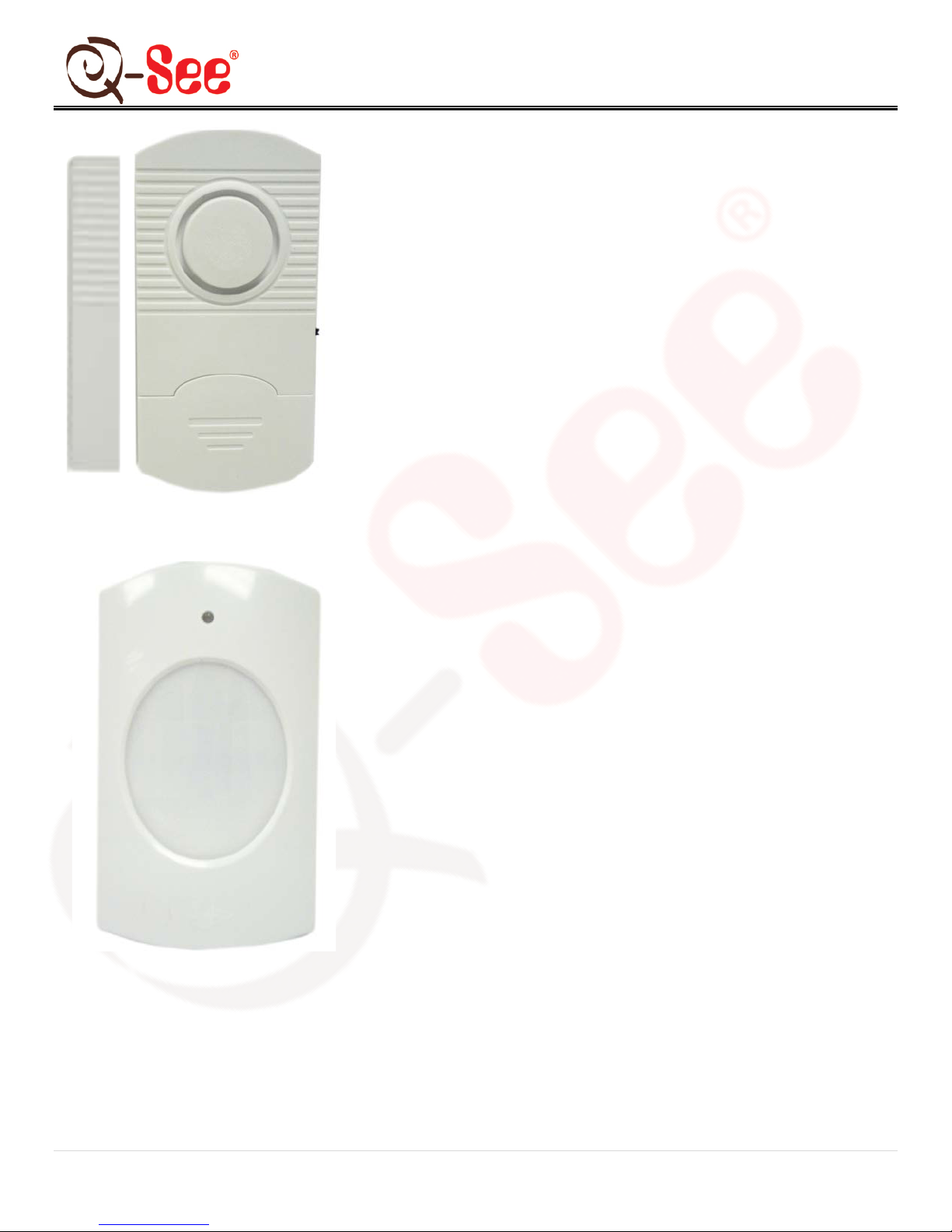

1. Position the Magnetic Window/Door Sensor Alarm (Picture 3)

along the conjoining edges of any window or door you wish to

protect using heavy duty double-sided adhesive tape. It is

recommended to use your Magnetic Window/Door Sensor

Alarms on entries and windows that are most susceptible to

break-ins and vulnerable to intruders.

2. To ensure maximum performance of your Magnetic Window/Door

Sensor Alarms, position the edge of the alarm transmitter no

more than 10mm away from the edge of the magnet.

4.4: Infrared Sensor (with Mounting Bracket)

1. Remove the battery compartment cover on the back of the

Infrared Sensor, insert 4 “AA” alkaline batteries and replace the

battery compartment cover.

2. Hang the Mounting Bracket (using the included hardware) at

approximately 3-5 feet high in an area that is free from

obstruction.

3. Attach the Infrared Sensor (Picture 4) to the Mounting Bracket

after you have decided on your desired location and adjust the

directional angle to a degree that maximizes the scope of the

Infrared Sensor. It is suggested that you keep the area around

your Infrared Sensor clear of obstacles and avoid placing it in

direct sunlight.

QSDL503AD USER MANUAL

4 | Page

(Picture 6)

(Picture 5)

4.5: Magnetic Code Controller

1. Remove the battery compartment cover on the front of the Magnetic Code Controller (Picture 5), insert

3 “AA” alkaline batteries and replace the battery compartment cover.

2. Decide on the location you would like to attach your Magnetic Code Controller. It is recommended to

use a door that is central to your home and in an area that is easy for you to access.

3. Attach the Magnetic Code Controller to the door molding using heavy duty double-sided adhesive tape

or mount it down using a small size screw.

4. Peel the protective film off the double sided tape on the back of the Magnetic Sensor (Picture 5) and

affix it to the edge of the door. Make sure to align the Magnetic Code Controller and Magnetic Sensor

so that they are no more than 10mm (1/3”) apart as illustrated in Picture 6.

Distance

Cannot be

Greater

than 10mm

(1/3”)

QSDL503AD USER MANUAL

5 | Page

Section 5: SETTING UP THE MAIN CONTROL PANEL

After loading the batteries in the Wireless Indoor Lighted Siren, Infrared Sensors and Magnetic

Window/Door Sensors, you are now ready to configure the Main Control Panel. Turning the Main

Control Panel ON will generate the message NO-SAVE in the Display Panel. This means that your

system has no information stored and must be configured in order to operate. To set your system up

correctly, you will need to do the following:

1. Record an Outgoing Message into your System: Your alarm system will call you in the event of a

security breach with a pre-recorded outgoing message. Press the REC button on the front of your

Main Control Unit (See Picture 7) in order to begin recording your outgoing message. Once you press

the REC button, the system will respond by displaying a message that says REC in the Display

Screen (Picture 7). Once this message is displayed, you can begin recording a 10 second message.

You will hear an audible beep when you have reached the allotted 10 seconds. You have now set up

the outgoing message that will be played when your system auto dials the telephone numbers you

need to configure in step 2.

2. Program up to 6 Telephone Numbers into your System: Your alarm system will call you in the

event of a security breach with a pre-recorded outgoing message. To program the telephone numbers

your system will automatically dial, press the following keys on the front your Main Control Unit

(Picture 7): +1 +10 Digit Telephone Number +#

Use the same sequence of keys above to program up to 6 telephone numbers. For each number you

successfully store, your system will respond by displaying a Serial Number in the Display Screen that

corresponds to the order of entry (the first number you store will generate the Serial Number 1, the

second will display the Serial Number 2, the third will display the Serial Number 3, and so on). The

order in which your system dials out in the event of a security breach correlates to the Serial Number.

To erase the telephone numbers saved into your system, press the + #keys on the front of your

Main Control Unit (Picture 7). You will hear an audible beep informing you that you have successfully

erased the numbers stored in your system.

(Picture 7)

Display Screen

Microphone

Indicator Light

Record

Code

Lock Keypad

Panic (Alarm)

QSDL503AD USER MANUAL

6 | Page

(Picture 8)

Section 6: SETTING UP THE MAGNETIC CODE CONTROLLER

Pressing the ARM button once on the Magnetic Code Controller will activate it after 30 seconds. After 30

seconds, the Controller is actively on and protecting the doorway that you chose to mount it on. You must

deactivate the Magnetic Code Controller in order to gain access to the doorway by entering in a 4-digit

Access Code.

The default Access Code on your Magnetic Code Controller is 0123. To change this number, hold down

the ARM button continuously for 3 seconds until you hear a beep. Press the 4 digit code of your choice

followed by the ARM button. You have now reset your Magnetic Code Controller Access Code. You

must use this Access Code to deactivate your Magnetic Code Controller and to turn off the alarm in the

event that the door the Controller is protecting has been opened improperly.

Arm Button – Press to set

Your Magnetic Code

Controller in Arm Mode

Alarm Button – Press to

Instantly Activate the

Alarm in the event of an

emergency

QSDL503AD USER MANUAL

7 | Page

Section 7: TURNING YOUR SYSTEM ON

1. Once you have configured your Main Control Unit and your Magnetic Code Controller, you can

now use your alarm system. With the power to your Main Control Unit on, press the ARM button

on the Magnetic Code Controller (Picture 8). You will hear the Main Control Unit and the Wireless

Indoor Lighted Siren respond by beeping to let you know that they are on and armed. You will

also see the message “SAVE” displayed on the display screen of your Main Control Unit.

2. Your system is now on and after 30 seconds, you can no longer enter through any protected

windows or entry ways without triggering the system’s alarm. Entry through any of the doorways

or windows being protected will constitute a breach of security and your system will immediately

respond by emitting a high pitched alarm from the Wireless Indoor Lighted Siren and automatically

dialing out to the stored telephone numbers.

3. Pressing the “ALARM” button on your Main Control Unit should be used in the event of an

emergency as it also constitutes a breach of security and will trigger all the alarms on your system

instantaneously. The Wireless Indoor Siren will respond with a high pitched alarm and your Main

Control Unit will automatically dial out to all stored numbers in the event the “ALARM” button is

pushed.

4. Entering your 4 digit Access Code in the Magnetic Code Controller will disarm the system and

allow you to enter without triggering the system.

5. It is time to replace the batteries in your Wireless Indoor Siren when the LED light on the front flashes

in 5 second intervals. Your Infrared Sensor will notify you that it is time to change the batteries when

the LED light on the front is yellow.

QSDL503AD USER MANUAL

8 | Page

Section 8: SETTING UP THE ADDITIONAL ACCESSORIES

To enable communication between the Main Control Unit and the various accessories, you must follow

these steps:

1. To Connect the Main Control Unit to the Wireless Indoor Lighted Siren: Press the

CODE button on the front of the Main Control Unit and the CODE button on the back of the

Wireless Indoor Lighted Siren simultaneously. You will hear a beep from both the Main

Control Unit and the Wireless Indoor Lighted Siren indicating that you have successfully

enabled these two devices to communicate after approximately 30 seconds.

2. To Connect the Magnetic Window/Door Sensor Alarm: Turn the switch on the side of

the Magnetic Window/Door Sensor Alarm to the “RF+Alarm” position. This will enable

communication between the Magnetic Window/Door Sensor Alarm and the Wireless Indoor

Siren which is connected to your Main Control Unit. You will hear a beep from both the Main

Control Unit and the Wireless Indoor Lighted Siren indicating that you have successfully

enabled communication between these devices after approximately 30 seconds

3. To Connect the Infrared Sensor to the Main Control Unit: Point the Infrared Sensor to a

moving object until the LED blinks. This will enable communication between the Magnetic

Window/Door Sensor Alarm and the Wireless Indoor Siren which is connected to your Main

Control Unit. You will hear a beep from both the Main Control Unit and the Wireless Indoor

Lighted Siren indicating that you have successfully enabled communication between these

devices after approximately 30 seconds.

4. To Connect the Magnetic Code Controller to the Main Control Unit: Press the ALARM

button on the Magnetic Code Controller. This will enable communication between the

Magnetic Window/Door Sensor Alarm and the Wireless Indoor Siren which is connected to

your Main Control Unit. You will hear a beep from both the Main Control Unit and the

Wireless Indoor Lighted Siren indicating that you have successfully enabled communication

between these devices after approximately 30 seconds.

Tabla de contenidos

Otros manuales de Sistema de seguridad de Q-See

Q-See

Q-See QC308 Manual de usuario

Q-See

Q-See WR414-411 Manual de usuario

Q-See

Q-See QR4074-418 Manual de usuario

Q-See

Q-See QT5132 Manual de usuario

Q-See

Q-See QD113P Manual de usuario

Q-See

Q-See QSW18C Manual de usuario

Q-See

Q-See QR4074-411 Manual de usuario

Q-See

Q-See QC40198 Manual de usuario

Q-See

Q-See QT4760-16A6-5 Manual de usuario

Q-See

Q-See QT17D324SC Manual de usuario

Q-See

Q-See QC804-261-1 NVR Manual de usuario

Q-See

Q-See QM14QD4B Manual de usuario

Q-See

Q-See QT428-811 Manual de usuario

Q-See

Q-See QSD2304C4-250 Manual de usuario

Q-See

Q-See QR4174-418 Manual de usuario

Q-See

Q-See QSW25C Manual de usuario

Q-See

Q-See QT548-841-5 Instrucciones de funcionamiento y seguridad

Q-See

Q-See Premium QC5416-16E3-1 Manual de usuario

Q-See

Q-See Premium QC308-8E4 Manual de usuario

Q-See

Q-See QR40198-403 Manual de usuario

Q-See

Q-See QR208--811 Manual de usuario

Q-See

Q-See DVR Manual de usuario

Q-See

Q-See QSD371614C4-250 Manual de usuario

Q-See

Q-See QSD6209C9--250 Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
