Q-See QR4074-411 Manual de usuario

Quick Installation Guide

4 Channel H.264 Compression DVR with

Built-in 7” LCD Display Screen,

(CIF) Real-Time Recording and

4 Color CMOS Camera Kits

-4

Q-SEE QUICK INSTALLATION GUIDE

-4

1 | Page

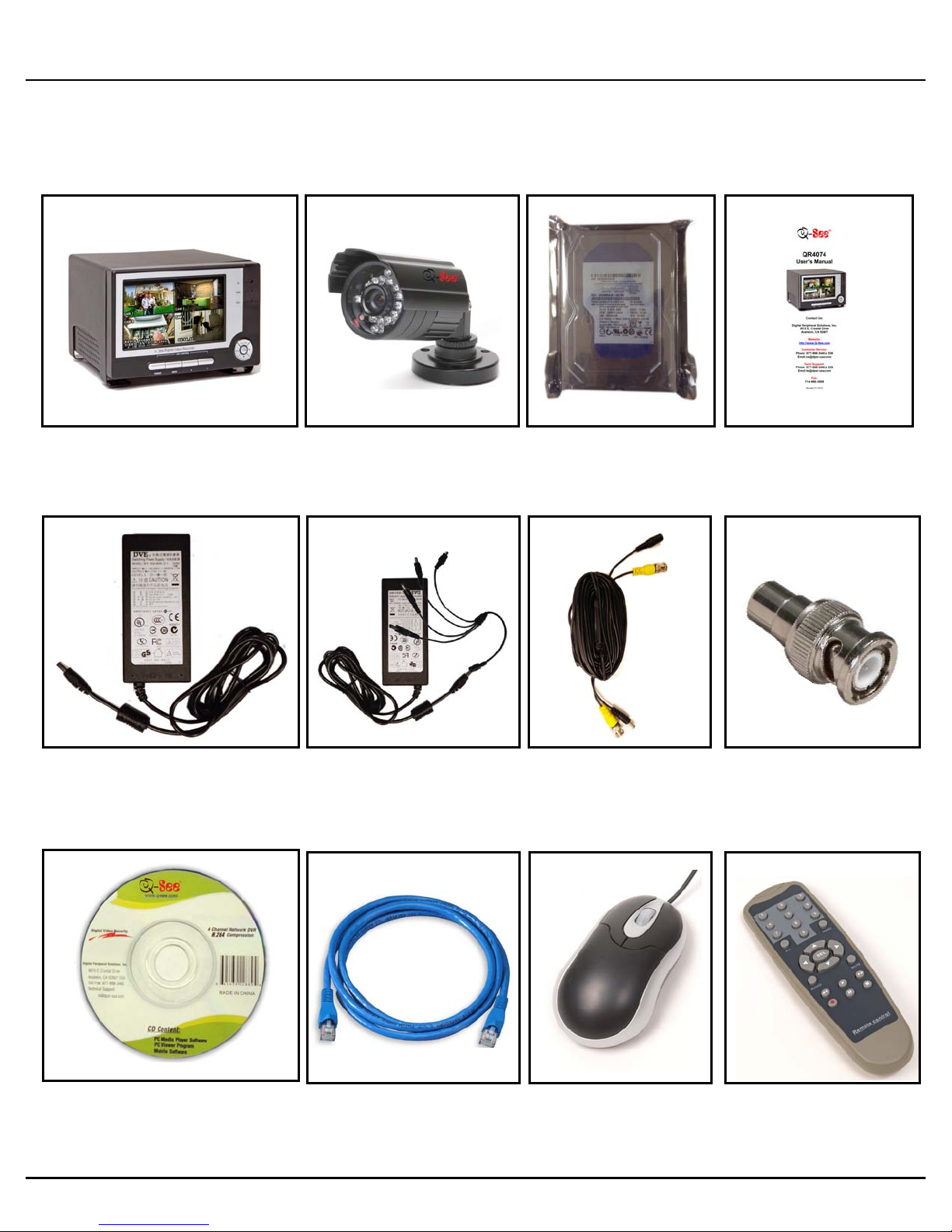

4 - Color CMOS Cameras with Stands

(4) QSM1424C (6mm Lens)

(4) QSM1424W (3.6mm Lens)

Remote

Control

USB 2.0

Mouse

Ethernet

Cable

BNC (M) – RCA (F)

Adapter

Camera Cables

(4 Included)

Power Supply &

4 -Way Splitter

For Cameras

Pre-Installed

Hard Drive

Software

User’s

Manual

Power Supply

For DVR

QR4074 DVR

w/Built-in

7” LCD Display Screen

PART 1 - PACKAGE CONTENTS:

Q-SEE QUICK INSTALLATION GUIDE

-4

2 | Page

PART 2 - DVR CAMERA AND POWER CONNECTIONS

Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated.

Look for a clamping voltage of 330 or lower, a Joule rating of at least 400 and a response time of

10 nanoseconds or less.

Q-SEE QUICK INSTALLATION GUIDE

-4

3 | Page

PART 3 - DVR CONTROLS: FRONT PANEL

Device Item

Number

Button Name /

Symbol Function

LCD

1 POWER

On: The LCD screen is displayed in a basic activation status;

Off: The LCD screen enters into sleep mode.

2 MENU Press once to display LCD main menu. Press again to exit LCD main menu.

3 + Increase and confirm setting value

4 - Decrease and confirm setting value

DVR

Press once to display DVR main menu. Press again to exit DVR main menu.

When pressed while the Main Menu is not displayed, the down arrow button allows

you to scroll through the video feeds transmitted from each camera hooked up to

your system.

When pressed while the Main Menu is displayed, the down arrow button allows you

to navigate the Main Menu Interface and select the icon of the program you wish to

access.

When pressed while the Main Menu is not displayed, the right arrow button allows

you to scroll through the video feeds transmitted from each camera hooked up to

your system.

When pressed while the Main Menu is displayed, the right arrow button will allow

you to navigate the Main Menu Interface and select the icon of the program you

wish to access.

8 ENTER When pressed while the Main Menu is displayed, the ENTER button will allow you to

enter into the sub-menu of the program you wish to access.

9 REC. When the “Red” Indicator Light Flashes, it Means the Hard Drive is Being Read or

Written to

10 PWR If the “Green” Indicator Light is on, the System is Getting Power.

11 IR Receiver Receives Signal from Remote Control

Q-SEE QUICK INSTALLATION GUIDE

-4

4 | Page

PART 4 - ACCESSING THE DVR MENUS

PART 5 - SETTING UP CAMERAS FOR VIEWING AND RECORDING

PART 6 - TO START RECORDING

Using higher resolution and quality settings results in better video quality, but takes up more space on the hard drive.

Choosing lower settings result in lower video quality, but takes up less space on the hard drive.

AUDIO: If audio is ENABLED sound will be recorded with the video from the channels, and will have audio output in

playback mode. If audio is DISABLED, sound will not record, and there will be no audio output in playback mode

(Audio cameras or a microphone is required to record the sound).

REC MODE: Sets DVR to record on Manual, Motion Detection, and Time Schedule Recording (detailed instructions

below).

PACK TIME: Choose the time length of all recorded files: 15, 30, 45, 60 min.

(Max = 60 min)

Choose MENU by right clicking on the mouse or by pushing the MENU button

on the DVR front panel or remote control.

The Main Menu offers the following Setup Features:

CAMERA: Setup name display, position, image view, and record quality of each

channel (cameras).

RECORD: Enable recording & audio, set resolution & quality, recording mode

and file size.

NETWORK: Setup Network access (Remote Internet Monitoring).

SEARCH: Find files for playback and backup.

DEVICES: Manage & Format hard drive and USB devices, setup alarms, PTZ

cameras, mobile phone access and motion detection.

SYSTEM: Setup time, date, password, and video mode.

From the Main menu, select CAMERA. Here you can setup the name display

(up to 8 characters) and position of each channel (cameras). Select COLOR

SETUP to adjust the image brightness, saturation, contrast and hue settings

for each channel (camera). You can also choose whether each channel can be

previewed in LIVE MODE and/or RECORDING MODE.

This System offers 3 modes for recording:

1. Manual 2. Time Schedule 3. Motion Detection.

From the main menu, select RECORD to enter into the Record Setup

menu (shown at right).

CHANNEL: “ON” enables video to record from the respective camera. If

the channel is set to “OFF”, video from that channel will not record.

RESOLUTION: D1=704x480, HD1=704x240, CIF=352x240

QUALITY: Best, Good, Normal

Q-SEE QUICK INSTALLATION GUIDE

-4

5 | Page

Manual Recording:

From the Record Setup screen set the Rec Mode to “ALWAYS”. Your DVR will continuously record and separate files will be

created with the Pack Time intervals you selected.

Time Schedule Recording:

From the Record Setup screen, set the Rec Mode to “TIME SCHEDULE RECORD” and click “SCHEDULE” in green. This

will display the Schedule menu (see below image). Select the channels (cameras) that you wish to record on a

schedule. The options are: All, CH-1, CH-2, CH-3, and CH-4 respectively. The channel you select will be highlighted in

“Blue”, and the unselected channels will be “Grey. Click on the green GENERAL option box then click on the boxes for

the days and times that you want to record using this option on the timeline. You can use the [From – To] pull-down

menus and COPY button to copy settings from one day to another day, or all days. Your DVR will record on it’s Time

Schedule, and separate files with the Pack Time Interval you selected. Click APPLY to activate your customized

schedule, and then reboot the DVR.

You can also click on the DEFAULT button to use the system defaults. The system default settings are:

Hr 01:00 am-07:59 am : No recording

Hr 08:00 am-18:59 pm : General recording (Time Schedule)

Hr 19:00 pm- 00:59 am : Alarm recording (Motion Detection)

Motion Detection Recording:

From the Record Setup screen, set the Rec Mode to “TIME SCHEDULE RECORD” and click “SCHEDULE” in green. This will

display the Schedule menu (See picture above). The options are: All, CH-1, CH-2, CH-3, and CH-4 respectively. The

channel you select will be highlighted in “Blue”, and the unselected channels will be “Grey. Click on the red ALARM

option box then click on the boxes for the days and times that you want to record using this option on the timeline. You

can use the [From – To] pull-down menus and COPY button to copy settings from one day to another day, or all days.

Your DVR will record on Motion Detection. Click APPLY to activate your customized schedule, and then go to the Devices

option (red box in first below picture) and select the Motion Option (red box in second picture below), which will display

the Motion Detect Box.

Grid Explanation:

Red = Alarm (motion detection) recording

Green = General (time schedule) recording

Transparent = No recording

Blue = The channel and date selected.

Q-SEE QUICK INSTALLATION GUIDE

-4

6 | Page

The Motion detection Menu has three sections, including

Channel Status, Sensitivity and Motion area.

STATUS: This option allows you enable motion detection on

any channel.

SENSITIVITY:This option allows you to set sensitivity level

of motion detection from 1 to 4, with 4 being the highest.

Next, click on the MD AREA SETUP button, which will display the picture on

the left. This option allows you to select the area you want to be sensitive

to motion. The area in red is sensitive to motion. You can set this area by

using the mouse or REV, FWD, and SEL keys on the front panel. Once you

have set the area, right click with the mouse or push the ESC key to save

the setting. After you have set all of the cameras, click on the Apply button

to save the settings.

PART 7 - SETTING UP THE DVR TO PLAYBACK

Searched Playback:

From the Main Menu select SEARCH to display the Video Search

Menu shown to the right. If you input a specific date and click

Search, you will find all the recordings for that day. When you select

an item, you will playback the recordings in 4 channel mode; or, click

[File list] button to display File list interface, where you can playback

or backup the file you selected. See File List heading below.

In the playback window you can play video Forward at 2x, 4x, and 8x speeds, Slow play at 1/2x, 1/4x, and 1/8x, or normal

play, pause and play frame by frame using the playback control bar, and adjust volume by clicking or sliding tune control

bar. When playback has finished, system will return to previous menu.

File List:

On the Video search menu mode, click File list to display the sub-

menu shown in the picture on the left.

This option will allow you to view all of the available files by channel

and type (all, normal, or alarm).

You can select a file and push the SEL button to playback the file, or

use the FWD button and down button to select the backup option and

backup the recorded file you selected. You can also put a checkmark

in the BAK box at the end of multiple files if you want to backup more

than one file. See section 5.2.4 Recording Search in the User Manual

for more information on using the File List option.

Q-SEE QUICK INSTALLATION GUIDE

-4

7 | Page

PART 8 - BACKING UP THE VIDEO ON THE DVR

Attach a USB flash drive or USB hard drive to the USB backup port and follow the instructions in Part 8 to go to the File List

in the Search menu.

If you want to backup a single recorded file from the file list, from the File List dialog box pictured above, select the file you

wish to back up by placing a check mark in the accompanying green box and hit the [BACKUP] button on the right of the

screen. You will then receive a pop up screen as illustrated in Picture 22 showing you the progression of your backup. Once

backup is complete, you will then receive a pop up message informing you that you have backed up your files successfully

(see picture below). Note that all files will be in an H264 format that can be converted to AVI using the Multi Player

program that comes with the DVR or through the net-viewer program. Once converted, you can then view these files

through any program that supports an AVI format.

Q-SEE QUICK INSTALLATION GUIDE

-4

8 | Page

Questions or Comments?

Mailing Address: Customer Service:

DPS, Inc. Phone: 877-998-3440 x 538

8015 E. Crystal Dr. Email: cs@dpsi-usa.com

Anaheim, CA 92807 Live Chat from our Website

Website: Tech Support:

http://www.q-see.com Phone: 877-998-3440 x 539

Fax: Email: ts@dpsi-usa.com

714-998-3509 Live Chat from our Website

REVISED 4/19/2010
