Prorack PR3108 Manual de usuario

Page 1 of 6

09-13-575 Rev3

PR3108 Kayak Carrier

Caution

• Tie down long or wide loads at the front and rear of the vehicle with non-elastic straps. If it looks like it can catch

some air, it will. TIE IT DOWN!

• When loading your surf gear or kayak, ensure that it is mounted correctly using the tie downs provided and is

positioned centrally, parallel to the vehicle.

• Check straps periodically during travel and tighten if necessary. Replace any straps that are worn or frayed before

using (see your Prorack dealer).

Important Warning

• It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper

attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.

• You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and

periodically inspecting the products for adjustment, wear, and damage. Therefore, you must read and understand all

of the instructions and cautions supplied with your Prorack product prior to installation or use.

• If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not

thoroughly familiar with the installation procedures, you should have the product installed by a professional installer

such as a boat carrier specialist.

Minimum Crossbar

Spread 61 cm

Item Component Qty

1Saddle 4

2Heavy Duty Strap 2

3Pad 4

4Hook 2

5Rope 2

Kit Contents

This product is designed to work with Pro-

rack Aero, Standard, Trade and other Round

Bars.

Max Load 36 kg

Page 2 of 6

09-13-575 Rev3

Install pads

Open the clamp wide enough to t around

your roof rack bars.

Install the four pads. Press each pad into

place. Use one pad for each saddle.

Put saddle on roof rack bars.

Place your saddle onto the roof rack

bars.

Close Clamp

Push clamp closed against roof rack bar.

Tighten clamp

Tighten the clamp completely.

5Install the other saddles

Using the same procedure install the other saddles.

Space the saddles based on the width of your boat then proceed to the next step to make adjustments

for the best t for you boat.

Page 3 of 6

09-13-575 Rev3

Tie one end of each rope to each hook

Key features: flexible saddles

Load boat and adjust position

Tie down

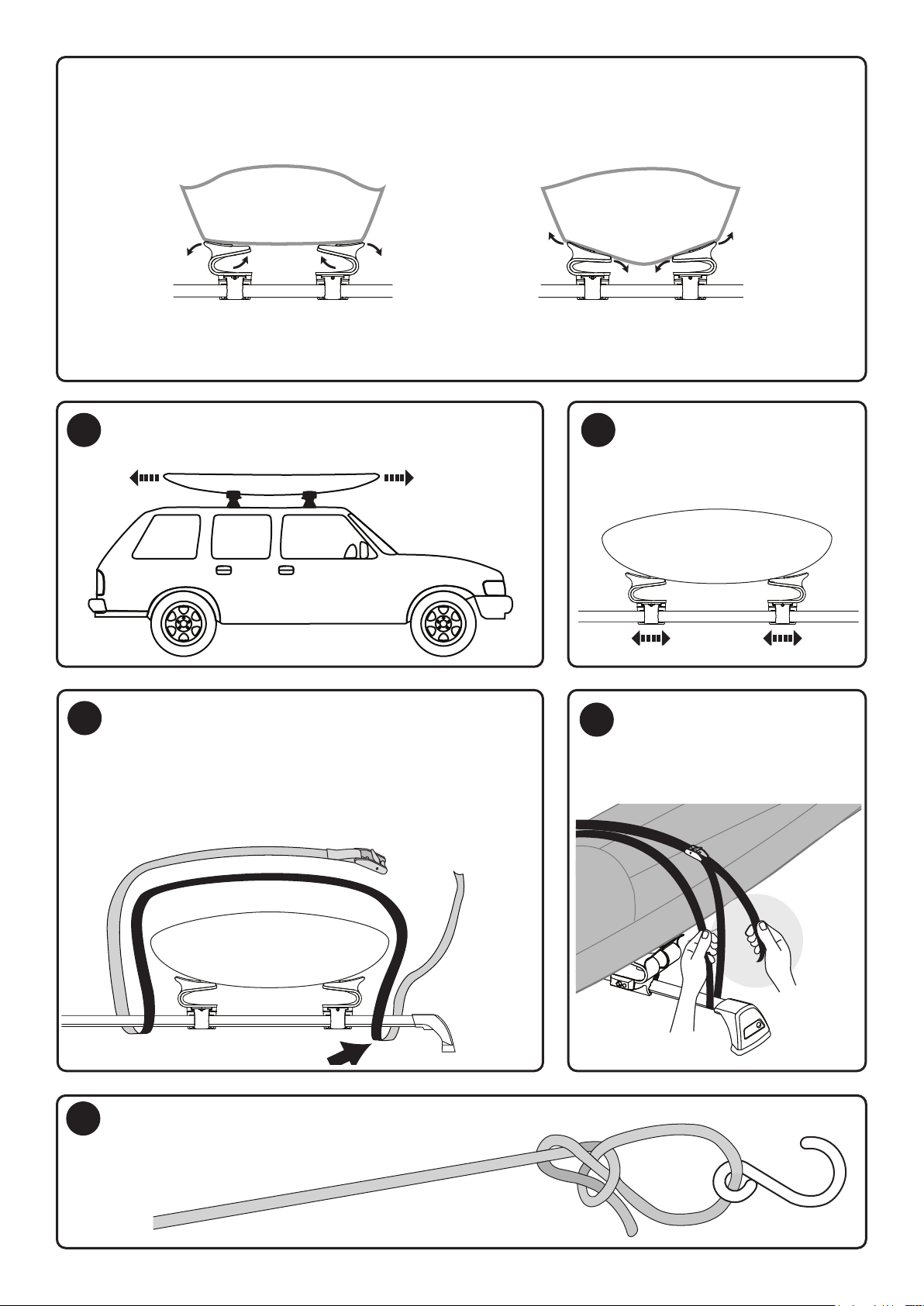

The Kayak Carrier is designed to ex and conform to your boat when you tighten the straps. Keep this in

mind as you adjust position in the next step, and prepare to tie down your boat.

EXAMPLE A

Here the shape of the hull will cause the

saddles to bend up from the inside.

EXAMPLE B

In this example the hull will force the sad-

dles to bend down from the outside.

Center boat on saddles

Adjust saddles as necessary.

Use straps to secure boat to roof rack bars. Loop strap around

front roof rack bar as shown.

NOTE: Be sure that strap is INBOARD of roof rack leg. Repeat

for rear roof rack bar.

Thread free end of strap

through buckle and pull to

tighten

Attach one hook to front of vehicle Attach the other hook to rear of vehicle

Secure front and rear of kayak to vehicle

Attach ropes to grab handle or rescue bar and pull tight.

Securely tie off ends to create even pressure between front and rear. Bind up and secure excess rope.

Page 4 of 6

09-13-575 Rev3

11 12

Page 5 of 6

09-13-575 Rev3

Care and Maintenance

• Use non-water soluble lubricant on screws. Use a soft cloth with water and mild detergent to clean plastic parts.

Safety Checks

• Before Driving Away:

- Ensure all hardware is secured according to instructions.

- Test movement by rocking boat.

- Tighten again if loose.

• Attachment hardware can loosen over time:

- Check straps periodically during travel and tighten if necessary.

- Replace any straps that are worn or frayed before using (see your Prorack dealer).

• Some longer loads may prevent the rear hatch from fully opening.

Always use caution when opening your hatch.

Page 6 of 6

09-13-575 Rev3

Prorack

17 Hinkler Court, Brendale

QLD 4500, Australia

Freephone

AU: 1800 143 548 www.prorack.com.au

NZ: 0800 4776 722 www.prorack.co.nz
