Prorack K708 Manual de usuario

K708

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 4

x 4

Revision No: 1A 1

Fitting Kit K708

MAX kgs (lbs)

W/P WHD

Skoda

Octavia III, 5dr Liftback 09-12 NZ 35 kgs (77 lbs) 35 kgs (77 lbs)

Octavia, 5dr Hatch 09-+ ZA 35 kgs (77 lbs) 35 kgs (77 lbs)

Octavia, 5dr Hatch 09-12 EU 35 kgs (77 lbs) 35 kgs (77 lbs)

Octavia, 5dr Liftback 09-12 AU 35 kgs (77 lbs) 35 kgs (77 lbs)

Fitting Kit K708

A B C 1 2 3

Octavia III, 5dr Liftback 09-12 (NZ) -280mm 520mm - 858mm 812mm -

-11" 20 1/2ths" - 33 3/4ths" 32" -

Octavia, 5dr Hatch 09-+ (ZA) -280mm 520mm - 858mm 812mm -

-11" 20 1/2ths" - 33 3/4ths" 32" -

Octavia, 5dr Hatch 09-12 (EU) -280mm 520mm - 858mm 812mm -

-11" 20 1/2ths" - 33 3/4ths" 32" -

Octavia, 5dr Liftback 09-12 (AU) -280mm 520mm - 858mm 812mm -

-11" 20 1/2ths" - 33 3/4ths" 32" -

Fitting Kit EN

K708

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K708

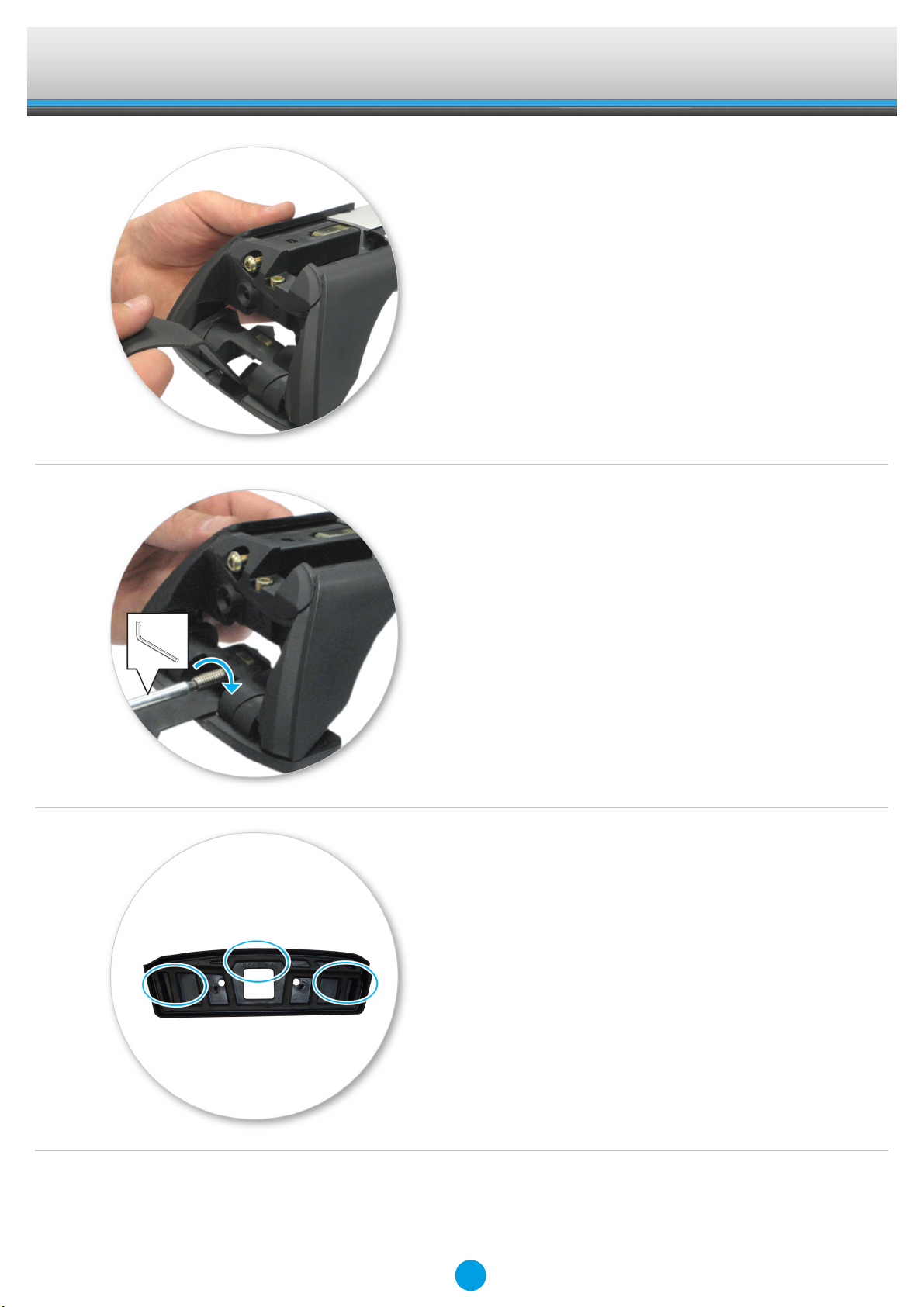

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K708

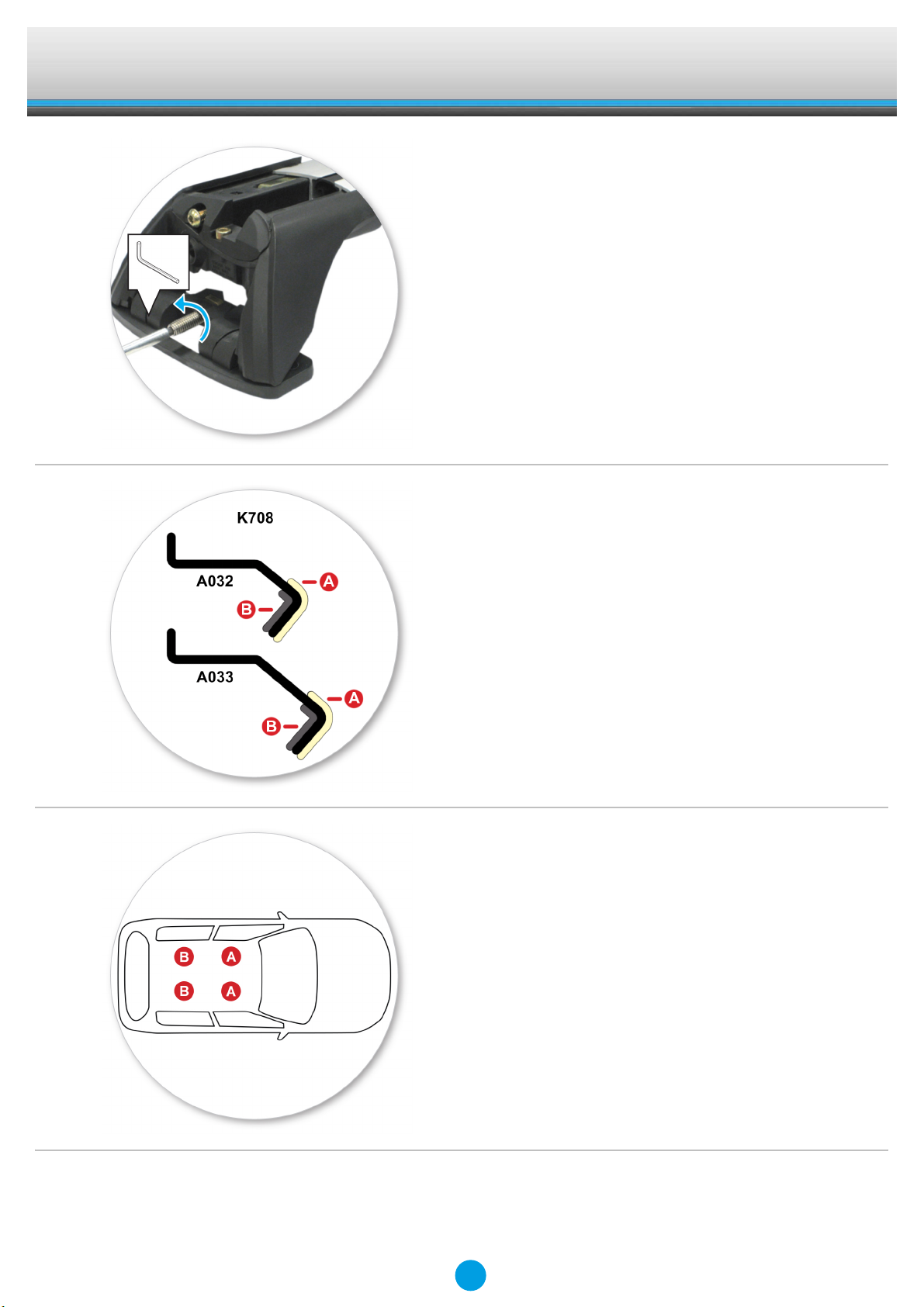

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A032

B = A033

Fitting Kit EN

K708

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K708

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 258A

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K708

Fitment

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

Fitting Kit EN

K708

●Tighten locking screw on both legs evenly,

3 Nm (2.2 ft lb).

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers
