Prorack K672 Manual de usuario

K672

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 2 x 2 x 2

x 2 x 2 x 2 x 2

Revision No: 4D 1

Fitting Kit K672

MAX kgs (lbs)

W/P WHD

Kia

Grand Carnival , 5dr MPV 11-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K672

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K672

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K672

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 272A

B = 273A

Fitting Kit EN

K672

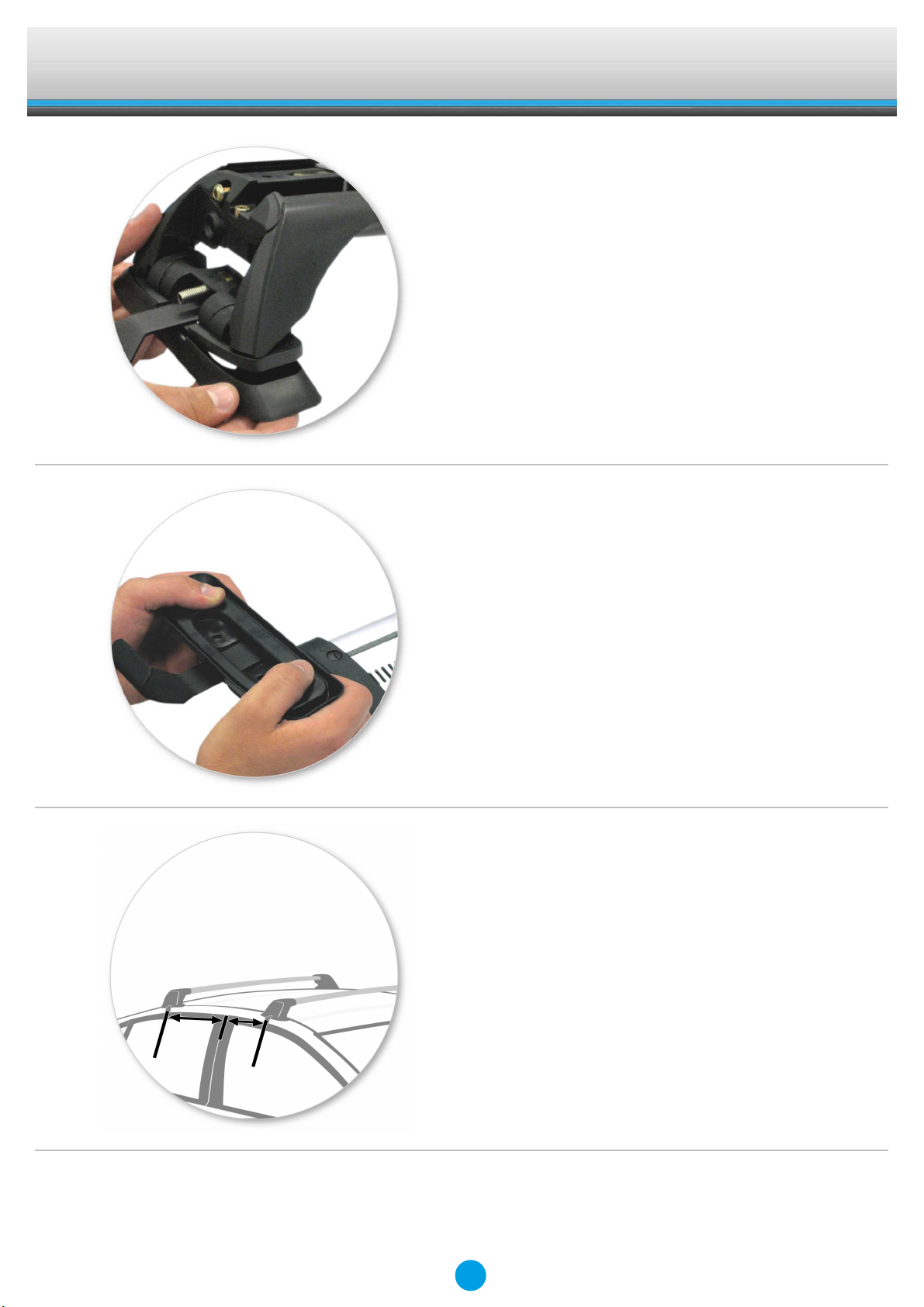

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K672

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

Fitting Kit EN

K672

Fitment

●NOTE: REAR CROSSBAR ONLY

●Door seal has to be removed before

attaching fitting clips.

●Apply protective strip as shown.

●Press clip into place.

Fitting Kit EN

K672

●Clamp locates onto the body clip as shown.

All Crossbars:

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Repeat for all four positions.

Fitting Kit EN

K672

●Tighten locking screw on both legs evenly,

3 Nm (2.2 ft lb).

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers
