Prorack K431 Manual de usuario

Page 1 of 4

K431 FITTING KIT INSTRUCTIONS

These fitting instructions contain information specific for your vehicle. They

should be read in conjunction with your crossbar instructions.

Kit Contains

1 x Instructions

4 x Red Plastic Knobs with nuts

4 x Plastic Internal Blocks

4 x Grub Screws

1 x Allen Key 3mm

4 x Ada tor Plates

Remove arts from box & check

Contact your Prorack dealer if any arts are missing or damaged

Items you will require that are not included:

1 x Ta e measure

Important Note:

Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar

Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar

Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar

•Remove crossbar and fitting kit parts

from the packaging

•Follow steps to 3 of crossbar assembly

instructions

•Remove clamp block by pressing it

backwards

1.1

•Select plastic internal block

(from fitting kit) and insert it

into foot

•Repeat for all four legs

Maximum

Whispbar

Load

Rating

When Fitted and loaded

correctly

7575

kgkg

8 x M5 x 16mm Ca screws

8 x S ring Washers

2 x Pads Part № 11-04-224 (A)

2 x Pads Part № 11-04-225 (B)

Refer to the ste 1.5 for the correct

osition of ads.

Push Down

1.2

1.3

Press this way

Clamp Block

K368 ASSEMBLY AND FITTING INSTRUCTIONS

Page 2 of 4

1.6

•Fit rubber pad (from fitting kit) to foot as per

diagram in step .5.

•Press pad firmly onto foot by putting thumb

pressure on area where pad spigots engage.

•Make sure that pads are fitted correctly on

nominated front and rear crossbars.

•Note: The rubber pad shape may vary to the shape

of pads on the photos.

1.7

•

Open vehicle fix point covers as shown

•Refer to the underside of the pad for the part

number

•Letters refer to the pad part numbers

•(A) Refers to Pad -04-224

(B) Refers to Pad -04-225

1.4

Front

K368 ASSEMBLY AND FITTING INSTRUCTIONS

Page 3 of 4

2.0

•

Select four M6 x 70mm grub screws and screw

them into the centre of the adaptor plates until it

bottoms out on roof.

•Use 3mm Allen Key

•Do not over tighten.

•Repeat for all four mounting positions.

•Adjust crossbars length to suit distance between

grub screws. (Refer to crossbar instructions for

adjustment details)

•Place crossbars on roof.

•Make sure that grub screw passes through the hole

in internal block on all four legs.

•Select red plastic knob and tighten crossbar

to grub screw.

•In the fully tight position knob should sit in

the same position as shown on the picture

above to allow cover to close.

•Repeat for all four legs.

2.1

•Install adapter plate into each fixed point.

•Put a spring washer on each M5 button head

bolt

•Secure adaptor plate using M5 button head bolts

and 3mm Allen Key supplied

1.9

1.8

K368 ASSEMBLY AND FITTING INSTRUCTIONS

Page 4 of 4

Warning Notes:

•Use these instruction in conjunction with crossbar instructions

WARNING: Check the Tightness of Scre s Regularly

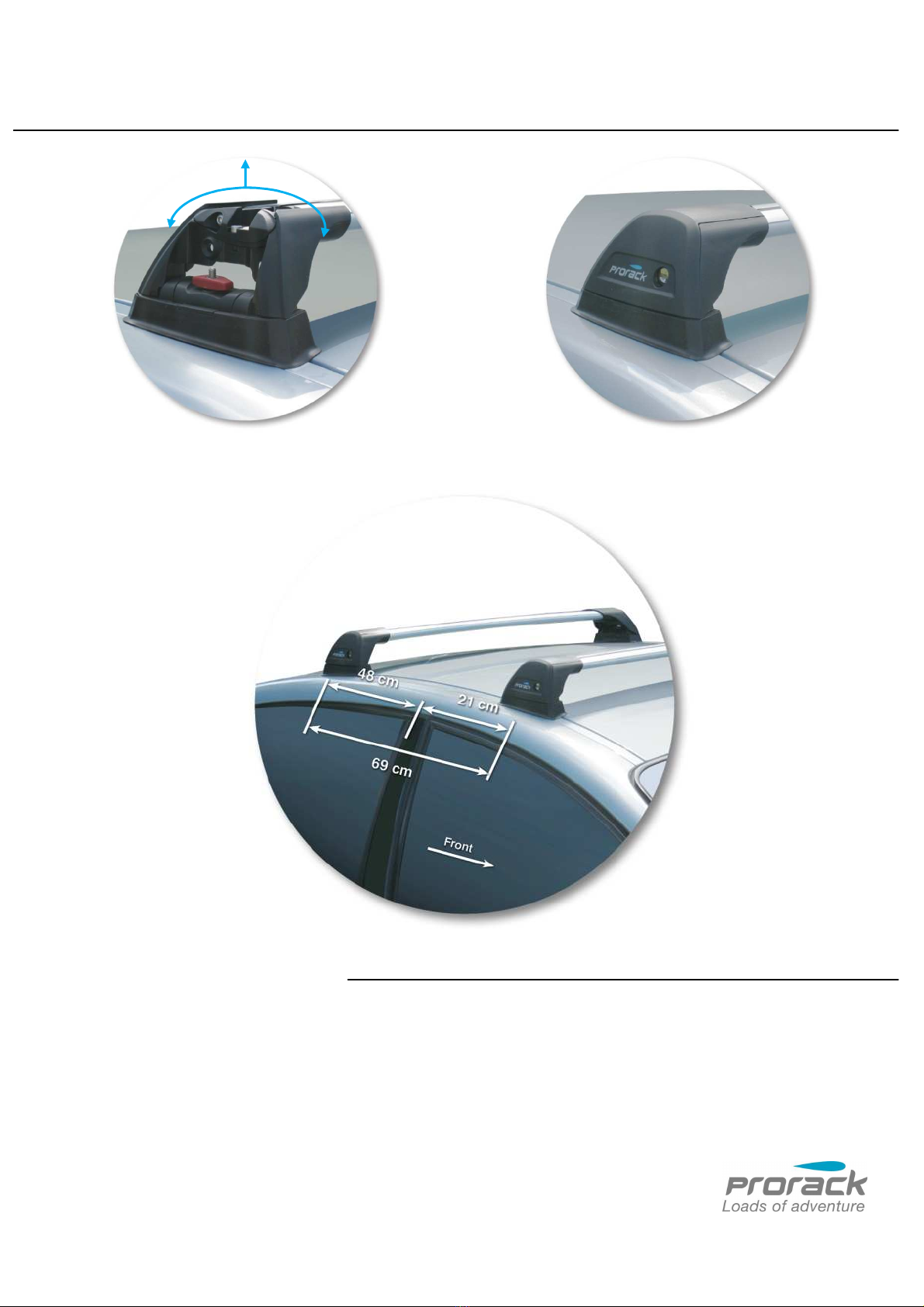

2.3

•

Check that crossbars are tight on roof.

2.2

•

Refit covers to legs.
