Prorack K508 Manual de usuario
K508
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 8 x 4
x 2 x 2 x 4 x 4
x 4
Revision No: 7G 1
Fitting Kit K508
MAX kgs (lbs)
W/P WHD
Peugeot
4008 Flush Rail, 5dr SUV 12-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
4008 Flush Rail, 5dr SUV 12-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
4008 Flush Rail, 5dr SUV 12-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Mitsubishi
ASX, 5dr SUV 10-16 EU 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV 11-+ CN 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV 15-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV 15-+ CN 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV 15-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV 15-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV 16-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV Aug 10-15 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
ASX, 5dr SUV Aug 10-15 AU 50 kgs (110 lbs) 50 kgs (110 lbs)
Outlander Sports, 5dr SUV 15-+ US 50 kgs (110 lbs) 50 kgs (110 lbs)
Citroen
C4 Aircross, 5dr SUV 12-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
C4 Aircross, 5dr SUV 12-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
C4 Aircross, 5dr SUV 12-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
C4 Aircross, 5dr SUV 12-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
C4 AIRCROSS, 5dr SUV 12-13 CN 50 kgs (110 lbs) 50 kgs (110 lbs)
2
Fitting Kit K508

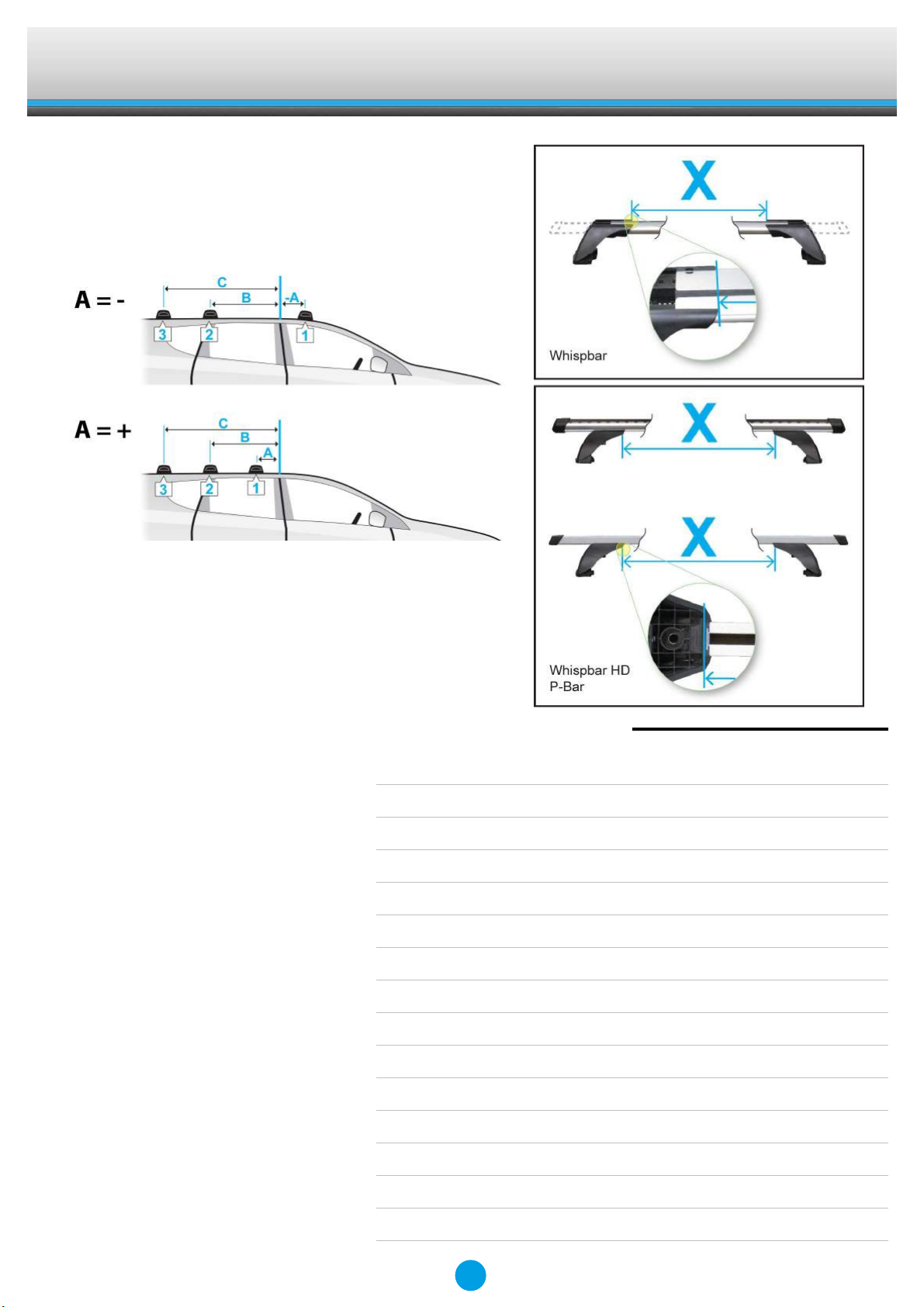

X
A B C 1 2 3
4008 Flush Rail, 5dr SUV 12-+ (NZ) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
4008 Flush Rail, 5dr SUV 12-+ (AU) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
4008 Flush Rail, 5dr SUV 12-+ (EU) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
ASX, 5dr SUV 10-16 (EU) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
ASX, 5dr SUV 11-+ (CN) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
ASX, 5dr SUV 15-+ (AU) -210mm 480mm - 890mm 836mm -
-8 -1/4ths" 18 7/8ths" - 35 1/16ths" 32 15/16ths" -
ASX, 5dr SUV 15-+ (CN) -210mm 480mm - 890mm 836mm -
-8 -1/4ths" 18 7/8ths" - 35 1/16ths" 32 15/16ths" -
ASX, 5dr SUV 15-+ (NZ) -210mm 480mm - 890mm 836mm -
-8 -1/4ths" 18 7/8ths" - 35 1/16ths" 32 15/16ths" -
ASX, 5dr SUV 15-+ (ZA) -210mm 480mm - 890mm 836mm -
-8 -1/4ths" 18 7/8ths" - 35 1/16ths" 32 15/16ths" -
ASX, 5dr SUV 16-+ (EU) -210mm 480mm - 890mm 836mm -
-8 -1/4ths" 18 7/8ths" - 35 1/16ths" 32 15/16ths" -
ASX, 5dr SUV Aug 10-15 (NZ) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
ASX, 5dr SUV Aug 10-15 (AU) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
C4 Aircross, 5dr SUV 12-+ (AU) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
C4 Aircross, 5dr SUV 12-+ (NZ) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
C4 Aircross, 5dr SUV 12-+ (ZA) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
3
Fitting Kit K508
C4 Aircross, 5dr SUV 12-+ (EU) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
C4 AIRCROSS, 5dr SUV 12-13 (CN) -210mm 480mm - 896mm 842mm -
-8 -1/4ths" 18 7/8ths" - 35 1/4ths" 33 1/8ths" -
Outlander Sports, 5dr SUV 15-+ (US) -210mm 480mm - 890mm 836mm -
-8 -1/4ths" 18 7/8ths" - 35 1/16ths" 32 15/16ths" -
4
Fitting Kit EN
K508
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
5
Fitting Kit EN
K508
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Clamps onto flush roof rail. Pins locate on
inside of rail.
6
Fitting Kit EN
K508
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Remove both pins from each leg. Use
tapered end of spanner located inside left
hand cover to assist.
7
Fitting Kit EN
K508
●Detach foot from leg. Store loose parts in a
safe place.
●Repeat for all legs.
●Select four feet assemblies and match the
left and right assemblies to the left and
right roof rack legs.
●Assemble foot from kit into leg by pressing
it down.
●Ensure foot interlocks with leg.
●Using short capscrew and washer, secure
assembly onto leg (use Hex Screwdriver
supplied with crossbar to assist)
●Do not over tighten.
●Repeat for all legs.
8
Fitting Kit EN
K508
●Use two M5 x 12 mm self tapping screws to
secure the assembly onto the leg.
●Do not over tighten.
Fitment
●Apply protective strip as shown.
Trim if required.
●Locate two holes at each position along the
inside of the roof rails.
●Ensure the two pins of the clamp engages
correctly with the holes in the roof rail.
●Place crossbars approximately above
these holes on roof rails.
●Place one hand on the leg and apply
downward pressure.
●Slide clamp through opening in leg.
9
Fitting Kit EN
K508
●Thread the coach bolt through the clamp
and the leg.
●Ensure back edge of foot sits flush with the
back edge of vehicle roof rail.
●Tighten the plastic knob.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Do not over tighten.
●Repeat for all four positions.
●Ensure the clamp engages correctly on
inside of roof rail.
10
