Prorack K449 Manual de usuario

K449

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 4 x 4 x 4

x 4 x 4

Revision No: 4C 1

Fitting Kit K449

MAX kgs (lbs)

W/P WHD

Kia

Sorento , 5dr SUV 02-+ ZA 45 kgs (99 lbs) 45 kgs (99 lbs)

Sorento , 5dr SUV 03-09 US 45 kgs (99 lbs) 45 kgs (99 lbs)

Sorento , 5dr SUV 03-Jan 10 EU 45 kgs (99 lbs) 45 kgs (99 lbs)

Sorento , 5dr SUV Feb 03-Jul 09 AU 45 kgs (99 lbs) 45 kgs (99 lbs)

Sorento , 5dr SUV Feb 03-Sep 09 NZ 45 kgs (99 lbs) 45 kgs (99 lbs)

Nissan

Wingroad , 5dr Wagon 00-06 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

Wingroad , 5dr Wagon 00-06 AU 60 kgs (132 lbs) 60 kgs (132 lbs)

Fitting Kit EN

K449

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K449

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (refer to the crossbar

instructions for crossbar adjustment).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K449

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

Fitting Kit EN

K449

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Repeat for all legs.

Fitment

●Slide metal T-nuts into tracks on vehicle.

Two per track.

●Screw down the grubscrews into T-nuts

until it hits the track below (this will hold the

T-nuts in position).

●Do not over tighten.

Fitting Kit EN

K449

●Place crossbar foot over grubscrews.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Make sure there is no interference between

what you intend to carry with aerials,

sunroof or tailgate.

●Tighten the red plastic knob. The side with

the nut showing should be facing up.

●In the fully tightened position, the knobs

should be parallel with the vehicle.

●Repeat for all four positions.

Fitting Kit EN

K449

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

Fitting Kit EN

K449

Maintenance

●Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

●Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

●Set crossbars a minimum distance of

700mm (27 1/2") apart where no other

distance is specified in the fitting

instructions. This is especially important

when carrying long loads.

●Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

●Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

●Do not modify this product.

●Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the

fitting instructions.

●Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

●Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

●Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

●Remove all loose or removable objects

from the load prior to loading.

●Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

●A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds,

changing of direction, and braking

performance. Avoid rapid acceleration and

deceleration. Drive carefully.

●Note that the total height of the vehicle

increases when upright loads are carried.

●Products should be locked during transport

if they have locks fitted.

Fitting Kit EN

K449

●Check and replace worn out or defective

parts.

●Keep the product clean and maintained.

●Never drive into a car wash with the roof

rack system fitted.

●Lubricate locks and adjusting screws at

regular intervals.

●Remove the products from the vehicle

when not in use. Make sure all loose parts

are stored safely.

●Yakima Australia Pty Ltd

17 Hinkler Court

Brendale QLD 4500

AUSTRALIA

www.whispbar.com

www.whispbar.com.au

www.whispbar.co.nz

www.whispbar.co.uk

www.whispbar.co.za

www.whispbar.eu

www.whispbar.ca

Tabla de contenidos

Otros manuales de Accesorios para automóviles de Prorack

Prorack

Prorack K194 Manual de operación e instalación

Prorack

Prorack K867 Manual de usuario

Prorack

Prorack K504 Manual de usuario

Prorack

Prorack K646 Manual de usuario

Prorack

Prorack K401 Manual de usuario

Prorack

Prorack K853 Manual de operación e instalación

Prorack

Prorack K919 Manual de usuario

Prorack

Prorack K1187 Manual de usuario

Prorack

Prorack K133 Manual de operación e instalación

Prorack

Prorack K561 Manual de usuario

Prorack

Prorack K436 Manual de usuario

Prorack

Prorack K902 Manual de usuario

Prorack

Prorack K704 Manual de usuario

Prorack

Prorack K319 Manual de usuario

Prorack

Prorack K049 Manual de usuario

Prorack

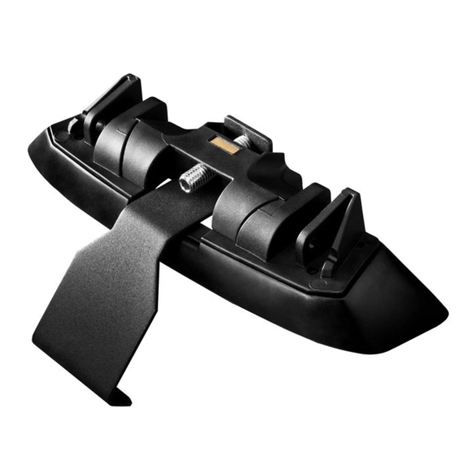

Prorack K570 Manual de usuario
