Prorack K1013 Manual de usuario

K1013

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 1 x 8

x 4 x 1 x 4 x 1

x 4 x 1 x 1 x 2

Revision No: 1A 1

K1013 K1013

MAX kgs (lbs)

W/P WHD

Holden

Spark, 5dr Hatch 16-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Spark, 5dr Hatch 16-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

K1013 K1013

A B C 1 2 3

Spark, 5dr Hatch 16-+ (AU) -290mm 500mm - 813mm 736mm -

-11 -7/16ths" 19 11/16ths" - 32" 29" -

Spark, 5dr Hatch 16-+ (NZ) -290mm 500mm - 813mm 736mm -

-11 -7/16ths" 19 11/16ths" - 32" 29" -

K1013 EN

K1013

Items you will require:

●Tape measure

Pen

Cordless drill

Depth stop

Vacuum cleaner

Rust inhibitor

Small paint brush

Neutral cure silicon sealant

Rivet gun

Masking tape

Attention:

●Attaches with riveted mounts under rubber

ditch mould. Professional installation

advised.

K1013 EN

K1013

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

K1013 EN

K1013

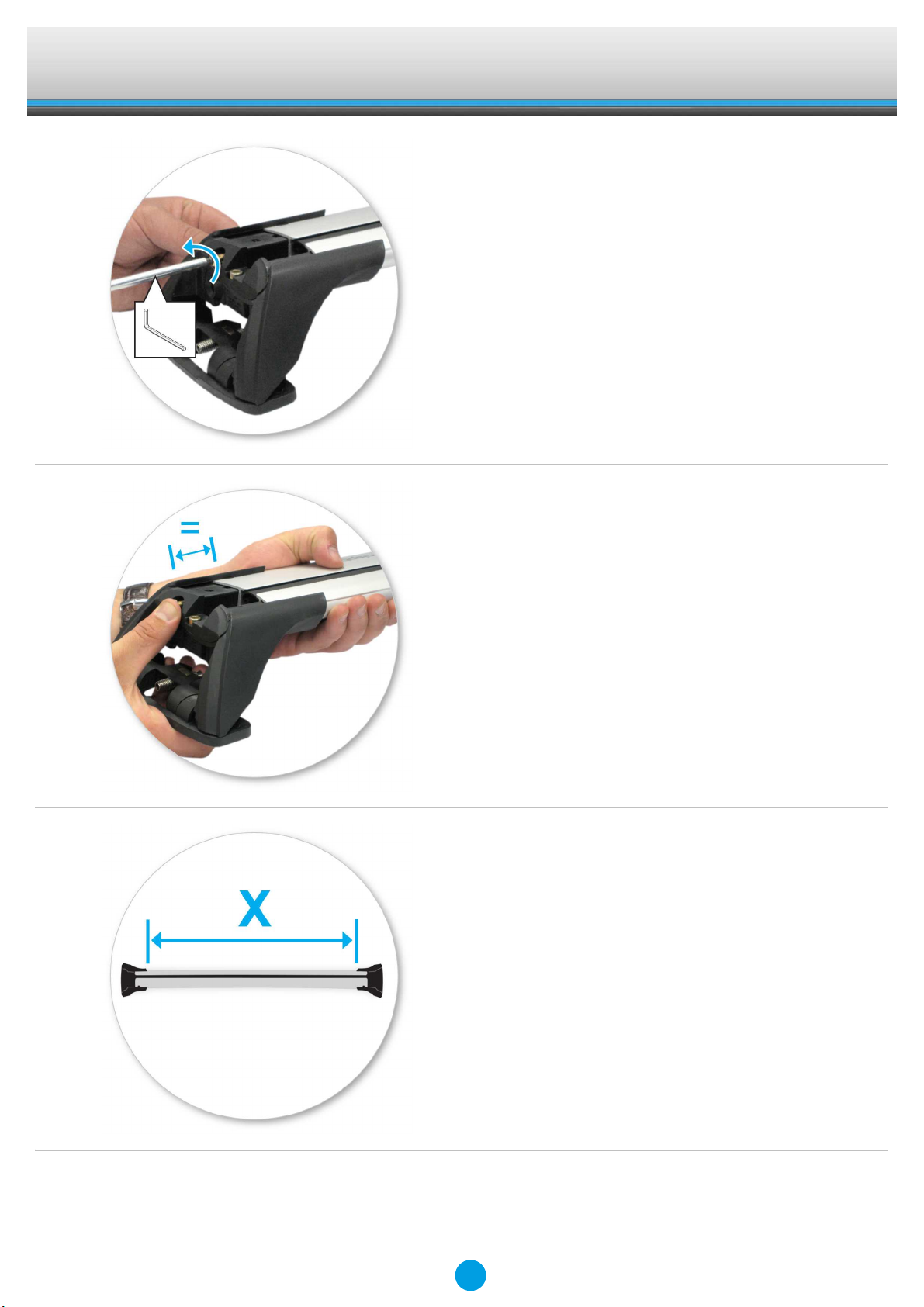

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

●Please check the front of this manual for

information relating specifically to your

vehicle.

K1013 EN

K1013

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●CAUTION:

●RECOMMENDED POSITION DUE TO

AIRBAGS IN ROOF:

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Apply masking tape to vehicle roof in all

four positions.

●Mark reference point on masking tape with

a pen.

K1013 EN

K1013

●Carefully cut tape to seperate ditch mould

from roof.

●Repeat for all four positions.

●Lift and pull ditch moulding back towards

you and remove from the vehicle.

●Position as shown.

●Line up the centre hole in the mounting

block with the marked reference points.

●Centralize PM Block.

K1013 EN

K1013

●Lightly mark position of outside holes of the

mounting block in the roof channel.

●Note:

●Assemble as shown.

●CAUTION:

●RECOMMENDED POSITION DUE TO

AIRBAGS IN ROOF:

●Please check the front of this manual for

information relating specifically to your

vehicle.

●CAUTION: Maximum depth 8mm.

Use 8mm drillstop over supplied 4.9mm

drill bit.

Drill two outside holes at marked positions.

K1013 EN

K1013

●Vacuum and clean swarf from channel.

●Treat holes to prevent corrosion.

●Apply neutral cure silicon sealant in and

around drilled holes.
