Prorack 567 Manual de usuario
Whispbar Rail Mount Through Bar
S67
GB
GBGB
GB
Fitting Instructions for Basic Carrier
x 1 x 1 x 2 x 1
1
Revision No: 1.0A
Whispbar Rail Mount Through Bar
S67
GB
First Time Installation
Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
Ensure the roof rack face towards the front of
vehicle.
1. Adjusting Screw
2. Locking Screw
2
Whispbar Rail Mount Through Bar
S67
GB
Crossbar Adjustment
Use keys to remove covers.
Use hex screwdriver to reverse adjusting
screw 10 turns.
Use 5 mm (2/8") Hex Key to loosen locking
screw and open clamp.
3
Whispbar Rail Mount Through Bar
S67
GB
Fitment
Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 4/8") (unless otherwise stated).
Crossbar can be positioned anywhere along
the roof rail.
Hold adjusting screw in and slide crossbar in
or out as required.
Ensure that the crossbar is adjusted evenly
at both ends.
Tighten adjusting screw to 5 Nm (3.7 ft lb).
4
Whispbar Rail Mount Through Bar
S67
GB

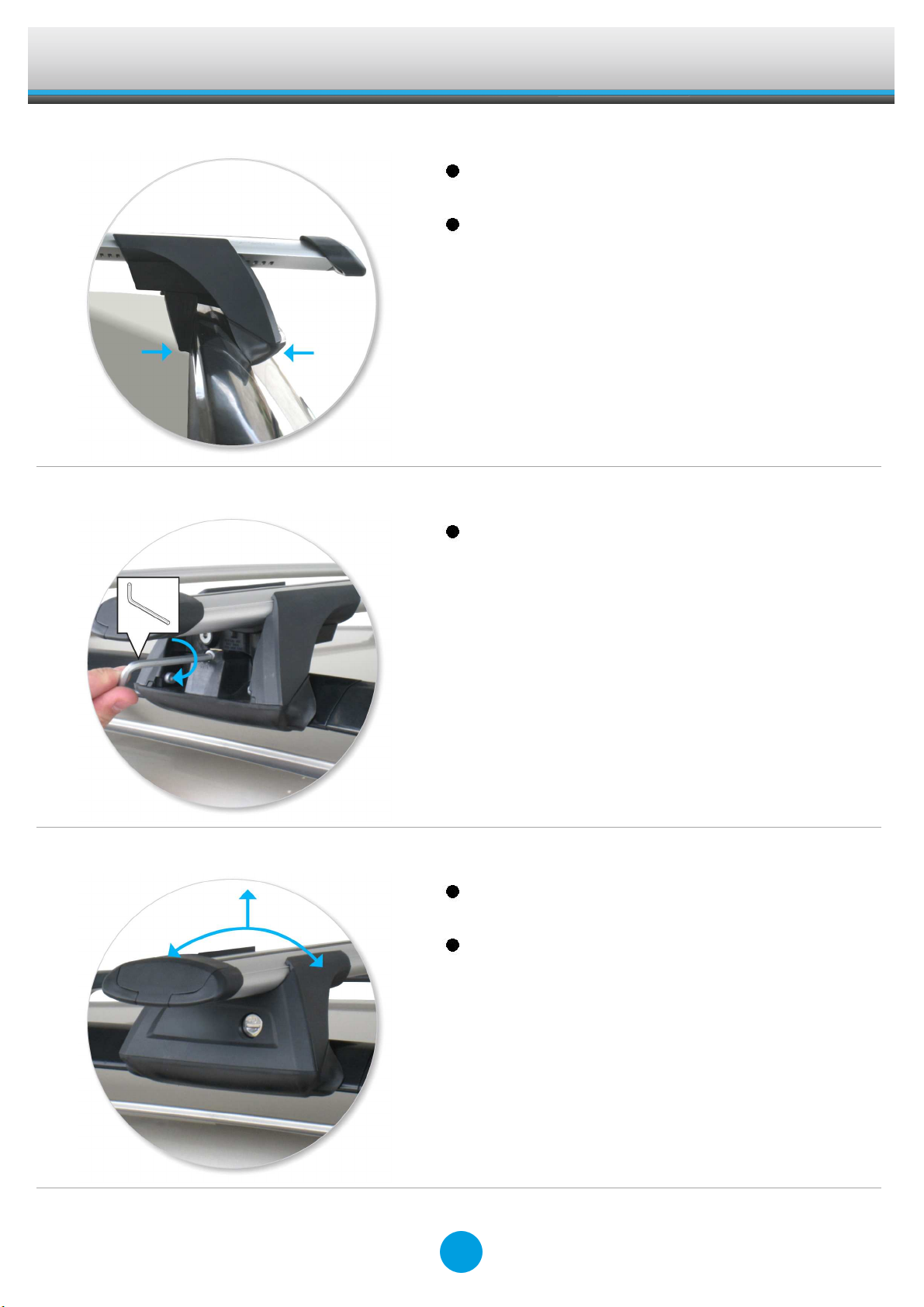

Correctly installed crossbars. Side rails may
vary to those pictured.
Ensure that all legs clamp securely to the
roof rails.
Use 5mm (2/8") Hex Key to tighten clamp
and secure crossbar to rail.
Check crossbar is securely attached to the
vehicle.
Use keys to fit and lock covers
5
Whispbar Rail Mount Through Bar
S67
GB
CAUTION:
CAUTION:CAUTION:
CAUTION:
Recheck all fasteners immediately after a load is
Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is
Recheck all fasteners immediately after a load is
applied to the crossbars.
applied to the crossbars.applied to the crossbars.
applied to the crossbars.
Regularly check screws are tight.
Regularly check screws are tight.Regularly check screws are tight.
Regularly check screws are tight.
6
Whispbar Rail Mount Through Bar
S67
GB
Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
Set crossbars a minimum distance of 700mm
(27 4/8") apart where no other distance is
specified in the fitting instructions. This is
especially important when carrying long
loads.
Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
Some sunroofs and radio antennae cannot
be used when the product is fitted.
Do not modify this product.
Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the fitting
instructions.
Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
Objects with pointed ends (skis) should be
carried with the pointed ends to the rear of
the vehicle.
Remove all loose or removable objects from
the load prior to loading.
Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
7
Whispbar Rail Mount Through Bar
S67
GB
A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds, changing
of direction, and braking performance. Avoid
rapid acceleration and deceleration. Drive
carefully.
Note that the total height of the vehicle
increases when upright loads are carried.
Products should be locked during transport if
they have locks fitted.
Check and replace worn out or defective
parts.
Keep the product clean and maintained.
Never drive into a car wash with the roof rack
system fitted.
Lubricate locks and adjusting screws at
regular intervals.
Remove the products from the vehicle when
not in use. Make sure all loose parts are
stored safely.
Accessories Available for this Product:
Roof Box
Ski, Snowboard Carrier
Canoe, Kayak Carrier
Bicycle Carrier
For more accessories please see our product
catalogue.
8
Whispbar Rail Mount Through Bar
S67
GB
Hubco Automotive Ltd
P. O. Box 11017
Christchurch
NEW ZEALAND
www.whispbar.com
9
Whispbar Rail Mount Through Bar
S67
GB
10
