Promax RANGER mini Manual de usuario

Find the user's manual on the download area at: www.promaxelectronics.com

ON:

OFF:

FRONT VIEW

Trademark of the

DVB - Digital Video

Broadcasting Project

INDICATIVE ICONS

TOUCH ICONS

Low battery

Cable measurements

Fibre optics measurements

Edit value

123

Select parameter

abc

1TFT Touch screen

RANGER

mini

QUICK REFERENCE GUIDE

Screenshot

Back to previous screen

Back to main screen

Access to screenshots

Access to dataloggers

Access to settings menu

Switch off

USB flashdrive connected and detected

Connected to Ethernet network

Batery charging

Batery not charging. Green

level indicates battery left

RANGER

mini

MAIN SETTINGS MENU

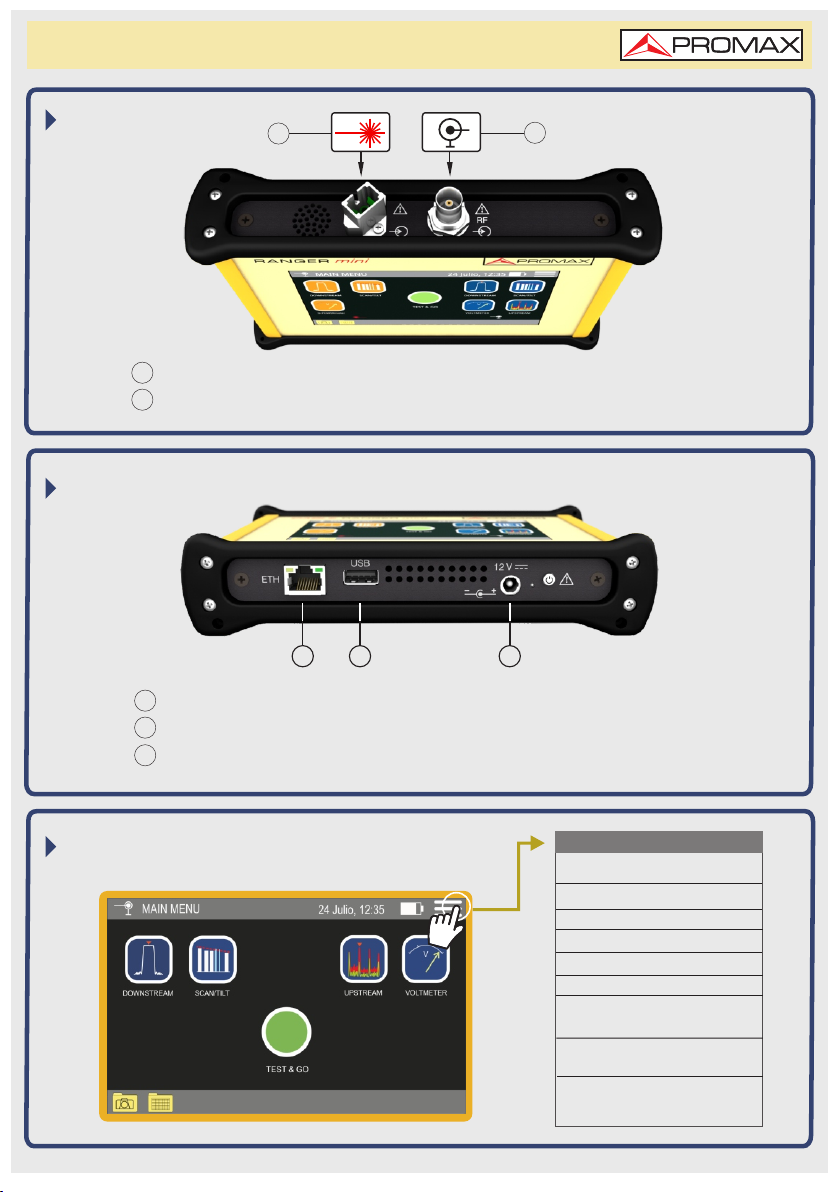

FRONT VIEW

BOTTOM VIEW

Edit channel plan

Language

Date

Time

Sound

Auto power off

Equipment

information

Ethernet

Configuration

Test & Go

configuration

ETHERNET connector for network

(Optional)

QUICK REFERENCE GUIDE

SC-APC connector (fibre optics signal input)

Universal connector for F/F or F/BNC adapter (RF input signal)

USB connector for flashdrive device

12 V DC power input connector

Configuration Menu

RANGER

mini

DOWNSTREAM SPECTRUM ANALYZER

1 Selected channel. When pressing on it deploys a list of available channels.

2 Frequency selected. When pressing on it pops up a virtual numeric keypad to edit frequency.

3 DOCSIS Bonding Group selected and carrier.

4 According to signal type:

5 Carrier/Noise ratio of the channel.

6 Full band RF cable power.

7 Marker for selected channel / frequency.

8 Arrows to change reference level.

9 Span lower frequency.

10 Arrows to increase / decrease span. Current span.

11 Bandwidth resolution.

12 Span upper frequency.

Digital signal: Power for channel bandwidth or frequency.

Analogue signal: Level for channel or frequency selected.

234

11 12

QUICK REFERENCE GUIDE

RANGER

mini

UPSTREAM

1 Frequency selected. When pressing on it pops up a virtual numeric keypad

to edit frequency.

2 Level for the selected frequency.

3 Full band RF cable power.

4 Marker in the selected frequency.

5 Arrows to change reference level.

6 Span lower frequency.

7 Arrows to increase / decrease span. Current span.

8 Bandwidth resolution.

9 Span upper frequency.

QUICK REFERENCE GUIDE

UPSTREAM

RANGER

mini

SCAN

1 2 3

11 12

1 Selected channel. When pressing on, it deploys a list of available channels.

2 Frequency selected. When pressing on, it pops up a virtual numeric keypad

to edit frequency.

3 DOCSIS Bonding Group selected and carrier (if any).

4 According to signal type:

5 Carrier/Noise ratio of the channel.

6 Full band RF cable power.

7 Marker for selected channel / frequency.

8 Arrows to change reference level.

9 Span lower frequency.

10 Arrows to increase / decrease span. Current span.

11 Bandwidth resolution.

12 Span upper frequency.

QUICK REFERENCE GUIDE

Digital signal: Power for channel bandwidth or frequency.

Analogue signal: Level for channel or frequency selected.

RANGER

mini

TILT

1 It shows pilot signals frequency and power. Press on frequency to change its value.

P1/P4: End pilot signals.

P2/P3: Intermediate pilot signals.

2 Power difference between P1 and P4.

3 TILT: Inclination rate in dB per MHz.

4 Full band RF cable power.

5 Arrows to change reference level.

6 Bar graph showing signal level for each pilot signal and TILT.

3 42

QUICK REFERENCE GUIDE

RANGER

mini

VOLTMETER

QUICK REFERENCE GUIDE

1 RF-PWR: Full bandwidth power.

2 Vin DC: DC input voltage.

3 Vin AC: AC input voltage and frequency.

4 Iout: Current out

5 Voltage supply for the LNB:

ON Voltage: Check the box to enable voltage supply.

(0 kHz=low; 22 kHz=high).

(vertical=13 V; horizontal=18V).

22 kHz: Commutation tone. Check the box to change band

13 Volts / 18 Volts: Check the box to select between polarization

RANGER

mini

USER MANUAL

DOWNLOAD

Find the user's manual on the download area at:

www.promaxelectronics.com

RANGER

mini

PDF

v10.0.1 30-08-2018 (0 DG0341)

QUICK REFERENCE GUIDE
