Promate SolarTrail-2 Manual de usuario
User Guide
IP54 Urban Design Angular Solar Pathway
Light with PIR Motion Sensor
400lm Ultra Bright • 3 Light Modes • Energy Efficient LED
SolarTrail-2
English
Introduction
The SolarTrail-2 is a superior quality solar LED wall light that offers exceptional performance in a
contemporary design. It has a minimal feel and is perfect for year-round use, as it has 3
adjustable working modes available. It also comes with IP54 water-resistance for added
protection. It will charge during the day and automatically activate when at night.
Packaging Contents
• SolarTrail-2
• Accessory Bag with Expansion Plug and Screws
• Measure Card
• User Guide
Specifications
• Battery Capacity: 2000mAh
• Battery Type: Li-ion
• Solar Panel Output: 5.5V/418mA
• LED Brightness: 400lm
• PIR Motion Sensor Range: ≤ 6m
• Charging Time: 6 Hours
• Usage Time:
o Continuous Usage: 2-3 Hours
o PIR Motion Sensor Mode: 50 Hours
English
2
Precautions
Please read all safety instructions and warnings thoroughly before using this product.
Improper use of this product may result in damage to this or attached products.
1. Do not disassemble the product or attempt to fix it.
2. If applicable, use an original charging cable provided to charge the product.
3. Do not crush, puncture, dispose of in fire, short the contacts or expose the product
to water or other liquids.
4. Avoid drops, bumps, abrasions and impacts.
5. If there is any reason to believe that there is damage to the product, discontinue
use immediately.
6. If you find that the product is too hot, is emitting an odour, or is deformed,
punctured or exhibits any suspicious or abnormal behaviour, discontinue use
immediately and contact our customer service.
Features
Long Solar Panel Lifespan: 50,000 hours solar panel lifespan that takes only 6 full
hours to recharge (depending on amount of sunshine).
PIR Motion Sensor: The sensitive PIR motion sensor detects motion from up to 6
meters away. Even small pets such as dogs and cats can trigger the solar light sensor.
Super Bright: The 3.2W LED can offer super bright lighting and strong illumination for
a wide area.
Long-Lasting & Energy-Saving: The SolarTrail-2 can charge in only 6 hours and last for
3 hours long.
Easy-to-Install: Super easy to setup and install, add the needed light source for the
outside of your home quickly without using any electrical wiring. It will work
anywhere there is direct sunshine.
Water-Resistant: This solar LED light is water-resistant and durable with hard
fire-proof plastic that can withstand years of use.
English
3

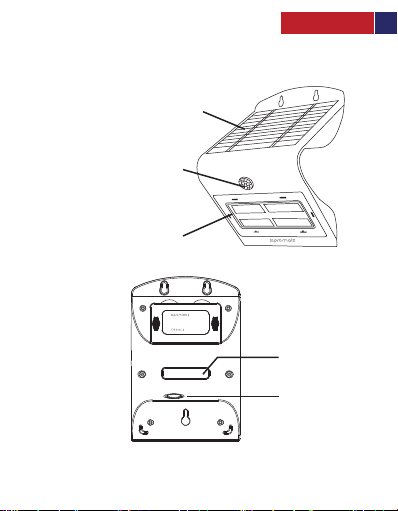

Appearance & Interface Description
1. Solar Panel
2. PIR Motion Sensor
3. LED Light
4. LED Backlight
5. Power Button
4
5
SolarTrail-2
BatteryCapacity: 2000mAh
BatteryType: Li-ion
SolarPanel Output: 5.5V/418mA
LEDBrightness: 400lumens
S/N:
Madein China
www.promate.net
180277
1
3
2
SolarTrail-2
English
4
Operation Instructions:
Notice
1. Please use the card to measure hole position correctly and drill 3 holes.
2. Fix 3 expansion plugs into the holes.
3. Fix 3 screws into the expansion plugs with a spare space.
4. Insert the notch to the lower screw and fasten the whole lamp well.
5. Press the back button to adjust to the demanded working mode.
Mode A: Automatically turns on at dusk and remains 20% bright for up to 5 hours
before turning itself off
Mode B: Automatically turns on to full brightness (400lm) when motion is detected in
the working range, and then turns to 3% brightness in 20 seconds when no motion is
detected
Mode C: Automatically turns on to full brightness (400lm) when motion is detected in
the working range and then turns itself off in 30 seconds when no motion is detected
• This is a solar-powered lamp; please install it in a location where it can get enough
sunshine.
• Please note the lighting time depends on sunshine duration and weather.
• The lamp will light up automatically at dusk.
• Built-in intelligent IC overcharge, over-discharge, and over-voltage protection.
SolarTrail-2
SolarTrail-2
123
4
4
5
Notch
Button
Spanish
6
Aspecto & Descripción de la Interfaz
1. Panel solar
2. Sensor de Movimiento PIR
3. Luz LED
4. LED Luz de fondo
5. Botón de encendido
4
5
SolarTrail-2
BatteryCapacity: 2000mAh
BatteryType: Li-ion
SolarPanel Output: 5.5V/418mA
LEDBrightness: 400lumens
S/N:
Madein China
www.promate.net
180277
1
3
2
SolarTrail-2
Spanish
7
Intruciones de Uso
Notice
1. Por favor, utilice la tarjeta para medir correctamente la posición de los agujeros y
taladre 3 agujeros.
2. Fijar 3 tapones de expansión en los agujeros.
3. Fijar 3 tornillos en los tacos de expansión dejando un espacio libre.
4. Inserte la muesca en el tornillo inferior y fije bien toda la lámpara.
5. Presione el botón Atrás para ajustar el modo de trabajo deseado.
Modo A: Automáticamente se enciende al atardecer y permanece con 20% de brillo
hasta 5 horas antes de apagarse.
Modo B: Activa automáticamente el brillo completo (400lm) cuando se detecta
movimiento en el área de trabajo, y luego activa el brillo del 3% en 20 segundos
cuando no se detecta movimiento.
Modo C: Automáticamente se enciende hasta alcanzar el brillo máximo (400 lm)
cuando se detecta movimiento en el área de trabajo y se desactiva en 30 segundos
cuando no se detecta movimiento.
• Esta es una lámpara que funciona con energía solar; por favor, instálela en un lugar
donde pueda recibir suficiente luz solar.
• Tenga en cuenta que el tiempo de iluminación depende de la duración del sol y del
clima.
• La lámpara se encenderá automáticamente al anochecer.
• Protección integrada contra sobrecarga, sobredescarga y sobretensión de CI
inteligente.
SolarTrail-2
SolarTrail-2
123
4
4
5
Notch
Button
French
8
Aspect & Description Interface
1. Panneau Solaire
2. Détecteur de Mouvement PIR
3. Lumière LED
4. Lumière arrière LED
5. Bouton Alimentation
4
5
SolarTrail-2
BatteryCapacity: 2000mAh
BatteryType: Li-ion
SolarPanel Output: 5.5V/418mA
LEDBrightness: 400lumens
S/N:
Madein China
www.promate.net
180277
1
3
2
SolarTrail-2
French
9
SolarTrail-2
SolarTrail-2
123
4
4
5
Notch
Button
Mode d’Emploi
Attention
1. Utilisez la carte de mesure pour trouver la bonne position et percez 3 trous.
2. Fixez 3 chevilles d’expansion dans les trous.
3. Fixez les 3 vis dans les chevilles à expansion avec un espace.
4. Introduisez l’encoche dans la vis inférieure et fixez la lampe correctement.
5. Appuyez sur le bouton arrière pour régler le mode de travail souhaité.
Mode A : s’allume à la tombée de la nuit et garde une luminosité de 20 % pendant 5
heures avant de s’éteindre automatiquement
Mode B : s’allume automatiquement avec une luminosité optimale (400lm) lorsqu'un
mouvement est détecté dans la zone de travail et descend jusqu'à une luminosité
d'environ 3 % en 20 secondes en absence de mouvement détecté
Mode C : s’allume automatiquement avec une luminosité optimale (400lm) quand un
mouvement est détecté dans la zone de travail et s’éteint ensuite en 30 secondes en
absence de mouvement détecté
• Ceci est une lampe à énergie solaire ; veillez à la placer dans un endroit bien éclairé.
• N’oubliez pas que le temps d’éclairage dépend de l’exposition au soleil de l’appareil
et des conditions météo.
• La lampe s’allume automatiquement à la tombée de la nuit.
• Protection Intelligente IC intégrée contre la surtension IC et la surcharge.
German
10
Aussehen & Schnittstellenbeschreibung
1.Solarpanel
2.PIR Bewegungssensor
3.LED-Licht
4. LED-Hintergrundbeleuchtung
5.Netztaste
4
5
SolarTrail-2
BatteryCapacity: 2000mAh
BatteryType: Li-ion
SolarPanel Output: 5.5V/418mA
LEDBrightness: 400lumens
S/N:
Madein China
www.promate.net
180277
1
3
2
SolarTrail-2
