Operations Manual

Model: DP2000UPE

Urban Pizza Manual Press

-1- DP2000-1725-7/04

Congratulations!

Your selection of the Proluxe DP2000

is a sound business decision. Whether

your intended use is to press or par bake

dough for pizzas, tortillas, mushi skins

or other appropriate dough products, rest

assured that you have made a wise

choice.

Proluxe equipment is a result of the

highest quality engineering and time-

tested design. Your machine, combined

with Proluxe’s reputation of

innovation in dough press equipment

manufacturing, insures the continuing

capability of delivering the best-

decorated product possible.

This manual describes installation,

operation, and maintenance procedures

for your new model DP2000.

Your model DP2000 machine will have

a long trouble-free life. Read this

manual carefully and keep it with your

machine; it’s your key to proper

operation and lasting service.

Included with your shipment:

•5 Rubber Feet

•Platen Saver **If your unit has

polished platens**

Installation

DOMESTIC

Use a separate 30 amp AC

circuit. Only industrial extension

cords with proper wire size

should be used; size 16/3 wire for

distance up to 25 feet, and size

14/3 for distance up to 50 feet.

INTERNATIONAL

Use a designated 30 amp AC

circuit. Only industrial extension

cords with proper wire size (2.5

sq. mm) shall be used.

Make sure there is a proper electrical

wall outlet located within reach of the

cord and plug attached to the press.

Then place the press in an area that

allows for “swing clearance”. Note that

the upper platen rotates up to 90°, in a

backward rotation, to facilitate removal

of the dough product after the press

cycle has been completed. Also note

that the machine requires a vertical, clear

space of 33” from the bottom of the

machine to the top of the pull handle.

Limited Machine Warranty

Proluxe warrants this dough press

machine, when operated under normal

conditions, to be free from

manufacturing defects in material and

workmanship for a period of one year on

parts and labor from the invoice date.

This warranty will be effective only

when Proluxe authorizes the original

purchaser to return the product to the

Factory in Perris, California

-2- DP2000-1725-7/04

prepaid and only when the product, upon

examination, has proven to be defective.

This warranty does not apply to any

machine that has been subjected to

misuse, negligence or accident.

Proluxe shall not be liable for the

injury, loss or damage, direct or

consequential, arising out of the use or

the inability to use the product.

No claim of any kind shall be greater in

amount than the sale price of the product

or part to which claim is made.

This is the sole warranty given by the company, it is in

lieu of any other warranties, expressed or implied, in

law or in fact, including the warranties of

merchantability and fitness for a particular use, and is

accepted such by the purchaser in taking delivery of

this product.

Specifications

Electrical:

208V/50-60Hz/4600W/22.11Amps

Requires 30 AMP outlet

Includes 72” NEMA 6-30P approved

cord and plug.

Shipping Weight:

180lbs. (82kg)

Familiarize yourself with controls and

operating mechanisms before attempting

to use the DP2000. These are as

follows:

(A) Pull Pressing Handle for raising

and lowering the upper platen.

This action forces the mating of

the platens.

(B) Thickness Control Dial.

above the button will illuminate

when turned on to indicate

power is in the press.

(D) Control Panel (see Control

Board Operations)

(E) Handle for swing-out platen.

(F) Upper platen

(G) Lower platen

(H) Handle adjustments (see

Tightening the Pull-Down

Handle)

Safety Summary

-3- DP2000-1725-7/04

WARNING

In case of power cord damage,

do not attempt to repair or

replace the power cord. Contact

the manufacturer or the local

distributor.

WARNING

Avoid touching hot surfaces

while operating the machine.

CAUTION

During normal operation, the

base of the machine must be

installed or placed above the wall

socket.

CAUTION

When servicing or cleaning the

machine, make sure that the

power cord is removed from the

wall socket.

Control Board Operations

Solid State Controller

This controller has three (3) control

features:

1. Temperature – Temperature may

be set from 0°-450°F (0°-

232°C). The factory default

setting is 240°. If you would like

to change this setting, simply

follow the Controller Operation

directions.

2. Counter – Cycle counter counts

the number of applications from

1 to 9999 (see additional Notes –

Counter).

3. Timer – A timer mode is

available upon special request. If

you would like to have the timer

function installed, please call

1-800-624-6717

Controller Operation

Temperature Control

1. Press the MODE button until

temperature is displayed.

2. Push and hold SET button and

simultaneously push UP (V) or

DOWN (W) arrow buttons to the

desired temperature setting.

For the DP2000, both the upper

and lower platens may be set to

different temperatures.

•Upper Platen: Simply

push the MODE button

until the “upper” light is

illuminated. Adjust the

temperature as noted

above.

•Lower platen: Simply

push the MODE button

until the “lower” light is

illuminated. Adjust the

temperature as noted

above.

-4- DP2000-1725-7/04

Dough Pressing Operations

SETTING CRUST THICKNESS

CONTROL:

*The thickness is determined by dough

weight and temperature setting on each

platen. Setting crust thickness is as

simple as the twist of a dial. The

thickness adjustment dial can be located

on the top of the DP2000. By means of

trial and error, rotate the dial until

desired thickness is obtained. **If your

platens are polished they have been

coated with Platen Saver. This product

will prevent dough from sticking and

make cleanup much easier. A sample

bottle has been included along with an

order sheet for your convenience. Note:

Never force the dial past its stop

position or damage could occur.

PRESSING DOUGH:

1. First make sure you have the

correct type electrical current or

serious damage could occur!

2. Press the Power Button in order

to turn the machine on. A green

light will illuminate above the

power button indicating that

power is in the machine.

3. Both the upper and lower platens

will heat up once you have

adjusted your digital control to

your desired setting. Note:

Different products require

different temperature settings. In

order to determine the right

temperature setting for your

product, refer to the following

table simply as a guide for

starting.

*To achieve consistent size flour

tortillas of smaller than 10” you will

need to only press 2 at a time as shown

in the pictures included with the

manual.

Note: Keep in mind that dough

formulations may differ, and that you

may have to do some trial and error

testing of different temperatures and

platen pressure to arrive at the proper

end result for your particular product.

Also note that the finished, after-

pressing diameter of the finished dough

piece is determined by the weight of the

dough and the amount of pressure

applied to the platens.

For best results, your dough should be

proofed at room temperature before

pressing, but it will also press directly

out of your refrigerator. Flour is not

required to press a crust and should not

be dusted on any part of the machine.

Press Only Press & Par Bake

Dough

Product Temp Press

Time Temp Press

Time

Pizza

150°F

both

platens

seconds

325°F

both

platens

7-15

seconds

Flour

Tortilla N/A

350°F

both

platens

1 quick

second

Corn

Tortilla

No heat,

must

use wax

paper

seconds N/A

Mushi

Skin

150°F

both

platens

seconds N/A

-5- DP2000-1725-7/04

No. DPPC1. (See our catalog

and price list for information.)

Note: This spray will not affect

the taste of your crust in any

way.

6. Place your pre-portioned ball of

dough in the approximate center

of the lower platen. Add another

dash of spray to the top of the

dough ball.

7. Close the platen and pull the “U”

shaped handle down to

commence the pressing

operation.

8. Hold the handle down for as long

as you have determined to be the

appropriate amount of time for

your particular product and then

simply pull the handle back up

when you have completed.

9. Inspect your dough. If it is too

thick, rotate the thickness control

dial, located on the top of the

machine, to the line marked

“THIN”. Reverse this procedure

if your product presses too thin.

Experiment with temperature,

dough weight, time, and pressure

until you arrive at the desired

result.

10. Remove the finished product by

rotating the upper platen out of

the way until you have sufficient

space to do so. Place the dough

on a screen or in a pan. Since the

shape of the dough may be

altered slightly in the transfer

process, some hand fitting may

be required. Add toppings, if

desired, and now you are ready

to bake.

ADDITIONAL NOTES:

Temperature

Note

Fahrenheit/Centigrade (Celsius)

Conversion

The temperature controller can

be programmed to display either

°F or °C. To change: Press the

MODE button until the

temperature is displayed, then

push and hold the SET button for

10 seconds.

Counter

The controller has a built in cycle

counter.

•Press MODE button until the

counter is displayed.

•Counter display range is 0000 to

9999.

•To reset the cycle counter,

display the counter reading, then

push and hold both UP (V) and

DOWN (W) arrow buttons for 3

seconds until the counter resets

to zero (0000) on the display.

Tightening the Pull-Down Handle

The pull-down pressing handle requires

adjustment periodically to prevent it

from free falling. Whenever the handle

seems too loose or is falling by itself, the

problem can be corrected easily and

quickly as follows:

1. Using a 3/16” hex shaped Allen

wrench, insert in key slot located

on the right beneath the upper

shroud.

2. Tighten until the press action of

the handle becomes firm but not

too tight.

-6- DP2000-1725-7/04

International Symbols

Serial Tags

Preventative Maintenance Suggestions

The Proluxe DP2000 machines are

relatively maintenance free. For a long

and trouble-free life, the following

preventative maintenance should be

followed:

Daily Care:

1. Platens: These platens should

only be cleaned with mild soap

and warm water then wiped off

with a clean, soft cloth or soft

sponge. Never use steel wool or

harsh abrasives or you will

cause costly damage.

2. All other exterior surfaces:

Here again a daily wipe down

with mild soap and warm water

will do the job quite nicely.

Never use steel wool or harsh

abrasives or you will cause

costly damage.

-7- DP2000-1725-7/04

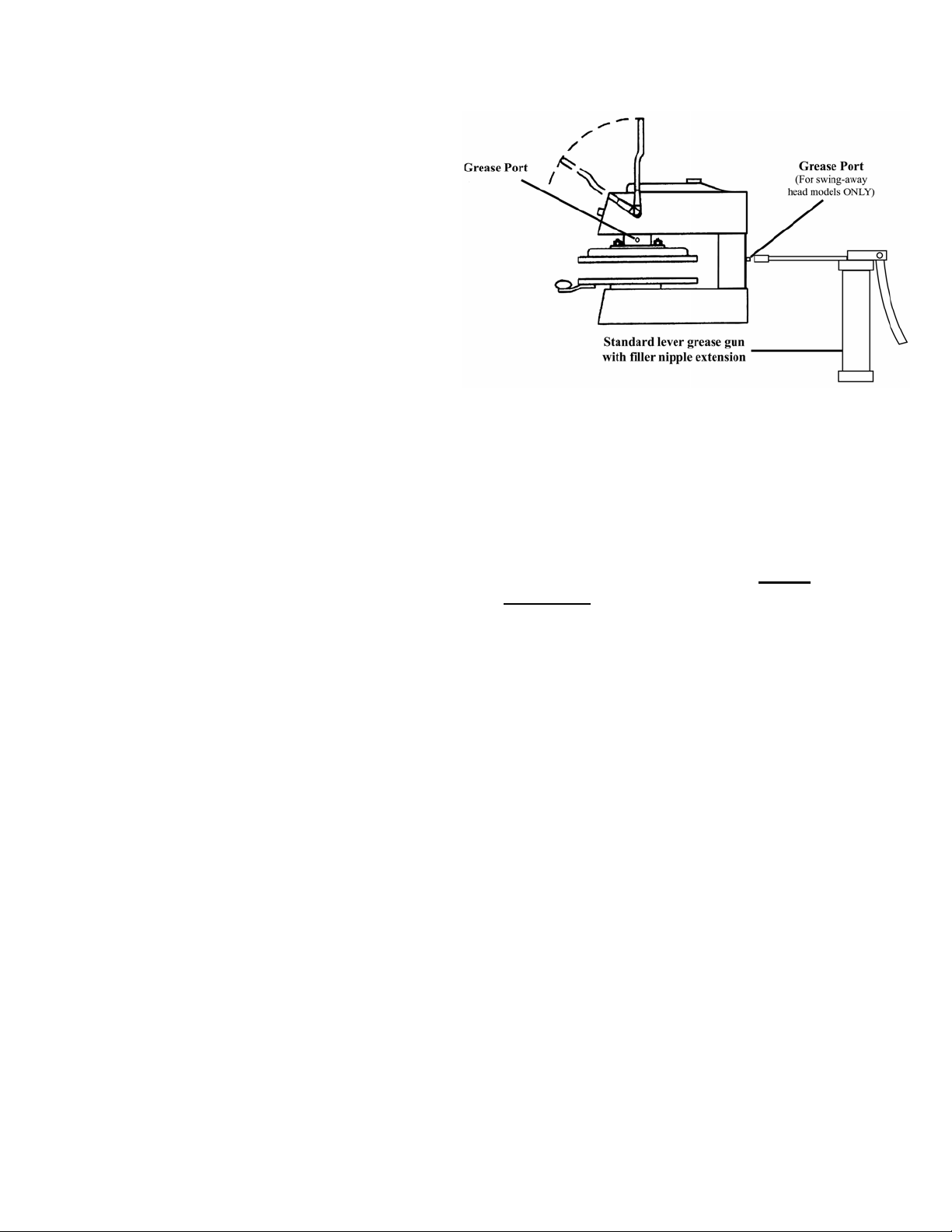

Piston Maintenance:

In order to ensure proper and trouble

free operation of the press piston, it is

important that the machine be lubricated

once every three (3) months, under

normal operation. High volume users

may require more frequent lubrication.

The lubricant used must be USDA H-1

authorized for food machinery. This

lubricant can be ordered through

Proluxe as part number # 110-002.

Please follow these simple instructions:

1. Locate the grease port on the

machine. Machines with pull

down arms have a single grease

port located below the upper

head on the right side of the

vertical post. Machines with

swing-away upper heads have

two grease ports; one on the right

side of the vertical post and one

on the back of the vertical post.

All other machines have a single

port. (refer to illustration)

2. Place grease gun head against

grease port and apply enough

pressure to allow gun head to

engage the grease port.

3. Squeeze handle of grease gun

which forces the grease into the

piston. One squeeze is all it

takes.

Service Problems:

Contact our factory or approved service

agency (U.S. only). Note: When

contacting factory for information, parts

or service instructions, it is of the utmost

importance that the serial number of the

machine be provided. This number can

be found on the serial plate located on

the rear of the machine.

DOUGHPRO

DP2000 Trouble Shooting Guide

Symptom Probable Cause Action to be Taken

Power Button on Digital Controller

face is depressed but doesn’t turn

on.

Power Cord is not plugged in.

Plug power cord into wall 's receptacle

and depress power button on

controller

Circuit Breaker is tripped off in the

site's breaker box

Reset circuit breaker that the Grill is

plugged into. Depress Power Button to

turn on.

Transformer has taken a electrical

surge and is damaged

Replace Transformer after you check

secondary side of transformer. If

working properly, you should receive

12vdc.

Check voltage on the secondary side

of the Transformer. If you read

12VDC then you are receiving voltage

to the Controller.

Replace Controller. Controller should

be on once the power button is

depressed.

Possibly blown Fuse Replace fuse.

Digital Controller's LED's are

scrambled or randomly irratic. If

when turning on, the display will

first go to segment check

Possibly a componet on the Digital

Controller is damaged

Replace Digital Controller

Possibly control needs to reset

While unit is on (controller lit up)

Unplug unit, wait for 1 min. then plug

machine on and depress power button.

Digital Controller on startup goes

through LED segment check (8888)

then to version # and then loops

back to to the above reboot.

The relay driver on the digital control

may be blown.

Replace Digital Controller.

Digital display shows PROB. No

heat on Upper Platen or Lower

Platen.

Sensor lost it's continuity as shown

on a muti-meter.

Disconnect prob that is open (no

continuity as shown on a multi-meter.

Must replace Sensor (RTD). Do not cut

and splice new sensor. Install new

2000 ohm RTD sensor to under side of

Heat Platen and reconnect to

Controller.

When depressing the tactile button

on Digital Controller, nothing

happens.

The tactile buttons under the overlay

may be not close enough to activate.

Same goes if the buttons are already

pressed by overlay without

depressing button.

Carefully (no too much at one time to

avoid fracturing the traces on the

Controller) tighten the nuts on the

back of the Controller until button

activate. Same goes in reverse if

buttons are held down by the overlay.

Digital display shows Relay and

Particular zone is over heating or

outer zone).

The Relay on the switched side is not

opening to regulate temperture.

Replace the Relay.

Beeper not functioning or

intermitten beeper sound.

Beeper on Digital Control board

failed.

Replace Digital Controller board

If setpoint is reached but slighty off

in temperature.

Offset may need to be calibrated and

adjusted.

Must call (800) 624-6717 for

confidential instructions.

DOUGHPRO

DP2000 Trouble Shooting Guide

Symptom Probable Cause Action to be Taken

Heater Platen overheating

If the Relay (depending the year of

the model) on the coil side are

receiving 12vdc indicates the

Controller is functioning properly. On

the switching side of the relay, is

there 120 vac going to the heater in

question . If there is no voltage on

the to the switching side of the relay

to the heaters, the Relay is not

working properly. It has been seen

on remote cases, the Sensor (2M

ohm) can give a false reading as well.

Replace Relay If the Controller's heat-

on LED is not lit indicating the

controller is working properly. If this is

not the issue, replace sensor.

Dough not having same thickness

across the press dough.

To adjust upper platen for level press

Underneath the arm resting on the

Upper Platen Shroud you will find 4,

stacked hex bolts sitting over the upper

platen attach to the arm. The top bolts

are called locking bolts. The 4 larger

Hex Bolts below are Adjustment Bolts.

Break free the 4 Locking blts. With a

open end wrench adjust the A. bolts

(1/8 turn at a time where needed and

test with dough. After satisfied,

tighten the Locking bolts making sure

not to move the larger Adustment

Bolts.

Tabla de contenidos

Otros manuales de Equipos comerciales para alimentos de Proluxe

Proluxe

Proluxe Endurance Pro X2 Manual de usuario

Proluxe

Proluxe TORTILLAPRO DP2000PAUB Manual de usuario

Proluxe

Proluxe Apex X1 Manual de usuario

Proluxe

Proluxe Endurance Pro X2 Manual de usuario

Proluxe

Proluxe DOUGHPRO DP1300 Series Manual de usuario

Proluxe

Proluxe FAST-FIRE'D BLAZE PIZZA DOUGHPRO DP2010MBZE Manual de usuario

Proluxe

Proluxe DP2010SE Manual de usuario

Proluxe

Proluxe PIEOLOGY DOUGHPRO DP2000PIP Manual de usuario

Proluxe

Proluxe DP2000FPE Manual de usuario

Proluxe

Proluxe Endurance X1 Manual de usuario

Proluxe

Proluxe DOUGHPRO DP1300BP Series Manual de usuario

Proluxe

Proluxe DP2000 Manual de usuario

Proluxe

Proluxe DP2010ZPE Manual de usuario

Proluxe

Proluxe CS157 Manual de usuario

Proluxe

Proluxe FAST-FIRE'D BLAZE PIZZA DOUGHPRO DP1300BZ Manual de usuario

Proluxe

Proluxe DP2000E Manual de usuario

Proluxe

Proluxe Apex Pro X2M Manual de usuario

Proluxe

Proluxe Endurance X1M Manual de usuario

Proluxe

Proluxe DP2000CKE Manual de usuario

Proluxe

Proluxe DOUGHPRO DP1100BZ Series Manual de usuario

Proluxe

Proluxe Endurance X1 Manual de usuario

Proluxe

Proluxe DOUGHPRO DP2300UPE Manual de usuario

Proluxe

Proluxe DOUGHPRO DP2300CBE Manual de usuario

Proluxe

Proluxe DOUGHPRO DP2300E Manual de usuario

Manuales populares de Equipos comerciales para alimentos de otras marcas

Blue Seal

Blue Seal EF30 Manual de usuario

Tecfrigo

Tecfrigo Snelle 400 GS Manual de usuario

Follett

Follett PFT Series Manual de usuario

Realtree

Realtree Weston 75-0301-RT Manual de usuario

MEFE

MEFE CAT 206 PTR Guía

Premier

Premier 900cl Manual de usuario

Diamond

Diamond AL1TB/H2-R2 Manual de usuario

Salva

Salva IVERPAN FC-18 Manual de usuario

Hussmann

Hussmann Rear Roll-in Dairy Manual de usuario

Cornelius

Cornelius IDC PRO 255 Manual de usuario

Moduline

Moduline HSH E Series Manual de usuario

MINERVA OMEGA

MINERVA OMEGA DERBY 270 Manual de usuario

Cambro

Cambro IBSD37 Manual de usuario

Fri-Jado

Fri-Jado LDR 8 s Manual de usuario

Diamond

Diamond OPTIMA 700 Guía de inicio rápido

Allure

Allure Melanger JR6t Manual de usuario

saro

saro FKT 935 Manual de usuario

MKN

MKN OPGGSGARG Series Manual de usuario
