PROLiNK maca keys mini Manual de usuario
Version 1.10
(English | Indonesian)
Multi-device
maca keys mini
User Guide
Model No:
GK-5001M
Front View
Rear View
Overview2
EN1
Package Contents1
x 1x 1x 1x 1
AAA
Ins
3
1
5
2
1
4
O
On
Overview2
EN2
English
Features3
• Compact keyboard
• Holder for mobile device
• Switch between multiple devices easily
• Dual-mode: Wireless 2.4GHz + Bluetooth 5.0
• 82 keys compact structure
• Operating range up to 10 meters
• Keys lifespan 5 million times
• Auto sleep mode after 30mins of inactivity
• Anti-bacterial
Interface
1. Holder for mobile device
2. LED Indicators
3. On/o button
4. Nano USB receiver
5. Battery compartment
Mobile Device Holder
EN3
Connection mode4
GK-5001M connects with up to three devices using Wireless 2.4GHz or
Bluetooth and lets you switch eortlessly between them simultaneously.
Dual-mode connection
Bluetooth 22.4GHz Bluetooth 1
Wireless 2.4GHz mode
1. Insert nano USB receiver 2. Insert the battery into
battery compartment
3. Switch ON the keyboard
2.4GHz
4. Keyboard is ready to use
*If no response, please eject the receiver and insert to another USB port of the computer or replace a
new battery
EN4
Connection mode4
English
Bluetooth mode
Toggle between devices
Notes:
i) Recommended: Connect to "GK5001M_BT5" (Bluetooth 5.0 BLE) for better connection stability.
ii) Successful Bluetooth 5.0 connection is dependent on the hardware compatibility of the device(s) you
connect to.
/
3 sec.
Press and hold FN + W ( ) / E ( ) keys for 3 seconds, the indicator light
flashes when entering pairing mode (Blue/Green light). From your device's
screen, select "GK5001M_BT3" or "GK5001M_BT5" and click "Pair".
Simply press the combination keys and connect to respective device.
Fn + Q Connect to Wireless 2.4GHz channel (LED blinks in Red)
Fn + W Connect to Bluetooth 1 channel (LED blinks in Blue)
Fn + E Connect to Bluetooth 2 channel (LED blinks in Green)
//
1 sec.1 sec.
EN5
Connection mode4
Toggle between Operating System (OS)
Windows OS / Android OS
macOS / iPadOS / iOS
Select a specific OS layout by holding the combination keys for 3 seconds.
3 sec.
*LED blinks in Red after switching to macOS / iPadOS / iOS layout successfully
3 sec.
1 sec.
English
EN6
Shortcuts and function keys5
The tables below shows multimedia shortcuts available for Windows,
macOS, Android, iPadOS and iOS.
*Task Switcher (Fn+F3): Not available on iPhone iOS
Keys
Functions
Decrease
display
brightness
Increase
display
brightness
Task
switcher Return Search Previous
track Play/Pause
ScreenshotNext track Mute Decrease
volume
Increase
volume
Switch input
language
Keys
Functions
**Switch Input Language (Fn+F12): Recommended to use Shift + Space for Android (except Huawei)
default keyboard.
Tampak hadapan
Tampak belakang
x 1x 1x 1x 1
AAA
ID1
Keterangan Gambar2
Isi Kemasan1
54
Ins
3
1
2
O
On
Antarmuka
1. Pemegang untuk perangkat seluler
2. Indikator LED
3. Butang on/o
4. Penerima USB nano
5. Kompartemen baterai
Keterangan Gambar2
ID2
Indonesia
Pemegang Perangkat Seluler
Fitur3
• Papan ketik yang ringkas
• Alur untuk perangkat seluler
• Beralih di antara beberapa perangkat dengan mudah
• Mode ganda - Nirkabel 2.4GHz + BT3.0 / BT5.0
• 82 kunci struktur kompak
• Jangkauan operasi hingga 10 meter
• Umur kunci 5 juta kali
• Mode tidur otomatis setelah 30 menit tidak aktif
• Anti-bakteri
ID3
Bluetooth 22.4GHz Bluetooth 1
Mode koneksi4
GK-5001M terhubung dengan hingga tiga perangkat menggunakan
Wireless 2.4GHz or Bluetooth dan memungkinkan Anda beralih dengan
mudah di antara keduanya secara bersamaan.
Koneksi mode ganda
Mode nirkabel 2.4GHz
1. Masukkan penerima USB nano 2. Masukkan baterai ke dalam
kompartemen baterai
3. Nyalakan keyboard
2.4GHz
4. Papan ketik siap digunakan
*Jika tidak ada tanggapan, harap keluarkan receiver dan masukkan ke port USB lain di komputer
atau ganti baterai baru
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Teclado de PROLiNK
PROLiNK
PROLiNK PCML-5308G Manual de usuario
PROLiNK
PROLiNK PKM-3810B Manual de usuario
PROLiNK
PROLiNK Velifer PKGM-9101 Manual de usuario
PROLiNK
PROLiNK PKGM-9301 Egregius Manual de usuario
PROLiNK
PROLiNK PKM-3809U Manual de usuario
PROLiNK

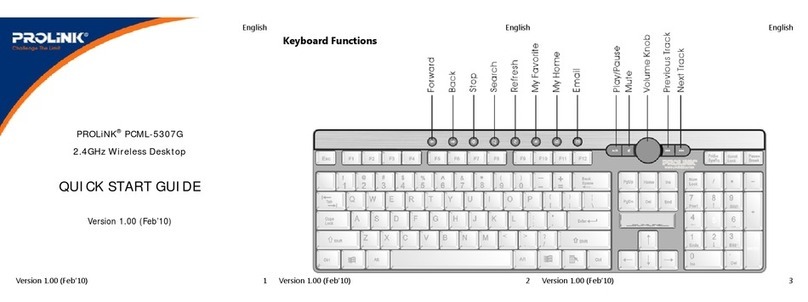

PROLiNK PCML-5307G Manual de usuario
