ProLights EclMiniProfile WDMX Manual de usuario

USER MANUAL

REV.02-04/21 English version

EclMiniProfile WDMX

28W track mounted mini LED prole with

W-DMX control

Mini LED prole with WDMX control

EclMiniProfile TRWD

Thank you for choosing PROLIGHTS

Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements

for professionals and designed and manufactured for the use and application as shown in this document.

Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be

a source of danger.

This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively

applicable national accident prevention rules and regulations.

Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated

companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other

loss occasioned by the use of, inability to use or reliance on the information contained in this document.

Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial

PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).

Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad

set of always updated technical documentation: specications, user manual, technical drawings, photometrics,

personalities, xture rmware updates.

The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services

or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.

04026 - Minturno (LT) ITALY.

Visit the download area

of the product page

MINIECLWD MINIECLTRWD

PROLIGHTS - EclMiniProfile WDMX / TRWD 01

INDEX

SAFETY INFORMATION 02

1 - PACKAGING 05

PACKAGE CONTENT..................................................................................................... 05

OPTIONAL ACCESSORIES............................................................................................. 05

2 - TECHNICAL DRAWING 05

3 - INSTALLATION 06

MOUNTING.................................................................................................................... 06

4 - CONNECTION TO THE MAINS SUPPLY 07

5 - START UP 07

CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 07

6 - PRODUCT OVERVIEW 08

7 - DMX CONNECTION 09

DMX ADDRESSING ........................................................................................................ 09

8 - CONTROL PANEL 10

DISPLAY AND BUTTONS LAYOUT................................................................................. 10

9 - MENU STRUCTURE 11

10 - DMX CHARTS 12

11 - GOBO INSERTION 13

OPTIC (CODES MINIECLL19/26/36/50, MINIECLTRL19/26/36/50 - OPTIONAL) ......... 13

12 - ACCESSORIES INSTALLATION 14

OPTIC (CODES MINIECLL19/26/36/50, MINIECLTRL19/26/36/50 - OPTIONAL) ......... 14

13 - MAINTENANCE 15

MAINTENANCE AND CLEANING THE PRODUCT........................................................ 15

VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 15

TROUBLESHOOTING..................................................................................................... 16

PROLIGHTS - EclMiniProfile WDMX / TRWD02

SAFETY INFORMATION

WARNING!

• Please read carefully the instruction reported in this section before installing, power-

ing, operating or servicing the product and observe the indications also for its future

handling.

This unit is not for household use, only professional applications.

Connection to mains supply

• The Connection to the mains supply must be carried out by a qualied electrical

installer.

• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected

to ground (earth).

• Select the cable cross section in according with the maximum current draw of the

product and the possible number of products connected at the same power line.

• The AC mains power distribution circuit must be equipped with magnetic+residual

current circuit breaker protection.

• Do not connect it to a dimmer system; doing so may damage the product.

Protection and Warning against electrical shock

• Do not remove any cover from the product, always disconnect the product from AC

power before servicing.

• Ensure that the xture is electrically connected to ground (earth). And use only a

source of AC power that complies with local building and electrical codes and has

both overload and ground-fault (earth-fault) protection.

• Before using the xture, check that all power distribution equipment and cables are

in perfect condition and rated for the current requirements of all connected devices.

• Isolate the xture from power immediately if the power plug or any seal, cover, ca-

ble, or other components are damaged, defective, deformed or showing signs of

overheating.

• Do not reapply power until repairs have been completed.

• Refer any service operation not described in this manual to PROLIGHTS Service team

or an authorized PROLIGHTS service center.

Installation

• Make sure that all visible parts of the product are in good visible condition before its

use or installation.

• Make sure the point of anchorage is stable before positioning the projector.

• When suspending the xture above ground level, secure it against failure of primary

attachments by attaching a safety cable that is approved as a safety attachment for

the weight of the xture to the attachment point on the main frame of the product. ln

case the safety cable, enter in action, it needs to be replaced with a new one.

• Install the product only in well ventilated places.

• For non temporary installations, ensure that the xture is securely fastened to a load-

bearing surface with suitable corrosionresistant hardware.

• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or

screws are turned fully, and secured with a suitable safety cable.

0,5 m Minimum distance of illuminated objects

• The projector needs to be positioned so that the objects hit by the beam of light are

at least 0.5 meters (1.64 ft) from the lens of the projector.

PROLIGHTS - EclMiniProfile WDMX / TRWD 03

45°

Max operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).

-10°

Minimum operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) is below -10 °C (14 °F).

Protection from burns and re

• The exterior of the xture becomes hot during use. Avoid contact by persons and

materials.

• Ensure that there is free and unobstructed airow around the xture.

• Keep ammable materials well away from the xture

• Do not expose the front glass to sunlight or any other strong light source from any an-

gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.

• Do not attempt to bypass thermostatic switches or fuses.

Indoor use

• This product is designed for indoor and dry environments.

• Do not use in wet location and do not expose the xture to rain or moisture.

• Never use the xture in places subject to vibrations or bumps.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Excessive dust, smoke uid, and particle build up degrades performance, causes

overheating and will damage the xture.

• Damages caused by inadequate cleaning or maintenance are not covered by the

product warranty.

70°

Temperature of the external surface

• The surface of the xture can reach up to 70 °C (158 °F) during operation. Avoid

contact with people and materials.

Maintenance

• Warning! Disconnect the xture from AC mains power and allow to cool for at least

10 minutes before handling.

• Only technicians who are authorized by PROLIGHTS or Authorised service partners

are permitted to open the xture.

• Users may carry out external cleaning, following the warnings and instructions pro-

vided, but any service operation not described in this manual must be referred to a

qualied service technician.

• Important! Excessive dust, smoke uid, and particle build up degrades performance,

causes overheating and will damage the xture. Damages caused by inadequate

cleaning or maintenance is not covered by the product warranty.

Photobiological safety

• This device emits potentially dangerous optical radiation and is identied in the cat-

egory of Risk Group 1 according to EN 62471.

Do not stare at the operating light source

• Do not look directly at the LED source during operation. It can be harmful to the eyes

and skin.

• During Installation, operation and maintenance, be prepared for the xture to light

and move suddenly when connected to power.

PROLIGHTS - EclMiniProfile WDMX / TRWD04

Disposal

• This product is supplied in compliance with European Directive 2012/19/EU – Waste

Electrical and Electronic Equipment

• (WEEE). To preserve the environment please dispose/ recycle this product at the end

of its life according to the local regulation.

The products to which this manual refers comply with:

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).

• 2014/30/EU - Electromagnetic Compatibility (EMC).

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).

• 2014/53/EU - Radio Equipment Directive (RED).

PROLIGHTS - EclMiniProfile WDMX / TRWD 05

1 - PACKAGING

PACKAGE CONTENT

• 1x MINIECLWDTU / DY or MINIECLTRWDTU / DY;

• User Manual.

OPTIONAL ACCESSORIES

• WSBBR512G6: blackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX;

• WSBBR512G5: blackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional;

• WSBBF1G6: blackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX;

• WSBBF1G5: blackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch;

• RSR0630A/B: steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black;

• C6002: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt;

• MINIECLL19 (for MINIECLWD): optics for MINIECL proler, gobo holder included, 19° beam;

• MINIECLL26 (for MINIECLWD): optics for MINIECL proler, gobo holder included, 26° beam;

• MINIECLL36 (for MINIECLWD): optics for MINIECL proler, gobo holder included, 36° beam;

• MINIECLL50 (for MINIECLWD): optics for MINIECL proler, gobo holder included, 50° beam;

• MINIECLTRL19 (for MINIECLTRWD): optics for MINIECLTR proler, gobo holder included, 19° beam;

• MINIECLTRL26 (for MINIECLTRWD): optics for MINIECLTR proler, gobo holder included, 26° beam;

• MINIECLTRL36 (for MINIECLTRWD): optics for MINIECLTR proler, gobo holder included, 36° beam;

• MINIECLTRL50 (for MINIECLTRWD): optics for MINIECLTR proler, gobo holder included, 50° beam;

• TRACKADA: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible) ;

• WDBBOX: WDMX battery transmitter, mini 5p DMX and WIFI IN, 2.4 GHz, 0.4 kg.

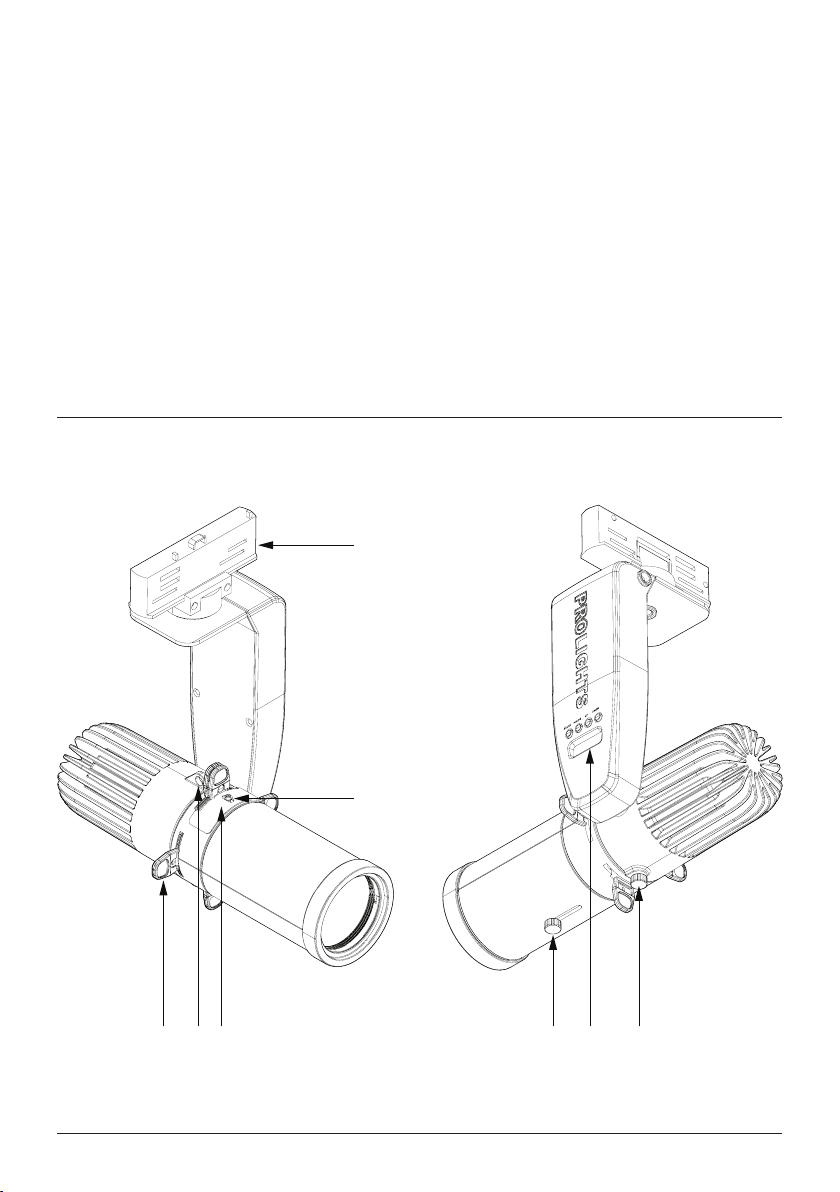

Fig. 01

2 - TECHNICAL DRAWING

Weight: 1 kg - 2.20 lbs

255 mm

[10.0 in]

113 mm

[4.5 in]

227 mm

[8.9 in]

105 mm

[4.1 in]

348 mm

[13.7 in]

Ø50 mm

[Ø2.0 in]

202 mm

[8.0 in]

295 mm

[11.6 in]

MENU UP DOWN ENTER

PROLIGHTS - EclMiniProfile WDMX / TRWD06

3 - INSTALLATION

MOUNTING

Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,

auxiliary equipment, etc. and complies with locally applicable regulations.

When suspending the xture above ground level, secure it against failure of primary attachments by

attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor

point on the product main frame.

Do not use removable parts or weak anchors for secondary attachment.

Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-

pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

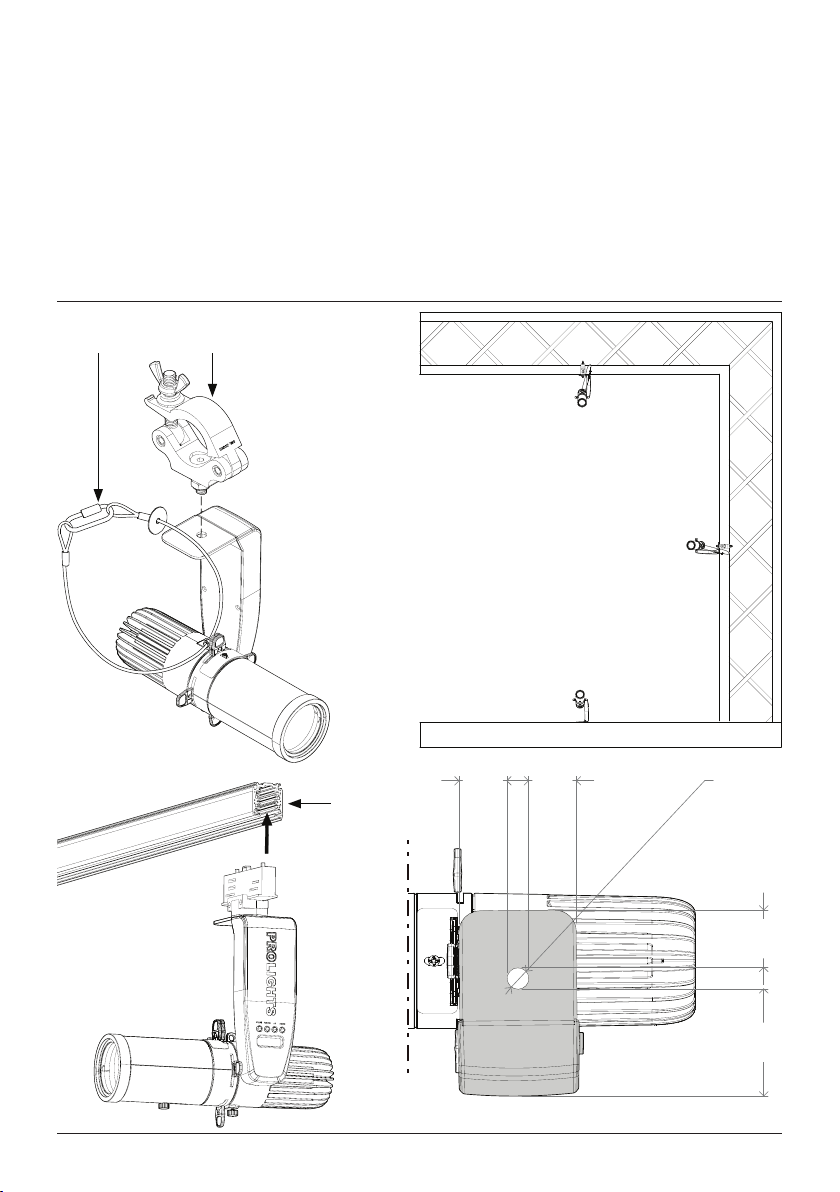

Fig. 02

C6002

clamp

RSR0630A/B

Steel security cable

27 mm

[1.1 in]

50 mm

[2.0 in]

22 mm

[0.9 in]

22 mm

[0.9 in]

Ø10 mm

[Ø0.4 in]

Track system

PROLIGHTS - EclMiniProfile WDMX / TRWD 07

5 - START UP

CONNECT AND DISCONNECT POWER FROM THE PRODUCT

To apply and disconnect power to the product:

• Check that the product is installed and secured as indicated in the Safety Informations, and that

personal safety will not be put at risk when the xture lights up.

• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).

• The product is then ready for its operations and can be controlled through the available input sig-

nals on board.

• To disconnect power from the product, disconnect the Mains from the socket.

4 - CONNECTION TO THE MAINS SUPPLY

WARNING: For protection from electric shock, the xture must be earthed!

The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz

AC power source from 100-240 Volts.

If you need to install a power plug on the power cable to allow connection to power outlets, install a

grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts

about proper installation, consult a qualied electrician.

The max power consumption is 22W.

Included track adapter is compatible with EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus standards.

Core (EU) Core (US) Connection Plug terminal marking

Brown Black Live L

Blue White Neutral N

Yellow+green Green Earth

PROLIGHTS - EclMiniProfile WDMX / TRWD08

6 - PRODUCT OVERVIEW

1. TRACK ADAPTER (included with MINIECLTRWD; EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard

Plus compatible);

2. SCREW to regolate housing gobos;

3. BLADES for FRAMING SYSTEM;

4. SAFETY EYE to attach safety cable;

5. GOBO HOUSING;

6. FOCUS AND ZOOM KNOB;

7. USER INTERFACE with and buttons display for access to the control panel functions.

Fig. 03

73 54 8

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de iluminación de ProLights

ProLights

ProLights EVO64CYC Manual de usuario

ProLights

ProLights EclProfile FW IPVW Manual de usuario

ProLights

ProLights LUMI4RGB Manual de usuario

ProLights

ProLights ArcShine M9/18FC Manual de usuario

ProLights

ProLights SLASH Manual de usuario

ProLights

ProLights FS75LED Manual de usuario

ProLights

ProLights EVO128CYC Manual de usuario

ProLights

ProLights EclPar IPMFC Manual de usuario

ProLights

ProLights LUMIPAR7QTOUR Manual de usuario

ProLights

ProLights EclGalleryProfile FC Manual de usuario

ProLights

ProLights ECLJZIPLZ1530 Manual de usuario

ProLights

ProLights WIFIBox Manual de usuario

ProLights

ProLights LUMIPAR12Q Manual de usuario

ProLights

ProLights Mosaico L Manual de usuario

ProLights

ProLights Cyber24 Manual de usuario

ProLights

ProLights FZ2000D Manual de usuario

ProLights

ProLights Jet PAR7ZIP Manual de usuario

ProLights

ProLights EclPanel TWCJR Manual de usuario

ProLights

ProLights LUMIPAR18QTOUR Manual de usuario

ProLights

ProLights ECLIPSEPARFC Manual de usuario

ProLights

ProLights ECL Series Manual de usuario

ProLights

ProLights Jet Hybrid200 Manual de usuario

ProLights

ProLights MULTIFLOWER 102 Manual de usuario

ProLights

ProLights SMARTBATIP Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
