EclPanel TWC

740W Tunable White and

Colourful LED soft light with pixels

and lighting effects

Thank you for choosing PROLIGHTS.

Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance require-

ments for professionals and designed and manufactured for the use and application as shown in this document.

Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be

a source of danger.

This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respec-

tively applicable national accident prevention rules and regulations.

Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated

companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any

other loss occasioned by the use of, inability to use or reliance on the information contained in this document.

Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial

PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).

Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad

set of always updated technical documentation: specications, user manual, technical drawings, photometrics,

personalities, xture rmware updates.

The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS

services or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and sub-

sidiaries.

136,200; Itri 04020, Italy.

PROLIGHTS - Ecl PanelTWC

INDEX

SAFETY INFORMATION 02

1 - PACKAGING 05

PACKAGE CONTENT..................................................................................................... 05

OPTIONAL ACCESSORIES............................................................................................. 05

2 - TECHNICAL DRAWING 06

3 - INSTALLATION 07

MOUNTING.................................................................................................................... 07

4 - CONNECTION TO THE MAINS SUPPLY 08

5 - START UP 08

CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 08

6 - PRODUCT OVERVIEW 09

7 - DMX CONNECTION 10

CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 10

INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 10

CONNECTION DAISY CHAIN........................................................................................ 10

CONNECTION OF THE DMX LINE................................................................................ 10

CONSTRUCTION OF THE DMX TERMINATION ........................................................... 11

DMX ADDRESSING ........................................................................................................ 11

OPERATION AS A WIRELESS TRANSMITTER................................................................ 11

Unlinking the transmitter ................................................................................................ 12

DMX TO WDMX (TX)...................................................................................................... 12

OPERATION AS A WIRELESS RECEIVER........................................................................ 12

Reset the receiver ........................................................................................................... 12

WDMX TO DMX (RX)...................................................................................................... 12

8 - CONTROL PANEL 13

DISPLAY AND BUTTONS LAYOUT................................................................................. 13

ROTATORY KNOB LAYOUT ........................................................................................... 13

9 - MENU STRUCTURE 14

10 - RDM FUNCTIONS 18

11 - DMX CHARTS 19

12 - ACCESSORIES INSTALLATION 27

THE POLE OPERATED YOKE (code ECLPANELPOYO).................................................. 27

RIGID EGG CRATES (codes EPTWCEC4C, EPTWCEC30, EPTWCEC60)....................... 28

DIFFUSION FILTERS (codes EPTWCFILTERHD, EPTWCFILTERMD, EPTWCFILTERLD) . 29

BARN DOOR (code EPTWCBDR2) ................................................................................. 30

13 - MAINTENANCE 31

MAINTENANCE AND CLEANING THE PRODUCT........................................................ 31

REPLACING THE FUSE................................................................................................... 31

VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 31

TROUBLESHOOTING..................................................................................................... 32

PROLIGHTS - Ecl PanelTWC02

SAFETY INFORMATION

WARNING!

• Please read carefully the instruction reported in this section before installing, power-

ing, operating or servicing the product and observe the indications also for its future

handling.

This unit is not for household use, only professional applications.

Installation

• This product is designed for indoor and dry environments.

• Do not use in wet location and do not expose the xture to rain or moisture.

• Never use the xture in places subject to vibrations or bumps.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Excessive dust, smoke uid, and particle build up degrades performance, causes

overheating and will damage the xture. Damage caused by inadequate cleaning or

maintenance is not covered by the product warranty.

0,5 m Minimum distance of illuminated objects

• The projector needs to be positioned so that the objects hit by the beam of light are

at least 0.5 meters (1.64 ft) from the lens of the projector.

45°

aMax operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).

-20°

Minimum operating ambient temperature (Ta)

• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).

Protection from burns and fire

• The exterior of the xture becomes hot during use. Avoid contact by persons and

materials.

• Ensure that there is free and unobstructed airow around the xture.

• Keep ammable materials well away from the xture

• Do not expose the front glass to sunlight or any other strong light source from any an-

gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.

• Do not attempt to bypass thermostatic switches or fuses.

Indoor use

• This product is designed for indoor and dry environments.

• Do not use in wet location and do not expose the xture to rain or moisture.

• Never use the xture in places subject to vibrations or bumps.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Excessive dust, smoke uid, and particle build up degrades performance, causes

overheating and will damage the xture. Damage caused by inadequate cleaning or

maintenance is not covered by the product warranty.

50°

Temperature of the external surface

• The surface of the xture can reach up to 50 °C (122 °F) during operation. Avoid

contact with people and materials.

PROLIGHTS - Ecl PanelTWC

Protection and Warning against electrical shock

• Do not remove any cover from the product and disconnect the product from AC

power before servicing.

• Ensure that the xture is electrically connected to ground (earth). And use only a

source of AC power that complies with local building and electrical codes and has

both overload and ground-fault (earth-fault) protection.

• Before using the xture, check that all power distribution equipment and cables are

in perfect condition and rated for the current requirements of all connected devices.

• Isolate the xture from power immediately if the power plug or any seal, cover, cable,

or other component is damaged, defective, deformed or showing signs of overheat-

ing. Do not reapply power until repairs have been completed.

• Refer any service operation not described in this manual to PROLIGHTS Service team

or an authorized PROLIGHTS service center.

Connection to mains supply

• The Connection to the mains supply must be carried out by a qualied electrical

installer.

• Use only AC supplies 100-240V 50-60Hz, the xture must be electrically connected

to ground (earth).

• Select the cable cross section in according with the maximum current draw of the

product and the possible number of products connected at the same power line.

• The AC mains power distribution circuit must be equipped with magnetic+residual

current circuit breaker protection.

• Do not connect it to a dimmer system; doing so may damage the product.

70°

Temperature of the external surface

• The surface of the xture can reach up to 70 °C (159.8 °F) during operation. Avoid

contact with people and materials.

Maintenance

• Warning! Disconnect the xture from AC mains power and allow to cool for at least

10 minutes before handling.

• Only technicians who are authorized by PROLIGHTS or Authorised service partners

are permitted to open the xture.

• Users may carry out external cleaning, following the warnings and instructions pro-

vided, but any service operation not described in this manual must be referred to a

qualied service technician.

• Important! Excessive dust, smoke uid, and particle build up degrades performance,

causes overheating and will damage the xture. Damages caused by inadequate

cleaning or maintenance is not covered by the product warranty.

Photobiological safety

• This device emits potentially dangerous optical radiation and is identied in the cat-

egory of Risk Group 2 according to EN 62471.

Minimun

distance

Risk

Group 2

Risk

Group 1

0.2 m

0.7 ft

10.5 m

34.45 ft

PROLIGHTS - Ecl PanelTWC04

Do not stare at the operating light source

• Do not look directly at the LED source during operation. It can be harmful to the eyes

and skin.

• During Installation, operation and maintenance, be prepared for the xture to light

and move suddenly when connected to power.

• The device should be positioned so that prolonged staring into the luminaire at a

distance closer than 10.5 m is not expected.

Disposal

• This product is supplied in compliance with European Directive 2012/19/EU - Waste

Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-

pose/recycle this product at the end of its life according to the local regulation.

• The product contains a lithium ion battery.

• Don't throw the unit into the garbage at the end of its lifetime.

• Make sure to dispose is according to your local ordinances and/or regulations, to

avoid polluting the environment!

• The packaging is recyclable and can be disposed.

The products to which this manual refers comply with the European Directives pur-

suant to:

• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).

• 2014/30/EU - Electromagnetic Compatibility (EMC).

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).

• 2014/53/EU - Radio Equipment Directive (RED).

PROLIGHTS - Ecl PanelTWC

1 - PACKAGING

PACKAGE CONTENT

• 1x ECLPANELTWC;

• 1x 1,5 meters SCHUKO - NEUTRIK POWERCON TRUE1 power cable;

• 1x EPTWCFILTERMD: Front medium diffusion lter for ECLPANELTWC;

• 1x ECLFRSPG: Spigot for PROLIGHTS Fresnel series;

• User manual.

OPTIONAL ACCESSORIES

• FCLPANEL1U: Flight case for 1 pc of ECLPANELTWC;.

• FCLPANEL3U: Flight case for 3 pcs of ECLPANELTWC;

• ECLPANELPOYO: Pole operated aluminium yoke bracket for ECLPANELTWC;

• EPTWCFILTERINT: Front intensied diffusion lter for ECLPANELTWC;

• EPTWCFILTERHD: Front high diffusion lter (less output) for ECLPANELTWC;

• EPTWCFILTERLD: Front low diffusion lter (more output) for ECLPANELTWC;

• EPTWCEC30: 30 degree egg crate for ECLPANELTWC;

• EPTWCEC60: 60 degree egg crate for ECLPANELTWC;

• EPTWCEC8C: 8 chamber egg crate for ECLPANELTWC;

• EPTWCBDR2: Barn door with 4 directional aps to adjust the light beam;

• EPTWCSB21: SnapBag 2x1 for ECLPANELTWC by DoP choice;

• EPTWCSG4SB2140: 40° SnapGrid for SnapBag, 2x1 for ECLPANELTWC by DoP choice;

• EPTWCSG2140: 40° SnapGrid, 2x1 for ECLPANELTWC by DoP choice;

• EPSRER: Rabbit-Ears 2x1 Rectangular for ECLPANELTWC by DoP choice;

• EPSBRL3: Snapbag Lantern 3' for Rabbit-Ears by DoP. Incl. Lantern, Backcovers, Carry Bag;

• EPSBRL3C4: Cover for Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 sides, adj. with zipper;

• EPSBRM: SnapBag Medium to be mounted on Rabbit Ears by DoP;

• EPSGCM40: SnapBag Medium to be mounted on Rabbit Ears by DoP;

• EPSBRO3: Snapbag Octa 3' to be mounted on Rabbit-Ears by DoP;

• EPSGC3W40: 40° SnapGrid, to be mounted on Snap Bag Octa 3' (EPSBRO3);

• EPSBRO5: Snapbag Octa 5' to be mounted on Rabbit-Ears by DoP;

• EPSGC5W40: 40° SnapGrid, to be mounted on Snap Bag Octa 5' (EPSBRO5);

• SWIT500W2KIT: 24/48V 500W battery (>1.2hrs) KIT including 2*PBH260S smart power batt.+st.

adapt;

• UPBOX1U: Firmware uploader kit, USB IN, 3pin XLR DMX OUT, USB OUT;

• RSR: Steel security cable for hanging bodies, inox steel shackle;

• C6040: Heavy-load aluminum clamp, 500kg loa, 48-51mm tubes, M10 bolt inc.

PROLIGHTS - Ecl PanelTWC06

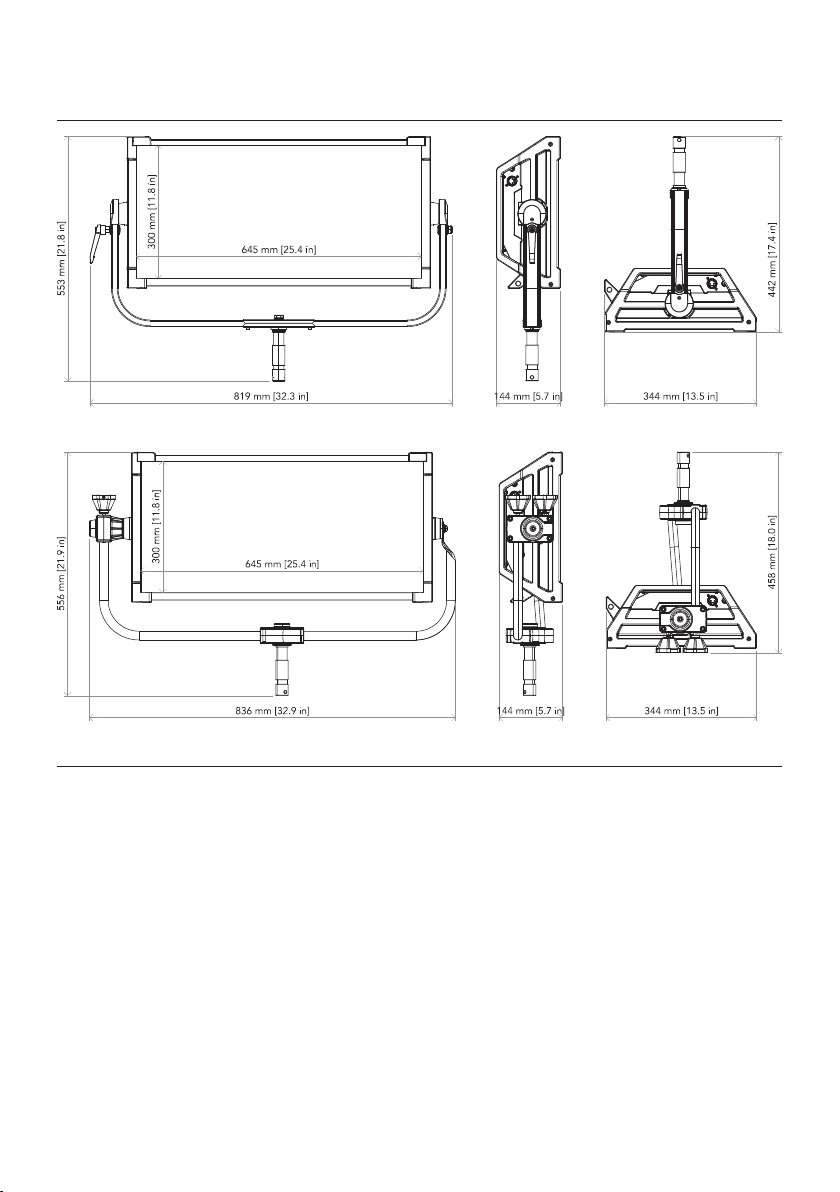

2 - TECHNICAL DRAWING

Dimensions are in mm / in - Fig.1

Weight: 15.3 kg - 33.73 lbs

Weight: 17.1kg - 36.70 lbs

PROLIGHTS - Ecl PanelTWC

Fig.2

3 - INSTALLATION

MOUNTING

Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,

auxiliary equipment, etc. and complies with locally applicable regulations.

When suspending the xture above ground level, secure it against failure of primary attachments by

attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor

point on the product main frame.

Do not use removable parts or weak anchors for secondary attachment.

Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-

pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

Ø11 [Ø0.4]

Clamp

Steel security cable

PROLIGHTS - Ecl PanelTWC08

5 - START UP

CONNECT AND DISCONNECT POWER FROM THE PRODUCT

To apply and disconnect power to the product:

• Check that the product is installed and secured as indicated in the Safety Informations, and that

personal safety will not be put at risk when the xture lights up.

• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).

• The product is then ready for its operations and can be controlled through the available input sig-

nals on board.

• To disconnect power from the product, disconnect the Mains from the socket.

• In case you wish to run the product through an external battery, then connect the product to an

external battery (24-36V) into the dedicated XLR4p socket; to disconnect power, disconnect the

Battery from the socket.

4 - CONNECTION TO THE MAINS SUPPLY

WARNING: For protection from electric shock, the xture must be earthed!

The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz

AC power source from 100-240 Volts.

If you need to install a power plug on the power cable to allow connection to power outlets, install a

grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts

about proper installation, consult a qualied electrician.

T max power consumption is 440W.

Core (EU) Core (US) Connection Plug terminal marking

Brown Black Live L

Blue White Neutral N

Yellow+green Green Earth

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de iluminación de ProLights

ProLights

ProLights LUMIPIX Manual de usuario

ProLights

ProLights FURY FY250W Manual de usuario

ProLights

ProLights Astra Profile600IP Manual de usuario

ProLights

ProLights Z390LED Manual de usuario

ProLights

ProLights CROMOBEAM250 Manual de usuario

ProLights

ProLights PFZ725 Manual de usuario

ProLights

ProLights BEAMROLL8W Manual de usuario

ProLights

ProLights HZ900D Manual de usuario

ProLights

ProLights DISPLAYCOBTRWDWW Manual de usuario

ProLights

ProLights DIAMOND31 Manual de usuario

ProLights

ProLights Eclipse FC Manual de usuario

ProLights

ProLights Krypton 40G Manual de usuario

ProLights

ProLights StudioCob PFC2 Manual de usuario

ProLights

ProLights EclFresnel TW Manual de usuario

ProLights

ProLights EclPanel TWCXL Manual de usuario

ProLights

ProLights ECLIPSEJZIP Manual de usuario

ProLights

ProLights UPBOX2 Manual de usuario

ProLights

ProLights EclMiniProfile WDMX Manual de usuario

ProLights

ProLights EclCyclorama 050 Manual de usuario

ProLights

ProLights Astra Hybrid330IP Manual de usuario

ProLights

ProLights Lumipix9HE Manual de usuario

ProLights

ProLights ARCLED345 Manual de usuario

ProLights

ProLights SmartBat Wash Manual de usuario

ProLights

ProLights EclFresnel 2KTW Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
