STROBE LED BAR

SUNBAR2500MAX

USER MANUAL

MANUALE UTENTE

reproduced in any form or by any means for any commercial use.

In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the

characteristics stated in this instruction manual at any time and without prior notice.

All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it

REV.001-02/18

SUNBAR2500MAX

Packing content • SUNBAR2500MAX

• Mount bracket

• User manual

TABLE OF CONTENTS Safety

General instructions

Warnings and installation precautions

1 Introduction

1. 1 Description

1. 2 Technical specications

1. 3 Operating elements and connections

2 Installation

2. 1 Mounting

3 Functions and settings

3. 1 Operation

3. 2 Basic

3. 3 Menu structure

3. 4 Linking

3. 5 DMX address

3. 6 DMX mode

3. 7 DMX addressing

3. 8 Ethernet

3. 9 ID and RDM

3. 10 Temperature unit

3. 11 Screen

3. 12 Fixture

3. 13 Fixture information

3. 14 Master/Slave

3. 15 Sequence

3. 16 Static mode

3. 17 Connection of the DMX line

3. 18 Construction of the DMX termination

3. 19 DMX control

3. 20 Pixel layouts

4 Maintenance

4. 1 Maintenance and cleaning the unit

4. 2 Fuse replacement

4. 3 Trouble shooting

SUNBAR2500MAX

WARNING! Before carrying out any operations with the unit, carefully read this instruction

manual and keep it with cure for future reference. It contains important information about

the installation, usage and maintenance of the unit.

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there-

fore marked with .

• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.

Never make any modications on the unit not described in this instruction manual, otherwise you will

risk an electric shock.

• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-

cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units

from indirect contact and/or shorting to earth by using appropriately sized residual current devices.

• The connection to the main network of electric distribution must be carried out by a qualied electrical

installer. Check that the main frequency and voltage correspond to those for which the unit is designed

as given on the electrical data label.

• This unit is not for home use, only professional applications.

• Never use the xture under the following conditions:

- in places wet;

- in places subject to vibrations or bumps;

- in places with an ambient temperature of over 45°C.

• Make certain that no inammable liquids, water or metal objects enter the xture.

• Do not dismantle or modify the xture.

• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for

an inspection or contact the manufacturer directly.

• If the unit is to be put out of operation denitively, take it to a local recycling

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

• If this device will be operated in any way dierent to the one described in this manual, it may suer

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like

short circuit, burns, electric shock, etc.

• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.

• Always additionally secure the projector with the safety rope.When carrying out any work, always com-

ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

in which the xture’s being used.

• For inside use only. Not designed for outside use.

• The minimum distance between the xture and surrounding walls must be more than 50 cm and the

air vents at the housing must not be covered in any case.

• Install the xture in a well ventilated place.

• Keep any inammable material at a safe distance from the xture.

• The maximum temperature that can be reached on the external surface of the tting, in a thermally

steady state, is high. After power o, please cool down over 15 minutes.

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

that their eectiveness is impaired.

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

SUNBAR2500MAX

- 1 - INTRODUCTION

1.1 DESCRIPTION

SUNBAR2500MAX is an exceptionally powerful LED graphic strobe batten, featuring also as static

blinder and ood. SUNBAR2500MAX oers a exible control of beam coverage through an inter-

changeable lens system, passing from 100° wide to 30° beam increasing the light intensity up to 4 time.

Available in White or Full Colour versions, and designed to deliver simply staggering light levels, this ver-

satile xture can provide an unbelievable punch over a huge area.

1.2 TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source:1024x1,3 W High Power White LED

• CT:CW: 7000 K

• CRI:87 Ra

• Luminous Flux:Strobe without lens (peak) 160’000lm; Static ON without lens 45’000; Strobe with lens

(peak) 112’000; Static ON with lens 40’000 lm

• Lux:(100°) 2093 lux, (30°) 5640 lux @3m

• Source Life Expectancy: >30.000 h

OPTICS

• Beam Angle:without lens 100°, with lens 30 °

• Field Angle:without lens 150°, with lens 80 °

• Additional Optics:Mountable 40° lens reector plate (included)

DYNAMIC EFFECTS

• Rotating Gobos: Dynamic Patterns with speed and rotation control

• Pixel Patterns: Preprogrammed dynamic and static patterns

• FX Generator:Adjustable foreground/background index, speed, direction

• Static Color Mode: Selection of static color

• Manual Color Mode: Manual adjustment of color

• Auto Mode: Built-in programs with execution speed adjustment

• Special Features:Multi-layer pixel FX control

BODY

• Hardware On-board: Omega sockets for quick rigging (clamp not included)

• Body: Sturdy die-cast aluminium body conceived for long-time durability

• Body Color: Black

CONTROL

• Protocols: DMX512, RDM, Art-Net, Kling-Net

• DMX Channels:from 1 ch to 79 ch

• Pixel Control:1/2/4/8/16/64 selectionable and controllable sections

• RDM: RDM ready for xture remote monitor and settings

• Display: Black TFT touch display

• Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included

ELECTRONICS

• Dimmer: Linear 0~100% electronic dimmer

SUNBAR2500MAX

• Dimmer Curves:4 Dierent dimming curves available

• Strobe/Shutter:1 - 30 Hz, electronic

• Operating Temperature: -10° ~ +45°

• Selectable PWM: 400~16K Hz

ELECTRICAL

• Power Supply: 100-240V – 50/60Hz

• Power Consumption (at 230V):Full Static: 596 W Strobing 1060 W

• Power Consumption (at 120V):Full Static: 621 W Strobing 1166 W

• Output (at 230V):3 units on a single power line

PHYSICAL

• Cooling: Forced air with low noise fan

• Suspension And Fixing: Hanging bracket for oor positioning with“Quick-Lock”system

• Signal Connection: 5p in/out, RJ45 in/out

• Power Connection: PowerCON TRUE1 in/out

• IP:20

• Dimensions (WxHxD):1000x75x231 mm

• Weight:9,60 kg

Fig.1

1000 231

Technical drawing

SUNBAR2500MAX

Fig.2

1.3 OPERATING ELEMENTS AND CONNECTIONS

1. LED BAR

2. LOCKING KNOB for the mounting

bracket.

3. MOUNTING BRACKET

4. CONTROL PANEL withTFT display

and 4 button used to access the

control panel functions and

manage them.

5. AIR OPENING

6. DMX OUT (5-pole XLR): 1 =

ground, 2 = DMX-, 3 = DMX+, 4

N/C, 5 N/C.

7. POWER OUT (PowerCON OUT):

power output for connection of

multiple units in series.

8. EtherCON connector Signal IN/

OUT.

9. POWER IN (PowerCON IN):

for connection to a socket

(100-240V~/50-60Hz) via the

supplied mains cable.

10. DMX IN (5-pole XLR): 1 = ground,

2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C.

11. FUSE

View A View B

610

5 5

SUNBAR2500MAX

- 2 - INSTALLATION

2.1 MOUNTING

The SUNBAR2500MAX may be set up on a solid and even surface. By means of the xing facilities of the

baseplate, the unit can also be mounted upside down to a cross arm. The base plate is shown in g.3. For

xing, stable mounting clips are required. According to the gure, the bolts of the brackets are placed into

the openings provided in the base plate and turned clockwise until they lock (to the stop). Always ensure

that the unit is rmly xed to avoid vibration and slipping while operating.The mounting place must be of

sucient stability and be able to support a weight of 10 times of the unit’s weight. When carrying out any

installation, always comply scrupulously with all the regulations (particularly regarding safety) currently

in force in the country in which the xture’s being used. Always additionally secure the projector with the

safety rope from falling down. For this purpose, fasten the safety rope at a suitable position so that the

maximum fall of the projector will be 20 cm.

Fig.3

SAFETY

CABLE

OMEGA

BRACKETS

SUNBAR2500MAX

- 3 - FUNCTIONS AND SETTINGS

3.1 OPERATION

Connect the supplied main cable to a socket (100-240V~/50-60Hz). The unit will run built-in program to

reset all motors to their home position. Shortly after that the SUNBAR2500MAX is ready for operation.

To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-

mended to connect the unit to a socket which can be switched on and o via light switch.

3.2 BASIC

The control panel of SUNBAR2500MAX has a display and 4 buttons for the complete programming and

management of the projector menu (g.4).

UP DOWN MENU ENTER

Increases the value

displayed or passes to

the previous item in a

Decreases the value

displayed or passes to

the next item in the

To enter in the main

menù or to return to the

top level

Conrms the displayed

value, or activates the

displayed function, or

enters the successive

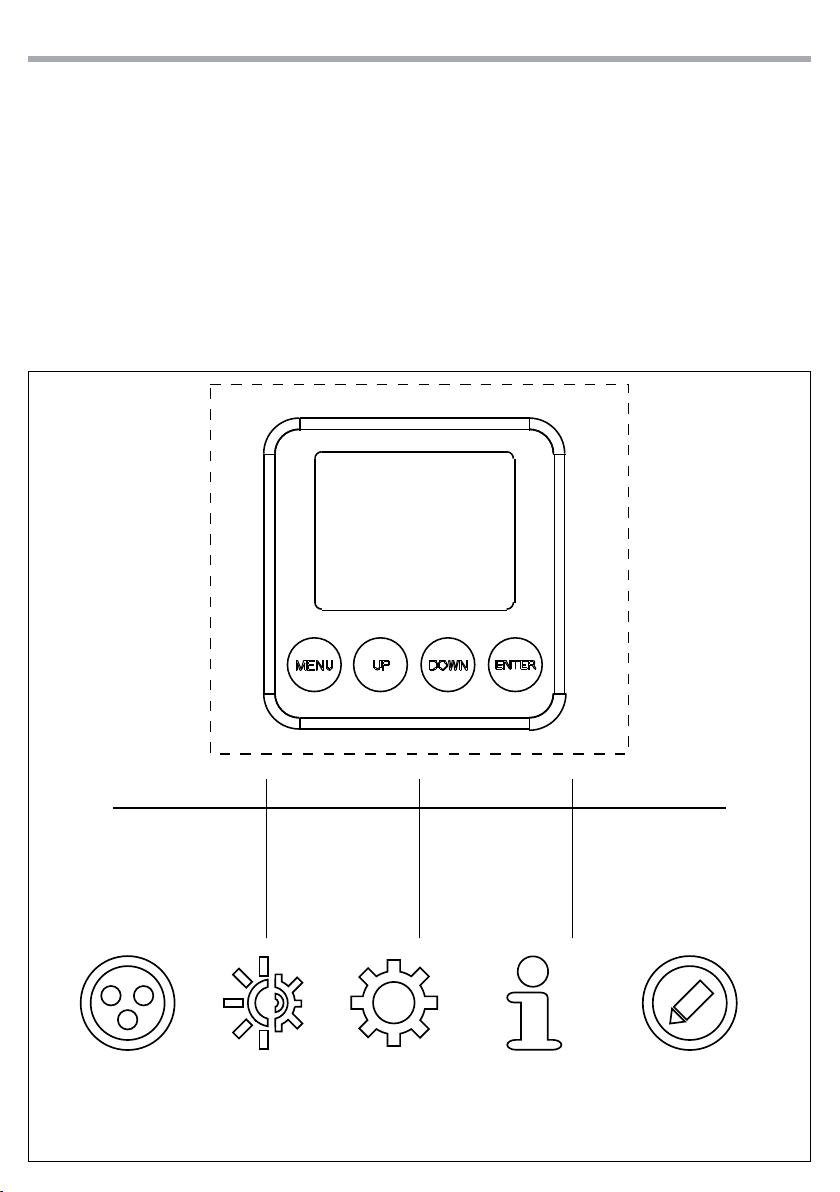

Fig.4 - Functions of the buttons and display icons

CONNECT SETUP ADVANCED INFORMATION STAND ALONE

SUNBAR2500MAX

3.3 MENU STRUCTURE

1CONNECT ðDMX Address ðValue (1-512)

DMX Mode ðBasic ðStatic

Strobe

Pixels

ð1 px

2 px

4 px

8 px

16 px

64 px

AdvAnced ðAdvAnced 1

AdvAnced 2

AdvAnced 3

AdvAnced 4

ethernet ðprotocol ðKling-net

only Art-net

Art-Net+DMX

Subnet ð0-15

univerSe ð0-15

StArt chAnnel ð1-512

ip AddreSS ð2/10

ethernet todMx ðno

yeS

rdM id ð15d0020d****

2SETUP ðTemperature Unit ð° C

° F

Screen ðBack Light ðON

10 S

20 S

30 S

Flip Display ðno

yeS

Key Lock ðno

yeS

Tabla de contenidos

Idiomas:

Otros manuales de Equipo de DJ de ProLights

ProLights

ProLights LUMIPAR7VWPRO Manual de usuario

ProLights

ProLights EclFresnel JrVW Manual de usuario

ProLights

ProLights ARCPOD27Q Manual de usuario

ProLights

ProLights ARENACOB4HALO Manual de usuario

ProLights

ProLights Mobiblast Manual de usuario

ProLights

ProLights ECLIPSEHDTWC Manual de usuario

ProLights

ProLights VX1300SNOW Manual de usuario

ProLights

ProLights RA3000Profile Manual de usuario

ProLights

ProLights LUMIPAR18TRI Manual de usuario

ProLights

ProLights CROMOSPOT500 Manual de usuario

ProLights

ProLights ECLIPSETU Manual de usuario

ProLights

ProLights SMARTOWER Manual de usuario

ProLights

ProLights TRIPLESCAN Manual de usuario

ProLights

ProLights Z7SPOT Manual de usuario

ProLights

ProLights UVPANEL18 Manual de usuario

ProLights

ProLights EclSoft LinearIP Manual de usuario

ProLights

ProLights ARIA 700SPOT Manual de usuario

ProLights

ProLights PANORAMAIPSPOT Manual de usuario

ProLights

ProLights LEDPAR64363RGB Manual de usuario

ProLights

ProLights TRUSSPOD3BAT Manual de usuario

ProLights

ProLights SUNBLAST3000FC Manual de usuario

ProLights

ProLights ECLIPSE FRESNEL TU Manual de usuario

ProLights

ProLights PHYRO1200SNOW Manual de usuario

ProLights

ProLights EMERALD Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
